Centipede
Disassembled by Karl Stiefvater

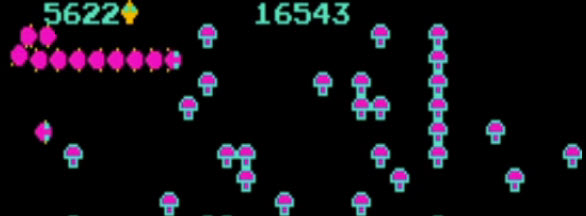

Centipede (Atari, 1981) is a fixed shooter played with a trackball. You roll a shooter back and forth (and a little way up and down) across the bottom of the screen and fire upward at a centipede that winds down toward you through a field of mushrooms.
The centipede enters at the top as a long chain of segments and marches side to side, dropping one row each time it reaches a wall or a mushroom. Shooting a segment turns that segment into a mushroom and splits the centipede in two: hit a middle segment and you get two shorter centipedes, each with its own head. Clear every segment and a new, faster centipede descends — and the more mushrooms clutter the field, the faster it works its way down.
Three other creatures harass you. A spider bounces around the lower area eating mushrooms and will kill the shooter on contact. A flea drops straight down when the field near the bottom thins out, leaving a trail of new mushrooms. A scorpion scuttles across and poisons the mushrooms it passes; a centipede that touches a poisoned mushroom dives straight down at you. Points come from shooting segments (a head is worth more than a body), mushrooms, and the spider, flea, and scorpion — the spider scores by how close it was when you hit it. A hit costs a life, damaged mushrooms regrow, and the game ends when your last shooter is lost, with a chance to enter your initials on the high-score table.
Navigation
- Hardware — CPU, memory map, I/O ports, the trackball inputs, the LS259 output latch, sprite/tilemap layout, POKEY sound
- Work RAM — the named work-RAM cells (0x0000–0x03FF)
- Main CPU code — the annotated 6502 disassembly
About this disassembly
This disassembly, RAM map, and game description were produced by AI and are verified against the original ROM and against MAME. The recovered code was checked to reproduce the ROM's own execution frame-for-frame, and the game model was confirmed by observing the real game running under MAME. It is offered here transparently, as AI work, precisely because it is machine-checked rather than hand-asserted — so verify it against that evidence. Project: https://github.com/qarl/arcade-js.
The disassembly covers the code reached from the machine's real entry points — the reset vector and the IRQ vector; ROM data tables (tile graphics indices, lookup tables, the attack and sprite layout data, text) are shown as data. Sound is a POKEY custom chip, driven directly by the main CPU; there is no second processor, so this is the whole program.
