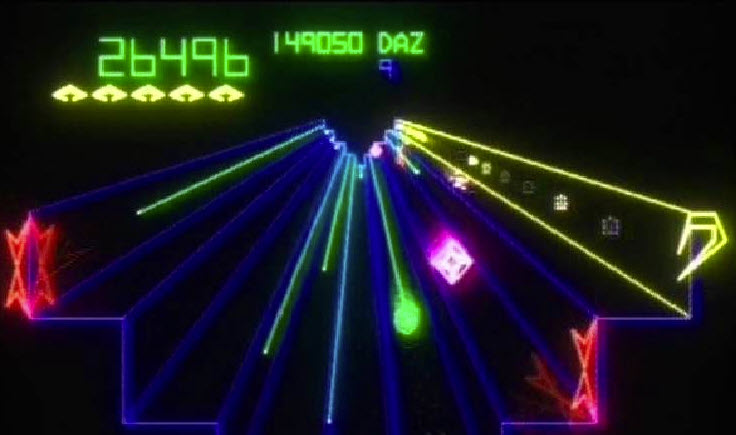

; Tempest (Atari, 1981).
;
; What follows is the code reached from the reset and interrupt entry points,
; shown as instructions; spans never reached appear as data (the "---- data
; ----" blocks).
; ---- $9000-$9008: data ----
9000: 02 BB 5A 30 50 EE 3D A8 4D
; initialize wave state: run the four setup passes $92C5, $9234,
; resetWorkingRamForStateEntry, $A831 in order, then seed 0x5b=0xfa and
; clear 0x106, 0x5f, 0x1.
runWaveInit:
9009: 20 C5 92 JSR reseedStateTables ; rebuild the per-wave enemy state tables
900C: 20 34 92 JSR seedPerLaneSpikeArray; lay out this wave's per-lane spikes
900F: 20 2B 90 JSR resetWorkingRamForStateEntry; clear working RAM for the state being entered
9012: 20 31 A8 JSR clearReadyLatchPair ; drop the paired ready latches
9015: A9 FA LDA #$FA
9017: 85 5B STA workRam+5B ; prime the tube-depth counter high byte to 250
9019: A9 00 LDA #$00
901B: 8D 06 01 STA workRam+106 ; clear the moving-spike active flag
901E: 85 5F STA workRam+5F ; clear the tube-depth counter low byte
9020: A9 00 LDA #$00
9022: 85 01 STA workRam+1 ; reset the mode-dispatch selector
9024: 60 RTS
; level-entry init: run $921B then $92C5, then tail-delegate to the main
; init resetWorkingRamForStateEntry. No own memory write.
runLevelInit:
9025: 20 1B 92 JSR seedFrameControlTimers; arm the per-frame control timers and plant the blaster's start pose
9028: 20 C5 92 JSR reseedStateTables ; rebuild the enemy state tables from the record tables
; master state-entry sweep: run the six reset/seed leaves back to back
; ($928F, $926F, $9246, $929F, $92AD, $C16E), then arm loc_124 and loc_148
; to 0xff and clear loc_123.
resetWorkingRamForStateEntry:
902B: 20 8F 92 JSR clearActiveShots ; wipe the active-shot bank
902E: 20 6F 92 JSR clearShotTableAndStateFlags; clear the per-slot depth table and the enemy population counts
9031: 20 46 92 JSR seedSlotRandomTags ; give each active enemy slot a fresh random tag
9034: 20 9F 92 JSR clearEightByteTableAndFlag; clear the shape-active table and its object count
9037: 20 AD 92 JSR clearByte50 ; zero the spinner accumulator
903A: 20 6E C1 JSR buildLevelLayout ; rebuild the level layout
903D: A9 FF LDA #$FF
903F: 8D 24 01 STA workRam+124 ; arm the rim-color animation cursor high
9042: 8D 48 01 STA workRam+148 ; arm the enemy-animation accumulator high
9045: A9 00 LDA #$00
9047: 8D 23 01 STA workRam+123 ; clear the spiked-segment count
904A: 60 RTS
; feed the rim-rotation update from a fixed-stride position accumulator:
; set floor loc_202=0x10, sign-extend delta loc_121 across loc_29/2a/2b
; (asr twice), fold into the 24-bit total loc_122/68/69, step the 16-bit
; position loc_5f/loc_5b by stride 0x18 (arm loc_115 at loc_5b>=0xfc), and
; on a collapsed high difference against loc_5d rebuild the seeds, set
; mode loc_0 (0x04/0x08 by loc_5 sign) and clear loc_102[loc_3d]; marks
; loc_114=0xff and continues into rotateBlasterAroundRim.
autoAdvanceRimRotation:
904B: A9 10 LDA #$10
904D: 8D 02 02 STA workRam+202 ; set the player-shot depth to the near/rim end
9050: A9 00 LDA #$00
9052: 85 29 STA workRam+29 ;
9054: 85 2B STA workRam+2B ;
9056: AD 21 01 LDA workRam+121 ; read the level's signed tube-geometry scale delta
9059: 85 2A STA workRam+2A ;
905B: 10 02 BPL loc_905f ;
905D: C6 2B DEC workRam+2B ; sign-extend the delta when negative
loc_905f:
905F: A2 01 LDX #$01
loc_9061:
9061: A5 2A LDA workRam+2A ;
9063: 0A ASL A
9064: 66 2A ROR workRam+2A ;
9066: 66 29 ROR workRam+29 ;
9068: CA DEX
9069: 10 F6 BPL loc_9061 ;
906B: A5 29 LDA workRam+29 ;
906D: 18 CLC
906E: 6D 22 01 ADC workRam+122 ; fold the scaled delta into the running zoom/position accumulator
9071: 8D 22 01 STA workRam+122 ;
9074: A5 2A LDA workRam+2A ;
9076: 65 68 ADC workRam+68 ; carry it up through the projection-offset low byte
9078: 85 68 STA workRam+68 ;
907A: A5 2B LDA workRam+2B ;
907C: 65 69 ADC workRam+69 ; and the projection-offset high byte
907E: 85 69 STA workRam+69 ;
9080: A5 5F LDA workRam+5F ;
9082: 18 CLC
9083: 69 18 ADC #$18 ; advance the tube-depth position by a fixed stride
9085: 85 5F STA workRam+5F ;
9087: A5 5B LDA workRam+5B ;
9089: 69 00 ADC #$00
908B: 85 5B STA workRam+5B ; carry into the depth high byte
908D: C9 FC CMP #$FC
908F: 90 05 BCC loc_9096 ;
9091: A9 01 LDA #$01
9093: 8D 15 01 STA workRam+115 ; arm the descending-spike table guard once the depth reaches the far limit
loc_9096:
9096: A5 5F LDA workRam+5F ;
9098: 38 SEC
9099: E5 5D SBC workRam+5D ; measure the remaining distance to the target depth
909B: A5 5B LDA workRam+5B ;
909D: F0 02 BEQ loc_90a1 ;
909F: E9 FF SBC #$FF
loc_90a1:
90A1: D0 19 BNE loc_90bc ; skip the snap until the depth window collapses
90A3: A5 5D LDA workRam+5D ;
90A5: 85 5F STA workRam+5F ; snap the position onto the target depth
90A7: A9 FF LDA #$FF
90A9: 85 5B STA workRam+5B ;
90AB: A9 04 LDA #$04
90AD: 24 05 BIT workRam+5 ; pick the next game mode by the play/active state bit
90AF: 30 02 BMI loc_90b3 ;
90B1: A9 08 LDA #$08
loc_90b3:
90B3: 85 00 STA workRam ; commit the chosen game mode
90B5: A6 3D LDX workRam+3D ;
90B7: A9 00 LDA #$00
90B9: 9D 02 01 STA workRam+102,X ; clear the active seat's cell
loc_90bc:
90BC: A9 FF LDA #$FF
90BE: 8D 14 01 STA workRam+114 ; flag the frame dirty for redraw
90C1: 4C 49 97 JMP rotateBlasterAroundRim; place the blaster on the now-advanced rim
; choose the wave's start slot: scan threshold table 0x91fe downward for
; the highest slot at or below seed 0x126, clamp up against a floor
; derived from wave state (0x16a/0x71d/0x9), publish the floor in 0x29 and
; the start index in 0x127, then fall into reseedWaveWorkingSet.
selectWaveStartSlot:
90C4: AD 26 01 LDA workRam+126 ; read the wave start-slot seed
90C7: A2 1C LDX #$1C
loc_90c9:
90C9: CA DEX
90CA: DD FE 91 CMP rom+1FE,X ; scan the slot-threshold table for the deepest slot at or below the seed
90CD: 90 FA BCC loc_90c9 ;
90CF: A0 04 LDY #$04 ; start the depth floor at 4
90D1: AD 6A 01 LDA workRam+16A ;
90D4: 29 04 AND #$04 ; test the difficulty switch that ratchets the start deeper
90D6: F0 12 BEQ loc_90ea ;
90D8: AD 1D 07 LDA workRam+71D ; read the current wave number
90DB: C9 30 CMP #$30
90DD: 90 01 BCC loc_90e0 ;
90DF: C8 INY ; push the floor one deeper past wave 48
loc_90e0:
90E0: C9 50 CMP #$50
90E2: 90 01 BCC loc_90e5 ;
90E4: C8 INY ; again past wave 80
loc_90e5:
90E5: C9 70 CMP #$70
90E7: 90 01 BCC loc_90ea ;
90E9: C8 INY ; again past wave 112
loc_90ea:
90EA: A5 09 LDA workRam+9 ;
90EC: 29 43 AND #$43 ; test the cabinet configuration for the deep-start override
90EE: C9 40 CMP #$40
90F0: D0 02 BNE loc_90f4 ;
90F2: A0 1B LDY #$1B ; force the start floor to 27
loc_90f4:
90F4: 84 29 STY workRam+29 ; publish the depth floor
90F6: E4 29 CPX workRam+29 ;
90F8: B0 02 BCS loc_90fc ;
90FA: A6 29 LDX workRam+29 ; clamp the start slot up to the floor
loc_90fc:
90FC: 8E 27 01 STX workRam+127 ; store the wave start-depth ceiling
90FF: A5 05 LDA workRam+5 ;
9101: 10 05 BPL reseedWaveWorkingSet;
9103: A9 00 LDA #$00
9105: 8D 26 01 STA workRam+126 ; retire the seed so it does not carry into the next wave
; reseed the wave working set: latch 0x3d from 0x3f (running
; swapParallelTables when nonzero), seed 0x7c/0x5b/0x200/0x51/0x7b/0x605,
; and on the 0x5 sign flag prime the intro cells
; (0x605/0x111/0x00/0x1/0x9f via unpackLevelNibbleTables), write 0x4, then
; fall into tickWaveSpawnCadence.
reseedWaveWorkingSet:
9108: A6 3F LDX workRam+3F ; latch the active level seat from the current level id
910A: 86 3D STX workRam+3D ;
910C: F0 03 BEQ loc_9111 ;
910E: 20 B2 92 JSR swapParallelTables ; swap in the level's parallel lane tables
loc_9111:
9111: A9 04 LDA #$04
9113: 85 7C STA workRam+7C ; seed the spread coordinate
9115: A9 FF LDA #$FF
9117: 85 5B STA workRam+5B ; set the tube-depth high byte to the far end
9119: A9 00 LDA #$00
911B: 8D 00 02 STA workRam+200 ; reset the player's rim segment
911E: 85 51 STA workRam+51 ; clear the rim rotation offset
9120: 85 7B STA workRam+7B ; clear the spread coordinate low byte
9122: 8D 05 06 STA workRam+605 ; clear the pass counter
9125: A6 05 LDX workRam+5 ;
9127: 10 1B BPL loc_9144 ; branch unless this is a level intro
9129: A9 14 LDA #$14
912B: 8D 05 06 STA workRam+605 ; arm the intro pass counter to 20
912E: A9 FF LDA #$FF
9130: 8D 11 01 STA workRam+111 ; raise the tube-geometry flag
9133: A9 16 LDA #$16
9135: 85 00 STA workRam ; enter the level-intro mode
9137: A9 08 LDA #$08
9139: 85 01 STA workRam+1 ; set the mode-dispatch selector
913B: A9 00 LDA #$00
913D: 85 9F STA workRam+9F ; clear the wave-progress index
913F: 20 96 C1 JSR unpackLevelNibbleTables; unpack the level nibble tables
9142: A9 10 LDA #$10
loc_9144:
9144: 85 04 STA workRam+4 ; store the mode-delay timer
9146: 20 AD 92 JSR clearByte50 ; zero the spinner accumulator
; tick the wave spawn cadence: decrement frame counter 0x605, on underflow
; BCD-count-down the phase 0x4 and reload; when the 0x4e phase gate
; passes, release one entry (index 0x91fe, seed 0x102/0x46/0x9f, run the
; spawn chain unpackLevelNibbleTables/reseedStateTables/seedPerLaneSpikeAr
; ray/clearReadyLatchPair/clearByte50), then trim 0x4e to its low 3 bits.
tickWaveSpawnCadence:
9149: CE 05 06 DEC workRam+605 ; tick down the frame counter and act only on underflow
914C: 10 1B BPL loc_9169 ;
914E: F8 SED
914F: A5 04 LDA workRam+4 ;
9151: 38 SEC
9152: E9 01 SBC #$01 ; decimal-decrement the intro/spawn phase
9154: 85 04 STA workRam+4 ;
9156: D8 CLD
9157: 10 04 BPL loc_915d ;
9159: A9 10 LDA #$10
915B: 85 4E STA workRam+4E ; on phase underflow set the spawn gate bit
loc_915d:
915D: C9 03 CMP #$03
915F: D0 03 BNE loc_9164 ;
9161: 20 FE CC JSR requestLevelIntroSound; at phase 3 cue the level-intro sound
loc_9164:
9164: A9 14 LDA #$14
9166: 8D 05 06 STA workRam+605 ; reload the frame counter to 20
loc_9169:
9169: 20 AB B0 JSR nudgeBlasterRimPosition; nudge the blaster's rim position
916C: A9 18 LDA #$18 ; pick the spawn edge mask by phase
916E: A4 04 LDY workRam+4 ;
9170: C0 08 CPY #$08
9172: B0 02 BCS loc_9176 ;
9174: A9 78 LDA #$78
loc_9176:
9176: 25 4E AND workRam+4E ;
9178: F0 34 BEQ loc_91ae ; spawn only if a masked edge flag is set
917A: A9 00 LDA #$00
917C: 85 4E STA workRam+4E ; clear the edge flags
917E: AD 00 02 LDA workRam+200 ; read the player's rim segment
9181: A8 TAY
9182: A6 3D LDX workRam+3D ;
9184: 9D 02 01 STA workRam+102,X ; record the player segment against the active seat
9187: B9 FE 91 LDA rom+1FE,Y ; take the start slot from the threshold table by segment
918A: 24 05 BIT workRam+5 ;
918C: 30 09 BMI loc_9197 ; off the play-state sign take a random slot instead
918E: A0 01 LDY #$01
9190: 84 48 STY workRam+48 ; mark the slot countdown
9192: AD CA 60 LDA pokey1+A ;
9195: 29 07 AND #$07 ; pull a random 0..7 from the POKEY RNG
loc_9197:
9197: 95 46 STA workRam+46,X ; store the chosen slot into the per-slot level table
9199: 85 9F STA workRam+9F ; and into the wave-progress index
919B: 20 96 C1 JSR unpackLevelNibbleTables; unpack the level nibble tables
919E: 20 C5 92 JSR reseedStateTables ; rebuild the enemy state tables
91A1: 20 34 92 JSR seedPerLaneSpikeArray; lay out the per-lane spikes
91A4: 20 31 A8 JSR clearReadyLatchPair ; drop the paired ready latches
91A7: A9 02 LDA #$02
91A9: 85 00 STA workRam ; set the active-play game mode
91AB: 20 AD 92 JSR clearByte50 ; zero the spinner accumulator
loc_91ae:
91AE: A5 4E LDA workRam+4E ;
91B0: 29 07 AND #$07 ; keep only the low 3 edge bits for the next frame
91B2: 85 4E STA workRam+4E ;
91B4: 60 RTS
; seat the in-page working pointer 0x2a/0x2b: double the selector into a
; word index, clear paired flag byte 0x29, and copy the little-endian
; pointer from ROM table 0x91c6/0x91c7 at that index.
seatInPagePointer:
91B5: 0A ASL A ; double the selector into a two-byte table offset
91B6: AA TAX
91B7: A9 00 LDA #$00
91B9: 85 29 STA workRam+29 ; clear the flag byte paired with this pointer
91BB: BD C6 91 LDA rom+1C6,X ; copy the selected structure's pointer low byte from the in-page table
91BE: 85 2A STA workRam+2A ;
91C0: BD C7 91 LDA rom+1C7,X ; copy its pointer high byte
91C3: 85 2B STA workRam+2B ;
91C5: 60 RTS
; ---- $91C6-$921A: data ----
91C6: 00 00 60 00 60 01 20 03 40 05 40 07 40 09 40 11
91D6: 40 13 20 15 00 17 80 18 80 20 60 22 80 24 60 26
91E6: 00 30 00 34 20 38 50 41 90 43 20 47 10 53 10 58
91F6: 40 62 60 65 60 76 80 89 00 02 04 06 08 0A 0C 0E
9206: 10 13 15 17 19 1B 1E 20 23 27 2B 2E 30 33 37 3B
9216: 3E 40 48 50 FF
; init seeder: write fixed startup constants loc_200=0x0e, loc_51=0xf0,
; loc_106=0x00, loc_201=0x0f and loc_202=0x10 (the frame-control byte
; loc_201 and counter loc_202 later drive ageShotsAndAdvanceFrameClock).
seedFrameControlTimers:
921B: A9 0E LDA #$0E
921D: 8D 00 02 STA workRam+200 ; seat the blaster at the starting rim segment
9220: A9 F0 LDA #$F0
9222: 85 51 STA workRam+51 ; set the rim fine-rotation offset
9224: A9 00 LDA #$00
9226: 8D 06 01 STA workRam+106 ; disarm the moving spike
9229: A9 0F LDA #$0F
922B: 8D 01 02 STA workRam+201 ; set the player's fine rotation angle
922E: A9 10 LDA #$10
9230: 8D 02 02 STA workRam+202 ; set the player-shot depth to the rim end
9233: 60 RTS
; init seeder: copy header byte loc_15b into loc_3ab, then fill the
; sixteen per-lane cells loc_3ac..loc_3ac+0x0f with the byte read from
; loc_15a.
seedPerLaneSpikeArray:
9234: AD 5B 01 LDA workRam+15B ; read the wave's initial active-slot count
9237: 8D AB 03 STA workRam+3AB ; seat it as the per-lane header count
923A: AD 5A 01 LDA workRam+15A ; read the per-lane fill constant
923D: A2 0F LDX #$0F
loc_923f:
923F: 9D AC 03 STA workRam+3AC,X ; fill all sixteen lane cells with the constant
9242: CA DEX
9243: 10 FA BPL loc_923f ;
9245: 60 RTS
; assign a fresh random tag to each active climber slot: zero the 64-byte
; tag table loc_243+0..0x3f, then for each slot from loc_3ab-1 down write
; a 4-bit POKEY-random $60CA&0x0f into loc_203,x and pack the slot index
; with it into loc_243,x=(x<<4)|nibble, substituting 0x0f when the packed
; tag would be zero.
seedSlotRandomTags:
9246: A9 00 LDA #$00
9248: A2 3F LDX #$3F
loc_924a:
924A: 9D 43 02 STA workRam+243,X ; clear the 64-byte slot tag/record table
924D: CA DEX
924E: 10 FA BPL loc_924a ;
9250: AE AB 03 LDX workRam+3AB ; start at the top active slot
9253: CA DEX
loc_9254:
9254: AD CA 60 LDA pokey1+A ; take a 4-bit POKEY random for this slot
9257: 29 0F AND #$0F
9259: 9D 03 02 STA workRam+203,X ; stash the random nibble in the slot's index cell
925C: 8A TXA
925D: 0A ASL A ; pack the slot index with its random nibble
925E: 0A ASL A
925F: 0A ASL A
9260: 0A ASL A
9261: 1D 03 02 ORA workRam+203,X ;
9264: D0 02 BNE loc_9268 ;
9266: A9 0F LDA #$0F ; substitute 0x0f so a live slot never carries an all-zero tag
loc_9268:
9268: 9D 43 02 STA workRam+243,X ; store the packed slot tag
926B: CA DEX
926C: 10 E6 BPL loc_9254 ;
926E: 60 RTS
; reset leaf: blank the seven shot-depth cells loc_2df..loc_2df+6 top-
; down, then clear seven scattered state flags loc_108, loc_109, loc_145,
; loc_142, loc_144, loc_143 and loc_146.
clearShotTableAndStateFlags:
926F: A2 06 LDX #$06
9271: A9 00 LDA #$00
loc_9273:
9273: 9D DF 02 STA workRam+2DF,X ; clear the seven-cell per-slot depth table
9276: CA DEX
9277: 10 FA BPL loc_9273 ;
9279: 8D 08 01 STA workRam+108 ; clear the total enemy count
927C: 8D 09 01 STA workRam+109 ; clear the enemy-type count
927F: 8D 45 01 STA workRam+145 ; clear the five per-lane enemy counts
9282: 8D 42 01 STA workRam+142 ;
9285: 8D 44 01 STA workRam+144 ;
9288: 8D 43 01 STA workRam+143 ;
928B: 8D 46 01 STA workRam+146 ;
928E: 60 RTS
; reset the shot bank: zero the 12-byte depth array loc_2d3 (0x0b..0) and
; both count cells loc_135 and loc_a6 to baseline.
clearActiveShots:
928F: A9 00 LDA #$00
9291: A2 0B LDX #$0B
loc_9293:
9293: 9D D3 02 STA workRam+2D3,X ; clear the 12-entry per-slot shot-state array
9296: CA DEX
9297: 10 FA BPL loc_9293 ;
9299: 8D 35 01 STA workRam+135 ; clear the active object count
929C: 85 A6 STA workRam+A6 ; clear the active enemy count
929E: 60 RTS
; reset leaf: blank the eight-byte table loc_30a..loc_30a+7 top-down, then
; clear the trailing flag byte loc_116.
clearEightByteTableAndFlag:
929F: A2 07 LDX #$07
92A1: A9 00 LDA #$00
loc_92a3:
92A3: 9D 0A 03 STA workRam+30A,X ; clear the eight-cell shape-active table
92A6: CA DEX
92A7: 10 FA BPL loc_92a3 ;
92A9: 8D 16 01 STA workRam+116 ; clear the timed-object count
92AC: 60 RTS
; minimal reset leaf: clear the single state cell loc_50 (a cell that
; ranges 0x00..0xde in play) to zero and return.
clearByte50:
92AD: A9 00 LDA #$00
92AF: 85 50 STA workRam+50 ; zero the spinner accumulator
92B1: 60 RTS
; swap the two parallel 18-entry tables loc_3aa and loc_3bc slot-for-slot
; (index 0x11 down to 0), so each table ends holding what its sibling
; held.
swapParallelTables:
92B2: A2 11 LDX #$11
loc_92b4:
92B4: BD AA 03 LDA workRam+3AA,X ; swap the two parallel 18-entry lane tables slot for slot
92B7: BC BC 03 LDY workRam+3BC,X ;
92BA: 9D BC 03 STA workRam+3BC,X ;
92BD: 98 TYA
92BE: 9D AA 03 STA workRam+3AA,X ;
92C1: CA DEX
92C2: 10 F0 BPL loc_92b4 ;
92C4: 60 RTS
; re-seed game state: build search key loc_2b from loc_9f (or a POKEY-
; random masked value via $60DA when >=98, then +1), walk the 4-byte
; record table at $9604 from record 111 down to 3 loading source ptr
; loc_2c/loc_2d and dest ptr loc_3b/loc_3c per record, scan each source
; list (via dispatchRangeValueBySelector/dispatchCursorAdvanceBySelector)
; for the range bracketing the key and store the resolved byte through the
; dest ptr, rescale loc_160/loc_15b per loc_16a&3, fold
; loc_163/loc_120/loc_160 through partitionByteToFineCoarseSeed, then seed
; many loc_01xx cells plus loc_155/loc_161/loc_166/loc_149/loc_14a.
reseedStateTables:
92C5: A5 9F LDA workRam+9F ; read the wave-progress index as the difficulty key
92C7: C9 62 CMP #$62
92C9: 90 07 BCC loc_92d2 ; branch unless the key runs off the top of the tables
92CB: AD DA 60 LDA pokey2+A ; substitute a POKEY random key when off the top
92CE: 29 1F AND #$1F
92D0: 09 40 ORA #$40
loc_92d2:
92D2: 85 2B STA workRam+2B ; store the difficulty search key
92D4: E6 2B INC workRam+2B ; bump it by one
92D6: A2 6F LDX #$6F
92D8: 86 37 STX workRam+37 ; start the record walk at index 111
loc_92da:
92DA: A6 37 LDX workRam+37 ;
92DC: BD 07 96 LDA rom+607,X ; read the record's destination pointer high byte
92DF: 85 3C STA workRam+3C ;
92E1: BD 06 96 LDA rom+606,X ; and its low byte
92E4: 85 3B STA workRam+3B ;
92E6: BD 05 96 LDA rom+605,X ; read the source-list pointer high byte
92E9: 85 2D STA workRam+2D ;
92EB: BD 04 96 LDA rom+604,X ; and its low byte
92EE: 85 2C STA workRam+2C ;
92F0: A9 01 LDA #$01
92F2: 85 38 STA workRam+38 ; reset the per-record scan cursor
92F4: A0 00 LDY #$00
loc_92f6:
92F6: B1 2C LDA (workRam+2C),Y ; read the next source-list entry
92F8: 8D 5E 01 STA workRam+15E ;
92FB: F0 1C BEQ loc_9319 ; end the list on a zero entry
92FD: A5 2B LDA workRam+2B ;
92FF: C8 INY
9300: D1 2C CMP (workRam+2C),Y ; compare the key against the range low bound
9302: C8 INY
9303: 90 0E BCC loc_9313 ;
9305: D1 2C CMP (workRam+2C),Y ; compare against the range high bound
9307: D0 01 BNE loc_930a ;
9309: 18 CLC
loc_930a:
930A: B0 07 BCS loc_9313 ; skip this range if the key is outside it
930C: C8 INY
930D: 20 77 96 JSR dispatchRangeValueBySelector; resolve the value for this destination cell
9310: 4C 19 93 JMP loc_9319 ;
loc_9313:
9313: 20 83 96 JSR dispatchCursorAdvanceBySelector; advance the cursor to the next range
9316: 18 CLC
9317: 90 DD BCC loc_92f6 ;
loc_9319:
9319: A0 00 LDY #$00
931B: 91 3B STA (workRam+3B),Y ; store the resolved byte through the destination pointer
931D: A5 37 LDA workRam+37 ;
931F: 38 SEC
9320: E9 04 SBC #$04 ; step to the next record, four bytes back
9322: 85 37 STA workRam+37 ;
9324: C9 FF CMP #$FF
9326: D0 B2 BNE loc_92da ; loop until the record table is exhausted
9328: AD 6A 01 LDA workRam+16A ;
932B: 29 03 AND #$03 ; select the enemy-speed rescale by difficulty mode
932D: C9 01 CMP #$01
932F: D0 1C BNE loc_934d ;
9331: CE 1A 01 DEC workRam+11A ; easy mode: lower the free-flight slot ceiling
9334: AD 60 01 LDA workRam+160 ;
9337: 49 FF EOR #$FF
9339: 4A LSR A
933A: 4A LSR A
933B: 4A LSR A
933C: 6D 60 01 ADC workRam+160 ;
933F: 8D 60 01 STA workRam+160 ; ramp the segment-0 climb speed down
9342: A5 9F LDA workRam+9F ;
9344: C9 11 CMP #$11
9346: B0 02 BCS loc_934a ;
9348: C6 B3 DEC workRam+B3 ; ease the early waves further
loc_934a:
934A: B8 CLV
934B: 50 35 BVC loc_9382 ;
loc_934d:
934D: C9 02 CMP #$02 ; hard mode?
934F: D0 31 BNE loc_9382 ;
9351: EE 1A 01 INC workRam+11A ; raise the free-flight slot ceiling
9354: AD 1A 01 LDA workRam+11A ;
9357: C9 03 CMP #$03
9359: 90 05 BCC loc_9360 ;
935B: A9 03 LDA #$03
935D: 8D 1A 01 STA workRam+11A ; clamp the ceiling to 3
loc_9360:
9360: AD 60 01 LDA workRam+160 ;
9363: 4A LSR A
9364: 4A LSR A
9365: 4A LSR A
9366: 09 E0 ORA #$E0
9368: 6D 60 01 ADC workRam+160 ;
936B: 8D 60 01 STA workRam+160 ; ramp the segment-0 climb speed up
936E: AD 5B 01 LDA workRam+15B ;
9371: 4A LSR A
9372: 4A LSR A
9373: 4A LSR A
9374: 6D 5B 01 ADC workRam+15B ;
9377: 8D 5B 01 STA workRam+15B ; raise the wave's initial active count
937A: AD 6D 01 LDA workRam+16D ;
937D: 09 40 ORA #$40
937F: 8D 6D 01 STA workRam+16D ; select the hard-mode alternate list set
loc_9382:
9382: AD 63 01 LDA workRam+163 ;
9385: 20 E0 93 JSR partitionByteToFineCoarseSeed; fold the segment-3 climb delta into fine and coarse seeds
9388: 8D 63 01 STA workRam+163 ; store the segment-3 climb-delta low byte
938B: 8C 68 01 STY workRam+168 ; store the segment-3 climb-delta high byte
938E: 8E 54 01 STX workRam+154 ; store the segment-3 band threshold
9391: AD 20 01 LDA workRam+120 ;
9394: 20 E0 93 JSR partitionByteToFineCoarseSeed; fold the object velocity into fine and coarse seeds
9397: 8D 20 01 STA workRam+120 ; store the object-velocity low byte
939A: 8C 18 01 STY workRam+118 ; store the object-velocity high byte
939D: 86 A7 STX workRam+A7 ; store the hit-distance threshold
939F: AD 60 01 LDA workRam+160 ;
93A2: 20 E0 93 JSR partitionByteToFineCoarseSeed; fold the segment-0 climb delta into fine and coarse seeds
93A5: 8D 60 01 STA workRam+160 ; store the segment-0 climb-delta low byte
93A8: 8D 62 01 STA workRam+162 ; mirror it into the segment-2 climb delta
93AB: 8C 67 01 STY workRam+167 ; store the segment-2 climb-delta high byte
93AE: 8C 65 01 STY workRam+165 ; store the segment-0 climb-delta high byte
93B1: 8E 51 01 STX workRam+151 ; store band threshold 0
93B4: 8E 53 01 STX workRam+153 ; store band threshold 2
93B7: 8E 52 01 STX workRam+152 ; store band threshold 1
93BA: AD 60 01 LDA workRam+160 ;
93BD: 0A ASL A
93BE: 8D 64 01 STA workRam+164 ; derive the segment-4 climb delta by doubling segment-0
93C1: AD 65 01 LDA workRam+165 ;
93C4: 2A ROL A
93C5: 8D 69 01 STA workRam+169 ; and its high byte with the carry
93C8: A9 06 LDA #$06
93CA: 8D 55 01 STA workRam+155 ; hard-seed band threshold 4
93CD: A9 A0 LDA #$A0
93CF: 8D 61 01 STA workRam+161 ; hard-seed the segment-1 climb-delta low byte
93D2: A9 FE LDA #$FE
93D4: 8D 66 01 STA workRam+166 ; and its high byte
93D7: A9 01 LDA #$01
93D9: 8D 4A 01 STA workRam+14A ; seed the first candidate lane
93DC: 8D 49 01 STA workRam+149 ; seed the second candidate lane
93DF: 60 RTS
; split one input byte into three derived; used by reseedStateTables to
; fan loc_163/loc_120/loc_160 out into their satellite cells.
partitionByteToFineCoarseSeed:
93E0: A0 FF LDY #$FF ; seed the bit-fold accumulator with 0xff
93E2: 84 29 STY workRam+29 ; hold the running seed in scratch
93E4: 0A ASL A ; shift the source byte's top bit out
93E5: 26 29 ROL workRam+29 ; fold that top bit into the seed's low end
93E7: 0A ASL A ; shift the next source bit out
93E8: 26 29 ROL workRam+29 ; fold it into the seed
93EA: 0A ASL A ; shift the third source bit out
93EB: 26 29 ROL workRam+29 ; fold it into the seed
93ED: A4 29 LDY workRam+29 ; take the finished fine seed into Y
93EF: 48 PHA
93F0: 98 TYA
93F1: 49 FF EOR #$FF ; complement the seed
93F3: 18 CLC
93F4: 69 0D ADC #$0D ; bias the complement by 0x0d
93F6: 4A LSR A ; halve it to form the coarse index
93F7: AA TAX
93F8: 68 PLA
93F9: 60 RTS
; ---- $93FA-$9676: data ----
93FA: 08 01 14 50 FD 02 15 40 14 02 41 63 0A 04 01 09
940A: 01 01 01 02 03 02 02 03 03 02 0A 40 02 02 41 63
941A: 03 08 01 08 D4 FB 04 09 10 AF AC AC AC A8 A4 A0
942A: A0 08 11 19 AF FD 08 1A 20 9D FD 08 21 27 94 FD
943A: 08 28 30 92 FF 08 31 40 88 FF 0C 41 63 60 41 0A
944A: 01 63 C0 0A 01 14 00 0A 15 20 D0 0A 21 30 D8 0A
945A: 31 63 D0 02 01 20 A0 02 21 40 A0 02 41 63 C0 02
946A: 01 30 04 02 31 40 06 02 41 63 08 02 01 20 01 02
947A: 21 28 03 02 29 63 02 02 01 30 01 02 31 63 03 04
948A: 01 04 00 00 00 01 02 05 10 02 02 11 13 00 02 14
949A: 20 01 02 23 27 01 02 2C 63 01 00 04 01 06 00 00
94AA: 00 02 03 04 02 07 0A 04 02 0B 10 03 02 14 19 02
94BA: 04 1A 20 01 02 02 02 01 01 02 02 35 27 01 02 2B
94CA: 63 01 00 02 01 04 01 02 05 63 00 00 02 01 04 04
94DA: 02 05 10 05 02 11 13 03 02 14 19 04 02 1A 63 05
94EA: 00 04 01 04 00 00 01 00 02 05 10 01 02 11 20 01
94FA: 02 21 27 01 02 28 63 01 00 04 01 05 00 00 01 00
950A: 01 02 06 10 02 02 11 1A 01 02 1B 20 01 02 21 2C
951A: 02 02 2D 63 03 00 02 11 20 02 02 21 63 01 00 04
952A: 11 20 05 03 02 02 02 02 02 02 02 02 02 02 02 03
953A: 04 02 02 21 63 03 00 02 0B 10 01 02 16 19 01 02
954A: 1B 63 01 00 02 0B 10 01 02 16 19 01 02 1B 20 01
955A: 02 21 27 04 02 28 63 03 00 04 11 12 28 14 0C 13
956A: 20 14 28 08 21 27 14 FF 0C 28 63 14 0A 00 0C 11
957A: 20 00 40 0C 21 30 40 C0 02 31 63 C0 00 02 01 10
958A: DC 02 11 27 C0 08 28 40 C0 01 02 41 63 E6 02 01
959A: 63 06 06 01 63 00 00 00 E0 D8 D4 D0 C8 C0 B8 B0
95AA: A8 A0 A0 A0 A8 A0 9C 9A 98 04 01 10 0A 0C 0F 11
95BA: 14 16 14 18 1B 1D 1B 18 1A 1C 1E 1B 08 11 1A 14
95CA: 01 02 1B 27 1B 08 28 30 1D 01 08 31 40 1F 01 08
95DA: 41 50 23 01 08 51 63 2B 01 02 01 14 02 02 15 20
95EA: 02 02 21 63 03 02 3C 63 40 00 06 01 63 07 0B 19
95FA: 24 53 0B 24 19 53 87 24 19 53 07 87 24 EF 95 6D
960A: 01 E3 95 B3 00 FA 93 19 01 07 94 1A 01 CD 94 29
961A: 01 D6 94 2E 01 20 95 2A 01 29 95 2F 01 EB 94 2B
962A: 01 03 95 30 01 89 94 2C 01 A5 94 31 01 41 95 2D
963A: 01 4E 95 32 01 5D 94 57 01 69 94 47 01 75 94 4B
964A: 01 81 94 4C 01 98 95 1C 01 B3 95 5B 01 9C 95 5A
965A: 01 63 95 B2 00 F4 95 5D 01 4D 94 63 01 49 94 20
966A: 01 1B 94 60 01 78 95 59 01 87 95 5F 01
; resolve the range-bracketed list value: read the even selector byte
; 0x15e, halve it, and tail-call the matching 0x96xx coordinate helper
; ($96C4/96b7/96ab/96e2/96db/9700), returning its byte to $92C5's table
; walk.
dispatchRangeValueBySelector:
9677: AE 5E 01 LDX workRam+15E ; load the coordinate-value helper selector
967A: BD 90 96 LDA rom+690,X ; read the chosen helper's return-address high byte
967D: 48 PHA
967E: BD 8F 96 LDA rom+68F,X ; read its low byte
9681: 48 PHA
9682: 60 RTS ; computed jump into the selected coordinate-value helper
; advance the source-list cursor: use selector 0x15e to pick a cursor-
; advance helper (advanceListCursorByTwo/96cb/96c7) and tail-call it, pre-
; seating A to the selected pointer's low byte for the Y-only handlers.
dispatchCursorAdvanceBySelector:
9683: AE 5E 01 LDX workRam+15E ; load the cursor-advance helper selector
9686: BD 9E 96 LDA rom+69E,X ; read the chosen advance helper's high byte
9689: 48 PHA
968A: BD 9D 96 LDA rom+69D,X ; read its low byte
968D: 48 PHA
968E: 60 RTS ; computed jump into the selected cursor-advance helper
; ---- $968F-$96AA: data ----
968F: 00 00 C3 96 B6 96 AA 96 E1 96 DA 96 FF 96 00 00
969F: C7 96 CA 96 CA 96 C6 96 C7 96 C6 96
; fetch a coordinate-list entry by re-indexing: stash Y at 0x29, form the
; index value ((0x2b-1)&0x0f)+1, subtract the list byte two entries back
; (pointer+(Y-2)), add back the saved Y, re-index the pointer by the
; result, and load and return that entry.
fetchCoordListEntryByCounter:
96AB: A5 2B LDA workRam+2B ; read the list counter
96AD: 38 SEC
96AE: E9 01 SBC #$01 ; counter minus one
96B0: 29 0F AND #$0F ; wrap into the low nibble
96B2: 18 CLC
96B3: 69 01 ADC #$01 ; plus one -- the counter-derived seed
96B5: 10 02 BPL loc_96b9 ; join the shared re-index
; sibling of 0x96ab that uses the raw index 0x2b (not the counter-wrapped
; value): stash Y at 0x29, subtract the list byte two entries back, add
; back saved Y, re-index the pointer, and load and return that entry.
fetchCoordListEntryByIndex:
96B7: A5 2B LDA workRam+2B ; index variant -- seed from the raw counter instead
loc_96b9:
96B9: 84 29 STY workRam+29 ; stash the incoming cursor
96BB: 88 DEY ; step back one entry
96BC: 88 DEY ; step back a second entry
96BD: 38 SEC
96BE: F1 2C SBC (workRam+2C),Y ; subtract the stride byte two entries back
96C0: 18 CLC
96C1: 65 29 ADC workRam+29 ; add the saved cursor back in
96C3: A8 TAY
; the bare coordinate-list read: return the byte at pointer 0x2c offset by
; Y, with no index arithmetic.
readCoordListEntry:
96C4: B1 2C LDA (workRam+2C),Y ; load the coordinate-list entry the offset points at
96C6: 60 RTS
; cursor-skip helper: advance the list cursor Y by a fixed run to step
; over a packed record without reading it -- the first entry moves Y
; forward by three (bumps by one then falls into the second entry), the
; second entry by two; register only, writes no memory
advanceCursorPastPackedRecord:
96C7: C8 INY ; first entry -- advance the cursor by one
; step the list cursor forward past a two-byte record without reading it:
; return Y+2 (register only).
advanceListCursorByTwo:
96C8: C8 INY ; advance the cursor two past a packed record
96C9: C8 INY
96CA: 60 RTS
; walk the packed coordinate list through 0x2c/0x2d: read the entry at Y
; and its predecessor at Y-1, store their difference (cur-prev) at 0x29 as
; the step delta, and advance Y by that delta plus two.
advanceCoordListByEntryStride:
96CB: B1 2C LDA (workRam+2C),Y ; read the coordinate entry under the cursor
96CD: 88 DEY ; back up to the predecessor entry
96CE: 38 SEC
96CF: F1 2C SBC (workRam+2C),Y ; subtract it -- the inter-entry stride
96D1: 85 29 STA workRam+29 ; publish the stride delta in scratch
96D3: 98 TYA
96D4: 38 SEC
96D5: 65 29 ADC workRam+29 ; advance the cursor forward by the stride
96D7: A8 TAY
96D8: C8 INY ; leave the cursor one past
96D9: C8 INY ; leave it two past, ready for the next entry pair
96DA: 60 RTS
; resolve one list entry to an absolute coordinate: read the byte at
; pointer 0x2c offset by Y and add the base value in 0x160, returning the
; 8-bit sum in A.
resolveCoordListEntryToAbsolute:
96DB: B1 2C LDA (workRam+2C),Y ; read the relative list entry
96DD: 18 CLC
96DE: 6D 60 01 ADC workRam+160 ; fold it onto the anchor base for the absolute coordinate
96E1: 60 RTS
; fold a run of coordinate-list entries: use 0x96f4 as a repeat count,
; load the first entry at pointer 0x2c offset Y, then add that many
; further consecutive entries into a single wrapped one-byte total.
sumCoordListEntryRun:
96E2: 20 F4 96 JSR computeCoordListBackDelta; get the repeat count for this run
; ---- $96E5-$96E5: data ----
96E5: AA
96E6: B1 2C LDA (workRam+2C),Y ; seed the total with the first entry
96E8: C8 INY ; step to the next entry
96E9: E0 00 CPX #$00 ; test the count
96EB: F0 06 BEQ loc_96f3 ; nothing to add when the count is zero
loc_96ed:
96ED: 18 CLC ; add the next entry into the running total
96EE: 71 2C ADC (workRam+2C),Y ;
96F0: CA DEX ; drop the count
96F1: D0 FA BNE loc_96ed ; repeat until the run is summed
loc_96f3:
96F3: 60 RTS
; compute the coordinate-list index delta: record Y at 0x29 and return
; (0x2b minus the list byte two slots back at pointer+(Y-2)) & 0xff; a
; leaf whose result is consumed downstream.
computeCoordListBackDelta:
96F4: A5 2B LDA workRam+2B ; read the scratch base value
96F6: 84 29 STY workRam+29 ; record the cursor so the caller can recover it
96F8: 88 DEY ; step back one slot
96F9: 88 DEY ; step back a second slot
96FA: 38 SEC
96FB: F1 2C SBC (workRam+2C),Y ; base minus the list byte two slots back -- the delta
96FD: C8 INY
96FE: C8 INY
96FF: 60 RTS
; ---- $9700-$9704: data ----
9700: 20 F4 96 29 01
9705: F0 01 BEQ loc_9708 ; even delta -- fetch the entry as-is
9707: C8 INY ; odd delta -- step one slot forward
loc_9708:
9708: B1 2C LDA (workRam+2C),Y ; load the entry the cursor now points at
970A: 60 RTS
; run the nine per-frame update passes in fixed order ($9749, $A23F,
; $A83A, $98A2, $9B1E, $A18F, $A2A6, $A454, $A416) then tail-delegate to
; $A504; makes no own role-defining write.
runPerFrameUpdates:
970B: 20 49 97 JSR rotateBlasterAroundRim; rotate the player's blaster around the rim
970E: 20 3F A2 JSR spawnEntityIntoFreeSlot; seat a newly spawned enemy into a free slot
9711: 20 3A A8 JSR stepAttractEnemySweepTimer; advance the attract-mode enemy sweep timer
9714: 20 A2 98 JSR tickSpawnSlotTimers ; count down the per-slot spawn timers
9717: 20 1E 9B JSR runObjectMotionScripts; run every occupied slot's motion script
971A: 20 8F A1 JSR stepActiveShots ; advance the active shots
971D: 20 A6 A2 JSR spawnClimbersFromSourceSlots; spawn climbers up the lanes from their source slots
9720: 20 54 A4 JSR scanAllSlotsForProximity; proximity and collision scan across all slots
9723: 20 16 A4 JSR ageTimedObjects ; age the transient timed objects
9726: 4C 04 A5 JMP ageShotsAndAdvanceFrameClock; tail into aging shots and ticking the frame clock
; run the per-frame state updaters: clear bit7 of 0x123, run $9749, $97F8,
; $A416, $A23F, $A18F in order, then run the extra updater $A504 only when
; 0x201 is negative.
runFrameStateUpdaters:
9729: AD 23 01 LDA workRam+123 ; read the spiked-segment tally cell
972C: 29 7F AND #$7F ; clear its per-frame high bit, keep the tally
972E: 8D 23 01 STA workRam+123 ; write back the clean count
9731: 20 49 97 JSR rotateBlasterAroundRim; turn the spinner/aim into the player's new rim angle
9734: 20 F8 97 JSR advanceMovingSpike ; step the moving spike
9737: 20 16 A4 JSR ageTimedObjects ; age the timed objects
973A: 20 3F A2 JSR spawnEntityIntoFreeSlot; seat a new enemy into a free slot
973D: 20 8F A1 JSR stepActiveShots ; advance the live shots
9740: AD 01 02 LDA workRam+201 ; read the fine-angle rotation-pending flag
9743: 10 03 BPL loc_9748 ; skip the extra pass unless its high bit is set
9745: 20 04 A5 JSR ageShotsAndAdvanceFrameClock; extra pass -- age shots and tick the frame clock
loc_9748:
9748: 60 RTS
; advance the rim rotation/spinner state: skip while fine-angle flag
; loc_201 bit7 set; take the delta from manual reading loc_50 (clamped to
; band [0xe1,0x1f], then consumed) when loc_5 bit7 is set else the auto-
; aim from aimSpinnerAtNearestEnemy; fold it into work cells
; loc_2b/loc_2c, and on a live level (loc_111!=0) cap loc_2c to 0xef and
; saturate toward the stored sign on a sign flip; the high nibble becomes
; coarse angle loc_2a, ring sound cueRimRotationSound on a changed coarse
; angle, then commit loc_200/loc_201/loc_51.
rotateBlasterAroundRim:
9749: AD 01 02 LDA workRam+201 ; read the fine-angle rotation-pending flag
974C: 10 01 BPL loc_974f ; proceed only when no rotation is pending
974E: 60 RTS ; pending or locked -- do nothing this frame
loc_974f:
974F: A2 00 LDX #$00
9751: A5 05 LDA workRam+5 ; read the status flags
9753: 30 06 BMI loc_975b ; manual-play bit set -- take the raw spinner delta
9755: 20 C5 97 JSR aimSpinnerAtNearestEnemy; aim mode -- auto-aim delta toward the nearest enemy
9758: B8 CLV
9759: 50 15 BVC loc_9770 ; join the offset computation
loc_975b:
975B: A5 50 LDA workRam+50 ; manual play -- read the raw spinner delta
975D: 10 09 BPL loc_9768 ; positive delta -- go cap it
975F: C9 E1 CMP #$E1 ; negative delta below the floor
9761: B0 02 BCS loc_9765 ;
9763: A9 E1 LDA #$E1 ; floor the delta at 0xe1
loc_9765:
9765: B8 CLV
9766: 50 06 BVC loc_976e ;
loc_9768:
9768: C9 1F CMP #$1F ; positive delta at or below the cap
976A: 90 02 BCC loc_976e ;
976C: A9 1F LDA #$1F ; cap the delta at 0x1f
loc_976e:
976E: 86 50 STX workRam+50 ; consume the spinner reading -- zero it
loc_9770:
9770: 85 2B STA workRam+2B ; stash the chosen turn delta
9772: 49 FF EOR #$FF
9774: 38 SEC
9775: 65 51 ADC workRam+51 ; form rim-offset minus the delta
9777: 85 2C STA workRam+2C ; provisional new rim offset
9779: AE 11 01 LDX workRam+111 ; read the live-board tube-geometry flag
977C: F0 1F BEQ loc_979d ; skip the end-of-rim clamps when no board is live
977E: C9 F0 CMP #$F0 ; offset short of the top limit
9780: 90 04 BCC loc_9786 ;
9782: A9 EF LDA #$EF ; cap the offset to the top lane
9784: 85 2C STA workRam+2C ;
loc_9786:
9786: 45 2B EOR workRam+2B ; compare the offset's sign against the delta
9788: 10 13 BPL loc_979d ; same sign -- no over-rotation, continue
978A: A5 2C LDA workRam+2C ; compare the offset's sign against the old offset
978C: 45 51 EOR workRam+51 ;
978E: 10 0D BPL loc_979d ; same sign -- continue
9790: A5 51 LDA workRam+51 ; pick the saturation end by the old offset's sign
9792: 30 05 BMI loc_9799 ;
9794: A9 00 LDA #$00 ; saturate to the bottom end of the rim
9796: B8 CLV
9797: 50 02 BVC loc_979b ;
loc_9799:
9799: A9 EF LDA #$EF ; saturate to the top end of the rim
loc_979b:
979B: 85 2C STA workRam+2C ;
loc_979d:
979D: A5 2C LDA workRam+2C ; take the offset's high nibble
979F: 4A LSR A
97A0: 4A LSR A
97A1: 4A LSR A
97A2: 4A LSR A
97A3: 85 2A STA workRam+2A ; store it as the coarse lane
97A5: 18 CLC
97A6: 69 01 ADC #$01 ; pair the fine angle as high-nibble plus one
97A8: 29 0F AND #$0F
97AA: 85 2B STA workRam+2B ; store the fine angle
97AC: A5 2A LDA workRam+2A ; compare the new coarse lane against the current segment
97AE: CD 00 02 CMP workRam+200 ;
97B1: F0 03 BEQ loc_97b6 ; unchanged -- skip the movement sound
97B3: 20 B5 CC JSR cueRimRotationSound ; crossed into a new lane -- ring the rim-movement sound
loc_97b6:
97B6: A5 2A LDA workRam+2A ;
97B8: 8D 00 02 STA workRam+200 ; commit the coarse lane as the player's segment
97BB: A5 2B LDA workRam+2B ;
97BD: 8D 01 02 STA workRam+201 ; commit the fine angle
97C0: A5 2C LDA workRam+2C ;
97C2: 85 51 STA workRam+51 ; carry the rim offset to the next frame
97C4: 60 RTS
; scan the depth table loc_2df over count loc_11c for the smallest nonzero
; entry (value in loc_29, index in loc_2a); with a candidate take the
; signed segment delta of loc_2b9[idx] against player segment loc_200
; (signedSegmentDelta) and return an auto-aim spinner code -- 0x00
; aligned, 0x09 one side, 0xf7 the other -- consumed by
; rotateBlasterAroundRim.
aimSpinnerAtNearestEnemy:
97C5: A9 FF LDA #$FF ; seed the shallowest-depth-seen with 0xff
97C7: 85 29 STA workRam+29 ;
97C9: 85 2A STA workRam+2A ; seed its slot index with none
97CB: AE 1C 01 LDX workRam+11C ; start at the top enemy slot
loc_97ce:
97CE: BD DF 02 LDA workRam+2DF,X ; read the slot's depth
97D1: F0 08 BEQ loc_97db ; empty slot -- skip it
97D3: C5 29 CMP workRam+29 ;
97D5: B0 04 BCS loc_97db ; not shallower than the best -- skip it
97D7: 85 29 STA workRam+29 ; record the new shallowest depth
97D9: 86 2A STX workRam+2A ; record its slot index
loc_97db:
97DB: CA DEX ; step down to the next slot
97DC: 10 F0 BPL loc_97ce ; keep walking while the index stays non-negative
97DE: A6 2A LDX workRam+2A ; no candidate found -- return the last depth read
97E0: 30 15 BMI loc_97f7 ;
97E2: BD B9 02 LDA workRam+2B9,X ; read the nearest enemy's segment
97E5: AC 00 02 LDY workRam+200 ; read the player's segment
97E8: 20 A6 A7 JSR signedSegmentDelta ; signed segment delta between them
97EB: A8 TAY
97EC: F0 09 BEQ loc_97f7 ; already aligned -- turn code zero
97EE: 30 05 BMI loc_97f5 ; enemy on one side versus the other
97F0: A9 F7 LDA #$F7 ; turn code for one direction
97F2: B8 CLV
97F3: 50 02 BVC loc_97f7 ;
loc_97f5:
97F5: A9 09 LDA #$09 ; turn code for the other direction
loc_97f7:
97F7: 60 RTS
; step the moving spike each frame while loc_201 bit7 is clear and arm
; flag loc_106 bit7 is set: cue a start sound at trigger height
; loc_202==0x10, advance 16-bit height loc_107/loc_202 by loc_104/loc_105
; (park loc_202=0xff, request mode loc_0=0x0e, cue end sound on ceiling
; overflow), rebuild the spike table (rebuildSpikeTable) past 0x50,
; rederive the per-frame delta from loc_9f, then scan loc_3ac for the
; player-segment lane loc_200 and register a collision
; (cueSpikeCollisionSound/insertObjectHeadTag7/clearActiveShots, clear
; loc_115).
advanceMovingSpike:
97F8: AD 01 02 LDA workRam+201 ; read the field-transition gate -- spike stepping is frozen while the player field is mid-transition
97FB: 10 01 BPL loc_97fe ; run the spike only while the field is settled
97FD: 60 RTS
loc_97fe:
97FE: AD 06 01 LDA workRam+106 ; read the spike arm flag
9801: 30 01 BMI loc_9804 ; step the spike only while it is armed
9803: 60 RTS
loc_9804:
9804: AD 02 02 LDA workRam+202 ; at the trigger height 0x10...
9807: C9 10 CMP #$10
9809: D0 03 BNE loc_980e ;
980B: 20 EE CC JSR cueMovingSpikeStartSound; cue the spike's rising start note, exactly once at trigger height
loc_980e:
980E: AD 07 01 LDA workRam+107 ; advance the spike height low byte by the per-frame growth step
9811: 18 CLC
9812: 6D 04 01 ADC workRam+104 ; add the step low byte
9815: 8D 07 01 STA workRam+107 ; store the spike height low byte
9818: AD 02 02 LDA workRam+202 ; carry into the spike height high byte
981B: 6D 05 01 ADC workRam+105 ; add the step high byte
981E: 8D 02 02 STA workRam+202 ; store the spike height high byte
9821: B0 02 BCS loc_9825 ; spike overflowed past the top -> retire it
9823: C9 F0 CMP #$F0 ; still below the 0xf0 ceiling -> keep growing
loc_9825:
9825: 90 0C BCC loc_9833 ;
9827: A9 0E LDA #$0E ; request game mode 0x0e -- the spike has reached the top
9829: 85 00 STA workRam ;
982B: 20 F2 CC JSR cueMovingSpikeEndSound; cue the spike's end sound
982E: A9 FF LDA #$FF ; pin the height at max so it stops climbing
9830: 8D 02 02 STA workRam+202 ;
loc_9833:
9833: AD 02 02 LDA workRam+202 ; once the spike passes the 0x50 reset height...
9836: C9 50 CMP #$50 ; compare against 0x50
9838: 90 08 BCC loc_9842 ; below it -> skip the table rebuild
983A: AD 15 01 LDA workRam+115 ; ...and the spike-table guard is clear...
983D: D0 03 BNE loc_9842 ; guard set -> skip
983F: 20 BD A7 JSR rebuildSpikeTable ; rebuild the on-screen spike table
loc_9842:
9842: A5 5C LDA workRam+5C ; step the depth-shading accumulator low byte by the same growth step
9844: 18 CLC
9845: 6D 04 01 ADC workRam+104 ; add the step low byte
9848: 85 5C STA workRam+5C ; store the accumulator low byte
984A: A5 5F LDA workRam+5F ; carry into the accumulator high byte
984C: 6D 05 01 ADC workRam+105 ; add the step high byte
984F: 90 02 BCC loc_9853 ; no overflow -> skip the page byte
9851: E6 5B INC workRam+5B ; page the depth accumulator's extra byte on overflow
loc_9853:
9853: C5 5F CMP workRam+5F ; did the depth high byte move this frame?
9855: F0 03 BEQ loc_985a ; unchanged -> skip the redraw bump
9857: EE 14 01 INC workRam+114 ; bump the redraw counter so the depth-shaded view refreshes
loc_985a:
985A: 85 5F STA workRam+5F ; store the depth accumulator high byte
985C: A5 9F LDA workRam+9F ; take the step source cell
985E: 0A ASL A ; scale it by 4
985F: 0A ASL A
9860: C9 30 CMP #$30 ; clamp the scaled step source to 0x30
9862: 90 02 BCC loc_9866 ;
9864: A9 30 LDA #$30 ; clamp to 0x30
loc_9866:
9866: 18 CLC
9867: 69 20 ADC #$20 ; bias by a minimum climb rate
9869: 18 CLC
986A: 6D 04 01 ADC workRam+104 ; fold the new step into the growth step low byte
986D: 8D 04 01 STA workRam+104 ; store the step low byte
9870: AD 05 01 LDA workRam+105 ; carry into the growth step high byte
9873: 69 00 ADC #$00
9875: 8D 05 01 STA workRam+105 ; store the step high byte
9878: AD 02 02 LDA workRam+202 ; no collision test once the spike has parked at the ceiling
987B: C9 F0 CMP #$F0
987D: B0 22 BCS loc_98a1 ; parked -> done
987F: A2 0F LDX #$0F ; scan the 16 lane-height cells from the top down
loc_9881:
9881: BD AC 03 LDA workRam+3AC,X ; read this lane's stored spike height
9884: F0 18 BEQ loc_989e ; empty lane -> skip
9886: EC 00 02 CPX workRam+200 ; only the player's own lane can be hit
9889: D0 13 BNE loc_989e ; other lane -> skip
988B: CD 02 02 CMP workRam+202 ; spike hasn't grown past the player yet -> skip
988E: B0 0E BCS loc_989e ; not yet -> skip
9890: 20 06 CD JSR cueSpikeCollisionSound; cue the spike collision sound
9893: 20 47 A3 JSR insertObjectHeadTag7; drop an object-head marker at the hit
9896: A9 00 LDA #$00 ; clear the spike-table guard
9898: 8D 15 01 STA workRam+115 ;
989B: 20 8F 92 JSR clearActiveShots ; clear the player's live shots
loc_989e:
989E: CA DEX ; next lane
989F: 10 E0 BPL loc_9881 ; loop the lane scan
loc_98a1:
98A1: 60 RTS
; age the 64-entry per-slot spawn-timer table loc_243 (slot 63..0): freeze
; ageing when the gate loc_2f has bit7 set (raised when loc_108+loc_109
; overshoots loc_11c or loc_125 is set), decrement each active timer, fire
; the expiry handler spawnEnemyOnTimerExpiry when it reaches 0, accumulate
; a per-slot bit mask (via loc_203/$CA38) into loc_14f and copy it out to
; loc_150.
tickSpawnSlotTimers:
98A2: A0 00 LDY #$00 ; clear the spike-lane mask accumulator
98A4: 8C 4F 01 STY workRam+14F ;
98A7: AD 08 01 LDA workRam+108 ; sum the active-enemy and enemy-type counts
98AA: 18 CLC
98AB: 6D 09 01 ADC workRam+109 ; add the enemy-type count
98AE: CD 1C 01 CMP workRam+11C ; compare the pair against the slot ceiling
98B1: 90 04 BCC loc_98b7 ; within budget -> no freeze from crowding
98B3: F0 02 BEQ loc_98b7 ; exactly at the ceiling -> no freeze
98B5: A0 FF LDY #$FF ; overcrowded -> raise the ageing-freeze gate
loc_98b7:
98B7: AD 25 01 LDA workRam+125 ; a latched wave transition...
98BA: F0 02 BEQ loc_98be ; none -> leave the gate as is
98BC: A0 FF LDY #$FF ; ...also freezes timer ageing
loc_98be:
98BE: 84 2F STY workRam+2F ; store the freeze gate
98C0: A2 3F LDX #$3F ; walk the 64-entry spawn-timer table from the top
loc_98c2:
98C2: BD 43 02 LDA workRam+243,X ; read this slot's timer
98C5: F0 52 BEQ loc_9919 ; empty slot -> skip
98C7: 24 2F BIT workRam+2F ; freeze gate raised -> don't age this slot
98C9: 30 23 BMI loc_98ee ;
98CB: 38 SEC ; age the timer down by one
98CC: E9 01 SBC #$01
98CE: 9D 43 02 STA workRam+243,X ; store the aged timer
98D1: D0 06 BNE loc_98d9 ; reached zero?
98D3: 20 23 99 JSR spawnEnemyOnTimerExpiry; timer expired -> fire the spawn handler for this slot
98D6: B8 CLV
98D7: 50 15 BVC loc_98ee ;
loc_98d9:
98D9: C9 3F CMP #$3F ; just crossed into the mask band at 0x3f?
98DB: D0 11 BNE loc_98ee ; no -> skip the hold check
98DD: BC 03 02 LDY workRam+203,X ; read this slot's lane index
98E0: AD 4F 01 LDA workRam+14F ; fold the mask
98E3: 0D 4F 01 ORA workRam+14F ;
98E6: 39 38 CA AND rom+3A38,Y ; take this lane's bit from the lane-bit table
98E9: F0 03 BEQ loc_98ee ; lane not already carrying a spike -> leave it
98EB: FE 43 02 INC workRam+243,X ; lane already busy -> hold the timer back at 0x40
loc_98ee:
98EE: BD 43 02 LDA workRam+243,X ; re-read the timer and classify it
98F1: C9 40 CMP #$40 ; compare against 0x40
98F3: 90 14 BCC loc_9909 ; below 0x40 -> mask band
98F5: A5 03 LDA workRam+3 ; on the high band, act only on even frames
98F7: 29 01 AND #$01
98F9: D0 0B BNE loc_9906 ; odd frame -> hold
98FB: BD 03 02 LDA workRam+203,X ; rotate this slot's lane index by one, mod 16
98FE: 18 CLC
98FF: 69 01 ADC #$01
9901: 29 0F AND #$0F
9903: 9D 03 02 STA workRam+203,X ; store the rotated lane index
loc_9906:
9906: B8 CLV
9907: 50 10 BVC loc_9919 ;
loc_9909:
9909: C9 20 CMP #$20 ; in the 0x20..0x3f band?
990B: 90 0C BCC loc_9919 ; below 0x20 -> skip
990D: BC 03 02 LDY workRam+203,X ; take this lane's bit
9910: B9 38 CA LDA rom+3A38,Y ; from the lane-bit table
9913: 0D 4F 01 ORA workRam+14F ; set this lane's bit in the spike-lane mask
9916: 8D 4F 01 STA workRam+14F ; store the mask accumulator
loc_9919:
9919: CA DEX ; next slot
991A: 10 A6 BPL loc_98c2 ; loop the slot scan
991C: AD 4F 01 LDA workRam+14F ; publish the rebuilt spike-lane mask for the rest of the frame
991F: 8D 50 01 STA workRam+150 ; store the published mask
9922: 60 RTS
; spawn on slot-timer expiry for slot X: raise spawn request 0x29=0xf0,
; latch 0x203,x into 0x2a, save X in 0x35, run the placement pass
; placeSpawnListForColumnDeficit; if the request survives and
; spawnClimberInFreeSlot allocates a free slot, drop 0x3ab and clear the
; slot timer 0x243,x, else flag 0x2f=0xff and re-arm 0x243,x.
spawnEnemyOnTimerExpiry:
9923: A9 F0 LDA #$F0 ; raise the spawn request with its depth seed 0xf0
9925: 85 29 STA workRam+29 ; store the request depth
9927: BD 03 02 LDA workRam+203,X ; stage this slot's lane/segment for the spawn
992A: 85 2A STA workRam+2A ; store the staged segment
992C: 86 35 STX workRam+35 ; save the slot index across the placement pass
992E: 20 A5 99 JSR placeSpawnListForColumnDeficit; run the per-column spawn placement
9931: A6 35 LDX workRam+35 ; reload the saved slot index
9933: A5 29 LDA workRam+29 ; spawn request still live?
9935: F0 0E BEQ loc_9945 ; cancelled by placement -> fail path
9937: 20 4D 99 JSR spawnClimberInFreeSlot; try to seat a climber in a free enemy slot
993A: F0 09 BEQ loc_9945 ; no free slot -> fail path
993C: CE AB 03 DEC workRam+3AB ; spend a fire-gate credit
993F: A9 00 LDA #$00 ; clear this slot's timer -- the spawn is done
9941: 9D 43 02 STA workRam+243,X ; clear the slot timer
9944: 60 RTS
loc_9945:
9945: A9 FF LDA #$FF ; flag the placement failed, freezing the rest of the scan
9947: 85 2F STA workRam+2F ; store the freeze flag
9949: FE 43 02 INC workRam+243,X ; re-arm the slot timer to retry later
994C: 60 RTS
; spawn a new climber into a free slot: scan the free-slot index down from
; loc_11c skipping slots whose depth loc_2df,y is nonzero, and on a free
; slot seed depth loc_2df,y from loc_29, target segment loc_2b9,y from
; loc_2a (POKEY-random even $60CA&0x0e when loc_2a==0x0f and loc_111 bit7
; set), successor loc_2cc,y, timer loc_2a6,y=0, flags loc_28a,y from
; loc_2c, coord-high loc_291,y from loc_2d, lane byte loc_283,y from
; loc_2b; bump active count loc_108 and per-lane counter loc_142,lane,
; report 0x10 (0x00 when no slot free).
spawnClimberInFreeSlot:
994D: 84 36 STY workRam+36 ; park the caller's scan index
994F: AC 1C 01 LDY workRam+11C ; scan enemy slots from the top down
loc_9952:
9952: B9 DF 02 LDA workRam+2DF,Y ; read this slot's depth cell
9955: D0 46 BNE loc_999d ; slot occupied -> keep scanning
9957: A5 29 LDA workRam+29 ; seat the new enemy's depth from the staged request
9959: 99 DF 02 STA workRam+2DF,Y ; store the enemy depth
995C: A5 2A LDA workRam+2A ; staged segment 0x0f...
995E: C9 0F CMP #$0F ; compare against 0x0f
9960: D0 0A BNE loc_996c ; not 0x0f -> take the segment as staged
9962: 2C 11 01 BIT workRam+111 ; ...and a closed tube...
9965: 10 05 BPL loc_996c ; open tube -> keep the segment
9967: AD CA 60 LDA pokey1+A ; ...replaced by a random even lane so spawns spread across the rim
996A: 29 0E AND #$0E ; random even lane
loc_996c:
996C: 99 B9 02 STA workRam+2B9,Y ; seat the enemy's tube segment
996F: 18 CLC ; animation phase...
9970: 69 01 ADC #$01 ; segment + 1
9972: 29 0F AND #$0F ; mod 16
9974: 99 CC 02 STA workRam+2CC,Y ; seat the enemy's animation phase
9977: A9 00 LDA #$00
9979: 99 A6 02 STA workRam+2A6,Y ; clear the enemy's timer
997C: A5 2C LDA workRam+2C ; seat the coordinate-list pointer low byte for this enemy
997E: 99 8A 02 STA workRam+28A,Y ; store the pointer low byte
9981: A5 2D LDA workRam+2D ; seat the coordinate-list pointer high byte
9983: 99 91 02 STA workRam+291,Y ; store the pointer high byte
9986: EE 08 01 INC workRam+108 ; one more active enemy
9989: A5 2B LDA workRam+2B ; take the staged flag byte
998B: 99 83 02 STA workRam+283,Y ; seat the enemy's flag byte
998E: A4 36 LDY workRam+36 ;
9990: 29 07 AND #$07 ; lane = low 3 bits of the flag byte
9992: 86 36 STX workRam+36 ;
9994: AA TAX
9995: FE 42 01 INC workRam+142,X ; bump this lane's enemy count
9998: A6 36 LDX workRam+36 ;
999A: A9 10 LDA #$10 ; report a successful spawn
999C: 60 RTS
loc_999d:
999D: 88 DEY ; step down and continue the free-slot scan
999E: 10 B2 BPL loc_9952 ; loop the scan
99A0: A4 36 LDY workRam+36 ;
99A2: A9 00 LDA #$00 ; report no free slot found
99A4: 60 RTS
; top up per-column enemy quotas: build the five-column deficit table
; 0x13d[0..4] from 0x12e minus 0x142 (clamped >=0), deduct 2 per active
; lane (0x2df set, 0x28a&3 nonzero, lane3->col5), cap each at
; (0x11c+1)-sum(0x142), seed 0x61, then per nonzero-column count invoke
; the list-setup dispatcher (dispatchListSetupByColumn) to place a spawn
; list; every exhausted path clears the request flag 0x29.
placeSpawnListForColumnDeficit:
99A5: A9 00 LDA #$00
99A7: A2 04 LDX #$04
loc_99a9:
99A9: 9D 3D 01 STA workRam+13D,X ; clear the five-column deficit table
99AC: CA DEX
99AD: 10 FA BPL loc_99a9 ;
99AF: A2 04 LDX #$04
loc_99b1:
99B1: BD 2E 01 LDA workRam+12E,X ; this column's enemy target
99B4: 38 SEC ; minus the enemies already on the lane
99B5: FD 42 01 SBC workRam+142,X ;
99B8: 90 03 BCC loc_99bd ; negative deficit -> leave this column at zero
99BA: 9D 3D 01 STA workRam+13D,X ; store the column's deficit
loc_99bd:
99BD: CA DEX
99BE: 10 F1 BPL loc_99b1 ;
99C0: AC 1C 01 LDY workRam+11C ; walk every enemy slot
loc_99c3:
99C3: B9 DF 02 LDA workRam+2DF,Y ; skip empty slots
99C6: F0 14 BEQ loc_99dc ;
99C8: B9 8A 02 LDA workRam+28A,Y ; take this enemy's lane, low two bits
99CB: 29 03 AND #$03
99CD: F0 0D BEQ loc_99dc ; lane 0 -> skip
99CF: AA TAX
99D0: E0 03 CPX #$03 ; lane 3 remaps to column 5
99D2: D0 02 BNE loc_99d6 ;
99D4: A2 05 LDX #$05
loc_99d6:
99D6: DE 3C 01 DEC workRam+13C,X ; deduct 2 from that column's budget for this in-flight enemy
99D9: DE 3C 01 DEC workRam+13C,X ; deduct the second unit
loc_99dc:
99DC: 88 DEY ; next slot
99DD: 10 E4 BPL loc_99c3 ;
99DF: A2 04 LDX #$04
99E1: AD 1C 01 LDA workRam+11C ; global cap = slot ceiling plus one...
99E4: 18 CLC
99E5: 69 01 ADC #$01 ; plus one
loc_99e7:
99E7: 38 SEC
99E8: FD 42 01 SBC workRam+142,X ; ...minus the total lane occupancy
99EB: CA DEX
99EC: 10 F9 BPL loc_99e7 ;
99EE: A2 04 LDX #$04
loc_99f0:
99F0: DD 3D 01 CMP workRam+13D,X ; clamp each column's deficit down to the cap
99F3: B0 03 BCS loc_99f8 ;
99F5: 9D 3D 01 STA workRam+13D,X ; store the clamped deficit
loc_99f8:
99F8: CA DEX
99F9: 10 F5 BPL loc_99f0 ;
99FB: A2 04 LDX #$04
99FD: A0 00 LDY #$00
loc_99ff:
99FF: BD 3D 01 LDA workRam+13D,X ; count the nonzero columns
9A02: F0 01 BEQ loc_9a05 ;
9A04: C8 INY ; one more nonzero column
loc_9a05:
9A05: CA DEX
9A06: 10 F7 BPL loc_99ff ;
9A08: 98 TYA ; no column needs enemies -> clear the request
9A09: F0 77 BEQ loc_9a82 ;
9A0B: 88 DEY ; two or more columns -> multi-column path
9A0C: D0 18 BNE loc_9a26 ;
9A0E: A2 04 LDX #$04
loc_9a10:
9A10: BD 3D 01 LDA workRam+13D,X ; single column: find the column with a deficit...
9A13: F0 0B BEQ loc_9a20 ;
9A15: BD 29 01 LDA workRam+129,X ; ...that also has a spawn-cap entry
9A18: F0 06 BEQ loc_9a20 ; none -> keep looking
9A1A: 20 87 9A JSR dispatchListSetupByColumn; seat a spawn list on that column
9A1D: F0 01 BEQ loc_9a20 ; no placement -> keep looking
9A1F: 60 RTS ; placed -> done
loc_9a20:
9A20: CA DEX
9A21: 10 ED BPL loc_9a10 ;
9A23: B8 CLV
9A24: 50 5C BVC loc_9a82 ; exhausted -> clear the request
loc_9a26:
9A26: 84 61 STY workRam+61 ; record the column count minus one
9A28: A2 04 LDX #$04
loc_9a2a:
9A2A: BD 3D 01 LDA workRam+13D,X ; multi-column: skip empty columns
9A2D: F0 0E BEQ loc_9a3d ;
9A2F: BD 42 01 LDA workRam+142,X ; skip columns already at their cap
9A32: DD 29 01 CMP workRam+129,X ; compare occupancy to the cap
9A35: B0 06 BCS loc_9a3d ;
9A37: 20 87 9A JSR dispatchListSetupByColumn; seat a spawn list on the first below-cap column
9A3A: F0 01 BEQ loc_9a3d ; no placement -> keep looking
9A3C: 60 RTS ; placed -> done
loc_9a3d:
9A3D: CA DEX
9A3E: 10 EA BPL loc_9a2a ;
9A40: AD 40 01 LDA workRam+140 ; if columns 3 and 2 both still owe enemies...
9A43: F0 1C BEQ loc_9a61 ;
9A45: AD 3F 01 LDA workRam+13F ; both live?
9A48: F0 17 BEQ loc_9a61 ;
9A4A: A4 2A LDY workRam+2A ; read the staged lane's stored height
9A4C: B9 AC 03 LDA workRam+3AC,Y ;
9A4F: D0 02 BNE loc_9a53 ; nonempty -> use it
9A51: A9 FF LDA #$FF ; default to 0xff when the lane is empty
loc_9a53:
9A53: A2 03 LDX #$03
9A55: C9 CC CMP #$CC ; pick column 3 or 2 by the 0xcc height threshold
9A57: B0 02 BCS loc_9a5b ;
9A59: A2 02 LDX #$02
loc_9a5b:
9A5B: 20 87 9A JSR dispatchListSetupByColumn; seat a spawn list on the chosen column
9A5E: F0 01 BEQ loc_9a61 ; no placement -> fall through
9A60: 60 RTS ; placed -> done
loc_9a61:
9A61: AD DA 60 LDA pokey2+A ; POKEY-random start column for the round-robin sweep
9A64: 29 03 AND #$03
9A66: AA TAX
9A67: E8 INX ; step to the start column
9A68: A0 04 LDY #$04 ; sweep all five columns
loc_9a6a:
9A6A: BD 29 01 LDA workRam+129,X ; column has a spawn-cap entry...
9A6D: F0 0B BEQ loc_9a7a ; none -> next
9A6F: BD 3D 01 LDA workRam+13D,X ; ...and a deficit...
9A72: F0 06 BEQ loc_9a7a ; none -> next
9A74: 20 87 9A JSR dispatchListSetupByColumn; ...seat a spawn list on it
9A77: F0 01 BEQ loc_9a7a ; no placement -> next
9A79: 60 RTS ; placed -> done
loc_9a7a:
9A7A: CA DEX
9A7B: 10 02 BPL loc_9a7f ; wrap the column index
9A7D: A2 04 LDX #$04
loc_9a7f:
9A7F: 88 DEY
9A80: 10 E8 BPL loc_9a6a ; next column
loc_9a82:
9A82: A9 00 LDA #$00 ; no placement made: clear the spawn request flag
9A84: 85 29 STA workRam+29 ; store the cleared flag
9A86: 60 RTS
; route to the list-setup entry for column X: copy X into the dispatch
; index and enter the computed jump dispatchCoordListSetup, tail-returning
; the selected entry's result to placeSpawnListForColumnDeficit.
dispatchListSetupByColumn:
9A87: 8A TXA ; take the column number as the dispatch selector
; route by the incoming value to one of five coordinate-list setup entries
; (0x9a9d, 0x9aa9, 0x9abb, 0x9ab7, 0x9ab3), passing the slot index X
; through, each of which front-loads a specific index/low-byte then falls
; into the shared 0x9aee/0x9af1 seating.
dispatchCoordListSetup:
9A88: 0A ASL A ; double the selector to a two-byte table offset
9A89: A8 TAY
9A8A: B9 94 9A LDA rom+A94,Y ; push the selected setup entry's address high byte...
9A8D: 48 PHA
9A8E: B9 93 9A LDA rom+A93,Y ; ...and its low byte
9A91: 48 PHA
9A92: 60 RTS ; return jumps into the selected coordinate-list setup entry
; ---- $9A93-$9A9C: data ----
9A93: 9C 9A A8 9A BA 9A B6 9A B2 9A
; seat the index-0 coordinate list: take the low pointer byte from fixed
; table byte 0x9b02, mark index 0 at 0x2b, take the high pointer from held
; source cell 0x15d into 0x2d, reload A from 0x29.
seatDemoCoordListPointer:
9A9D: AD 02 9B LDA rom+B02 ; coordinate-list pointer low from the fixed table head
9AA0: 85 2C STA workRam+2C ; store the pointer low byte
9AA2: AD 5D 01 LDA workRam+15D ; high byte from the runtime-steered source cell
9AA5: A0 00 LDY #$00 ; selecting index 0
9AA7: F0 4D BEQ seatCoordListPointerWithHighByte; finish via the shared seater's high-byte tail
9AA9: AD 03 9B LDA rom+B03 ; compose the pointer low byte from a table byte OR'd with the list-select flags
9AAC: 0D 6D 01 ORA workRam+16D ; OR in the list-select flags
9AAF: A0 01 LDY #$01 ; selecting index 1
9AB1: D0 3E BNE seatCoordListPointerWithLowByte; finish via the shared seater with the computed low byte
9AB3: A0 04 LDY #$04 ; selecting index 4
9AB5: D0 37 BNE seatCoordListPointer; into the shared seater
; preset the selecting index to 3 and run the shared 0x9aee seating,
; parking the coordinate-list pointer 0x2c/0x2d from ROM tables
; 0x9b02[3]/0x9afd[3].
seatCoordListPointerAtIndex3:
9AB7: A0 03 LDY #$03 ; selecting index 3
9AB9: D0 33 BNE seatCoordListPointer; into the shared seater
; pick the lane a new climber will use: from a POKEY-random start
; (0x60ca&3) walk the four-entry lane table 0x149 with a four-step
; countdown in 0x2b, skipping lanes whose occupancy cell 0x13c is empty;
; on a hit set 0x2c to the chosen lane|0x40, seat the list-high byte
; 0x9afd[2] into 0x2d, index 0x02 into 0x2b, and report 0x29 (report 0x00
; on underflow).
selectClimberSpawnLane:
9ABB: AD CA 60 LDA pokey1+A ; POKEY-random start lane
9ABE: 29 03 AND #$03 ; low two bits -> candidate index 0..3
9AC0: A8 TAY
9AC1: A9 04 LDA #$04 ; set a four-attempt countdown
9AC3: 85 2B STA workRam+2B ;
9AC5: 86 39 STX workRam+39 ; stash the caller's index
loc_9ac7:
9AC7: C6 2B DEC workRam+2B ; count down an attempt
9AC9: 10 05 BPL loc_9ad0 ; attempts remain?
9ACB: A6 39 LDX workRam+39 ; restore the caller's index
9ACD: A9 00 LDA #$00 ; report no eligible lane
9ACF: 60 RTS
loc_9ad0:
9AD0: 88 DEY ; step the candidate index down...
9AD1: 10 02 BPL loc_9ad5 ;
9AD3: A0 03 LDY #$03 ; ...wrapping to the top
loc_9ad5:
9AD5: BE 49 01 LDX workRam+149,Y ; read the candidate lane id from the table
9AD8: E0 03 CPX #$03 ; remap candidate lane 3 to 5
9ADA: D0 02 BNE loc_9ade ;
9ADC: A2 05 LDX #$05 ; lane 5
loc_9ade:
9ADE: BD 3C 01 LDA workRam+13C,X ; reject an empty lane and try again
9AE1: F0 E4 BEQ loc_9ac7 ;
9AE3: A6 39 LDX workRam+39 ; restore the caller's index
9AE5: B9 49 01 LDA workRam+149,Y ; form the pointer low byte: chosen lane OR 0x40
9AE8: 09 40 ORA #$40 ; OR in 0x40
9AEA: A0 02 LDY #$02 ; selecting index 2
9AEC: D0 03 BNE seatCoordListPointerWithLowByte; finish via the shared seater with this low byte
; aim the coordinate-list pointer at a packed vector list: read the low
; byte from ROM table 0x9b02+Y into 0x2c and the high byte from 0x9afd+Y
; into 0x2d, remember the selecting index at 0x2b, and reload A from
; holding cell 0x29.
seatCoordListPointer:
9AEE: B9 02 9B LDA rom+B02,Y ; coordinate-list pointer low from the ROM table
; seat the coordinate-list pointer entered one step in: store the caller-
; supplied low byte straight into 0x2c, pull the high byte from ROM table
; 0x9afd+Y into 0x2d, stash index at 0x2b, reload A from 0x29.
seatCoordListPointerWithLowByte:
9AF1: 85 2C STA workRam+2C ; install the pointer low byte
9AF3: B9 FD 9A LDA rom+AFD,Y ; coordinate-list pointer high from the ROM table
; seat the coordinate-list pointer at its deepest entry: caller already
; parked the low byte at 0x2c, so take the high byte straight from A into
; 0x2d, stash index at 0x2b, reload A from 0x29.
seatCoordListPointerWithHighByte:
9AF6: 84 2B STY workRam+2B ; remember the selecting index
9AF8: 85 2D STA workRam+2D ; install the pointer high byte
9AFA: A5 29 LDA workRam+29 ; reload the accumulator from its holding cell
9AFC: 60 RTS
; ---- $9AFD-$9B06: data ----
9AFD: 07 72 07 00 61 40 00 41 40 00
; set up the coordinate/shape list for the packed index in loc_2b
; (saving/restoring the caller index in loc_36): when the held count
; loc_29 >= 0x20 select a list-setup entry through dispatcher
; dispatchCoordListSetup, otherwise seat the pointer pair directly at that
; index via seatCoordListPointer.
setupEnemyCoordList:
9B07: 84 36 STY workRam+36 ; save the caller's index across the setup
9B09: A5 29 LDA workRam+29 ; held count at or above 0x20?
9B0B: C9 20 CMP #$20 ; compare against 0x20
9B0D: A5 2B LDA workRam+2B ; the packed list index
9B0F: B0 07 BCS loc_9b18 ; high count -> route through the setup dispatcher
9B11: A8 TAY
9B12: 20 EE 9A JSR seatCoordListPointer; else seat the pointer directly at that index
9B15: B8 CLV
9B16: 50 03 BVC loc_9b1b ;
loc_9b18:
9B18: 20 88 9A JSR dispatchCoordListSetup; route the index through the setup dispatcher
loc_9b1b:
9B1B: A4 36 LDY workRam+36 ; restore the caller's index
9B1D: 60 RTS
; the per-frame motion-script walker: when loc_201>=0, walk slots
; loc_37=loc_11c down to 0 and for each nonzero loc_2df,x run its script
; from cursor loc_291,x, dispatching each script byte at $A0F7[loc_10b] to
; a motion opcode handler until the continuation flag loc_10a clears, then
; store the cursor back to loc_291,x; finally signed-accumulate loc_147
; into loc_148, fire the cd06/cd02 sound cues on a sign flip, and negate
; loc_147 to reverse sweep when loc_148 leaves the [0x0f,0xc0] band
runObjectMotionScripts:
9B1E: AD 01 02 LDA workRam+201 ; skip the slot walk while the player field is mid-transition
9B21: 30 33 BMI loc_9b56 ;
9B23: AE 1C 01 LDX workRam+11C ; seed the slot loop from the top slot
9B26: 86 37 STX workRam+37 ;
loc_9b28:
9B28: A6 37 LDX workRam+37 ;
9B2A: BD DF 02 LDA workRam+2DF,X ; skip empty slots
9B2D: F0 23 BEQ loc_9b52 ;
9B2F: A9 01 LDA #$01 ; raise the script-walk continue flag
9B31: 8D 0A 01 STA workRam+10A ; store the continue flag
9B34: BD 91 02 LDA workRam+291,X ; load this slot's saved script cursor
9B37: 8D 0B 01 STA workRam+10B ; store the working cursor
loc_9b3a:
9B3A: AD 0B 01 LDA workRam+10B ; the current cursor
9B3D: A8 TAY
9B3E: B9 F7 A0 LDA rom+10F7,Y ; read the motion opcode at the cursor
9B41: 20 98 9B JSR dispatchSlotMotionHandler; dispatch the motion opcode for this slot
9B44: EE 0B 01 INC workRam+10B ; advance the script cursor
9B47: AD 0A 01 LDA workRam+10A ; keep walking until a handler ends the script
9B4A: D0 EE BNE loc_9b3a ;
9B4C: AD 0B 01 LDA workRam+10B ; store the advanced cursor back to the slot
9B4F: 9D 91 02 STA workRam+291,X ; store the cursor
loc_9b52:
9B52: C6 37 DEC workRam+37 ; next slot
9B54: 10 D2 BPL loc_9b28 ; loop the slot scan
loc_9b56:
9B56: AD 48 01 LDA workRam+148 ; signed-accumulate the sweep step into the sweep accumulator
9B59: 18 CLC
9B5A: 6D 47 01 ADC workRam+147 ; add the step
9B5D: A8 TAY
9B5E: 4D 48 01 EOR workRam+148 ; did the accumulate cross a sign boundary?
9B61: 8C 48 01 STY workRam+148 ; store the new sweep accumulator
9B64: 10 16 BPL loc_9b7c ; no sign change -> skip the sweep cues
9B66: 98 TYA ; accumulator turned negative...
9B67: 10 06 BPL loc_9b6f ;
9B69: 20 06 CD JSR cueSpikeCollisionSound; cue the segment/collision sound as the sweep turns negative
9B6C: B8 CLV
9B6D: 50 0D BVC loc_9b7c ;
loc_9b6f:
9B6F: AD 43 01 LDA workRam+143 ; lanes populated...
9B72: F0 08 BEQ loc_9b7c ; empty -> skip
9B74: AD 01 02 LDA workRam+201 ; ...and the field settled...
9B77: 30 03 BMI loc_9b7c ; mid-transition -> skip
9B79: 20 02 CD JSR requestMotionFlipSound; ...cue the motion-flip sound
loc_9b7c:
9B7C: AD 48 01 LDA workRam+148 ; check the sweep accumulator against its band
9B7F: 30 07 BMI loc_9b88 ; negative side -> test the low bound
9B81: C9 0F CMP #$0F ; inside [0x0f,0xc0] -> reverse the sweep
9B83: B0 07 BCS loc_9b8c ; at or above 0x0f -> reverse
9B85: B8 CLV
9B86: 50 0F BVC loc_9b97 ;
loc_9b88:
9B88: C9 C1 CMP #$C1 ; outside the band -> leave the direction
9B8A: B0 0B BCS loc_9b97 ; at or above 0xc1 -> leave
loc_9b8c:
9B8C: AD 47 01 LDA workRam+147 ; negate the sweep step to reverse the field's breathing
9B8F: 49 FF EOR #$FF ; one's-complement
9B91: 18 CLC
9B92: 69 01 ADC #$01 ; plus one
9B94: 8D 47 01 STA workRam+147 ; store the reversed sweep step
loc_9b97:
9B97: 60 RTS
; route to one of twenty per-slot motion/steering/coordinate handlers
; ($9BCA..$9C3B, incl. the steering step $9CB6) by the pre-doubled table
; offset in the incoming value, passing slot x through and threading the
; offset as the object-insert seed for the collision handlers.
dispatchSlotMotionHandler:
9B98: A8 TAY ; the pre-doubled opcode as a table offset
9B99: B9 A3 9B LDA rom+BA3,Y ; push the selected motion handler's address high byte...
9B9C: 48 PHA
9B9D: B9 A2 9B LDA rom+BA2,Y ; ...and its low byte
9BA0: 48 PHA
9BA1: 60 RTS ; return jumps into the selected motion handler
; ---- $9BA2-$9BC9: data ----
9BA2: C9 9B CF 9B ED 9B 16 9C 0B 9C CE 9B 57 9C C3 9F
9BB2: DC 9B 5B 9E 81 9D 4E 9C 2E 9E F9 9B 20 9C F0 9E
9BC2: 47 9E B5 9C 66 9D 3A 9C
; housekeeping leaf: clear the walk-continuation flag by writing
; loc_10a=0, ending the walker's inner loop over this object's script
; entries
endObjectMotionScript:
9BCA: A9 00 LDA #$00
9BCC: 8D 0A 01 STA workRam+10A ; clear the walk-continue flag to end this object's script
; no-op leaf that returns immediately, occupying a slot in a computed-
; dispatch set so selecting it falls straight back to the caller.
noopDispatchStub:
9BCF: 60 RTS
; immediate store opcode: advance the script cursor loc_10b by one
; (wrapping to a byte) and copy the script byte it now points at,
; $A0F7[loc_10b], verbatim into the acting object's cell loc_298,x
writeScriptConstantToSlot:
9BD0: EE 0B 01 INC workRam+10B ; advance the motion-script cursor one byte
9BD3: AC 0B 01 LDY workRam+10B ; load the cursor as the table index
9BD6: B9 F7 A0 LDA rom+10F7,Y ; fetch the literal byte the cursor now points at from the motion-script table
9BD9: 9D 98 02 STA workRam+298,X ; store that constant into the acting slot's cell
9BDC: 60 RTS
; indirect store opcode: advance the script cursor loc_10b by one, treat
; the fetched script byte $A0F7[loc_10b] as a zero-page address, and copy
; the live variable at loc_00+ptr into the acting object's cell loc_298,x
writeScriptVariableToSlot:
9BDD: EE 0B 01 INC workRam+10B ; advance the motion-script cursor one byte
9BE0: AC 0B 01 LDY workRam+10B ; load the cursor as the table index
9BE3: B9 F7 A0 LDA rom+10F7,Y ; fetch the script byte -- here a zero-page pointer, not a value
9BE6: A8 TAY
9BE7: B9 00 00 LDA workRam,Y ; read the live zero-page variable the script byte points at
9BEA: 9D 98 02 STA workRam+298,X ; copy that variable's current value into the acting slot's cell
9BED: 60 RTS
; conditional-skip opcode: if the branch flag loc_10c is nonzero do
; nothing, otherwise advance the script cursor loc_10b by two to step past
; a two-byte operand
skipScriptOperandWhenFlagClear:
9BEE: AD 0C 01 LDA workRam+10C ; read the script branch-test flag
9BF1: D0 06 BNE loc_9bf9 ; flag set: leave the cursor put -- the operand is consumed on the taken path
9BF3: EE 0B 01 INC workRam+10B ; flag clear: step the cursor past the...
9BF6: EE 0B 01 INC workRam+10B ; ...two-byte operand
loc_9bf9:
9BF9: 60 RTS
; conditional-jump opcode: advance the script cursor loc_10b by one, then
; only while the branch flag loc_10c is zero replace the cursor entirely
; with the operand target $A0F7[loc_10b], reloading the script position
jumpScriptCursorWhenFlagClear:
9BFA: EE 0B 01 INC workRam+10B ; advance the script cursor one
9BFD: AD 0C 01 LDA workRam+10C ; read the branch-suppress flag
9C00: D0 09 BNE loc_9c0b ; flag set: suppress the jump and fall through to the next entry
9C02: AC 0B 01 LDY workRam+10B ;
9C05: B9 F7 A0 LDA rom+10F7,Y ; read the jump target from the script table at the new cursor
9C08: 8D 0B 01 STA workRam+10B ; reload the cursor with the target -- the scripted jump
loc_9c0b:
9C0B: 60 RTS
; dwell opcode: decrement the acting slot's timer loc_298,x; while it
; stays nonzero delegate to the $A0F8-driven goto (followScriptGoto) so
; the object keeps cycling its current state, and only when the timer hits
; zero bump the shared cursor loc_10b to release the script to the next
; instruction
holdSlotPoseUntilTimerExpires:
9C0C: DE 98 02 DEC workRam+298,X ; count this slot's dwell timer down one frame
9C0F: D0 06 BNE followScriptGoto ; still dwelling: re-run the current script state
9C11: EE 0B 01 INC workRam+10B ; timer expired: release the script to the next instruction
9C14: B8 CLV
9C15: 50 09 BVC loc_9c20 ;
; unconditional-goto opcode: use the current cursor loc_10b to index the
; parallel table $A0F8 and write $A0F8[loc_10b] back as the new cursor,
; following the chained operand
followScriptGoto:
9C17: AC 0B 01 LDY workRam+10B ; current script position
9C1A: B9 F8 A0 LDA rom+10F8,Y ; read the goto target from the parallel goto table
9C1D: 8D 0B 01 STA workRam+10B ; write it back as the new cursor -- the unconditional goto
loc_9c20:
9C20: 60 RTS
; boundary-test opcode: read the slot's segment loc_2b9,x, look up its
; boundary in loc_3ac (a zero entry reads as the maximum 0xff), and set
; the branch flag loc_10c to 1 when the boundary is at or beyond the
; slot's depth loc_2df,x, else 0
setFlagIfSlotPastSegmentBound:
9C21: BC B9 02 LDY workRam+2B9,X ; read slot x's tube segment
9C24: B9 AC 03 LDA workRam+3AC,Y ; index that segment's boundary depth in the per-lane limit table
9C27: D0 02 BNE loc_9c2b ; nonzero limit: use it
9C29: A9 FF LDA #$FF ; a zero entry means no limit -- read as the maximum depth
loc_9c2b:
9C2B: DD DF 02 CMP workRam+2DF,X ; compare the boundary against the slot's depth
9C2E: B0 05 BCS loc_9c35 ; boundary at or beyond the depth: flag 1
9C30: A9 00 LDA #$00 ; else flag 0
9C32: B8 CLV
9C33: 50 02 BVC loc_9c37 ;
loc_9c35:
9C35: A9 01 LDA #$01 ; boundary reached: flag 1
loc_9c37:
9C37: 8D 0C 01 STA workRam+10C ; leave the 1/0 verdict in the script branch flag
9C3A: 60 RTS
; phase-probe opcode: form ((loc_147<<2)+loc_148) & loc_148 & 0x80, XOR
; against 0x80, and store to the branch flag loc_10c so it becomes 0x00
; when that high bit is set and 0x80 when clear
setFlagFromPhaseAccumulatorSign:
9C3B: AD 47 01 LDA workRam+147 ; read the per-frame enemy animation delta
9C3E: 0A ASL A ; scale the delta by four
9C3F: 0A ASL A
9C40: 18 CLC
9C41: 6D 48 01 ADC workRam+148 ; add the animation-phase accumulator
9C44: 2D 48 01 AND workRam+148 ; AND with the accumulator to isolate the shared sign
9C47: 29 80 AND #$80 ; keep just the high sign bit
9C49: 49 80 EOR #$80 ; invert it
9C4B: 8D 0C 01 STA workRam+10C ; leave the phase-sign verdict in the script branch flag
9C4E: 60 RTS
; toggle bit6 (the turn/rotation side flag) of the slot's flag cell
; loc_283,x in place and return the new value.
toggleEnemyTurnSide:
9C4F: BD 83 02 LDA workRam+283,X ; read slot x's flag byte
9C52: 49 40 EOR #$40 ; invert bit6 -- the rim turn side
9C54: 9D 83 02 STA workRam+283,X ; store the flipped turn side back
9C57: 60 RTS
; step slot x's 16-bit tube depth (low loc_29f,x / high loc_2df,x) by the
; per-segment delta from the loc_160/loc_165 table indexed by the segment
; (loc_283,x & 7), routing to the add path advanceEnemyLaneDepth when
; loc_28a,x bit7 is clear or the subtract path reverseEnemyLaneDepth when
; set.
stepEnemyDepthInLaneDirection:
9C58: BD 83 02 LDA workRam+283,X ; read slot x's flag byte
9C5B: 29 07 AND #$07 ; low 3 bits are the lane segment -- the per-segment speed-table index
9C5D: A8 TAY
9C5E: BD 8A 02 LDA workRam+28A,X ; read the slot's direction byte
9C61: 30 36 BMI reverseEnemyLaneDepth; bit7 set: take the reverse (retreat) path
; add-direction depth step: loc_29f,x += loc_160,seg (16-bit) into
; loc_2df,x, then on the new high byte settle the slot via
; settleEnemyAtTargetDepth (hi <= floor loc_202), finish with the new high
; as exit value (hi >= 0x20), or retire/replace the slot via
; retireEnemyAndSpawnSplit when hi < 0x20 with an armed gate (loc_28a,x &
; 3).
advanceEnemyLaneDepth:
9C63: BD 9F 02 LDA workRam+29F,X ; low byte of the slot's 16-bit tube depth
9C66: 18 CLC
9C67: 79 60 01 ADC workRam+160,Y ; add the per-segment climb-speed low byte
9C6A: 9D 9F 02 STA workRam+29F,X ; store the depth low byte
9C6D: BD DF 02 LDA workRam+2DF,X ; depth high byte
9C70: 79 65 01 ADC workRam+165,Y ; add the per-segment climb-speed high byte with carry
9C73: 9D DF 02 STA workRam+2DF,X ; store the depth high byte -- enemy advanced toward the rim
9C76: CD 02 02 CMP workRam+202 ; compare against the shared shot/floor depth
9C79: F0 02 BEQ loc_9c7d ; at the floor
9C7B: B0 06 BCS loc_9c83 ; past the floor: carry on
loc_9c7d:
9C7D: 20 06 9D JSR settleEnemyAtTargetDepth; reached the floor: settle the enemy at target depth
9C80: B8 CLV
9C81: 50 13 BVC loc_9c96 ;
loc_9c83:
9C83: C9 20 CMP #$20 ; high byte still above 0x20?
9C85: B0 0F BCS loc_9c96 ; yes, still deep: done
9C87: BD 8A 02 LDA workRam+28A,X ; read the direction byte
9C8A: 29 03 AND #$03 ; the replacement/split gate bits
9C8C: F0 08 BEQ loc_9c96 ; gate clear: done
9C8E: 8A TXA
9C8F: 48 PHA
9C90: A8 TAY
9C91: 20 6F A0 JSR retireEnemyAndSpawnSplit; retire the enemy and spawn its split/replacement
9C94: 68 PLA
9C95: AA TAX
loc_9c96:
9C96: B8 CLV
9C97: 50 1C BVC loc_9cb5 ;
; subtract-direction depth step: loc_29f,x -= loc_160,seg (16-bit, with
; borrow) into loc_2df,x, flooring the high byte to 0xf2 when it
; underflows past 0xf0; returns the new (or floored) high byte.
reverseEnemyLaneDepth:
9C99: BD 9F 02 LDA workRam+29F,X ; depth low byte
9C9C: 38 SEC
9C9D: F9 60 01 SBC workRam+160,Y ; subtract the per-segment climb-speed low byte
9CA0: 9D 9F 02 STA workRam+29F,X ; store the depth low byte
9CA3: BD DF 02 LDA workRam+2DF,X ; depth high byte
9CA6: F9 65 01 SBC workRam+165,Y ; subtract the climb-speed high byte with borrow
9CA9: 9D DF 02 STA workRam+2DF,X ; store the depth high byte -- enemy retreats up the tube
9CAC: C9 F0 CMP #$F0 ; underflowed past the far rim?
9CAE: 90 05 BCC loc_9cb5 ; no underflow: done
9CB0: A9 F2 LDA #$F2 ; clamp value
9CB2: 9D DF 02 STA workRam+2DF,X ; floor the depth at the far rim (0xf2)
loc_9cb5:
9CB5: 60 RTS
; step slot x's coordinate keyed on loc_28a,x bit7 (sub-step via
; reverseEnemyLaneDepth flipping direction at the loc_157 threshold when
; loc_3ab is set, else add-step via advanceEnemyLaneDepth), and on the
; common tail -- loc_148 bit7 clear AND loc_2df,x < loc_157 AND
; loc_200==loc_2b9,x AND loc_201==loc_2cc,x -- seed a fresh object for
; that slot via insertObjectHeadTag7 with the stepped Y.
steerSlotCoordinate:
9CB6: A0 01 LDY #$01 ; default steering index
9CB8: BD 8A 02 LDA workRam+28A,X ; read the slot's direction byte
9CBB: 30 10 BMI loc_9ccd ; bit7 set: retreating slot, take the sub-step path
9CBD: BD DF 02 LDA workRam+2DF,X ; depth high byte
9CC0: CD 57 01 CMP workRam+157 ; compare against the near-rim threshold
9CC3: 90 02 BCC loc_9cc7 ; below threshold: keep steering index 1
9CC5: A0 00 LDY #$00 ; at or over threshold: steering index 0
loc_9cc7:
9CC7: 20 63 9C JSR advanceEnemyLaneDepth; add-step the depth forward one tick
9CCA: B8 CLV
9CCB: 50 17 BVC loc_9ce4 ;
loc_9ccd:
9CCD: 20 99 9C JSR reverseEnemyLaneDepth; sub-step the depth backward one tick -- retreat
9CD0: AC AB 03 LDY workRam+3AB ; read the enemy-fire gate
9CD3: D0 02 BNE loc_9cd7 ; gate armed: probe with the stepped depth
9CD5: A9 FF LDA #$FF ; gate clear: probe as the far value
loc_9cd7:
9CD7: CD 57 01 CMP workRam+157 ; compare the probe against the near threshold
9CDA: 90 08 BCC loc_9ce4 ; not yet at the far threshold: on to the tail
9CDC: BD 8A 02 LDA workRam+28A,X ; reached the threshold: read the direction byte
9CDF: 49 80 EOR #$80 ; flip the climb-direction bit
9CE1: 9D 8A 02 STA workRam+28A,X ; reverse the slot's travel direction
loc_9ce4:
9CE4: AD 48 01 LDA workRam+148 ; read the animation accumulator
9CE7: 30 1B BMI loc_9d04 ; busy (bit7 set): bail
9CE9: BD DF 02 LDA workRam+2DF,X ; depth high byte
9CEC: CD 57 01 CMP workRam+157 ; near-rim threshold
9CEF: B0 13 BCS loc_9d04 ; not close enough: bail
9CF1: AD 00 02 LDA workRam+200 ; player's segment
9CF4: DD B9 02 CMP workRam+2B9,X ; same lane as this enemy?
9CF7: D0 0B BNE loc_9d04 ; wrong lane: bail
9CF9: AD 01 02 LDA workRam+201 ; player's fine angle
9CFC: DD CC 02 CMP workRam+2CC,X ; matches the enemy's phase/angle?
9CFF: D0 03 BNE loc_9d04 ; wrong angle: bail
9D01: 20 47 A3 JSR insertObjectHeadTag7; enemy is on the player: seed a fresh object for the slot
loc_9d04:
9D04: 60 RTS
; ---- $9D05-$9D05: data ----
9D05: 16
; settle slot x at the target depth: stash floor loc_202 into loc_2df,x,
; then by kind -- a kind-1 slot (loc_283,x&7==1) with loc_3ab!=0 flips
; bit7 of loc_28a,x; a negative slot bumps its stashed depth; else drop
; count loc_108, and when per-type count loc_109==1 scan slots 6..0 for a
; matching-depth neighbour (index into loc_38) and copy its inverted bit6
; into loc_283,x, otherwise re-aim via faceEnemyTowardPlayerSegment,
; finally marking loc_10b=0x41 and bumping loc_109.
settleEnemyAtTargetDepth:
9D06: AD 02 02 LDA workRam+202 ; read the shared floor/shot depth
9D09: 9D DF 02 STA workRam+2DF,X ; stash it as this slot's depth
9D0C: BD 83 02 LDA workRam+283,X ; read the flag byte
9D0F: 29 07 AND #$07 ; low 3 bits: the lane kind
9D11: C9 01 CMP #$01 ; kind 1?
9D13: D0 0E BNE loc_9d23 ; not kind 1: skip the fire flip
9D15: AD AB 03 LDA workRam+3AB ; read the enemy-fire gate
9D18: F0 09 BEQ loc_9d23 ; gate clear: skip
9D1A: BD 8A 02 LDA workRam+28A,X ; read the direction byte
9D1D: 49 80 EOR #$80 ; flip the climb direction -- turn to fire
9D1F: 9D 8A 02 STA workRam+28A,X ; store it
9D22: 60 RTS
loc_9d23:
9D23: BD 83 02 LDA workRam+283,X ; read the flag byte
9D26: 10 04 BPL loc_9d2c ; positive slot: go to the split logic
9D28: FE DF 02 INC workRam+2DF,X ; negative slot: nudge its stashed depth and stop
9D2B: 60 RTS
loc_9d2c:
9D2C: CE 08 01 DEC workRam+108 ; drop the total live-enemy count
9D2F: AD 09 01 LDA workRam+109 ; read the per-type enemy count
9D32: C9 01 CMP #$01 ; exactly one of this type?
9D34: F0 06 BEQ loc_9d3c ; yes: scan for a matching neighbour
9D36: 20 67 9D JSR faceEnemyTowardPlayerSegment; otherwise re-aim the slot toward the player
9D39: B8 CLV
9D3A: 50 22 BVC loc_9d5e ;
loc_9d3c:
9D3C: A0 06 LDY #$06 ; scan from slot 6 downward
loc_9d3e:
9D3E: B9 DF 02 LDA workRam+2DF,Y ; read the candidate slot's depth
9D41: F0 0E BEQ loc_9d51 ; empty slot: skip it
9D43: 84 38 STY workRam+38 ; record the current scan index
9D45: E4 38 CPX workRam+38 ; is it this same slot?
9D47: F0 08 BEQ loc_9d51 ; self: skip
9D49: B9 DF 02 LDA workRam+2DF,Y ; candidate depth
9D4C: CD 02 02 CMP workRam+202 ; matches the shared floor depth?
9D4F: F0 03 BEQ loc_9d54 ; match: take this neighbour
loc_9d51:
9D51: 88 DEY ; next slot down
9D52: 10 EA BPL loc_9d3e ; keep scanning while slots remain
loc_9d54:
9D54: B9 83 02 LDA workRam+283,Y ; read the matched neighbour's flag byte
9D57: 29 40 AND #$40 ; its turn-side bit
9D59: 49 40 EOR #$40 ; inverted
9D5B: 9D 83 02 STA workRam+283,X ; set this slot's turn side opposite the neighbour's
loc_9d5e:
9D5E: A9 41 LDA #$41 ; script-cursor seed
9D60: 8D 0B 01 STA workRam+10B ; point the motion-script cursor at 0x41
9D63: EE 09 01 INC workRam+109 ; bump the per-type enemy count
9D66: 60 RTS
; aim slot x's turn side toward the player: take the signed segment delta
; of loc_2b9,x against player segment loc_200 via signedSegmentDelta, then
; clear bit6 of loc_283,x when the delta is negative (bit7 set) and set it
; otherwise.
faceEnemyTowardPlayerSegment:
9D67: BD B9 02 LDA workRam+2B9,X ; read slot x's own segment
9D6A: A8 TAY
9D6B: AD 00 02 LDA workRam+200 ; player's segment
9D6E: 20 A6 A7 JSR signedSegmentDelta ; signed ring distance from the player to this enemy
9D71: 0A ASL A ; shift the sign into carry
9D72: BD 83 02 LDA workRam+283,X ; read the flag byte
9D75: B0 05 BCS loc_9d7c ; distance negative: clear the turn-side bit
9D77: 09 40 ORA #$40 ; else set bit6 -- turn toward the player
9D79: B8 CLV
9D7A: 50 02 BVC loc_9d7e ;
loc_9d7c:
9D7C: 29 BF AND #$BF ; clear bit6 -- turn the other way
loc_9d7e:
9D7E: 9D 83 02 STA workRam+283,X ; store the turn-side decision
9D81: 60 RTS
; step the flipper's turn animation for slot x: advance phase counter
; loc_2cc,x by loc_283,x bit6 (keep nibble, force bit7); when state
; loc_283,x&7 != 4 re-aim (lookupRingHeading of loc_283,x^0x40 vs
; loc_2b9,x) and on a phase match drop bit7 and reseed the phase/lane
; loc_2b9,x; when state==4 at a step boundary rotate loc_2b9,x, reseed
; phase to 0x20, flip loc_28a,x bit7 and (loc_3ab==0) kick
; flipEnemyLaneTowardTarget when depth loc_2df,x==floor loc_202; every
; exit copies loc_283,x bit7 into shared flag loc_10c.
animateFlipperTurn:
9D82: BC CC 02 LDY workRam+2CC,X ; read the slot's phase counter
9D85: BD 83 02 LDA workRam+283,X ; read the flag byte
9D88: 29 40 AND #$40 ; bit6: which way the phase steps
9D8A: D0 04 BNE loc_9d90 ; bit6 set: step the phase down
9D8C: C8 INY ; bit6 clear: step the phase up
9D8D: B8 CLV
9D8E: 50 01 BVC loc_9d91 ;
loc_9d90:
9D90: 88 DEY ; step the phase down
loc_9d91:
9D91: 98 TYA
9D92: 29 0F AND #$0F ; keep the low nibble
9D94: 09 80 ORA #$80 ; force bit7 active
9D96: 9D CC 02 STA workRam+2CC,X ; store the advanced phase
9D99: BD 83 02 LDA workRam+283,X ; read the flag byte
9D9C: 29 07 AND #$07 ; low 3 bits: the animation state
9D9E: C9 04 CMP #$04 ; settling state (4)?
9DA0: D0 4C BNE loc_9dee ; not settling: re-aim/walk branch
9DA2: BD CC 02 LDA workRam+2CC,X ; settling: read the phase
9DA5: 29 07 AND #$07 ; at a step boundary?
9DA7: D0 42 BNE loc_9deb ; not on a boundary: done
9DA9: BD CC 02 LDA workRam+2CC,X ; read the phase
9DAC: 29 08 AND #$08 ; phase bit3?
9DAE: F0 0B BEQ loc_9dbb ; clear: skip the lane rotate
9DB0: BD B9 02 LDA workRam+2B9,X ; read the segment
9DB3: 18 CLC
9DB4: 69 01 ADC #$01 ; plus one lane
9DB6: 29 0F AND #$0F ; wrap to the 16-lane ring
9DB8: 9D B9 02 STA workRam+2B9,X ; rotate the enemy up one lane
loc_9dbb:
9DBB: BD 83 02 LDA workRam+283,X ; read the flag byte
9DBE: 29 7F AND #$7F ; drop bit7
9DC0: 9D 83 02 STA workRam+283,X ; mark the flip settled
9DC3: A9 20 LDA #$20 ; reseed value
9DC5: 9D CC 02 STA workRam+2CC,X ; reset the phase to 0x20
9DC8: BD 8A 02 LDA workRam+28A,X ; read the direction byte
9DCB: 49 80 EOR #$80 ; flip the turn sign
9DCD: 9D 8A 02 STA workRam+28A,X ; store it
9DD0: AD AB 03 LDA workRam+3AB ; read the enemy-fire gate
9DD3: D0 16 BNE loc_9deb ; gate armed: done
9DD5: BD DF 02 LDA workRam+2DF,X ; read the flipper's depth
9DD8: CD 02 02 CMP workRam+202 ; at the player's floor depth?
9DDB: D0 06 BNE loc_9de3 ; no: just isolate the direction sign
9DDD: 20 81 9F JSR flipEnemyLaneTowardTarget; at the player: lunge across toward the target lane
9DE0: B8 CLV
9DE1: 50 08 BVC loc_9deb ;
loc_9de3:
9DE3: BD 8A 02 LDA workRam+28A,X ; read the direction byte
9DE6: 29 80 AND #$80 ; keep just the sign bit
9DE8: 9D 8A 02 STA workRam+28A,X ; mask the direction down to its sign
loc_9deb:
9DEB: B8 CLV
9DEC: 50 38 BVC loc_9e26 ;
loc_9dee:
9DEE: BC B9 02 LDY workRam+2B9,X ; not settling: read the segment
9DF1: BD 83 02 LDA workRam+283,X ; read the flag byte
9DF4: 49 40 EOR #$40 ; flip bit6 for the heading lookup
9DF6: 20 D7 9E JSR lookupRingHeading ; look up the target ring heading
9DF9: DD CC 02 CMP workRam+2CC,X ; does it match the current phase?
9DFC: D0 28 BNE loc_9e26 ; no: done for this frame
9DFE: BD 83 02 LDA workRam+283,X ; read the flag byte
9E01: 29 7F AND #$7F ; drop bit7
9E03: 9D 83 02 STA workRam+283,X ; clear the active bit
9E06: 29 40 AND #$40 ; test the turn-side bit
9E08: D0 11 BNE loc_9e1b ; set: take the +1-lane branch
9E0A: BD B9 02 LDA workRam+2B9,X ; read the segment
9E0D: 9D CC 02 STA workRam+2CC,X ; copy the segment into the phase
9E10: 38 SEC
9E11: E9 01 SBC #$01 ; minus one lane
9E13: 29 0F AND #$0F ; wrap the ring
9E15: 9D B9 02 STA workRam+2B9,X ; step the segment down one lane
9E18: B8 CLV
9E19: 50 0B BVC loc_9e26 ;
loc_9e1b:
9E1B: BD B9 02 LDA workRam+2B9,X ; read the segment
9E1E: 18 CLC
9E1F: 69 01 ADC #$01 ; plus one lane
9E21: 29 0F AND #$0F ; wrap the ring
9E23: 9D CC 02 STA workRam+2CC,X ; set the phase to the next lane up
loc_9e26:
9E26: BD 83 02 LDA workRam+283,X ; read the flag byte
9E29: 29 80 AND #$80 ; isolate bit7 active
9E2B: 8D 0C 01 STA workRam+10C ; copy it into the shared script branch flag
9E2E: 60 RTS
; spawn a type-5 object when a live slot (loc_283,x bit7 clear) has its
; coordinate pair loc_2b9,x/loc_2cc,x matching the current target pair
; loc_200/loc_201.
spawnType5OnCoordMatch:
9E2F: BD 83 02 LDA workRam+283,X ; read this slot's enemy state byte
9E32: 30 13 BMI loc_9e47 ; bail if the slot is already live -- only act on a not-yet-live slot
9E34: BD B9 02 LDA workRam+2B9,X ; read the slot's segment
9E37: CD 00 02 CMP workRam+200 ; compare against the player's current rim segment
9E3A: D0 0B BNE loc_9e47 ; bail unless the slot's segment matches the player lane
9E3C: BD CC 02 LDA workRam+2CC,X ; read the slot's phase/successor heading
9E3F: CD 01 02 CMP workRam+201 ; compare against the player fine-angle cell
9E42: D0 03 BNE loc_9e47 ; bail unless it matches too
9E44: 20 3A A3 JSR insertType5AndDrainPending; on a full coordinate match, spawn the type-5 object and drain the pending queue
loc_9e47:
9E47: 60 RTS
; fire the player-collision hit when a slot's depth loc_2df,x matches
; loc_202 and its segment loc_2b9,x matches loc_200.
fireHitOnPlayerCollision:
9E48: BD DF 02 LDA workRam+2DF,X ; read the slot's tube-depth high byte
9E4B: CD 02 02 CMP workRam+202 ; compare with the player shot depth
9E4E: D0 0B BNE loc_9e5b ; bail unless the depth matches
9E50: BD B9 02 LDA workRam+2B9,X ; read the slot's segment
9E53: CD 00 02 CMP workRam+200 ; compare with the player rim segment
9E56: D0 03 BNE loc_9e5b ; bail unless the lane matches
9E58: 20 43 A3 JSR insertObjectHeadTag9; register the hit on the player and insert the object head tag
loc_9e5b:
9E5B: 60 RTS
; step a climber's segment with the flip guard: run the depth-gated bit6
; keeper first, then fall into the shared segment-step body for slot x.
stepClimberSegmentGuarded:
9E5C: 20 AB 9E JSR keepClimberFlipBitByDepth; run the depth-gated flip-bit keeper first, then fall into the segment step
; step a climber one segment and set its next heading: force bit7 on
; loc_283,x (mark live) and branch on its low-3-bit segment -- for the
; seam segment 4 step depth loc_2b9,x down one mod16 and store 0x87 (bit6
; set) or store 0x81 (bit6 clear); for any other segment step depth up one
; mod16 (bit6 set) then store the ring-lookup heading into loc_2cc,x.
stepClimberSegmentAndHeading:
9E5F: BD 83 02 LDA workRam+283,X ; read the enemy state byte
9E62: 09 80 ORA #$80 ; mark the slot live -- set bit7
9E64: 9D 83 02 STA workRam+283,X ; store it back
9E67: 29 07 AND #$07 ; isolate the low-3-bit segment kind
9E69: C9 04 CMP #$04 ; is this segment kind 4
9E6B: D0 1F BNE loc_9e8c ; branch to the ordinary-segment case if not
9E6D: BD 83 02 LDA workRam+283,X ; reload state for the kind-4 case
9E70: 29 40 AND #$40 ; test the turn-side bit
9E72: D0 05 BNE loc_9e79 ; branch by side
9E74: A9 81 LDA #$81 ; heading 0x81 for one side
9E76: B8 CLV
9E77: 50 0D BVC loc_9e86 ;
loc_9e79:
9E79: BD B9 02 LDA workRam+2B9,X ; read the segment for the other side
9E7C: 38 SEC
9E7D: E9 01 SBC #$01 ; step the segment down one
9E7F: 29 0F AND #$0F ; wrap mod 16
9E81: 9D B9 02 STA workRam+2B9,X ; store the stepped segment
9E84: A9 87 LDA #$87 ; heading 0x87 -- the bit6-set variant
loc_9e86:
9E86: 9D CC 02 STA workRam+2CC,X ; store the phase/heading
9E89: B8 CLV
9E8A: 50 1E BVC loc_9eaa ;
loc_9e8c:
9E8C: BD 83 02 LDA workRam+283,X ; reload state for the ordinary-segment case
9E8F: 29 40 AND #$40 ; test the turn-side bit
9E91: F0 0B BEQ loc_9e9e ; skip the step-up if the side bit is clear
9E93: BD B9 02 LDA workRam+2B9,X ; read the segment
9E96: 18 CLC
9E97: 69 01 ADC #$01 ; step the segment up one
9E99: 29 0F AND #$0F ; wrap mod 16
9E9B: 9D B9 02 STA workRam+2B9,X ; store the stepped segment
loc_9e9e:
9E9E: BD 83 02 LDA workRam+283,X ; reload state for the heading lookup
9EA1: BC B9 02 LDY workRam+2B9,X ; index by the current segment
9EA4: 20 D7 9E JSR lookupRingHeading ; look up the ring heading
9EA7: 9D CC 02 STA workRam+2CC,X ; store the heading into the phase cell
loc_9eaa:
9EAA: 60 RTS
; keep the climber's flip bit (bit6 of loc_283,x) in step with its segment
; depth loc_2b9,x while gate loc_111 is on: when bit6 is set clear it once
; depth reaches 0x0e; when bit6 is clear set it only while depth is 0.
keepClimberFlipBitByDepth:
9EAB: AD 11 01 LDA workRam+111 ; read the tube-geometry / live-board flag
9EAE: F0 26 BEQ loc_9ed6 ; do nothing unless the board is live
9EB0: BD 83 02 LDA workRam+283,X ; read the enemy state byte
9EB3: 29 40 AND #$40 ; test the flip/turn-side bit
9EB5: F0 12 BEQ loc_9ec9 ; branch if the bit is clear
9EB7: BD B9 02 LDA workRam+2B9,X ; bit set: read the segment depth
9EBA: C9 0E CMP #$0E ; has it reached 0x0e
9EBC: 90 08 BCC loc_9ec6 ; keep the bit while depth is below 0x0e
9EBE: BD 83 02 LDA workRam+283,X ; else reload state to clear the flip bit
9EC1: 29 BF AND #$BF ; clear bit6
9EC3: 9D 83 02 STA workRam+283,X ; store it back
loc_9ec6:
9EC6: B8 CLV
9EC7: 50 0D BVC loc_9ed6 ;
loc_9ec9:
9EC9: BD B9 02 LDA workRam+2B9,X ; bit clear: read the segment depth
9ECC: D0 08 BNE loc_9ed6 ; leave it clear unless depth is 0
9ECE: BD 83 02 LDA workRam+283,X ; at depth 0, reload state to set the flip bit
9ED1: 09 40 ORA #$40 ; set bit6
9ED3: 9D 83 02 STA workRam+283,X ; store it back
loc_9ed6:
9ED6: 60 RTS
; look up a climber heading from the ring-direction table loc_3ee,y with
; bit7 forced on; when the caller's bit6 is set take the half-turn first
; -- index y=(y-1)&0x0f, value (loc_3ee,y+8)&0x0f.
lookupRingHeading:
9ED7: 29 40 AND #$40 ; test the caller's turn-side bit
9ED9: F0 10 BEQ loc_9eeb ; straight lookup when clear
9EDB: 88 DEY ; half-turn: step the index back one
9EDC: 98 TYA
9EDD: 29 0F AND #$0F ; wrap the index mod 16
9EDF: A8 TAY
9EE0: B9 EE 03 LDA workRam+3EE,Y ; read the ring-direction table
9EE3: 18 CLC
9EE4: 69 08 ADC #$08 ; add a half turn (8)
9EE6: 29 0F AND #$0F ; wrap mod 16
9EE8: B8 CLV
9EE9: 50 03 BVC loc_9eee ;
loc_9eeb:
9EEB: B9 EE 03 LDA workRam+3EE,Y ; straight case: read the ring-direction table
loc_9eee:
9EEE: 09 80 ORA #$80 ; force bit7 on the heading
9EF0: 60 RTS
; per-slot pursuit mover: when loc_28a,x bit7 is set re-seek the subtract
; way (reverseEnemyLaneDepth with delta index 0x04) and dispatch on the
; returned high (maybeFireEnemyStep fire step for hi<0x80, else
; flipEnemyLaneRandomSide/flipEnemyLaneTowardTarget by loc_159 bit6); when
; clear advance the 16-bit depth (loc_29f,x += loc_164; loc_2df,x +=
; loc_169) clamped to floor loc_202, producing a fire carry only when
; loc_3ab!=0 and (loc_9f>=0x11 or hi>=0x20), then run maybeFireEnemyStep
; or pick flipEnemyLaneTowardTarget/flipEnemyLaneRandomSide by loc_159
; sign.
advanceEnemyPursuit:
9EF1: A0 04 LDY #$04 ; select climb-delta table entry 4
9EF3: BD 8A 02 LDA workRam+28A,X ; read the enemy direction/state byte
9EF6: 30 4B BMI loc_9f43 ; take the re-seek path when the climb-direction bit is set
9EF8: BD 9F 02 LDA workRam+29F,X ; read the depth low byte
9EFB: 18 CLC
9EFC: 6D 64 01 ADC workRam+164 ; add the per-segment climb-speed delta (low)
9EFF: 9D 9F 02 STA workRam+29F,X ; store the depth low
9F02: BD DF 02 LDA workRam+2DF,X ; read the depth high byte
9F05: 6D 69 01 ADC workRam+169 ; add the climb-speed delta (high) with carry
9F08: 9D DF 02 STA workRam+2DF,X ; store the depth high
9F0B: CD 02 02 CMP workRam+202 ; compare against the player-shot floor depth
9F0E: B0 09 BCS loc_9f19 ; branch if at or above the floor
9F10: AD 02 02 LDA workRam+202 ; else clamp depth to the floor
9F13: 9D DF 02 STA workRam+2DF,X ; store the clamped depth
9F16: B8 CLV
9F17: 50 11 BVC loc_9f2a ;
loc_9f19:
9F19: AC AB 03 LDY workRam+3AB ; read the enemy-fire gate
9F1C: F0 0B BEQ loc_9f29 ; no fire step when the gate is closed
9F1E: A4 9F LDY workRam+9F ; read zero-page scratch $9f
9F20: C0 11 CPY #$11 ; compare it against 0x11
9F22: B0 02 BCS loc_9f26 ; arm the fire step when it is high enough
9F24: C9 20 CMP #$20 ; else arm the fire step once depth reaches 0x20
loc_9f26:
9F26: B8 CLV
9F27: 50 01 BVC loc_9f2a ;
loc_9f29:
9F29: 60 RTS
loc_9f2a:
9F2A: B0 11 BCS loc_9f3d ; with the fire carry, take the fire step
9F2C: AD 59 01 LDA workRam+159 ; read the fire/aim selector
9F2F: 10 06 BPL loc_9f37 ; pick the turn side by its sign
9F31: 20 81 9F JSR flipEnemyLaneTowardTarget; flip the enemy toward the target lane
9F34: B8 CLV
9F35: 50 03 BVC loc_9f3a ;
loc_9f37:
9F37: 20 8A 9F JSR flipEnemyLaneRandomSide; else flip to a random side
loc_9f3a:
9F3A: B8 CLV
9F3B: 50 03 BVC loc_9f40 ;
loc_9f3d:
9F3D: 20 5F 9F JSR maybeFireEnemyStep ; run the fire-gate step
loc_9f40:
9F40: B8 CLV
9F41: 50 1B BVC loc_9f5e ;
loc_9f43:
9F43: 20 99 9C JSR reverseEnemyLaneDepth; re-seek path: step depth in the lane direction (subtract way)
9F46: C9 80 CMP #$80 ; test the returned depth high byte
9F48: 90 11 BCC loc_9f5b ; low half -> fire step
9F4A: 2C 59 01 BIT workRam+159 ; test the fire/aim selector bit6
9F4D: 50 06 BVC loc_9f55 ;
9F4F: 20 81 9F JSR flipEnemyLaneTowardTarget; flip toward the target lane
9F52: B8 CLV
9F53: 50 03 BVC loc_9f58 ;
loc_9f55:
9F55: 20 8A 9F JSR flipEnemyLaneRandomSide; else flip to a random side
loc_9f58:
9F58: B8 CLV
9F59: 50 03 BVC loc_9f5e ;
loc_9f5b:
9F5B: 20 5F 9F JSR maybeFireEnemyStep ; fire-gate step
loc_9f5e:
9F5E: 60 RTS
; per-slot fire gate: run a step only when the slot's fire bit loc_2df,x &
; 0x20 is set and a fresh POKEY draw $60DA >= threshold loc_15f; then
; route to flipEnemyLaneRandomSide when loc_159 bit6 is clear or the slot
; index is even, otherwise flipEnemyLaneTowardTarget.
maybeFireEnemyStep:
9F5F: BD DF 02 LDA workRam+2DF,X ; read the slot's depth high byte
9F62: 29 20 AND #$20 ; test the fire-enable bit
9F64: F0 1A BEQ loc_9f80 ; no step unless the bit is set
9F66: AD DA 60 LDA pokey2+A ; draw a fresh secondary-RNG byte
9F69: CD 5F 01 CMP workRam+15F ; compare against the fire threshold
9F6C: 90 12 BCC loc_9f80 ; no fire when the draw is under threshold
9F6E: 2C 59 01 BIT workRam+159 ; test the fire/aim selector bit6
9F71: 50 0A BVC loc_9f7d ;
9F73: 8A TXA
9F74: 4A LSR A ; test the slot index parity
9F75: 90 13 BCC flipEnemyLaneRandomSide; even slot -> flip to a random side
9F77: 20 81 9F JSR flipEnemyLaneTowardTarget; else flip toward the target lane
9F7A: B8 CLV
9F7B: 50 03 BVC loc_9f80 ;
loc_9f7d:
9F7D: 20 8A 9F JSR flipEnemyLaneRandomSide; flip to a random side
loc_9f80:
9F80: 60 RTS
; flip-step entry that re-derives slot x's turn side toward its target
; (faceEnemyTowardPlayerSegment) then toggles bit6 of loc_283,x
; (toggleEnemyTurnSide), then runs the shared tail: on a live board
; (loc_111!=0) flip bit6 by ring depth via loc_2b9,x, mark loc_10b=0x66,
; and continue into stepClimberSegmentAndHeading -- the flipper's lane-to-
; adjacent-lane hop.
flipEnemyLaneTowardTarget:
9F81: 20 67 9D JSR faceEnemyTowardPlayerSegment; re-derive this slot's turn side to face the player segment
9F84: 20 4F 9C JSR toggleEnemyTurnSide ; toggle the slot's turn-side bit
9F87: 4C 99 9F JMP loc_9f99 ; into the shared flip tail
; flip-step entry that reseeds slot x's turn side from a random bit ($60CA
; & 0x40) into bit6 of loc_283,x, then runs the shared tail: on a live
; board (loc_111!=0) flip bit6 again by ring depth (loc_2b9,x==0 when bit6
; set, >=0x0f when clear), mark loc_10b=0x66, and continue into
; stepClimberSegmentAndHeading.
flipEnemyLaneRandomSide:
9F8A: BD 83 02 LDA workRam+283,X ; read the enemy state byte
9F8D: 29 BF AND #$BF ; clear the turn-side bit
9F8F: 2C CA 60 BIT pokey1+A ; test a primary-RNG bit (bit6)
9F92: 50 02 BVC loc_9f96 ; leave the side clear on a 0 draw
9F94: 09 40 ORA #$40 ; else set the turn-side bit from the random draw
loc_9f96:
9F96: 9D 83 02 STA workRam+283,X ; store the reseeded state
loc_9f99:
9F99: AD 11 01 LDA workRam+111 ; shared tail: read the live-board flag
9F9C: F0 1E BEQ loc_9fbc ; skip the ring-depth flip on a dead board
9F9E: BD 83 02 LDA workRam+283,X ; read the state byte
9FA1: 29 40 AND #$40 ; test the turn-side bit
9FA3: D0 0A BNE loc_9faf ; branch by side
9FA5: BD B9 02 LDA workRam+2B9,X ; side clear: read the segment
9FA8: C9 0F CMP #$0F ; compare with 0x0f
9FAA: B0 08 BCS loc_9fb4 ; flip the bit only at the top edge (>=0x0f)
9FAC: B8 CLV
9FAD: 50 0D BVC loc_9fbc ;
loc_9faf:
9FAF: BD B9 02 LDA workRam+2B9,X ; side set: read the segment
9FB2: D0 08 BNE loc_9fbc ; flip only when the segment is 0
loc_9fb4:
9FB4: BD 83 02 LDA workRam+283,X ; reload state to flip the turn-side bit
9FB7: 49 40 EOR #$40 ; toggle bit6
9FB9: 9D 83 02 STA workRam+283,X ; store it back
loc_9fbc:
9FBC: A9 66 LDA #$66 ; set the object-script cursor to 0x66
9FBE: 8D 0B 01 STA workRam+10B ; store the script cursor
9FC1: 4C 5F 9E JMP stepClimberSegmentAndHeading; continue into the segment step
; advance climber slot x toward the rim while tracking each column's
; shallowest occupant: raise loc_10c, seed empty column loc_3ac,col to
; 0xf1, record a fresh minimum for the column (tagging loc_39a,col=0x80),
; clamp a too-shallow depth loc_2df,x (set bit7 of loc_28a,x,
; depth->0x20), or past the far limit call the deepest-column aim, repark
; depth at 0xf0 and (only when loc_3ab==0) rewrite flag loc_28a,x and lane
; loc_283,x.
advanceClimberTrackingColumnMin:
9FC4: A9 01 LDA #$01 ; raise the script-branch flag
9FC6: 8D 0C 01 STA workRam+10C ; store 1 into the script-branch flag
9FC9: BC B9 02 LDY workRam+2B9,X ; index by this enemy's segment/column
9FCC: B9 AC 03 LDA workRam+3AC,Y ; read the column's shallowest-depth record
9FCF: D0 05 BNE loc_9fd6 ; skip seeding if it already holds a value
9FD1: A9 F1 LDA #$F1 ; seed an empty column with 0xf1
9FD3: 99 AC 03 STA workRam+3AC,Y ; store it
loc_9fd6:
9FD6: BD DF 02 LDA workRam+2DF,X ; read this enemy's depth
9FD9: D9 AC 03 CMP workRam+3AC,Y ; compare with the column's recorded minimum
9FDC: B0 08 BCS loc_9fe6 ; skip if not a new shallowest
9FDE: 99 AC 03 STA workRam+3AC,Y ; record the new column minimum
9FE1: A9 80 LDA #$80 ; tag the column as flagged
9FE3: 99 9A 03 STA workRam+39A,Y ; store the lane-target flag
loc_9fe6:
9FE6: BD DF 02 LDA workRam+2DF,X ; read the depth again
9FE9: C9 20 CMP #$20 ; is it too shallow (below 0x20)
9FEB: B0 10 BCS loc_9ffd ; branch if deep enough
9FED: BD 8A 02 LDA workRam+28A,X ; too shallow: read the direction byte
9FF0: 09 80 ORA #$80 ; set the climb-direction bit -- turn it around
9FF2: 9D 8A 02 STA workRam+28A,X ; store it back
9FF5: A9 20 LDA #$20 ; clamp depth to 0x20
9FF7: 9D DF 02 STA workRam+2DF,X ; store the clamped depth
9FFA: B8 CLV
9FFB: 50 2A BVC loc_a027 ;
loc_9ffd:
9FFD: C9 F2 CMP #$F2 ; past the far limit (>=0xf2)
9FFF: 90 26 BCC loc_a027 ; branch out if still within the tube
A001: 20 28 A0 JSR aimClimberAtDeepestColumn; aim the enemy at the deepest column
A004: A9 F0 LDA #$F0 ; repark depth at the far wall 0xf0
A006: 9D DF 02 STA workRam+2DF,X ; store it
A009: AD AB 03 LDA workRam+3AB ; read the fire gate
A00C: D0 19 BNE loc_a027 ; skip the rewrite while the gate is open
A00E: BD 8A 02 LDA workRam+28A,X ; rewrite the direction byte
A011: 29 FC AND #$FC ; clear its low 2 bits
A013: 09 01 ORA #$01 ; set kind to 1
A015: 9D 8A 02 STA workRam+28A,X ; store it back
A018: BD 83 02 LDA workRam+283,X ; rewrite the enemy state byte
A01B: 29 F8 AND #$F8 ; clear the low 3 bits
A01D: 09 02 ORA #$02 ; set segment kind to 2
A01F: 9D 83 02 STA workRam+283,X ; store it back
A022: A9 00 LDA #$00
A024: 8D 0C 01 STA workRam+10C ; clear the script-branch flag
loc_a027:
A027: 60 RTS
; aim a climber slot at the deepest tube column: scan the 16-column depth
; table loc_3ac from a POKEY2-random start $60DA&0x0f (empty column counts
; as maximal 0xff, last column skipped while loc_111 nonzero) keeping the
; max in loc_2d and its column in loc_29, then set the slot's target
; segment loc_2b9,x to the winner, successor loc_2cc,x=(winner+1)&0x0f,
; and clear bit7 of loc_28a,x.
aimClimberAtDeepestColumn:
A028: A9 00 LDA #$00
A02A: 85 2D STA workRam+2D ; clear the running-max holder
A02C: A9 0F LDA #$0F
A02E: 8D 40 01 STA workRam+140 ; set the 16-column scan countdown
A031: AD DA 60 LDA pokey2+A ; draw a secondary-RNG start
A034: 29 0F AND #$0F ; reduce to a column index 0..15
A036: A8 TAY
loc_a037:
A037: C0 0F CPY #$0F ; is this the last column
A039: D0 05 BNE loc_a040 ; skip the last-column special case
A03B: AD 11 01 LDA workRam+111 ; read the live-board flag
A03E: D0 0F BNE loc_a04f ; skip the last column while the board is live
loc_a040:
A040: B9 AC 03 LDA workRam+3AC,Y ; read the column's recorded depth
A043: D0 02 BNE loc_a047 ; an empty column...
A045: A9 FF LDA #$FF ; ...counts as maximal depth 0xff
loc_a047:
A047: C5 2D CMP workRam+2D ; compare against the running max
A049: 90 04 BCC loc_a04f ; keep the previous max if not deeper
A04B: 85 2D STA workRam+2D ; record the new max depth
A04D: 84 29 STY workRam+29 ; record its column
loc_a04f:
A04F: 88 DEY ; step to the previous column
A050: 10 02 BPL loc_a054 ; wrap...
A052: A0 0F LDY #$0F ; ...back to column 15
loc_a054:
A054: CE 40 01 DEC workRam+140 ; decrement the scan countdown
A057: 10 DE BPL loc_a037 ; loop over all 16 columns
A059: A5 29 LDA workRam+29 ; take the winning column
A05B: 9D B9 02 STA workRam+2B9,X ; set the enemy's target segment
A05E: 18 CLC
A05F: 69 01 ADC #$01 ; successor column = winner + 1
A061: 29 0F AND #$0F ; wrap mod 16
A063: 9D CC 02 STA workRam+2CC,X ; store the successor heading
A066: BD 8A 02 LDA workRam+28A,X ; read the direction byte
A069: 29 7F AND #$7F ; clear the climb-direction bit -- aim inward
A06B: 9D 8A 02 STA workRam+28A,X ; store it back
A06E: 60 RTS
; retire the enemy in slot y and optionally split it: clear loc_2df,y,
; drop per-type loc_109 (when depth==loc_202 and lane loc_283,y&7 != 4) or
; total loc_108, drop per-lane loc_142; then when the replacement gate
; loc_28a,y&3 is armed, seat draw cells loc_2b/loc_2a, build the
; coordinate list via setupEnemyCoordList, seed loc_10b/loc_10a, spawn a
; replacement via spawnClimberInFreeSlot, and if it took, spawn a mirrored
; second one.
retireEnemyAndSpawnSplit:
A06F: B9 DF 02 LDA workRam+2DF,Y ; read the retiring enemy's depth
A072: 85 29 STA workRam+29 ; stash it
A074: CD 02 02 CMP workRam+202 ; compare with the player-shot depth
A077: D0 0F BNE loc_a088 ; branch to the total-count path unless at that depth
A079: B9 83 02 LDA workRam+283,Y ; read the enemy state byte
A07C: 29 07 AND #$07 ; isolate the segment kind
A07E: C9 04 CMP #$04 ; is it segment kind 4
A080: F0 06 BEQ loc_a088 ; if so, drop the total count instead
A082: CE 09 01 DEC workRam+109 ; drop the per-type live-enemy count
A085: B8 CLV
A086: 50 03 BVC loc_a08b ;
loc_a088:
A088: CE 08 01 DEC workRam+108 ; drop the total live-enemy count
loc_a08b:
A08B: A9 00 LDA #$00
A08D: 99 DF 02 STA workRam+2DF,Y ; clear the slot depth -- retire it
A090: B9 83 02 LDA workRam+283,Y ; read the state byte
A093: 29 07 AND #$07 ; isolate the segment kind
A095: 86 35 STX workRam+35 ; save the caller's slot index
A097: AA TAX
A098: DE 42 01 DEC workRam+142,X ; drop that column's active-enemy counter
A09B: A6 35 LDX workRam+35 ; restore the slot index
A09D: B9 8A 02 LDA workRam+28A,Y ; read the direction byte
A0A0: 29 03 AND #$03 ; isolate the replacement-gate bits
A0A2: F0 52 BEQ loc_a0f6 ; no split when the gate is 0
A0A4: 38 SEC
A0A5: E9 01 SBC #$01 ; decode the split count
A0A7: C9 02 CMP #$02 ; is it 2
A0A9: D0 02 BNE loc_a0ad ;
A0AB: A9 04 LDA #$04 ; remap 2 to 4
loc_a0ad:
A0AD: 85 2B STA workRam+2B ; seat the split draw cell
A0AF: B9 B9 02 LDA workRam+2B9,Y ; read the enemy's segment
A0B2: 38 SEC
A0B3: E9 01 SBC #$01 ; step it back one
A0B5: 29 0F AND #$0F ; wrap mod 16
A0B7: C9 0F CMP #$0F ; did it wrap to 0x0f
A0B9: 90 07 BCC loc_a0c2 ; skip the wrap fix-up if not
A0BB: 2C 11 01 BIT workRam+111 ; test the live-board flag bit7
A0BE: 10 02 BPL loc_a0c2 ; skip unless the wrap bit governs
A0C0: A9 00 LDA #$00 ; clamp the segment to 0
loc_a0c2:
A0C2: 85 2A STA workRam+2A ; seat the split lane cell
A0C4: 20 07 9B JSR setupEnemyCoordList ; build the coordinate list for the replacement
A0C7: A5 2D LDA workRam+2D ; take the list-high byte
A0C9: 8D 0B 01 STA workRam+10B ; seed the object-script cursor
A0CC: CE 0B 01 DEC workRam+10B ; step it back one
A0CF: A9 00 LDA #$00
A0D1: 8D 0A 01 STA workRam+10A ; clear the script sub-cursor
A0D4: 20 4D 99 JSR spawnClimberInFreeSlot; spawn the replacement climber in a free slot
A0D7: F0 1D BEQ loc_a0f6 ; done if no free slot took it
A0D9: A5 2A LDA workRam+2A ; took: read the split lane
A0DB: 18 CLC
A0DC: 69 02 ADC #$02 ; offset the mirror lane by 2
A0DE: 29 0F AND #$0F ; wrap mod 16
A0E0: C9 0F CMP #$0F ; did it land on 0x0f
A0E2: D0 07 BNE loc_a0eb ; skip the fix-up if not
A0E4: 2C 11 01 BIT workRam+111 ; test the live-board bit7
A0E7: 10 02 BPL loc_a0eb ; skip unless it governs
A0E9: A9 0E LDA #$0E ; clamp the mirror lane to 0x0e
loc_a0eb:
A0EB: 85 2A STA workRam+2A ; seat the mirror lane
A0ED: A5 2B LDA workRam+2B ;
A0EF: 09 40 ORA #$40 ; tag the mirror as the second of the pair
A0F1: 85 2B STA workRam+2B ; store it
A0F3: 20 4D 99 JSR spawnClimberInFreeSlot; spawn the mirrored second climber
loc_a0f6:
A0F6: 60 RTS
; ---- $A0F7-$A18E: data ----
A0F7: 0C 0E 1A 06 00 06 FF 0C 00 06 06 02 08 0C 00 08
A107: 0C 12 00 14 04 06 11 06 0A 0C 00 12 00 14 0C 04
A117: 06 1B 06 18 0C 00 02 02 12 00 14 0C 04 06 28 00
A127: 08 27 16 02 03 12 00 14 0C 04 06 35 00 08 34 16
A137: 06 23 02 04 18 00 08 43 12 00 10 B3 14 1A 41 08
A147: 4B 06 48 00 0C 1C 1A 52 12 00 0C 14 1A 52 00 06
A157: 5A 1E 20 00 06 60 00 02 03 20 00 08 68 14 1A 60
A167: 06 65 10 B2 22 00 08 73 26 1A 7E 22 00 06 77 24
A177: 12 00 14 1A 71 06 80 24 16 12 00 0C 14 04 06 89
A187: 02 04 00 0C 08 91 06 86
; advance every active shot slot (0x0b..0): slots >=8 integrate a 16-bit
; velocity loc_2e6,x/loc_2d3,x by loc_120/loc_118 and retire (drop loc_a6,
; finalize via primeTopObjectOnTargetMatch, clear loc_2d3,x) when the new
; high falls below the floor loc_202; slots <8 step counter loc_2d3,x by
; 0x09 (less 4 when loc_2f2,x is flagged), resolve via
; advanceShotAndScoreLaneHit, and clear (drop loc_135) at the far limit
; >=0xf0.
stepActiveShots:
A18F: A2 0B LDX #$0B ; start at shot slot 0x0b
A191: 86 37 STX workRam+37 ; seat the slot loop index
loc_a193:
A193: A6 37 LDX workRam+37 ; reload the slot index (loop head)
A195: BD D3 02 LDA workRam+2D3,X ; read the shot slot's counter/state
A198: F0 45 BEQ loc_a1df ; skip an empty slot
A19A: E0 08 CPX #$08 ; slots 8 and above...
A19C: B0 22 BCS loc_a1c0 ; ...take the velocity-integration path
A19E: 69 09 ADC #$09 ; near slot: step the counter by 0x09
A1A0: BC F2 02 LDY workRam+2F2,X ; read the slot's hit tally/flag
A1A3: F0 03 BEQ loc_a1a8 ; if it is flagged...
A1A5: 38 SEC
A1A6: E9 04 SBC #$04 ; ...take 4 back off the step
loc_a1a8:
A1A8: 9D D3 02 STA workRam+2D3,X ; store the stepped counter
A1AB: 20 FA A1 JSR advanceShotAndScoreLaneHit; advance the shot and score a lane hit
A1AE: BD D3 02 LDA workRam+2D3,X ; reread the counter
A1B1: C9 F0 CMP #$F0 ; past the far limit (>=0xf0)
A1B3: 90 08 BCC loc_a1bd ; branch if still in the tube
A1B5: CE 35 01 DEC workRam+135 ; drop the active-object count
A1B8: A9 00 LDA #$00
A1BA: 9D D3 02 STA workRam+2D3,X ; clear the slot
loc_a1bd:
A1BD: B8 CLV
A1BE: 50 1F BVC loc_a1df ;
loc_a1c0:
A1C0: BD E6 02 LDA workRam+2E6,X ; far slot: read the velocity accumulator low
A1C3: 18 CLC
A1C4: 6D 20 01 ADC workRam+120 ; add the per-frame velocity low
A1C7: 9D E6 02 STA workRam+2E6,X ; store it
A1CA: BD D3 02 LDA workRam+2D3,X ; read the position high byte
A1CD: 6D 18 01 ADC workRam+118 ; add the velocity high with carry
A1D0: CD 02 02 CMP workRam+202 ; compare against the shot-depth floor
A1D3: B0 07 BCS loc_a1dc ; keep it if still at or above the floor
A1D5: C6 A6 DEC workRam+A6 ; else drop the live-climber count
A1D7: 20 E4 A1 JSR primeTopObjectOnTargetMatch; finalize the top object on a target match
A1DA: A9 00 LDA #$00
loc_a1dc:
A1DC: 9D D3 02 STA workRam+2D3,X ; clear the slot
loc_a1df:
A1DF: C6 37 DEC workRam+37 ; step to the previous slot
A1E1: 10 B0 BPL loc_a193 ; loop over all shot slots
A1E3: 60 RTS
; prime the top-priority object only when the live byte loc_200 matches
; slot x's target loc_2ad,x and ready flag loc_201 bit7 is clear -- run
; the prime and latch loc_201=0x81.
primeTopObjectOnTargetMatch:
A1E4: AD 00 02 LDA workRam+200 ; read the player rim segment
A1E7: DD AD 02 CMP workRam+2AD,X ; compare with the slot's target segment
A1EA: D0 0D BNE loc_a1f9 ; bail unless they match
A1EC: AD 01 02 LDA workRam+201 ; read the player fine-angle/ready cell
A1EF: 30 08 BMI loc_a1f9 ; bail if the ready bit (bit7) is set
A1F1: 20 4B A3 JSR primeTopPriorityObject; prime the top-priority object
A1F4: A9 81 LDA #$81
A1F6: 8D 01 02 STA workRam+201 ; latch the ready flag 0x81
loc_a1f9:
A1F9: 60 RTS
; advance shot slot x's counter loc_2d3,x toward the per-lane target-depth
; loc_3ac,y (y=loc_2ad,x); on reaching it shrink/clear loc_3ac,y, bump the
; hit tally loc_2f2,x, flag the target loc_39a,y=0xc0, chime
; (requestSegmentHitSound) and award (addBcdScoreAndAwardAtThreshold),
; returning the live slot; a second hit spends the shot (clear loc_2d3,x,
; drop the shot count loc_135).
advanceShotAndScoreLaneHit:
A1FA: BC AD 02 LDY workRam+2AD,X ; index by the shot's target segment
A1FD: B9 AC 03 LDA workRam+3AC,Y ; read that lane's target depth
A200: F0 3C BEQ loc_a23e ; nothing to hit if the lane depth is 0
A202: BD D3 02 LDA workRam+2D3,X ; read the shot's counter
A205: D9 AC 03 CMP workRam+3AC,Y ; compare with the lane target depth
A208: 90 25 BCC loc_a22f ; not yet reached -> check the tally
A20A: C9 F0 CMP #$F0 ; reached: past the far limit
A20C: 90 02 BCC loc_a210 ; branch if within the tube
A20E: A9 00 LDA #$00 ; else zero the value to store
loc_a210:
A210: 99 AC 03 STA workRam+3AC,Y ; shrink or clear the lane target depth
A213: FE F2 02 INC workRam+2F2,X ; bump the shot's hit tally
A216: A9 C0 LDA #$C0
A218: 99 9A 03 STA workRam+39A,Y ; flag the hit lane (0xc0)
A21B: 20 F6 CC JSR requestSegmentHitSound; request the segment-hit sound
A21E: A2 FF LDX #$FF ; seat the award parameters
A220: A9 00 LDA #$00
A222: 85 2A STA workRam+2A ;
A224: 85 2B STA workRam+2B ;
A226: A9 01 LDA #$01
A228: 85 29 STA workRam+29 ;
A22A: 20 6C CA JSR addBcdScoreAndAwardAtThreshold; add the BCD score and award at the threshold
A22D: A6 37 LDX workRam+37 ; restore the shot slot index
loc_a22f:
A22F: BD F2 02 LDA workRam+2F2,X ; read the hit tally
A232: C9 02 CMP #$02 ; a second hit
A234: 90 08 BCC loc_a23e ; not yet -> keep the shot live
A236: A9 00 LDA #$00
A238: 9D D3 02 STA workRam+2D3,X ; spend the shot -- clear it
A23B: CE 35 01 DEC workRam+135 ; drop the active-object count
loc_a23e:
A23E: 60 RTS
; spawn a new entity into a free slot: bail if 0x201 negative; form a gate
; (0x4d&0x10 when 0x5 negative, else 0x29 from 0x106 plus one per live
; 0x2db slot whose 0x2b5 sits within 1 of 0x200); on a nonzero gate scan
; 0x2d3 (x=7..0) for the first zero slot, seed it across
; 0x2d3/0x2ad/0x2c0/0x2f2 from 0x202/0x200/0x201/0, bump live count 0x135,
; and fire requestEnemySpawnSound + resolveSlotProximityInteractions.
spawnEntityIntoFreeSlot:
A23F: AD 01 02 LDA workRam+201 ; read the player fine-angle/ready cell
A242: 30 61 BMI loc_a2a5 ; bail while its bit7 is set
A244: A5 05 LDA workRam+5 ; read the game status byte
A246: 30 28 BMI loc_a270 ; take the fire-button path during active play
A248: AD 06 01 LDA workRam+106 ; read the moving-spike active flag
A24B: 85 29 STA workRam+29 ; seed the gate accumulator with it
A24D: A2 0A LDX #$0A ; scan slots 0x0a..0
loc_a24f:
A24F: BD DB 02 LDA workRam+2DB,X ; read the slot's live byte (loop head)
A252: F0 14 BEQ loc_a268 ; skip an empty slot
A254: BD B5 02 LDA workRam+2B5,X ; read the slot's segment
A257: 38 SEC
A258: ED 00 02 SBC workRam+200 ; distance from the player segment
A25B: 10 05 BPL loc_a262 ; take the absolute value...
A25D: 49 FF EOR #$FF
A25F: 18 CLC
A260: 69 01 ADC #$01 ; ...negate if below
loc_a262:
A262: C9 02 CMP #$02 ; within 1 segment of the player
A264: B0 02 BCS loc_a268 ; skip if farther
A266: E6 29 INC workRam+29 ; count this near slot into the gate
loc_a268:
A268: CA DEX
A269: 10 E4 BPL loc_a24f ; loop over the slots
A26B: A5 29 LDA workRam+29 ; take the gate value
A26D: B8 CLV
A26E: 50 04 BVC loc_a274 ;
loc_a270:
A270: A5 4D LDA workRam+4D ; fire-button path: read the debounced input
A272: 29 10 AND #$10 ; isolate the fire button bit
loc_a274:
A274: F0 2F BEQ loc_a2a5 ; bail if the gate is 0 / button not held
A276: A2 07 LDX #$07 ; scan slots 7..0 for a free one
loc_a278:
A278: BD D3 02 LDA workRam+2D3,X ; read the slot state (loop head)
A27B: D0 25 BNE loc_a2a2 ; skip an occupied slot
A27D: EE 35 01 INC workRam+135 ; take it: bump the active-object count
A280: AD 02 02 LDA workRam+202 ; seed the slot depth from the player-shot depth
A283: 9D D3 02 STA workRam+2D3,X ;
A286: AD 00 02 LDA workRam+200 ; seed the target segment from the player segment
A289: 9D AD 02 STA workRam+2AD,X ;
A28C: AD 01 02 LDA workRam+201 ; seed the fine angle from the player fine-angle
A28F: 9D C0 02 STA workRam+2C0,X ;
A292: A9 00 LDA #$00
A294: 9D F2 02 STA workRam+2F2,X ; clear the slot's hit tally
A297: 20 EA CC JSR requestEnemySpawnSound; request the enemy-spawn sound
A29A: AD 02 02 LDA workRam+202 ; read the player-shot depth
A29D: 20 63 A4 JSR resolveSlotProximityInteractions; resolve interactions with nearby slots
A2A0: A2 00 LDX #$00
loc_a2a2:
A2A2: CA DEX
A2A3: 10 D3 BPL loc_a278 ; loop -- and exit after a take
loc_a2a5:
A2A5: 60 RTS
; spawn climbers from the seven source slots each frame: skip while
; loc_201 bit7 set; for each armed slot (loc_28a,x bit6) with depth
; loc_2df,x>=0x30 whose timer loc_2a6,x underflows and whose POKEY roll
; $60CA beats the per-wave gate $A304[loc_a6], copy
; depth/segment/successor into the first empty destination loc_2db,y,
; reseed the timer from loc_119, cue the sound, and bump live count
; loc_a6.
spawnClimbersFromSourceSlots:
A2A6: AD 01 02 LDA workRam+201 ; read the player rotation / object-pending flag
A2A9: 30 58 BMI loc_a303 ; skip the whole hatch pass while the pending flag (bit7) is set
A2AB: A2 06 LDX #$06 ; index the top source enemy slot (6..0)
loc_a2ad:
A2AD: BD DF 02 LDA workRam+2DF,X ; read the source slot's tube depth
A2B0: F0 4E BEQ loc_a300 ; skip an empty slot
A2B2: C9 30 CMP #$30
A2B4: 90 4A BCC loc_a300 ; skip unless the source sits deep enough down the tube to hatch
A2B6: BD 8A 02 LDA workRam+28A,X ; read the slot's direction/state byte
A2B9: 29 40 AND #$40
A2BB: F0 43 BEQ loc_a300 ; skip unless the slot is an armed source (bit6)
A2BD: DE A6 02 DEC workRam+2A6,X ; tick the source's emit timer down
A2C0: 10 3E BPL loc_a300 ; fire only on the tick the timer underflows
A2C2: FE A6 02 INC workRam+2A6,X ; restore the underflow tick to the timer
A2C5: BD 83 02 LDA workRam+283,X ; read the slot flags
A2C8: 29 80 AND #$80
A2CA: D0 34 BNE loc_a300 ; skip a slot flagged done (bit7)
A2CC: AD CA 60 LDA pokey1+A ; read the RNG
A2CF: A4 A6 LDY workRam+A6 ; index the per-wave spawn-rate gate by the live-enemy count
A2D1: D9 04 A3 CMP rom+1304,Y ; gate the hatch against the per-wave spawn-rate table
A2D4: 90 2A BCC loc_a300 ; a low roll blocks the hatch -- denser waves emit less often
A2D6: AC 1A 01 LDY workRam+11A ; start the free flyer-slot scan at the difficulty-clamped top index
loc_a2d9:
A2D9: B9 DB 02 LDA workRam+2DB,Y ; read a candidate flyer destination slot
A2DC: D0 1F BNE loc_a2fd ; skip an occupied destination slot
A2DE: BD DF 02 LDA workRam+2DF,X ; read the source depth
A2E1: 99 DB 02 STA workRam+2DB,Y ; seed the new flyer's depth from the source
A2E4: BD B9 02 LDA workRam+2B9,X ; read the source segment
A2E7: 99 B5 02 STA workRam+2B5,Y ; copy the source segment into the flyer
A2EA: BD CC 02 LDA workRam+2CC,X ; read the source phase
A2ED: 99 C8 02 STA workRam+2C8,Y ; copy the source phase into the flyer
A2F0: AD 19 01 LDA workRam+119 ; load the source timer reload period
A2F3: 9D A6 02 STA workRam+2A6,X ; reload the source's emit timer
A2F6: 20 BD CC JSR gateSound8f ; cue the hatch sound
A2F9: E6 A6 INC workRam+A6 ; count the new enemy
A2FB: A0 00 LDY #$00 ; end the free-slot scan once the flyer is seated
loc_a2fd:
A2FD: 88 DEY
A2FE: 10 D9 BPL loc_a2d9 ; step to the next destination slot
loc_a300:
A300: CA DEX ; next source slot
A301: 10 AA BPL loc_a2ad ; loop back over the source slots
loc_a303:
A303: 60 RTS
; ---- $A304-$A308: data ----
A304: 00 E0 F0 FA FF
; spawn the lane enemy in slot X and award: mark slot active
; (0x2f2,x=0xff), seed 0x2d from the (Y-4)-indexed geometry byte 0x2b9,
; clamp POKEY random 0x60da low 3 bits to under 3 (else 0), run the
; insert/retire chain insertObjectFromSlotDepth+retireEnemyAndSpawnSplit
; with clamp+2, then award via addBcdScoreAndAwardAtThreshold indexed by
; clamp+5.
spawnLaneEnemyAndAward:
A309: 86 37 STX workRam+37 ; stash the slot index for the insert/retire chain
A30B: A9 FF LDA #$FF
A30D: 9D F2 02 STA workRam+2F2,X ; mark enemy slot X live
A310: 98 TYA
A311: 38 SEC
A312: E9 04 SBC #$04 ; convert the 4-based slot handle to a 0-based lane index
A314: A8 TAY
A315: B9 B9 02 LDA workRam+2B9,Y ; read the lane's geometry byte
A318: 85 2D STA workRam+2D ; latch the lane geometry for the object inserter
A31A: AD DA 60 LDA pokey2+A ; draw a random variant seed
A31D: 29 07 AND #$07
A31F: C9 03 CMP #$03 ; keep the variant only in 0..2
A321: 90 02 BCC loc_a325 ; values 0..2 pass through
A323: A9 00 LDA #$00 ; fold a 3..7 variant to 0
loc_a325:
A325: 48 PHA
A326: 18 CLC
A327: 69 02 ADC #$02 ; depth class = variant + 2
A329: 20 CA A3 JSR insertObjectFromSlotDepth; place the object at the variant's depth class
A32C: 20 6F A0 JSR retireEnemyAndSpawnSplit; fold the prior lane occupant and spawn any split
A32F: 68 PLA
A330: 18 CLC
A331: 69 05 ADC #$05 ; score tier = variant + 5
A333: AA TAX
A334: 20 6C CA JSR addBcdScoreAndAwardAtThreshold; award the variant's score tier and grant a bonus life at the threshold
A337: A6 37 LDX workRam+37 ; restore the slot index
A339: 60 RTS
; insert a type-5 object through the shared tail, then step the pending
; counter loc_201 down one.
insertType5AndDrainPending:
A33A: A9 05 LDA #$05 ; spawn a fixed type-5 object
A33C: 20 52 A3 JSR insertObjectAndSignalReady; seat it through the shared insert-and-signal-ready tail
A33F: CE 01 02 DEC workRam+201 ; draw the pending-spawn counter down by one
A342: 60 RTS
; insert a type-1 object after stamping head flag loc_13b with 0x09.
insertObjectHeadTag9:
A343: A9 09 LDA #$09 ; preset the head-flag tag to 0x09
A345: D0 06 BNE insertType1WithHeadFlag;
; insert a type-1 object after stamping head flag loc_13b with 0x07.
insertObjectHeadTag7:
A347: A9 07 LDA #$07 ; alternate entry: preset the head-flag tag to 0x07
A349: D0 02 BNE insertType1WithHeadFlag;
; prime a fresh top-priority object: stamp head flag loc_13b=0xff and run
; the type-1 insert.
primeTopPriorityObject:
A34B: A9 FF LDA #$FF ; top-priority head flag 0xff
; insert a type-1 object after stamping the head flag loc_13b with the
; caller's value, then run the shared insert tail.
insertType1WithHeadFlag:
A34D: 8D 3B 01 STA workRam+13B ; stamp the object's head / animation-phase flag
A350: A9 01 LDA #$01 ; object type 1
; insert an object and signal the spawn ready (shared insert tail): seat
; the type byte loc_2c, copy source loc_29 from loc_202 and target loc_2d
; from loc_200, fire the sound gate, insert into the 8-slot table, then
; raise ready flags loc_201=0x81 and loc_13c=0x01.
insertObjectAndSignalReady:
A352: 85 2C STA workRam+2C ; seat the object type byte
A354: AD 02 02 LDA workRam+202 ; read the current shot depth
A357: 85 29 STA workRam+29 ; source = current shot depth
A359: AD 00 02 LDA workRam+200 ; read the player segment
A35C: 85 2D STA workRam+2D ; target = player segment
A35E: 20 B0 CC JSR gateSound5f ; fire the spawn sound
A361: 20 D6 A3 JSR insertTimedObject ; seat the object in the eight-slot table
A364: A9 81 LDA #$81
A366: 8D 01 02 STA workRam+201 ; raise the spawn-ready flag (bit7 pending)
A369: A9 01 LDA #$01
A36B: 8D 3C 01 STA workRam+13C ; arm the object's animation timer
A36E: 60 RTS
; retire the object in slot Y: cue the sound, stage source loc_29 from
; loc_2db,y and target loc_2d from loc_2b5,y, re-insert a zeroed object,
; clear the slot loc_2db,y, drop live count loc_a6, and flag lane X spent
; with loc_2f2,x=0xff.
retireSpawnedObject:
A36F: 20 C1 CC JSR gateSound1f ; cue the destruction sound
A372: B9 DB 02 LDA workRam+2DB,Y ; read the object's depth
A375: 85 29 STA workRam+29 ; stage the object's depth as the retract source
A377: B9 B5 02 LDA workRam+2B5,Y ; read the object's segment
A37A: 85 2D STA workRam+2D ; stage the object's segment
A37C: A9 00 LDA #$00
A37E: 20 D4 A3 JSR insertTimedObjectOfType; retract the object's draw record (type 0)
A381: A9 00 LDA #$00
A383: 99 DB 02 STA workRam+2DB,Y ; empty the slot
A386: C6 A6 DEC workRam+A6 ; one fewer live enemy
A388: A9 FF LDA #$FF
A38A: 9D F2 02 STA workRam+2F2,X ; flag lane X spent for the caller's teardown
A38D: 60 RTS
; activate enemy slot X (0x2f2,x=0xff), step the lane index back by four,
; then tail-delegate the retire/spawn/award for that stepped-back slot to
; respawnEnemyAndAward.
activateSlotAndRespawn:
A38E: A9 FF LDA #$FF ; raise slot X's active flag
A390: 9D F2 02 STA workRam+2F2,X ;
A393: 98 TYA
A394: 38 SEC
A395: E9 04 SBC #$04 ; step the lane index back by four -- the slot recycled this pass
A397: A8 TAY
; retire enemy slot Y and spawn its replacement, then award: seed 0x2d
; from 0x2b9,y (decremented into the low nibble when descriptor 0x283,y
; has both top bits set), run
; insertObjectFromSlotDepth+retireEnemyAndSpawnSplit, then tail-delegate a
; score award (addBcdScoreAndAwardAtThreshold) selected by the re-read
; slot's lane through the $A3C5 table.
respawnEnemyAndAward:
A398: B9 83 02 LDA workRam+283,Y ; read the slot descriptor
A39B: 29 C0 AND #$C0
A39D: C9 C0 CMP #$C0
A39F: F0 06 BEQ loc_a3a7 ; both top bits set marks the split/offset case
A3A1: B9 B9 02 LDA workRam+2B9,Y ; take the seated segment as-is
A3A4: B8 CLV
A3A5: 50 08 BVC loc_a3af ;
loc_a3a7:
A3A7: B9 B9 02 LDA workRam+2B9,Y ; read the seated segment
A3AA: 38 SEC
A3AB: E9 01 SBC #$01 ; split case: step the segment back one
A3AD: 29 0F AND #$0F ; wrap it within the low nibble
loc_a3af:
A3AF: 85 2D STA workRam+2D ; seed the list-anchor segment
A3B1: A9 00 LDA #$00
A3B3: 20 CA A3 JSR insertObjectFromSlotDepth; insert the replacement object from the slot's depth
A3B6: 20 6F A0 JSR retireEnemyAndSpawnSplit; retire the enemy and spawn any split
A3B9: B9 83 02 LDA workRam+283,Y ; re-read the descriptor -- the spawn may have reused the slot
A3BC: 29 07 AND #$07 ; lane = descriptor low 3 bits
A3BE: A8 TAY
A3BF: BE C5 A3 LDX rom+13C5,Y ; look up the lane's score selector
A3C2: 4C 6C CA JMP addBcdScoreAndAwardAtThreshold; award the kill score for that lane
; ---- $A3C5-$A3C9: data ----
A3C5: 01 02 03 04 01
; insert an object seeded from a slot's depth: cue the sound, copy the
; y-indexed depth loc_2df,y into loc_29, then insert a fresh object into
; the table.
insertObjectFromSlotDepth:
A3CA: 48 PHA
A3CB: 20 C1 CC JSR gateSound1f ; cue the spawn sound
A3CE: B9 DF 02 LDA workRam+2DF,Y ; read slot Y's depth
A3D1: 85 29 STA workRam+29 ; seed the new object's depth from the slot
A3D3: 68 PLA
; insert a timed object of a given type: stash A into the type scratch
; loc_2c, then insert into the 8-slot table.
insertTimedObjectOfType:
A3D4: 85 2C STA workRam+2C ; seat the caller's object type
; insert a timed object into the 8-slot table: reuse the first empty slot
; (loc_30a,i==0) or evict the slot holding the largest counter loc_312,i
; (dropping loc_116 by one), then fill counter loc_312=0, type loc_302
; from loc_2c, presence loc_30a from loc_29, lane loc_2fa from loc_2d, and
; bump loc_116.
insertTimedObject:
A3D6: 86 35 STX workRam+35 ;
A3D8: 84 36 STY workRam+36 ;
A3DA: A9 00 LDA #$00
A3DC: 85 2A STA workRam+2A ;
A3DE: 85 2B STA workRam+2B ;
A3E0: A2 07 LDX #$07 ; scan the eight object slots for a home, high index first
loc_a3e2:
A3E2: BD 0A 03 LDA workRam+30A,X ; read the slot's presence byte
A3E5: F0 13 BEQ loc_a3fa ; an empty slot wins outright
A3E7: BD 12 03 LDA workRam+312,X ; read the slot's age counter
A3EA: C5 2A CMP workRam+2A ;
A3EC: 90 04 BCC loc_a3f2 ;
A3EE: 85 2A STA workRam+2A ; remember the oldest slot so far as the eviction candidate
A3F0: 86 2B STX workRam+2B ;
loc_a3f2:
A3F2: CA DEX
A3F3: 10 ED BPL loc_a3e2 ; loop over the slots
A3F5: CE 16 01 DEC workRam+116 ; pool full: evict the oldest, balancing the bump below
A3F8: A6 2B LDX workRam+2B ; reuse the oldest slot
loc_a3fa:
A3FA: A9 00 LDA #$00
A3FC: 9D 12 03 STA workRam+312,X ; reset the chosen slot's age -- a fresh object
A3FF: A5 2C LDA workRam+2C ;
A401: 9D 02 03 STA workRam+302,X ; write the object type
A404: A5 29 LDA workRam+29 ;
A406: 9D 0A 03 STA workRam+30A,X ; write the object's presence / depth
A409: A5 2D LDA workRam+2D ;
A40B: 9D FA 02 STA workRam+2FA,X ; write the object's lane coordinate
A40E: EE 16 01 INC workRam+116 ; one more live object
A411: A6 35 LDX workRam+35 ;
A413: A4 36 LDY workRam+36 ;
A415: 60 RTS
; age the timed-object table: if pending flag loc_116 is zero do nothing,
; else clear it and advance each live slot's counter loc_312,i by the per-
; type step $A44E[type], freeing a slot that reaches its per-type limit
; $A448[type] (loc_30a,i=0) and re-raising loc_116 for any slot still
; short.
ageTimedObjects:
A416: AD 16 01 LDA workRam+116 ; read the pending-animation flag
A419: F0 2C BEQ loc_a447 ; skip when nothing is animating
A41B: A9 00 LDA #$00
A41D: 8D 16 01 STA workRam+116 ; clear the count -- rebuilt below as the live-slot tally
A420: A2 07 LDX #$07 ; walk the eight object slots
loc_a422:
A422: BD 0A 03 LDA workRam+30A,X ; read the slot's presence byte
A425: F0 1D BEQ loc_a444 ; skip an empty slot
A427: BD 12 03 LDA workRam+312,X ; read the animation counter
A42A: BC 02 03 LDY workRam+302,X ; index the per-type tables by the object's type
A42D: 18 CLC
A42E: 79 4E A4 ADC rom+144E,Y ; advance the counter by the object's per-type step
A431: 9D 12 03 STA workRam+312,X ;
A434: D9 48 A4 CMP rom+1448,Y ; compare against the object's per-type animation limit
A437: 90 08 BCC loc_a441 ; still below the limit -- keep animating
A439: A9 00 LDA #$00
A43B: 9D 0A 03 STA workRam+30A,X ; reached the limit -- free the slot
A43E: B8 CLV
A43F: 50 03 BVC loc_a444 ;
loc_a441:
A441: EE 16 01 INC workRam+116 ; count this slot as still animating
loc_a444:
A444: CA DEX
A445: 10 DB BPL loc_a422 ; loop over the slots
loc_a447:
A447: 60 RTS
; ---- $A448-$A453: data ----
A448: 10 15 20 20 20 10 03 01 03 03 03 03
; drive the proximity pass across the live set: scan slots x=7..0 and, for
; each nonzero 0x2d3 entry, invoke resolveSlotProximityInteractions with
; that entry as the threshold and x as the slot index.
scanAllSlotsForProximity:
A454: A2 07 LDX #$07 ; walk the eight active object slots, high index first
loc_a456:
A456: BD D3 02 LDA workRam+2D3,X ; read the slot's state byte
A459: F0 03 BEQ loc_a45e ; skip a dead slot
A45B: 20 63 A4 JSR resolveSlotProximityInteractions; resolve this slot's proximity interactions -- state byte is the depth threshold
loc_a45e:
A45E: CA DEX
A45F: 10 F5 BPL loc_a456 ; loop over the slots
A461: 60 RTS
; ---- $A462-$A462: data ----
A462: AB
; resolve slot X's proximity interactions: store threshold A in 0x2e, scan
; 0x2db slots y=10..0 forming delta=|entry-threshold|; near slots (y<4)
; under 0x a7 with a matching 0x2b5/0x2ad pair retire via
; retireSpawnedObject; far slots (y>=4) fold 0x27f,y to a 3-bit band, test
; delta against 0x151,band, then dispatch spawnLaneEnemyAndAward (band 4)
; or activateSlotAndRespawn (other bands); after the scan, if
; 0x2f2,x==0xff tear down the slot (clear 0x2d3,x/0x2f2,x, drop live count
; 0x135).
resolveSlotProximityInteractions:
A463: 85 2E STA workRam+2E ; park the query depth for the scan
A465: A0 0A LDY #$0A ; scan all eleven enemy slots (10..0)
loc_a467:
A467: B9 DB 02 LDA workRam+2DB,Y ; read the enemy slot's depth
A46A: F0 7F BEQ loc_a4eb ; skip an empty enemy slot
A46C: C5 2E CMP workRam+2E ;
A46E: 90 05 BCC loc_a475 ;
A470: E5 2E SBC workRam+2E ; form the absolute depth distance between the object and the enemy
A472: B8 CLV
A473: 50 06 BVC loc_a47b ;
loc_a475:
A475: A5 2E LDA workRam+2E ;
A477: 38 SEC
A478: F9 DB 02 SBC workRam+2DB,Y ;
loc_a47b:
A47B: C0 04 CPY #$04
A47D: B0 12 BCS loc_a491 ; slots 0..3 are near the rim; 4..10 are far
A47F: C5 A7 CMP workRam+A7 ; near the rim: require the enemy within the kill distance
A481: B0 0B BCS loc_a48e ;
A483: B9 B5 02 LDA workRam+2B5,Y ;
A486: 5D AD 02 EOR workRam+2AD,X ; and require a matching segment
A489: D0 03 BNE loc_a48e ;
A48B: 20 6F A3 JSR retireSpawnedObject ; retire the object -- a near, same-segment kill
loc_a48e:
A48E: B8 CLV
A48F: 50 5A BVC loc_a4eb ;
loc_a491:
A491: 48 PHA
A492: 84 38 STY workRam+38 ; record the scan cursor
A494: B9 7F 02 LDA workRam+27F,Y ; read the object's band attribute
A497: 29 07 AND #$07 ; fold it to a 3-bit distance band
A499: A8 TAY
A49A: 68 PLA
A49B: D9 51 01 CMP workRam+151,Y ; test the distance against the per-band threshold
A49E: B0 49 BCS loc_a4e9 ; skip when the enemy is beyond the band's reach
A4A0: C0 04 CPY #$04
A4A2: D0 1D BNE loc_a4c1 ; band 4 has its own spawn/award handler
A4A4: A4 38 LDY workRam+38 ;
A4A6: B9 DB 02 LDA workRam+2DB,Y ;
A4A9: CD 02 02 CMP workRam+202 ; band 4: skip when the enemy is at the shot depth
A4AC: F0 10 BEQ loc_a4be ;
A4AE: BD AD 02 LDA workRam+2AD,X ;
A4B1: D9 B5 02 CMP workRam+2B5,Y ; require a matching segment
A4B4: D0 08 BNE loc_a4be ;
A4B6: B9 C8 02 LDA workRam+2C8,Y ;
A4B9: 10 03 BPL loc_a4be ; require the enemy's armed bit set
A4BB: 20 09 A3 JSR spawnLaneEnemyAndAward; spawn a fresh lane enemy and award the points
loc_a4be:
A4BE: B8 CLV
A4BF: 50 28 BVC loc_a4e9 ;
loc_a4c1:
A4C1: A4 38 LDY workRam+38 ;
A4C3: B9 C8 02 LDA workRam+2C8,Y ; branch on the enemy's armed bit
A4C6: 10 0A BPL loc_a4d2 ;
A4C8: B9 B5 02 LDA workRam+2B5,Y ;
A4CB: DD C0 02 CMP workRam+2C0,X ; armed: match the enemy segment against the slot's alternate target
A4CE: F0 12 BEQ loc_a4e2 ; on a match, re-activate the slot
A4D0: D0 08 BNE loc_a4da ;
loc_a4d2:
A4D2: B9 DB 02 LDA workRam+2DB,Y ;
A4D5: CD 02 02 CMP workRam+202 ; unarmed and at the shot depth -> skip
A4D8: F0 0F BEQ loc_a4e9 ;
loc_a4da:
A4DA: B9 B5 02 LDA workRam+2B5,Y ;
A4DD: DD AD 02 CMP workRam+2AD,X ; otherwise require a matching target segment
A4E0: D0 07 BNE loc_a4e9 ;
loc_a4e2:
A4E2: 86 37 STX workRam+37 ; stash the slot index
A4E4: 20 8E A3 JSR activateSlotAndRespawn; re-activate the slot and respawn
A4E7: A6 37 LDX workRam+37 ;
loc_a4e9:
A4E9: A4 38 LDY workRam+38 ;
loc_a4eb:
A4EB: 88 DEY
A4EC: 30 03 BMI loc_a4f1 ;
A4EE: 4C 67 A4 JMP loc_a467 ; continue the enemy-slot scan
loc_a4f1:
A4F1: BD F2 02 LDA workRam+2F2,X ; after the scan, check the slot's spent sentinel
A4F4: C9 FF CMP #$FF
A4F6: D0 0B BNE loc_a503 ;
A4F8: A9 00 LDA #$00
A4FA: 9D D3 02 STA workRam+2D3,X ; spent slot: clear its state
A4FD: CE 35 01 DEC workRam+135 ; drop the live object count
A500: 9D F2 02 STA workRam+2F2,X ; clear the spent sentinel
loc_a503:
A503: 60 RTS
; per-frame ager keyed on the sign of loc_201: the positive arm bumps
; timer cell loc_00+loc_40 behind a gate and conditionally re-inits shot
; state via initWaveStateCountingSpikes/clearActiveShots; the negative arm
; ages every live shot in loc_2df from index loc_11c down by +0x0f
; (snapping >=0xf0 to 0), steps loc_202 or the loc_5f/loc_5b countdown
; clock, and on proceed writes loc_00=0x06, runs clearActiveShots, and
; folds loc_108+loc_109+loc_3ab into loc_3ab clamped to 0x3f.
ageShotsAndAdvanceFrameClock:
A504: AD 01 02 LDA workRam+201 ; read the per-frame control byte -- its sign selects which bookkeeping job runs
A507: 10 78 BPL loc_a581 ; positive: branch to the wave-setup arm
A509: AD 35 01 LDA workRam+135 ; gather the live-object counts
A50C: 05 A6 ORA workRam+A6 ;
A50E: 0D 16 01 ORA workRam+116 ; fold in the timed-object count
A511: D0 6B BNE loc_a57e ; bail while any object is still live
A513: AE 1C 01 LDX workRam+11C ; start at the top shot slot
loc_a516:
A516: BD DF 02 LDA workRam+2DF,X ; read this shot's depth down the tube
A519: F0 0E BEQ loc_a529 ; skip an empty slot
A51B: 18 CLC
A51C: 69 0F ADC #$0F ; age the shot by a fixed step
A51E: B0 02 BCS loc_a522 ;
A520: C9 F0 CMP #$F0 ; clamp against the far rim
loc_a522:
A522: 90 02 BCC loc_a526 ;
A524: A9 00 LDA #$00 ; snap to zero at the far rim
loc_a526:
A526: 9D DF 02 STA workRam+2DF,X ; store the aged depth
loc_a529:
A529: CA DEX
A52A: 10 EA BPL loc_a516 ; next shot slot
A52C: A6 3D LDX workRam+3D ; index the current slot
A52E: B5 48 LDA workRam+48,X ; read this slot's countdown
A530: C9 01 CMP #$01 ; branch on whether the countdown is at its last tick
A532: D0 20 BNE loc_a554 ;
A534: A9 00 LDA #$00
A536: 8D 0F 01 STA workRam+10F ; clear a wave flag
A539: A9 01 LDA #$01
A53B: 8D 14 01 STA workRam+114 ; arm the redraw
A53E: A5 5F LDA workRam+5F ; step the between-wave clock low byte down by 0x20
A540: 38 SEC
A541: E9 20 SBC #$20
A543: 85 5F STA workRam+5F ; store the clock low byte
A545: A5 5B LDA workRam+5B ; borrow into the clock high byte
A547: E9 00 SBC #$00
A549: 85 5B STA workRam+5B ; store the clock high byte
A54B: C9 FA CMP #$FA ; proceed when the clock reaches its marker
A54D: 18 CLC
A54E: D0 01 BNE loc_a551 ;
A550: 38 SEC
loc_a551:
A551: B8 CLV
A552: 50 0D BVC loc_a561 ;
loc_a554:
A554: AD 02 02 LDA workRam+202 ; step the shot-depth counter by a fixed amount
A557: 18 CLC
A558: 69 0F ADC #$0F
A55A: 8D 02 02 STA workRam+202 ; store the stepped shot depth
A55D: B0 02 BCS loc_a561 ;
A55F: C9 F0 CMP #$F0 ; proceed once it passes the far rim
loc_a561:
A561: 90 1B BCC loc_a57e ; not yet -- exit
A563: A9 06 LDA #$06 ; hand off: set the game mode to 6
A565: 85 00 STA workRam ;
A567: 20 8F 92 JSR clearActiveShots ; clear all active shots
A56A: AD 08 01 LDA workRam+108 ; sum the enemy-total and enemy-type budgets
A56D: 18 CLC
A56E: 6D 09 01 ADC workRam+109 ;
A571: 18 CLC
A572: 6D AB 03 ADC workRam+3AB ; add in the running fire budget
A575: C9 3F CMP #$3F ; clamp the enemy budget to 0x3f
A577: 90 02 BCC loc_a57b ;
A579: A9 3F LDA #$3F
loc_a57b:
A57B: 8D AB 03 STA workRam+3AB ; store the clamped fire budget
loc_a57e:
A57E: B8 CLV
A57F: 50 49 BVC loc_a5ca ;
loc_a581:
A581: AD 55 04 LDA workRam+455 ; test the wave-setup gate cell pair
A584: 0D 1B 01 ORA workRam+11B ;
A587: F0 0A BEQ loc_a593 ; skip the timer bump unless a gate is live
A589: A9 17 LDA #$17
A58B: C5 42 CMP workRam+42 ; only bump past the threshold
A58D: B0 04 BCS loc_a593 ;
A58F: A6 40 LDX workRam+40 ; index the per-slot setup timer
A591: F6 00 INC workRam,X ; bump the per-slot setup timer
loc_a593:
A593: AD 06 01 LDA workRam+106 ; read the spike-active flag
A596: D0 32 BNE loc_a5ca ; bail while a spike is active
A598: AD AB 03 LDA workRam+3AB ; combine the fire budget and timed-object count
A59B: 0D 16 01 ORA workRam+116 ;
A59E: D0 15 BNE loc_a5b5 ; only recycle the wave when both are clear
A5A0: AC 1C 01 LDY workRam+11C ; scan the shot table from the top slot
loc_a5a3:
A5A3: B9 DF 02 LDA workRam+2DF,Y ; read this shot's depth
A5A6: F0 04 BEQ loc_a5ac ;
A5A8: C9 11 CMP #$11 ; abort the reset if any shot has grown past 0x11
A5AA: B0 09 BCS loc_a5b5 ;
loc_a5ac:
A5AC: 88 DEY
A5AD: 10 F4 BPL loc_a5a3 ; keep scanning
A5AF: 20 CB A5 JSR initWaveStateCountingSpikes; re-seed the wave state
A5B2: 20 8F 92 JSR clearActiveShots ; clear active shots
loc_a5b5:
A5B5: A5 4D LDA workRam+4D ; gate the second wave reset on a start input
A5B7: 29 60 AND #$60
A5B9: F0 0F BEQ loc_a5ca ;
A5BB: 24 05 BIT workRam+5 ; gate on the attract/status flag
A5BD: 10 0B BPL loc_a5ca ;
A5BF: A5 09 LDA workRam+9 ; gate on a dip-switch setting
A5C1: 29 43 AND #$43
A5C3: C9 40 CMP #$40
A5C5: D0 03 BNE loc_a5ca ;
A5C7: 20 CB A5 JSR initWaveStateCountingSpikes; re-seed the wave state
loc_a5ca:
A5CA: 60 RTS
; wave-state init: reset the batch loc_0=0x20, loc_104=0, loc_107=0,
; loc_5c=0, loc_123=0, loc_105=0x02 and OR bit7 into loc_106, tally into
; loc_123 how many of the sixteen loc_3ac lane cells are nonzero, and if
; that tally is nonzero with level loc_9f<0x07 overwrite the intro block
; (loc_4=0x1e, loc_0=0x0a, loc_2=0x20, loc_123=0x80), finally latching
; loc_125=0xff ready.
initWaveStateCountingSpikes:
A5CB: A9 20 LDA #$20 ; set the game mode to the wave-start value
A5CD: 85 00 STA workRam ;
A5CF: AD 06 01 LDA workRam+106 ; arm the spike-active bit
A5D2: 09 80 ORA #$80
A5D4: 8D 06 01 STA workRam+106 ; store the spike-active flag
A5D7: A9 00 LDA #$00
A5D9: 8D 04 01 STA workRam+104 ; clear the spike step-low byte
A5DC: 8D 07 01 STA workRam+107 ; clear the spike height-low byte
A5DF: 85 5C STA workRam+5C ; clear the depth accumulator
A5E1: 8D 23 01 STA workRam+123 ; clear the spiked-lane tally
A5E4: A9 02 LDA #$02
A5E6: 8D 05 01 STA workRam+105 ; set the spike step-high byte
A5E9: A2 0F LDX #$0F ; scan the sixteen lane-limit cells
loc_a5eb:
A5EB: BD AC 03 LDA workRam+3AC,X ; read this lane's limit
A5EE: F0 03 BEQ loc_a5f3 ;
A5F0: EE 23 01 INC workRam+123 ; count each spiked lane
loc_a5f3:
A5F3: CA DEX
A5F4: 10 F5 BPL loc_a5eb ;
A5F6: AD 23 01 LDA workRam+123 ; skip the intro if no lane is spiked
A5F9: F0 17 BEQ loc_a612 ;
A5FB: A5 9F LDA workRam+9F ; only run the intro on early waves -- level below 7
A5FD: C9 07 CMP #$07
A5FF: B0 11 BCS loc_a612 ;
A601: A9 1E LDA #$1E ; arm the intro delay timer
A603: 85 04 STA workRam+4 ;
A605: A9 0A LDA #$0A ; set the game mode to the spike-intro value
A607: 85 00 STA workRam ;
A609: A9 20 LDA #$20 ; queue the pending mode
A60B: 85 02 STA workRam+2 ;
A60D: A9 80 LDA #$80
A60F: 8D 23 01 STA workRam+123 ; stamp the spike-intro marker into the tally
loc_a612:
A612: A9 FF LDA #$FF ; arm the block-ready latch
A614: 8D 25 01 STA workRam+125 ;
A617: 60 RTS
; drive one frame of the enemy bank: seed frame-active flag loc_10d from
; spawn budget loc_10e, walk slots 0x0f..0, integrate+decay each live slot
; (loc_283,x!=0) via the flight steps and refill each free slot from the
; budget, tick loc_10e on even frames (loc_3 bit0 clear), settle
; loc_37=0xff, and raise mode-request loc_0=0x12 when nothing was live or
; spawned.
stepEnemyFleetAndSpawn:
A618: AD 0E 01 LDA workRam+10E ; seed the frame-active flag from the spawn budget
A61B: 8D 0D 01 STA workRam+10D ;
A61E: A2 0F LDX #$0F ; walk the sixteen enemy slots top-down
A620: 86 37 STX workRam+37 ;
loc_a622:
A622: A6 37 LDX workRam+37 ;
A624: BD 83 02 LDA workRam+283,X ; read this slot's flags
A627: D0 0B BNE loc_a634 ; branch on whether the slot holds a live enemy
A629: AD 0E 01 LDA workRam+10E ; free slot: spawn only while the spawn budget remains
A62C: F0 03 BEQ loc_a631 ;
A62E: 20 5B A6 JSR spawnEnemyInSlot ; spawn a new enemy in this slot
loc_a631:
A631: B8 CLV
A632: 50 0B BVC loc_a63f ;
loc_a634:
A634: 20 A9 A6 JSR advanceEnemyFreeFlight; advance the live enemy's free flight
A637: 20 21 A7 JSR decayEnemyFreeFlightVelocity; decay its velocity
A63A: A9 FF LDA #$FF
A63C: 8D 0D 01 STA workRam+10D ; mark the frame active
loc_a63f:
A63F: C6 37 DEC workRam+37 ; next slot
A641: 10 DF BPL loc_a622 ;
A643: A5 03 LDA workRam+3 ; tick the spawn budget only on even frames
A645: 29 01 AND #$01
A647: D0 08 BNE loc_a651 ;
A649: AD 0E 01 LDA workRam+10E ;
A64C: F0 03 BEQ loc_a651 ;
A64E: CE 0E 01 DEC workRam+10E ; count the spawn budget down
loc_a651:
A651: AD 0D 01 LDA workRam+10D ; test whether anything was live or spawned
A654: D0 04 BNE loc_a65a ; something happened -- exit
A656: A9 12 LDA #$12 ; nothing left: raise the mode request to 0x12
A658: 85 00 STA workRam ;
loc_a65a:
A65A: 60 RTS
; spawn an enemy into free slot x: mark loc_263,x/loc_283,x/loc_2a3,x =
; 0x80, seed three velocity/coordinate pairs from POKEY draws $60DA/$60CA
; (raw into loc_2c3/2e3/303,x, signed nudge from drawSignedVelocityNudge
; into loc_323/343/363,x, forcing the middle nudge non-positive), then cue
; the spawn sound gateSound1f.
spawnEnemyInSlot:
A65B: A5 03 LDA workRam+3 ;
A65D: 29 00 AND #$00
A65F: D0 39 BNE loc_a69a ;
A661: A9 80 LDA #$80 ; center axis-1 position and mark the slot live
A663: 9D 63 02 STA workRam+263,X ;
A666: 9D 83 02 STA workRam+283,X ; mark the slot occupied
A669: 9D A3 02 STA workRam+2A3,X ; center the third axis position
A66C: AD DA 60 LDA pokey2+A ; seed axis-1 velocity low from a random source
A66F: 9D C3 02 STA workRam+2C3,X ; store axis-1 velocity low
A672: 20 9B A6 JSR drawSignedVelocityNudge; draw a signed velocity nudge
A675: 9D 23 03 STA workRam+323,X ; store axis-1 velocity nudge
A678: AD CA 60 LDA pokey1+A ; seed axis-0 velocity low from a random source
A67B: 9D E3 02 STA workRam+2E3,X ; store axis-0 velocity low
A67E: 20 9B A6 JSR drawSignedVelocityNudge; draw a nudge for the middle axis
A681: 30 05 BMI loc_a688 ; force the middle nudge non-positive
A683: 49 FF EOR #$FF
A685: 18 CLC
A686: 69 01 ADC #$01
loc_a688:
A688: 9D 43 03 STA workRam+343,X ; store axis-0 velocity nudge
A68B: AD CA 60 LDA pokey1+A ; seed axis-2 velocity low from a random source
A68E: 9D 03 03 STA workRam+303,X ; store axis-2 velocity low
A691: 20 9B A6 JSR drawSignedVelocityNudge; draw a nudge for axis 2
A694: 9D 63 03 STA workRam+363,X ; store axis-2 velocity nudge
A697: 20 C1 CC JSR gateSound1f ; cue the spawn sound for this slot
loc_a69a:
A69A: 60 RTS
; produce a signed random velocity nudge: take a 3-bit magnitude ($60DA &
; 0x07, 0..7) and negate it when the caller's incoming value has bit0 set,
; yielding a signed step in [-7,+7] consumed by spawnEnemyInSlot as a
; whole-velocity seed.
drawSignedVelocityNudge:
A69B: 4A LSR A ; shift the caller's low bit into carry to pick the sign
A69C: AD DA 60 LDA pokey2+A ; take a 3-bit random magnitude, 0..7
A69F: 29 07 AND #$07
A6A1: 90 05 BCC loc_a6a8 ; keep it positive when the selector bit was clear
A6A3: 49 FF EOR #$FF ; two's-complement negate for a negative step
A6A5: 18 CLC
A6A6: 69 01 ADC #$01
loc_a6a8:
A6A8: 60 RTS
; integrate slot x's three free-flight axes: fold each low velocity
; (loc_2e3/2c3/303,x) into its fraction (loc_223/203/243,x) and add
; carry+signed whole (loc_343/323/363,x) into a whole coordinate,
; committing loc_263,x and loc_2a3,x and loc_283,x, but forcing loc_283,x
; to 0 (retiring the slot) if any axis crosses the tube ring [0x10,0xf0).
advanceEnemyFreeFlight:
A6A9: BD E3 02 LDA workRam+2E3,X ; axis 0: fold velocity-low into the fraction
A6AC: 18 CLC
A6AD: 7D 23 02 ADC workRam+223,X ;
A6B0: 9D 23 02 STA workRam+223,X ; store the axis-0 fraction
A6B3: BD 43 03 LDA workRam+343,X ; branch on the axis-0 velocity sign
A6B6: 30 0C BMI loc_a6c4 ;
A6B8: 7D 83 02 ADC workRam+283,X ; rising axis: add the whole, overflow at the far rim
A6BB: C9 F0 CMP #$F0
A6BD: 90 02 BCC loc_a6c1 ;
A6BF: A9 00 LDA #$00 ; off the ring -> zero
loc_a6c1:
A6C1: B8 CLV
A6C2: 50 09 BVC loc_a6cd ;
loc_a6c4:
A6C4: 7D 83 02 ADC workRam+283,X ; falling axis: add the whole, overflow below the near rim
A6C7: C9 10 CMP #$10
A6C9: B0 02 BCS loc_a6cd ;
A6CB: A9 00 LDA #$00 ; off the ring -> zero
loc_a6cd:
A6CD: A8 TAY ; hold the axis-0 whole
A6CE: BD C3 02 LDA workRam+2C3,X ; axis 1: fold velocity-low into the fraction
A6D1: 18 CLC
A6D2: 7D 03 02 ADC workRam+203,X ;
A6D5: 9D 03 02 STA workRam+203,X ; store the axis-1 fraction
A6D8: BD 23 03 LDA workRam+323,X ; branch on the axis-1 velocity sign
A6DB: 30 0C BMI loc_a6e9 ;
A6DD: 7D 63 02 ADC workRam+263,X ; rising axis: add the whole, overflow at the far rim
A6E0: C9 F0 CMP #$F0
A6E2: 90 02 BCC loc_a6e6 ;
A6E4: A0 00 LDY #$00 ; overflow retires the slot -- zero the shared whole
loc_a6e6:
A6E6: B8 CLV
A6E7: 50 09 BVC loc_a6f2 ;
loc_a6e9:
A6E9: 7D 63 02 ADC workRam+263,X ; falling axis: add the whole, overflow below the near rim
A6EC: C9 10 CMP #$10
A6EE: B0 02 BCS loc_a6f2 ;
A6F0: A0 00 LDY #$00 ; overflow retires the slot
loc_a6f2:
A6F2: 9D 63 02 STA workRam+263,X ; commit the axis-1 whole position
A6F5: BD 03 03 LDA workRam+303,X ; axis 2: fold velocity-low into the fraction
A6F8: 18 CLC
A6F9: 7D 43 02 ADC workRam+243,X ;
A6FC: 9D 43 02 STA workRam+243,X ; store the axis-2 fraction
A6FF: BD 63 03 LDA workRam+363,X ; branch on the axis-2 velocity sign
A702: 30 0C BMI loc_a710 ;
A704: 7D A3 02 ADC workRam+2A3,X ; rising axis: add the whole, overflow at the far rim
A707: C9 F0 CMP #$F0
A709: 90 02 BCC loc_a70d ;
A70B: A0 00 LDY #$00 ; overflow retires the slot
loc_a70d:
A70D: B8 CLV
A70E: 50 09 BVC loc_a719 ;
loc_a710:
A710: 7D A3 02 ADC workRam+2A3,X ; falling axis: add the whole, overflow below the near rim
A713: C9 10 CMP #$10
A715: B0 02 BCS loc_a719 ;
A717: A0 00 LDY #$00 ; overflow retires the slot
loc_a719:
A719: 9D A3 02 STA workRam+2A3,X ; commit the axis-2 whole position
A71C: 98 TYA
A71D: 9D 83 02 STA workRam+283,X ; stamp the axis-0 whole into the shared slot cell -- zero here retires the slot
A720: 60 RTS
; decay slot x's free-flight velocities: seed saturation counter
; loc_29=0xfd, step each velocity pair (loc_2c3/323, loc_2e3/343,
; loc_303/363,x) one increment toward zero via stepVelocityTowardZero, and
; clear the slot's whole coordinate loc_283,x only when all three axes
; saturate in the same frame.
decayEnemyFreeFlightVelocity:
A721: A9 FD LDA #$FD ; seed the saturation counter
A723: 85 29 STA workRam+29 ;
A725: BD C3 02 LDA workRam+2C3,X ; axis 1: read the velocity pair
A728: BC 23 03 LDY workRam+323,X ;
A72B: 20 5D A7 JSR stepVelocityTowardZero; step it one increment toward zero
A72E: 9D C3 02 STA workRam+2C3,X ; store the stepped axis-1 low byte
A731: 98 TYA
A732: 9D 23 03 STA workRam+323,X ; store the stepped axis-1 whole byte
A735: BD E3 02 LDA workRam+2E3,X ; axis 0: read the velocity pair
A738: BC 43 03 LDY workRam+343,X ;
A73B: 20 5D A7 JSR stepVelocityTowardZero; step it toward zero
A73E: 9D E3 02 STA workRam+2E3,X ; store the stepped axis-0 low byte
A741: 98 TYA
A742: 9D 43 03 STA workRam+343,X ; store the stepped axis-0 whole byte
A745: BD 03 03 LDA workRam+303,X ; axis 2: read the velocity pair
A748: BC 63 03 LDY workRam+363,X ;
A74B: 20 5D A7 JSR stepVelocityTowardZero; step it toward zero
A74E: 9D 03 03 STA workRam+303,X ; store the stepped axis-2 low byte
A751: 98 TYA
A752: 9D 63 03 STA workRam+363,X ; store the stepped axis-2 whole byte
A755: A5 29 LDA workRam+29 ; only when every axis reached rest
A757: D0 03 BNE loc_a75c ;
A759: 9D 83 02 STA workRam+283,X ; retire the slot -- clear its coordinate
loc_a75c:
A75C: 60 RTS
; step one signed 16-bit velocity (whole:low) one fixed increment $A788
; (0x20) toward zero (add when whole negative, subtract otherwise),
; snapping low loc_2a=0 and bumping saturation counter loc_29 on crossing
; zero; returns the stepped [low,whole].
stepVelocityTowardZero:
A75D: 84 2B STY workRam+2B ; snapshot the incoming whole byte
A75F: 24 2B BIT workRam+2B ; branch on the velocity sign
A761: 30 0F BMI loc_a772 ;
A763: 38 SEC ; non-negative: subtract the fixed decay step
A764: ED 88 A7 SBC rom+1788 ;
A767: 85 2A STA workRam+2A ; store the stepped low byte
A769: A5 2B LDA workRam+2B ; borrow from the whole byte
A76B: E9 00 SBC #$00
A76D: 90 0F BCC loc_a77e ; below zero -> zero crossing
A76F: B8 CLV
A770: 50 12 BVC loc_a784 ;
loc_a772:
A772: 18 CLC ; negative: add the fixed decay step
A773: 6D 88 A7 ADC rom+1788 ;
A776: 85 2A STA workRam+2A ; store the stepped low byte
A778: A5 2B LDA workRam+2B ; carry into the whole byte
A77A: 69 00 ADC #$00
A77C: 90 06 BCC loc_a784 ; past the ceiling -> zero crossing
loc_a77e:
A77E: E6 29 INC workRam+29 ; count this axis as saturated
A780: A9 00 LDA #$00 ; snap the velocity to zero
A782: 85 2A STA workRam+2A ;
loc_a784:
A784: A8 TAY
A785: A5 2A LDA workRam+2A ;
A787: 60 RTS
; ---- $A788-$A788: data ----
A788: 20
; slot-arm init leaf: zero the sixteen-byte per-slot state/flags table
; loc_283..loc_283+0x0f, then re-seed scalars loc_10e=0x20, loc_10d=0x20,
; loc_1=0x04, loc_68=0 and loc_69=0.
resetPerSlotStateTable:
A789: A2 0F LDX #$0F ; start at the top of the per-slot flags table
loc_a78b:
A78B: A9 00 LDA #$00
A78D: 9D 83 02 STA workRam+283,X ; clear this slot's flags
A790: CA DEX ; next slot
A791: 10 F8 BPL loc_a78b ;
A793: A9 20 LDA #$20 ; reset the spawn budget
A795: 8D 0E 01 STA workRam+10E ;
A798: 8D 0D 01 STA workRam+10D ; reset the spawn-found flag
A79B: A9 04 LDA #$04
A79D: 85 01 STA workRam+1 ; reset the mode selector
A79F: A9 00 LDA #$00 ; clear the projection X offset low
A7A1: 85 68 STA workRam+68 ;
A7A3: 85 69 STA workRam+69 ; clear the projection X offset high
A7A5: 60 RTS
; shared signed segment-distance helper: compute A minus Y, stash it in
; loc_2a, then keep the full byte when loc_111 bit7 is set, else mask to
; the low nibble and sign-extend bit3 into a signed byte.
signedSegmentDelta:
A7A6: 84 2A STY workRam+2A ; stash the target segment
A7A8: 38 SEC
A7A9: E5 2A SBC workRam+2A ; compute the signed segment distance
A7AB: 85 2A STA workRam+2A ; store the raw difference
A7AD: 2C 11 01 BIT workRam+111 ; test the tube-geometry flag
A7B0: 30 09 BMI loc_a7bb ; open tube -> keep the full signed byte
A7B2: 29 0F AND #$0F ; closed tube -> take the low nibble
A7B4: 2C BC A7 BIT rom+17BC ; test the nibble sign bit
A7B7: F0 02 BEQ loc_a7bb ;
A7B9: 09 F8 ORA #$F8 ; sign-extend the nibble into a signed byte
loc_a7bb:
A7BB: 60 RTS
; ---- $A7BC-$A7BC: data ----
A7BC: 08
; rebuild the spike table: zero the 8-byte array loc_3fe (7..0), stamp its
; last slot loc_405=0xf0, and arm the remap reference loc_115=0xff.
rebuildSpikeTable:
A7BD: A2 07 LDX #$07 ; walk the eight-lane spike table
A7BF: A9 00 LDA #$00
loc_a7c1:
A7C1: 9D FE 03 STA workRam+3FE,X ; clear this lane's spike height
A7C4: CA DEX ; next lane
A7C5: 10 FA BPL loc_a7c1 ;
A7C7: A9 F0 LDA #$F0 ; stamp the final slot with the sentinel guard
A7C9: 8D 05 04 STA workRam+405 ;
A7CC: A9 FF LDA #$FF ; arm the remap-reference guard
A7CE: 8D 15 01 STA workRam+115 ;
A7D1: 60 RTS
; remap the 8-entry spike table loc_3fe against reference loc_115: entries
; >=0x17 shrink by 7, smaller nonzero entries snap to a rail (0xf0/0) by
; loc_115's sign, a zero entry adopts a neighbour's rail; OR-fold results
; into loc_29, set loc_37=0xff, and clear loc_115 when the whole table has
; collapsed to zero. No-op while loc_115 is zero.
stepSpikeTableCollapse:
A7D2: AD 15 01 LDA workRam+115 ; no-op while the collapse object is disarmed
A7D5: F0 59 BEQ loc_a830 ;
A7D7: A9 00 LDA #$00
A7D9: 85 29 STA workRam+29 ; clear the remaining-height accumulator
A7DB: A2 07 LDX #$07 ; walk the eight height slots top-down
A7DD: 86 37 STX workRam+37 ;
loc_a7df:
A7DF: A6 37 LDX workRam+37 ;
A7E1: BD FE 03 LDA workRam+3FE,X ; read this lane's spike height
A7E4: F0 18 BEQ loc_a7fe ; handle an empty slot separately
A7E6: 38 SEC
A7E7: E9 07 SBC #$07 ; shrink a spike by a fixed step
A7E9: 90 02 BCC loc_a7ed ;
A7EB: C9 10 CMP #$10
loc_a7ed:
A7ED: B0 0C BCS loc_a7fb ; tall enough -> keep the shrunk height
A7EF: AC 15 01 LDY workRam+115 ; short spike: pick a rail from the guard sign
A7F2: 10 05 BPL loc_a7f9 ;
A7F4: A9 F0 LDA #$F0 ; negative guard -> high rail
A7F6: B8 CLV
A7F7: 50 02 BVC loc_a7fb ;
loc_a7f9:
A7F9: A9 00 LDA #$00 ; non-negative guard -> low rail
loc_a7fb:
A7FB: B8 CLV
A7FC: 50 20 BVC loc_a81e ;
loc_a7fe:
A7FE: AC 15 01 LDY workRam+115 ; empty slot stays empty unless the guard is negative
A801: 10 1B BPL loc_a81e ;
A803: 8A TXA
A804: 18 CLC
A805: 69 01 ADC #$01 ; index the wrap-around next neighbour
A807: C9 08 CMP #$08
A809: 90 02 BCC loc_a80d ;
A80B: A9 00 LDA #$00 ; wrap the top slot back to slot 0
loc_a80d:
A80D: A8 TAY
A80E: B9 FE 03 LDA workRam+3FE,Y ; read the neighbour's height
A811: F0 0B BEQ loc_a81e ; no neighbour to borrow from
A813: C9 D5 CMP #$D5 ; neighbour too tall to borrow
A815: B0 05 BCS loc_a81c ;
A817: A9 F0 LDA #$F0 ; adopt the high rail from the neighbour
A819: B8 CLV
A81A: 50 02 BVC loc_a81e ;
loc_a81c:
A81C: A9 00 LDA #$00
loc_a81e:
A81E: 9D FE 03 STA workRam+3FE,X ; store the new spike height
A821: 05 29 ORA workRam+29 ; fold into the remaining-height accumulator
A823: 85 29 STA workRam+29 ;
A825: C6 37 DEC workRam+37 ;
A827: 10 B6 BPL loc_a7df ; next slot
A829: A5 29 LDA workRam+29 ;
A82B: D0 03 BNE loc_a830 ; leave the object armed while any height remains
A82D: 8D 15 01 STA workRam+115 ; table fully collapsed -> disarm the object
loc_a830:
A830: 60 RTS
; reset leaf: clear the pair loc_3aa and loc_125 together, where loc_125
; is the block-ready latch set to 0xff elsewhere.
clearReadyLatchPair:
A831: A9 00 LDA #$00 ; reset the sweep/stage cell
A833: 8D AA 03 STA workRam+3AA ;
A836: 8D 25 01 STA workRam+125 ; disarm the block-ready latch
A839: 60 RTS
; step the attract-mode phase timer (only while 0x5 bit7 set): with 0x125
; running advance it and at the 0x3aa-indexed limit (table $A883) restart
; it and run the sweep sweepLaneSlotsForRespawn; with 0x125 idle, arm the
; next stage (bump 0x3aa, seed 0x125=1) when 0x201 is clear and 0x4e bit3
; is set; every path clears bit7 of 0x4e.
stepAttractEnemySweepTimer:
A83A: A5 05 LDA workRam+5 ; run only while attract mode is active
A83C: 10 3E BPL loc_a87c ;
A83E: AD 25 01 LDA workRam+125 ; phase already running -> advance it
A841: D0 23 BNE loc_a866 ;
A843: AD 01 02 LDA workRam+201 ; idle: arm the next stage only when the control byte is positive
A846: 30 1B BMI loc_a863 ;
A848: A5 4E LDA workRam+4E ; and a trigger edge is present
A84A: 29 08 AND #$08
A84C: F0 15 BEQ loc_a863 ;
A84E: AD AA 03 LDA workRam+3AA ; up to three stages
A851: C9 02 CMP #$02
A853: B0 08 BCS loc_a85d ;
A855: EE AA 03 INC workRam+3AA ; bump the sweep stage
A858: A9 01 LDA #$01 ; seed the phase latch
A85A: 8D 25 01 STA workRam+125 ;
loc_a85d:
A85D: A5 4E LDA workRam+4E ; consume the trigger edge
A85F: 29 77 AND #$77
A861: 85 4E STA workRam+4E ;
loc_a863:
A863: B8 CLV
A864: 50 16 BVC loc_a87c ;
loc_a866:
A866: EE 25 01 INC workRam+125 ; tick the running phase
A869: AE AA 03 LDX workRam+3AA ; the stage indexes the timer-limit table
A86C: AD 25 01 LDA workRam+125 ;
A86F: DD 83 A8 CMP rom+1883,X ; phase reached its limit?
A872: 90 05 BCC loc_a879 ;
A874: A9 00 LDA #$00 ; phase done -> reset the latch
A876: 8D 25 01 STA workRam+125 ;
loc_a879:
A879: 20 88 A8 JSR sweepLaneSlotsForRespawn; run the lane-respawn sweep
loc_a87c:
A87C: A5 4E LDA workRam+4E ; always clear the input-edge bit7 on the way out
A87E: 29 7F AND #$7F
A880: 85 4E STA workRam+4E ;
A882: 60 RTS
; ---- $A883-$A887: data ----
A883: 00 13 05 00 00
; on the timed phase (phase cell 0x125 >= 3 and even) sweep 0x2df,y
; downward from y=0x11c for the first nonzero slot: on a hit clear the low
; two bits of 0x28a,y and tail-delegate to respawnEnemyAndAward, on no hit
; reset 0x125 to 0.
sweepLaneSlotsForRespawn:
A888: AD 25 01 LDA workRam+125 ; only sweep once the phase reaches 3
A88B: C9 03 CMP #$03
A88D: 90 14 BCC loc_a8a3 ;
A88F: 29 01 AND #$01 ; and only on even phases
A891: D0 10 BNE loc_a8a3 ;
A893: AC 1C 01 LDY workRam+11C ; scan the slots from the top
loc_a896:
A896: B9 DF 02 LDA workRam+2DF,Y ; first occupied lane is the hit
A899: D0 09 BNE loc_a8a4 ;
A89B: 88 DEY ; keep scanning
A89C: 10 F8 BPL loc_a896 ;
A89E: A9 00 LDA #$00 ; nothing occupied -> mark the phase done
A8A0: 8D 25 01 STA workRam+125 ;
loc_a8a3:
A8A3: 60 RTS
loc_a8a4:
A8A4: B9 8A 02 LDA workRam+28A,Y ; clear the found slot's low two direction bits
A8A7: 29 FC AND #$FC
A8A9: 99 8A 02 STA workRam+28A,Y ; store back the masked direction
A8AC: 4C 98 A3 JMP respawnEnemyAndAward; respawn the enemy and award its points
; ---- $A8AF-$A8B3: data ----
A8AF: E1 24 26 28 2A
; compose the per-frame text/marker overlay into buffer 0x2f60: mirror
; control 0x72, refresh the header (emitColorStatIfChanged), and when 0x5
; bit7 is clear pick a marker slot, draw it
; (drawSlotShapeRecord/emitFixedVectorWord) and duplicate a glyph snapshot
; into 0x2fa6/0x2fa8; emit glyph strings via
; buildMarkerRowVectorList/buildTextBufferDigitString; off the safe mode
; (0x0!=0x04) rebuild checksum 0x16c and a 3-entry mirror; then emit the
; framing word (emitCoordinateVectorWord) and, in the active phase, the
; indexed slot pair (0x102) and two trailing markers.
buildTextOverlayList:
A8B4: A9 01 LDA #$01 ; seed the last-stat cell
A8B6: 85 72 STA workRam+72 ;
A8B8: 20 6A DF JSR emitBlankVectorWordTag70; lead the list with the blank/tag-70 word
A8BB: A0 05 LDY #$05
A8BD: 20 D1 B0 JSR emitColorStatIfChanged; refresh the colour-stat header
A8C0: A5 05 LDA workRam+5 ; skip the live-glyph block in attract mode
A8C2: 30 26 BMI loc_a8ea ;
A8C4: A2 00 LDX #$00
A8C6: A5 03 LDA workRam+3 ; pick the marker shape from the frame phase
A8C8: 29 20 AND #$20
A8CA: D0 0C BNE loc_a8d8 ; frame bit set -> first marker shape
A8CC: A2 22 LDX #$22
A8CE: A5 06 LDA workRam+6 ;
A8D0: F0 06 BEQ loc_a8d8 ; idle phase -> alternate marker shape
A8D2: 24 A2 BIT workRam+A2 ; or the phase sign flag -> alternate marker shape
A8D4: 30 02 BMI loc_a8d8 ;
A8D6: A2 06 LDX #$06
loc_a8d8:
A8D8: 20 14 AB JSR drawSlotShapeRecord ; draw the chosen marker slot shape
A8DB: 20 0D AB JSR emitFixedVectorWord ; emit the fixed vector word
A8DE: AD E4 31 LDA vectorRom+1E4 ; read the glyph snapshot
A8E1: 8D A6 2F STA vectorRam+FA6 ; mirror it into the first snapshot cell
A8E4: 8D A8 2F STA vectorRam+FA8 ; and the second snapshot cell
; compose one frame's full display list: draw the base overlay
; (drawOverlayFrame), emit the base list (buildMarkerRowVectorList) and —
; when the flag source is live (loc_3e while loc_5 bit7 set, else
; loc_43|loc_44|loc_45) — a second list; unless loc_00==0x04 rebuild the
; self-check byte loc_16c by XOR-folding 0xa7 over eleven bytes at $AACE
; and rebuild the strided mirror $2F60 from loc_61b through $31FA; emit
; framing word emitCoordinateVectorWord, draw slot 0x36 when loc_123 bit7
; set, and when loc_00==0x18 with loc_5 bit7 set draw slots 0x30 (+numeric
; run) / 0x3a / 0x38.
composeFrameDisplayList:
A8E7: 20 A8 AA JSR drawOverlayFrame ; draw the recurring base overlay
loc_a8ea:
A8EA: A9 01 LDA #$01
A8EC: A0 00 LDY #$00
A8EE: 20 7F A9 JSR buildMarkerRowVectorList; emit the first marker row
A8F1: 24 05 BIT workRam+5 ; attract mode -> gate the second row on the active-slot count
A8F3: 30 09 BMI loc_a8fe ;
A8F5: A5 43 LDA workRam+43 ; else gate on the score/status flags
A8F7: 05 44 ORA workRam+44 ;
A8F9: 05 45 ORA workRam+45 ;
A8FB: B8 CLV
A8FC: 50 02 BVC loc_a900 ;
loc_a8fe:
A8FE: A5 3E LDA workRam+3E ; attract: the active-slot count
loc_a900:
A900: F0 06 BEQ loc_a908 ; no gate -> skip the second row
A902: A9 01 LDA #$01
A904: A8 TAY
A905: 20 7F A9 JSR buildMarkerRowVectorList; emit the second marker row
loc_a908:
A908: A5 00 LDA workRam ; mode 4 skips the text and self-check rebuild
A90A: C9 04 CMP #$04
A90C: F0 35 BEQ loc_a943 ;
A90E: A9 1D LDA #$1D ; aim the work pointer at the glyph source
A910: 85 3B STA workRam+3B ;
A912: A9 07 LDA #$07
A914: 85 3C STA workRam+3C ;
A916: AE E4 CD LDX rom+3DE4 ; load the glyph-buffer offset
A919: 20 D7 A9 JSR buildTextBufferDigitString; build the digit/glyph text buffer
A91C: A0 0A LDY #$0A
A91E: A9 A7 LDA #$A7 ; seed the self-check fold
loc_a920:
A920: 59 CE AA EOR rom+1ACE,Y ; XOR-fold the self-check byte table
A923: 88 DEY
A924: 10 FA BPL loc_a920 ;
A926: 8D 6C 01 STA workRam+16C ; publish the self-check byte
A929: AE E5 CD LDX rom+3DE5 ; load the mirror destination offset
A92C: A9 02 LDA #$02 ; three doubled glyph entries
A92E: 85 38 STA workRam+38 ;
loc_a930:
A930: A4 38 LDY workRam+38 ;
A932: B9 1B 06 LDA workRam+61B,Y ; index the glyph through the source table
A935: 0A ASL A ; double the index
A936: A8 TAY
A937: B9 FA 31 LDA vectorRom+1FA,Y ; read the glyph word
A93A: 9D 60 2F STA vectorRam+F60,X ; copy it into the strided mirror
A93D: E8 INX
A93E: E8 INX
A93F: C6 38 DEC workRam+38 ; next entry
A941: 10 ED BPL loc_a930 ;
loc_a943:
A943: A9 2F LDA #$2F
A945: A2 60 LDX #$60
A947: 20 39 DF JSR emitCoordinateVectorWord; post the framing coordinate word
A94A: AD 23 01 LDA workRam+123 ; spiked-segment marker only when its high bit is set
A94D: 10 05 BPL loc_a954 ;
A94F: A2 36 LDX #$36
A951: 20 14 AB JSR drawSlotShapeRecord ; draw the spike marker slot
loc_a954:
A954: A5 00 LDA workRam ;
A956: C9 18 CMP #$18 ; tail decorations only in mode 0x18
A958: D0 22 BNE loc_a97c ;
A95A: A5 05 LDA workRam+5 ;
A95C: 10 1E BPL loc_a97c ; and only with the status flag set
A95E: A6 3D LDX workRam+3D ;
A960: BD 02 01 LDA workRam+102,X ; draw only when the current slot is live
A963: F0 0D BEQ loc_a972 ;
A965: A2 30 LDX #$30
A967: 20 14 AB JSR drawSlotShapeRecord ; draw the labelled slot record
A96A: A4 3D LDY workRam+3D ;
A96C: BE 02 01 LDX workRam+102,Y ;
A96F: 20 C6 B0 JSR emitTableValueDigitRun; emit its numeric value run
loc_a972:
A972: A2 3A LDX #$3A
A974: 20 14 AB JSR drawSlotShapeRecord ; draw a trailing marker slot
A977: A2 38 LDX #$38
A979: 20 14 AB JSR drawSlotShapeRecord ; draw a trailing marker slot
loc_a97c:
A97C: 60 RTS
; ---- $A97D-$A97E: data ----
A97D: 42 45
; Lays a header byte at $2F60 (zeroed only when row index y equals the
; marker loc_3d with loc_5 bit7 set), fills seven glyph entries from
; $3284/$3286, and unless state 4 away from the marker seeds the glyph
; pointer loc_3b/loc_3c and hands off to the digit-string builder.
buildMarkerRowVectorList:
A97F: A6 00 LDX workRam ;
A981: E0 04 CPX #$04
A983: 84 2B STY workRam+2B ; stash the row index in scratch
A985: C4 3D CPY workRam+3D ; is this row the currently selected marker
A987: D0 06 BNE loc_a98f ; skip the head-blank unless this is the marker row
A989: 24 05 BIT workRam+5 ; test the marker-active flag
A98B: 10 02 BPL loc_a98f ; skip unless the marker-active bit is set
A98D: A9 00 LDA #$00 ; blank the row head so the highlight can overdraw it
loc_a98f:
A98F: 09 70 ORA #$70 ; or in the 0x70 vector tag for the head word
A991: BE DE CD LDX rom+3DDE,Y ; head-word offset for this row
A994: 9D 60 2F STA vectorRam+F60,X ; write the head word into the glyph buffer
A997: BE E0 CD LDX rom+3DE0,Y ; glyph-slot offset for this row
A99A: B9 48 00 LDA workRam+48,Y ; the row's filled-tick count
A99D: 85 38 STA workRam+38 ; seed the count cursor
A99F: F0 06 BEQ loc_a9a7 ; skip the dock when the count is zero
A9A1: C4 3D CPY workRam+3D ; is this the selected marker row
A9A3: D0 02 BNE loc_a9a7 ; skip unless the marker row
A9A5: C6 38 DEC workRam+38 ; the selected row shows one fewer filled tick
loc_a9a7:
A9A7: A0 01 LDY #$01 ; start at glyph slot 1
loc_a9a9:
A9A9: AD 84 32 LDA vectorRom+284 ; filled-tick glyph
A9AC: C4 38 CPY workRam+38 ; slot index vs the tick count
A9AE: 90 05 BCC loc_a9b5 ; slots up to the count get the filled glyph
A9B0: F0 03 BEQ loc_a9b5 ; the slot at the count gets the filled glyph too
A9B2: AD 86 32 LDA vectorRom+286 ; past the count -- the empty-tick glyph
loc_a9b5:
A9B5: 9D 60 2F STA vectorRam+F60,X ; write the glyph into the buffer
A9B8: E8 INX ; advance two bytes -- one glyph plus its tag
A9B9: E8 INX
A9BA: C8 INY ; next slot
A9BB: C0 07 CPY #$07 ; seven glyph slots per row
A9BD: 90 EA BCC loc_a9a9 ; loop the seven slots
A9BF: A4 2B LDY workRam+2B ; restore the row index
A9C1: A5 00 LDA workRam ; read the game mode
A9C3: C9 04 CMP #$04 ; mode 4
A9C5: D0 04 BNE loc_a9cb ; otherwise go on to emit the number
A9C7: C4 3D CPY workRam+3D ; is this the marker row
A9C9: D0 30 BNE loc_a9fb ; in mode 4, skip the number on non-marker rows
loc_a9cb:
A9CB: BE E2 CD LDX rom+3DE2,Y ; buffer cursor for this row's digit string
A9CE: B9 7D A9 LDA rom+197D,Y ; low byte of the digit-source pointer
A9D1: 85 3B STA workRam+3B ; seat the source pointer low
A9D3: A9 00 LDA #$00
A9D5: 85 3C STA workRam+3C ; source high byte 0 -- the digits live in zero page
; Walks three source bytes backward (pointer loc_3b/loc_3c) emitting each
; byte's high then low nibble into the text buffer, threading carry so
; only the final low nibble on the last pass sees it cleared.
buildTextBufferDigitString:
A9D7: A0 02 LDY #$02 ; three digit passes -- two down to zero
A9D9: 84 2A STY workRam+2A ; seat the pass counter
A9DB: 38 SEC ; set the leading-zero suppress flag
loc_a9dc:
A9DC: 08 PHP ; carry the suppress flag across the high-nibble emit
A9DD: A0 00 LDY #$00
A9DF: B1 3B LDA (workRam+3B),Y ; read the packed-BCD source byte
A9E1: 4A LSR A ; shift the high nibble down
A9E2: 4A LSR A
A9E3: 4A LSR A
A9E4: 4A LSR A
A9E5: 28 PLP ; restore the suppress carry
A9E6: 20 FC A9 JSR writeNibbleGlyphToTextBuffer; emit the high-nibble digit glyph
A9E9: A5 2A LDA workRam+2A ; the pass counter
A9EB: D0 01 BNE loc_a9ee ; on the final pass only
A9ED: 18 CLC ; clear suppress so the units digit always prints
loc_a9ee:
A9EE: A0 00 LDY #$00
A9F0: B1 3B LDA (workRam+3B),Y ; reread the byte for its low nibble
A9F2: 20 FC A9 JSR writeNibbleGlyphToTextBuffer; emit the low-nibble digit glyph
A9F5: C6 3B DEC workRam+3B ; walk the source pointer back one byte
A9F7: C6 2A DEC workRam+2A ; count down the passes
A9F9: 10 E1 BPL loc_a9dc ; loop until the pass counter underflows
loc_a9fb:
A9FB: 60 RTS
; Maps A's low nibble to a stroke byte from ROM table $31E4, stores it at
; the text-buffer cursor $2F60+x, and advances x by two.
writeNibbleGlyphToTextBuffer:
A9FC: 29 0F AND #$0F ; take the low nibble -- the digit value
A9FE: A8 TAY
A9FF: F0 01 BEQ loc_aa02 ; is the nibble zero
AA01: 18 CLC ; a nonzero digit clears the leading-zero suppress
loc_aa02:
AA02: B0 01 BCS loc_aa05 ; a suppressed leading zero selects the blank glyph
AA04: C8 INY ; otherwise index the digit's own glyph
loc_aa05:
AA05: 08 PHP
AA06: 98 TYA
AA07: 0A ASL A ; double the index -- two bytes per glyph entry
AA08: A8 TAY
AA09: B9 E4 31 LDA vectorRom+1E4,Y ; fetch the digit's stroke byte from the glyph table
AA0C: 9D 60 2F STA vectorRam+F60,X ; store it into the text buffer at the cursor
AA0F: E8 INX ; advance the cursor
AA10: E8 INX ; past this two-byte glyph
AA11: 28 PLP
AA12: 60 RTS
; stage a text line into the vector text buffer at 0x2f60: pick a string
; index in loc_3e (forced to 0x01 when loc_5 bit7 is clear and any of
; loc_43/loc_44/loc_45 is set), seat the write cursor loc_74/loc_75 at
; 0x2f60, copy $CE66[index]+1 stroke bytes from ROM $CDE6 into it, and on
; the loc_5 bit7 path also emit the BCD of (loc_9f+1) at 0x2fa6 before
; restoring the cursor low byte and terminating the record via
; emitRecordBodyC0.
stageTextLineWithCount:
AA13: A6 3E LDX workRam+3E ; default template index -- the active slot count
AA15: 24 05 BIT workRam+5 ; test the status flag bit7
AA17: 30 0A BMI loc_aa23 ; bit7 set -- keep the default template
AA19: A5 43 LDA workRam+43 ; combine the loc_43/44/45 trio
AA1B: 05 44 ORA workRam+44 ; fold in loc_44
AA1D: 05 45 ORA workRam+45 ; fold in loc_45
AA1F: F0 02 BEQ loc_aa23 ; all zero -- keep the default template
AA21: A2 01 LDX #$01 ; any of the trio set -- force template index 1
loc_aa23:
AA23: A9 60 LDA #$60 ; write cursor low byte
AA25: 85 74 STA workRam+74 ; seat the cursor low
AA27: A9 2F LDA #$2F ; write cursor high byte
AA29: 85 75 STA workRam+75 ; seat the cursor high -- text buffer at 0x2f60
AA2B: BD 66 CE LDA rom+3E66,X ; template byte length from the length table
AA2E: A8 TAY
AA2F: 38 SEC
AA30: 65 74 ADC workRam+74 ; length plus cursor low
AA32: 48 PHA ; save the post-copy cursor low
loc_aa33:
AA33: B9 E6 CD LDA rom+3DE6,Y ; copy a stroke byte from the template block
AA36: 91 74 STA (workRam+74),Y ; into the text buffer
AA38: 88 DEY ; step down the copy counter
AA39: D0 F8 BNE loc_aa33 ; copy the template down toward index 0
AA3B: B9 E6 CD LDA rom+3DE6,Y ; final stroke byte at index 0
AA3E: 91 74 STA (workRam+74),Y ; store it
AA40: A5 05 LDA workRam+5 ; read the status flags
AA42: 10 10 BPL loc_aa54 ; bit7 clear -- skip the live count
AA44: A9 2F LDA #$2F
AA46: 85 75 STA workRam+75 ; repoint the cursor high
AA48: A9 A6 LDA #$A6
AA4A: 85 74 STA workRam+74 ; and low -- to the count field at 0x2fa6
AA4C: A5 9F LDA workRam+9F ; the count source
AA4E: 18 CLC
AA4F: 69 01 ADC #$01 ; plus one
AA51: 20 77 AF JSR emitByteAsBcdDigits ; render it as BCD digits
loc_aa54:
AA54: 68 PLA ; restore the saved cursor low
AA55: 85 74 STA workRam+74 ; seat it back
AA57: 4C 09 DF JMP emitRecordBodyC0 ; tail into the record-close emitter
; compose a frame led by slot 0x08: draw slot 0x08 (drawSlotShapeRecord)
; then chain prepCountThenComposeFrame (the count prep followed by the
; per-frame composition $A8E7).
drawFrameWithSlot08:
AA5A: A2 08 LDX #$08 ; lead this frame with draw slot 0x08
AA5C: 20 14 AB JSR drawSlotShapeRecord ; draw that slot's shape record
AA5F: 4C 69 AA JMP prepCountThenComposeFrame; chain into the shared count-prep and frame composer
; compose a frame led by slot 0x00: prime slot 0x00 with header 0x30
; (drawSlotShapeWithHeader), run the shared count prep
; (drawSlotThenDigitRun), then dispatch the per-frame composition $A8E7.
drawFrameWithSlot00:
AA62: A9 30 LDA #$30 ; header/colour seed 0x30
AA64: A2 00 LDX #$00 ; lead with slot 0x00 -- the player/overlay slot
AA66: 20 17 AB JSR drawSlotShapeWithHeader; draw that slot's record with the given header
; run the shared count prep (drawSlotThenDigitRun: slot 0x02 + digit run)
; then dispatch the per-frame composition $A8E7.
prepCountThenComposeFrame:
AA69: 20 92 AA JSR drawSlotThenDigitRun; count prep -- draw slot 0x02 and lay the digit run
AA6C: 4C E7 A8 JMP composeFrameDisplayList; hand to the per-frame composition driver
; run the alternate per-frame composition $A8B4, then prime slot 0x06
; through the shared entry drawSlotShapeWithHeader (header 0x00).
composeFrameThenDrawSlot06:
AA6F: 20 B4 A8 JSR buildTextOverlayList; build the alternate text-overlay display list
AA72: A9 00 LDA #$00 ; header seed 0x00
AA74: A2 06 LDX #$06 ; slot 0x06
AA76: 4C 17 AB JMP drawSlotShapeWithHeader; append slot 0x06's shape record
; compose a frame led by slot 0x32: draw slot 0x32
; (drawSlotShapeWithHeader, header 0x00), add a second draw of slot 0x22
; (header 0xe0) only while status nibble loc_3&0x1f < 0x10, then finish
; with the alternate per-frame composition $A8B4.
drawFrameWithSlot32:
AA79: A9 00 LDA #$00 ; header seed 0x00
AA7B: A2 32 LDX #$32 ; lead with slot 0x32
AA7D: 20 17 AB JSR drawSlotShapeWithHeader; draw that slot's shape record
AA80: A5 03 LDA workRam+3 ; read the frame counter
AA82: 29 1F AND #$1F ; low bits of the 32-frame cycle
AA84: C9 10 CMP #$10 ; in the first sixteen frames
AA86: B0 07 BCS loc_aa8f ; skip the blink slot in the second half
AA88: A9 E0 LDA #$E0 ; header seed 0xe0
AA8A: A2 22 LDX #$22 ; slot 0x22
AA8C: 20 17 AB JSR drawSlotShapeWithHeader; draw it only in the first half -- a 50%-duty blink
loc_aa8f:
AA8F: 4C B4 A8 JMP buildTextOverlayList; finish through the text-overlay builder
; draw fixed slot 0x02 (drawSlotShapeRecord) then hand off to
; emitCountDigitRun to lay down the numeric run.
drawSlotThenDigitRun:
AA92: A2 02 LDX #$02 ; the fixed slot 0x02
AA94: 20 14 AB JSR drawSlotShapeRecord ; draw its shape record
; publish a zero scale header (emitScaleWordIfChanged with 0x00) then emit
; the one-byte digit run for the slot named by loc_3d via $AA9E, drawing
; the count as nibble digits.
emitCountDigitRun:
AA97: A9 00 LDA #$00 ; baseline scale value 0
AA99: 20 DD B0 JSR emitScaleWordIfChanged; set the vector scale to baseline, emit only if it changed
AA9C: A6 3D LDX workRam+3D ; the slot index named by loc_3d
; Increments the slot index, publishes it into loc_61, and emits that
; single byte as a digit run.
emitSlotIndexDigit:
AA9E: E8 INX ; advance the slot index by one
AA9F: 86 61 STX workRam+61 ; publish it into the byte the digit emitter reads
AAA1: A9 61 LDA #$61 ; source pointer 0x61
AAA3: A0 01 LDY #$01 ; one byte long
AAA5: 4C B1 DF JMP emitNibbleDigitRun ; emit it as a single digit glyph
; the recurring per-frame overlay driver: draw the phase-selected slot
; from ROM table $A8B0[loc_9&0x03], tick timer loc_16e down, draw either
; alternate slot 0x32 (when loc_a bit0 set and loc_3 bit5 clear) or defer
; to computeDisplayListChecksum, always redraw marker slot 0x2c and slot
; 0x2e, clamp loc_6 to ceiling 0x28 and emit it via emitByteAsBcdDigits,
; and when loc_17 is nonzero post a final coordinate word
; (emitCoordinateVectorWord from $AAF4/$AAF3).
drawOverlayFrame:
AAA8: A5 09 LDA workRam+9 ; the config-switch snapshot
AAAA: 29 03 AND #$03 ; its low two bits
AAAC: AA TAX
AAAD: BD B0 A8 LDA rom+18B0,X ; pick a shape id from the slot table
AAB0: AA TAX
AAB1: 20 14 AB JSR drawSlotShapeRecord ; draw the config-selected slot
AAB4: CE 6E 01 DEC workRam+16E ; tick down the display countdown timer
AAB7: A5 0A LDA workRam+A ; the second config snapshot
AAB9: 29 01 AND #$01 ; bit 0
AABB: F0 0E BEQ loc_aacb ; clear -- spend the slot on the checksum instead
AABD: A5 03 LDA workRam+3 ; the frame counter
AABF: 29 20 AND #$20 ; phase-gate bit
AAC1: D0 08 BNE loc_aacb ; gate high -- take the checksum path
AAC3: A2 32 LDX #$32 ; alternate slot 0x32
AAC5: 20 14 AB JSR drawSlotShapeRecord ; draw it
AAC8: B8 CLV
AAC9: 50 03 BVC loc_aace ; skip the checksum this frame
loc_aacb:
AACB: 20 CA AE JSR computeDisplayListChecksum; recompute the display-list checksum
loc_aace:
AACE: A2 2C LDX #$2C ; fixed marker slot 0x2c
AAD0: 20 14 AB JSR drawSlotShapeRecord ; draw it
AAD3: A2 2E LDX #$2E ; fixed marker slot 0x2e
AAD5: 20 14 AB JSR drawSlotShapeRecord ; draw it
AAD8: A5 06 LDA workRam+6 ; the level/phase index
AADA: C9 28 CMP #$28 ; against its ceiling 0x28
AADC: 90 04 BCC loc_aae2 ; below -- keep it
AADE: A9 28 LDA #$28 ; clamp to 0x28
AAE0: 85 06 STA workRam+6 ; store the clamp
loc_aae2:
AAE2: 20 77 AF JSR emitByteAsBcdDigits ; draw the phase index as BCD digits
AAE5: A5 17 LDA workRam+17 ; the heartbeat accumulator high byte
AAE7: F0 09 BEQ loc_aaf2 ; skip the trailing word while it is zero
AAE9: AD F4 AA LDA rom+1AF4 ; trailing coordinate word, low byte
AAEC: AE F3 AA LDX rom+1AF3 ; and high byte
AAEF: 20 39 DF JSR emitCoordinateVectorWord; post it into the display list
loc_aaf2:
AAF2: 60 RTS
; ---- $AAF3-$AAF4: data ----
AAF3: 5C 32
; Converts the binary byte in A to packed BCD by double-dabble and writes
; the packed digits into loc_29 and loc_2c.
packBinaryToBcd:
AAF5: F8 SED ; switch the CPU to decimal mode for the conversion
AAF6: 85 29 STA workRam+29 ; the binary byte to convert
AAF8: A9 00 LDA #$00
AAFA: 85 2C STA workRam+2C ; clear the BCD accumulator
AAFC: A0 07 LDY #$07 ; eight double-dabble passes
loc_aafe:
AAFE: 06 29 ASL workRam+29 ; shift the top bit out of the source byte
AB00: A5 2C LDA workRam+2C ; load the accumulator
AB02: 65 2C ADC workRam+2C ; double it in decimal, folding in that bit
AB04: 85 2C STA workRam+2C ; back to the accumulator
AB06: 88 DEY
AB07: 10 F5 BPL loc_aafe ; repeat for all eight bits
AB09: D8 CLD ; back to binary mode
AB0A: 85 29 STA workRam+29 ; publish the packed-BCD result
AB0C: 60 RTS
; emit one fixed vector word (bytes 0x20, 0x80) through the draw cursor
; 0x74 and step past it (via $DF57).
emitFixedVectorWord:
AB0D: A9 20 LDA #$20 ; constant vector word, low byte
AB0F: A2 80 LDX #$80 ; high byte
AB11: 4C 57 DF JMP emitVectorWord ; emit it through the draw cursor
; draw slot x's object record into the display list at cursor (loc_74):
; latch slot into loc_35, take the colour/header seed from ROM $D122+x
; into loc_2b, load the slot's shape-list pointer from (loc_ac)+x into
; loc_3b/loc_3c (snapshotting cursor into loc_b6/loc_b7 for marker slot
; 0x2c), position via loc_2a, split scale key $D121+loc_35 into
; emitColorStatIfChanged/emitScaleWordIfChanged, then walk the shape list
; copying point pairs from $31E4/$31E5 into (loc_74) until a high-bit
; terminator and close with advanceDisplayCursor.
drawSlotShapeRecord:
AB14: BD 22 D1 LDA rom+4122,X ; fetch the slot's colour/header seed from the ROM table
; draw slot x's object record like drawSlotShapeRecord but take the loc_2b
; colour/header seed from the argument a instead of ROM $D122: latch
; loc_35=x, loc_2b=a, load shape-list pointer (loc_ac)+x, set scale from
; $D121, expand the shape list of point pairs ($31E4/$31E5) into (loc_74)
; and close with advanceDisplayCursor.
drawSlotShapeWithHeader:
AB17: 86 35 STX workRam+35 ; remember the slot index
AB19: 85 2B STA workRam+2B ; the caller's colour/header seed
AB1B: A4 35 LDY workRam+35 ;
AB1D: B1 AC LDA (workRam+AC),Y ; shape-list pointer low from the per-slot table
AB1F: 85 3B STA workRam+3B ; seat the pointer low
AB21: C8 INY
AB22: B1 AC LDA (workRam+AC),Y ; and the high byte
AB24: 85 3C STA workRam+3C ; seat the pointer high
AB26: E0 2C CPX #$2C ; is this the marker slot 0x2c
AB28: D0 08 BNE loc_ab32 ; if not, skip the snapshot
AB2A: A5 74 LDA workRam+74 ; snapshot the draw cursor low so a later pass can find this record
AB2C: 85 B6 STA workRam+B6 ; store it
AB2E: A5 75 LDA workRam+75 ; and the cursor high
AB30: 85 B7 STA workRam+B7 ; store it
loc_ab32:
AB32: A0 00 LDY #$00
AB34: B1 3B LDA (workRam+3B),Y ; the record's first byte -- its position
AB36: 85 2A STA workRam+2A ; seat the position
AB38: 20 0D AB JSR emitFixedVectorWord ; emit the fixed framing word
; the shared tail all three builders converge on: with
; loc_2a/loc_2b/loc_35 pre-seeded, clear loc_73, set loc_72=0x01, emit the
; intensity header (emitBlankVectorWordTag70) and beam-position record
; (emitScaledCoordinateRecord), reload the shape-list pointer from
; (loc_ac)+loc_35, split scale key $D121+loc_35 into
; emitColorStatIfChanged/emitScaleWordIfChanged, then walk the list
; copying point pairs from $31E4/$31E5 into (loc_74) until a high-bit
; terminator and close with advanceDisplayCursor.
expandShapeListToVectors:
AB3B: A9 00 LDA #$00
AB3D: 85 73 STA workRam+73 ; clear the vector-record header cell
AB3F: A9 01 LDA #$01
AB41: 85 72 STA workRam+72 ; seed the last-status latch = 1
AB43: 20 6A DF JSR emitBlankVectorWordTag70; emit the blank/intensity vector header word
AB46: A5 2A LDA workRam+2A ;
AB48: A6 2B LDX workRam+2B ;
AB4A: 20 75 DF JSR emitScaledCoordinateRecord; emit the scaled beam move to the shape's position
AB4D: A4 35 LDY workRam+35 ; load this shape's slot index
AB4F: B1 AC LDA (workRam+AC),Y ; read the shape's coordinate-list pointer low from the slot table
AB51: 85 3B STA workRam+3B ;
AB53: C8 INY
AB54: B1 AC LDA (workRam+AC),Y ; read the pointer high from the next table byte
AB56: 85 3C STA workRam+3C ;
AB58: A6 35 LDX workRam+35 ;
AB5A: BD 21 D1 LDA rom+4121,X ; read this shape's packed colour/scale key
AB5D: 48 PHA
AB5E: 4A LSR A
AB5F: 4A LSR A
AB60: 4A LSR A
AB61: 4A LSR A
AB62: A8 TAY
AB63: 20 D1 B0 JSR emitColorStatIfChanged; set the beam colour from the key's high nibble
AB66: 68 PLA
AB67: 29 0F AND #$0F
AB69: 20 DD B0 JSR emitScaleWordIfChanged; set the draw scale from the key's low nibble
AB6C: A0 01 LDY #$01
AB6E: A9 00 LDA #$00
AB70: 85 2A STA workRam+2A ; reset the output offset
loc_ab72:
AB72: B1 3B LDA (workRam+3B),Y ; read the next point entry from the shape list
AB74: 85 2B STA workRam+2B ;
AB76: 29 7F AND #$7F ; low 7 bits index the point-coordinate table
AB78: C8 INY
AB79: 84 2C STY workRam+2C ;
AB7B: AA TAX
AB7C: BD E4 31 LDA vectorRom+1E4,X ; fetch the point's low byte from the coordinate table
AB7F: A4 2A LDY workRam+2A ;
AB81: 91 74 STA (workRam+74),Y ; write the point low byte into the display buffer
AB83: C8 INY
AB84: BD E5 31 LDA vectorRom+1E5,X ; fetch the point's high byte
AB87: 91 74 STA (workRam+74),Y ; write the point high byte into the display buffer
AB89: C8 INY
AB8A: 84 2A STY workRam+2A ;
AB8C: A4 2C LDY workRam+2C ;
AB8E: 24 2B BIT workRam+2B ; test the entry's terminator bit
AB90: 10 E0 BPL loc_ab72 ; loop until an entry's high bit ends the shape list
AB92: A4 2A LDY workRam+2A ;
AB94: 88 DEY
AB95: 4C 5F DF JMP advanceDisplayCursor; close the record, advancing the cursor past the points
; thin front over the shared builder: seat loc_35=x (slot), loc_2a=a
; (position seed), and a zero colour header loc_2b=0x00, then fall into
; expandShapeListToVectors to emit the slot's vector run.
drawShapeListAtPosition:
AB98: 86 35 STX workRam+35 ; set which shape slot to draw
AB9A: 85 2A STA workRam+2A ; set the draw position seed
AB9C: A9 00 LDA #$00
AB9E: 85 2B STA workRam+2B ; clear the colour/flag header
ABA0: F0 99 BEQ expandShapeListToVectors; fall into the shared shape-list emitter
; guarded front for the rebuilder: refresh via $AC20, and if loc_1c9's low
; two request bits are clear take the no-op tail $AC07, otherwise run the
; rebuild path $ABAC.
rebuildControlBlocksIfRequested:
ABA2: 20 20 AC JSR requestRebuildIfSwitchesChanged; refresh the option-switch snapshot -- may request a rebuild
ABA5: AD C9 01 LDA workRam+1C9 ; read the pending-work flags
ABA8: 29 03 AND #$03 ; test the two rebuild-request bits
ABAA: F0 5B BEQ noRebuildRequestReturn; no rebuild requested -- take the do-nothing tail
; control-block rebuilder: refresh via requestRebuildIfSwitchesChanged,
; write loc_100=0x08, raise the requests via raiseRebuildRequestBits when
; (loc_71b|loc_71c|loc_71d) are idle, then keyed on loc_1c9's low two bits
; copy template $AC08 into loc_606 (top 0x17 if bit0 else 0x0e) and fill
; loc_706 with 0x01 (top 0x17 if bit1 else 0x0e), latch
; loc_71e=(loc_a&0xf8)/loc_71f=(loc_16a&0x03) when any request bit was
; set, and clear the two request bits (loc_1c9 &= 0xfc).
rebuildControlBlocksFromTemplate:
ABAC: 20 20 AC JSR requestRebuildIfSwitchesChanged; refresh the option-switch snapshot -- may request a rebuild
ABAF: A9 08 LDA #$08
ABB1: 8D 00 01 STA workRam+100 ; stamp the block-system state marker
ABB4: AD 1B 07 LDA workRam+71B ; gather the three activity sources
ABB7: 0D 1C 07 ORA workRam+71C ;
ABBA: 0D 1D 07 ORA workRam+71D ;
ABBD: D0 03 BNE loc_abc2 ; skip the force when any source is active
ABBF: 20 36 AC JSR raiseRebuildRequestBits; fully idle machine -- force both rebuild requests on
loc_abc2:
ABC2: A2 17 LDX #$17 ; wider copy run when the copy bit is armed
ABC4: AD C9 01 LDA workRam+1C9 ; test the copy-block request bit
ABC7: 29 01 AND #$01
ABC9: D0 02 BNE loc_abcd ;
ABCB: A2 0E LDX #$0E ; narrower copy run otherwise
loc_abcd:
ABCD: BD 08 AC LDA rom+1C08,X ; read a template control-block byte
ABD0: 9D 06 06 STA workRam+606,X ; write it into the live control block
ABD3: CA DEX
ABD4: 10 F7 BPL loc_abcd ; loop over the block
ABD6: A2 17 LDX #$17
ABD8: AD C9 01 LDA workRam+1C9 ; test the glyph-fill request bit
ABDB: 29 02 AND #$02
ABDD: D0 02 BNE loc_abe1 ;
ABDF: A2 0E LDX #$0E
loc_abe1:
ABE1: A9 01 LDA #$01
ABE3: 9D 06 07 STA workRam+706,X ; fill the glyph-parameter block with ones
ABE6: CA DEX
ABE7: 10 F8 BPL loc_abe1 ; loop over the block
ABE9: AD C9 01 LDA workRam+1C9 ; test whether any request bit is set
ABEC: 29 03 AND #$03
ABEE: F0 0F BEQ loc_abff ; no rebuild happened -- skip the snapshot latch
ABF0: A5 0A LDA workRam+A ;
ABF2: 29 F8 AND #$F8
ABF4: 8D 1E 07 STA workRam+71E ; latch the option-switch snapshot (high bits)
ABF7: AD 6A 01 LDA workRam+16A ;
ABFA: 29 03 AND #$03
ABFC: 8D 1F 07 STA workRam+71F ; latch the difficulty snapshot (low bits)
loc_abff:
ABFF: AD C9 01 LDA workRam+1C9 ;
AC02: 29 FC AND #$FC
AC04: 8D C9 01 STA workRam+1C9 ; clear the two rebuild-request bits, keep the rest
; no-op return tail taken by rebuildControlBlocksIfRequested when no
; rebuild request bit is set in loc_1c9; does nothing and returns.
noRebuildRequestReturn:
AC07: 60 RTS
; ---- $AC08-$AC1F: data ----
AC08: 07 04 01 0F 09 0C 0B 03 12 13 05 03 07 0F 0C 11
AC18: 11 11 12 04 03 03 09 04
; refresh the live option/switch snapshot via decodeOptionSwitches, then
; compare (loc_a & 0xf8) to cached loc_71e and (loc_16a & 0x03) to cached
; loc_71f: a match takes the no-op tail switchesUnchangedReturn, a
; mismatch calls raiseRebuildRequestBits to raise the pending-rebuild
; request bits.
requestRebuildIfSwitchesChanged:
AC20: 20 BB D6 JSR decodeOptionSwitches; re-read and decode the operator option switches
AC23: A5 0A LDA workRam+A ;
AC25: 29 F8 AND #$F8 ; mask the option-switch high bits
AC27: CD 1E 07 CMP workRam+71E ; compare against the cached snapshot
AC2A: D0 08 BNE loc_ac34 ; differ -- request a rebuild
AC2C: AD 6A 01 LDA workRam+16A ;
AC2F: 29 03 AND #$03
AC31: CD 1F 07 CMP workRam+71F ; compare difficulty against the cached snapshot
loc_ac34:
AC34: F0 08 BEQ switchesUnchangedReturn; switches unchanged -- take the no-op tail
; set both low request bits by OR-ing 0x03 into the pending-rebuild flags
; cell loc_1c9 and return the merged value.
raiseRebuildRequestBits:
AC36: AD C9 01 LDA workRam+1C9 ;
AC39: 09 03 ORA #$03 ; arm both rebuild-request bits
AC3B: 8D C9 01 STA workRam+1C9 ; store the armed request flags
; shared no-op return tail taken by requestRebuildIfSwitchesChanged when
; the option/switch snapshot still matches the cached targets; does
; nothing and returns.
switchesUnchangedReturn:
AC3E: 60 RTS
; build a sound draw request: clear bit6 of loc_5, pre-clear the staging
; block via clearChannelStagingBlock when loc_9&0x43==0x40, zero total
; loc_601; for each of the two channels (0 or 3 by loc_3e) seat the key
; triple loc_2c/loc_2d/loc_2e from loc_42/loc_41/loc_40 and bubble-sort
; the row triples loc_620/loc_61f/loc_61e (with payload
; loc_51e/loc_51f/loc_520) into lexicographic order, counting settle
; passes in loc_605 stored to loc_600,channel; then nudge loc_601, derive
; the packed request byte loc_603 from loc_3d, and hand off to the request
; walker armRequestedSoundSlot.
buildSortedSoundRequest:
AC3F: A5 05 LDA workRam+5 ;
AC41: 29 BF AND #$BF
AC43: 85 05 STA workRam+5 ; clear the request-in-progress flag
AC45: A5 09 LDA workRam+9 ;
AC47: 29 43 AND #$43
AC49: C9 40 CMP #$40 ; option-switch test gating the staging wipe
AC4B: D0 03 BNE loc_ac50 ;
AC4D: 20 62 CA JSR clearChannelStagingBlock; wipe the sound staging block
loc_ac50:
AC50: 20 FB DD JSR queueEaromRegionSave; fold in the periodic high-score save
AC53: A9 00 LDA #$00
AC55: 8D 01 06 STA workRam+601 ; zero the running total
AC58: A6 3E LDX workRam+3E ; pick the starting channel from the active-slot count
AC5A: F0 02 BEQ loc_ac5e ;
AC5C: A2 03 LDX #$03
loc_ac5e:
AC5E: B5 42 LDA workRam+42,X ; seat this channel's sort-key triple from its base cells
AC60: 85 2C STA workRam+2C ;
AC62: B5 41 LDA workRam+41,X ;
AC64: 85 2D STA workRam+2D ;
AC66: B5 40 LDA workRam+40,X ;
AC68: 85 2E STA workRam+2E ;
AC6A: 8A TXA
AC6B: 29 01 AND #$01
AC6D: 85 36 STA workRam+36 ; remember the channel parity across the sort
AC6F: A9 00 LDA #$00
AC71: 85 2B STA workRam+2B ;
AC73: A9 1A LDA #$1A ; seed the swap-temp triple
AC75: 85 2A STA workRam+2A ;
AC77: 85 29 STA workRam+29 ;
AC79: A9 00 LDA #$00
AC7B: 8D 05 06 STA workRam+605 ; clear this channel's pass counter
AC7E: A0 FD LDY #$FD ; start the row cursor at the top
loc_ac80:
AC80: B9 20 06 LDA workRam+620,Y ;
AC83: C5 2C CMP workRam+2C ; compare this row's key high against the running key
AC85: D0 14 BNE loc_ac9b ;
AC87: B9 1F 06 LDA workRam+61F,Y ;
AC8A: C5 2D CMP workRam+2D ; compare the key middle byte
AC8C: D0 0D BNE loc_ac9b ;
AC8E: C0 52 CPY #$52
AC90: 90 08 BCC loc_ac9a ;
AC92: B9 1E 06 LDA workRam+61E,Y ;
AC95: C5 2E CMP workRam+2E ; compare the key low byte
AC97: B8 CLV
AC98: 50 01 BVC loc_ac9b ;
loc_ac9a:
AC9A: 38 SEC
loc_ac9b:
AC9B: B0 4F BCS loc_acec ; rows already ordered -- skip the swap
loc_ac9d:
AC9D: C0 E8 CPY #$E8
AC9F: 90 1E BCC loc_acbf ; below the high region -- skip the payload swap
ACA1: A5 29 LDA workRam+29 ;
ACA3: BE 1E 05 LDX workRam+51E,Y ;
ACA6: 99 1E 05 STA workRam+51E,Y ; swap the parallel payload triple alongside the key
ACA9: 86 29 STX workRam+29 ;
ACAB: A5 2A LDA workRam+2A ;
ACAD: BE 1F 05 LDX workRam+51F,Y ;
ACB0: 99 1F 05 STA workRam+51F,Y ;
ACB3: 86 2A STX workRam+2A ;
ACB5: A5 2B LDA workRam+2B ;
ACB7: BE 20 05 LDX workRam+520,Y ;
ACBA: 99 20 05 STA workRam+520,Y ;
ACBD: 86 2B STX workRam+2B ;
loc_acbf:
ACBF: A5 2D LDA workRam+2D ;
ACC1: BE 1F 06 LDX workRam+61F,Y ;
ACC4: 99 1F 06 STA workRam+61F,Y ; swap this row's key with the running key
ACC7: 86 2D STX workRam+2D ;
ACC9: A5 2C LDA workRam+2C ;
ACCB: BE 20 06 LDX workRam+620,Y ;
ACCE: 99 20 06 STA workRam+620,Y ;
ACD1: 86 2C STX workRam+2C ;
ACD3: C0 52 CPY #$52
ACD5: 90 0A BCC loc_ace1 ;
ACD7: A5 2E LDA workRam+2E ;
ACD9: BE 1E 06 LDX workRam+61E,Y ;
ACDC: 99 1E 06 STA workRam+61E,Y ; swap the key's low byte too
ACDF: 86 2E STX workRam+2E ;
loc_ace1:
ACE1: C0 55 CPY #$55
ACE3: 90 01 BCC loc_ace6 ;
ACE5: 88 DEY
loc_ace6:
ACE6: 88 DEY
ACE7: 88 DEY
ACE8: D0 B3 BNE loc_ac9d ; keep bubbling the swap down the table
ACEA: A0 02 LDY #$02
loc_acec:
ACEC: EE 05 06 INC workRam+605 ; count a settle pass
ACEF: C0 55 CPY #$55
ACF1: 90 01 BCC loc_acf4 ;
ACF3: 88 DEY
loc_acf4:
ACF4: 88 DEY
ACF5: 88 DEY
ACF6: D0 88 BNE loc_ac80 ; advance to the next row pair
ACF8: A6 36 LDX workRam+36 ;
ACFA: AD 05 06 LDA workRam+605 ;
ACFD: 9D 00 06 STA workRam+600,X ; record this channel's pass count
AD00: CA DEX
AD01: 30 03 BMI loc_ad06 ; both channels done -- exit the sort loop
; ---- $AD03-$AD05: data ----
AD03: 4C 5E AC
loc_ad06:
AD06: AD 01 06 LDA workRam+601 ;
AD09: CD 00 06 CMP workRam+600 ;
AD0C: 90 07 BCC loc_ad15 ;
AD0E: C9 63 CMP #$63
AD10: B0 03 BCS loc_ad15 ;
AD12: EE 01 06 INC workRam+601 ; nudge the running total up by one
loc_ad15:
AD15: A5 3D LDA workRam+3D ;
AD17: 49 01 EOR #$01
AD19: 0A ASL A
AD1A: 0A ASL A
AD1B: 05 3D ORA workRam+3D ;
AD1D: 69 05 ADC #$05
AD1F: 8D 03 06 STA workRam+603 ; pack the sound-request byte and store it
; walk the packed request word loc_603 two bits at a time: on an empty
; word write idle status loc_0=0x14 and return; else take the low two bits
; as slot index loc_3d, consume them, read loc_600+index, skip slots whose
; byte is 0 or >=9, and for a live slot form loc_602 = ((3*byte) ^ 0xff) -
; 0xe5, call selectProjectionScale, seed
; loc_605=0x60/loc_4e=0/loc_50=0/loc_604=2, run the per-slot reset
; resetPerSlotStateTable, write armed status loc_0=0x24 and return.
armRequestedSoundSlot:
AD22: A0 14 LDY #$14
AD24: AD 03 06 LDA workRam+603 ;
AD27: F0 42 BEQ loc_ad6b ; no pending sound request -- drop to idle
AD29: 29 03 AND #$03
AD2B: 85 3D STA workRam+3D ; take the low two bits as the slot index
AD2D: C6 3D DEC workRam+3D ;
AD2F: 4E 03 06 LSR workRam+603 ; consume those two bits from the request word
AD32: 4E 03 06 LSR workRam+603 ;
AD35: A6 3D LDX workRam+3D ;
AD37: BD 00 06 LDA workRam+600,X ; read this slot's metric
AD3A: F0 2C BEQ loc_ad68 ; skip empty or out-of-range slots
AD3C: C9 09 CMP #$09
AD3E: B0 28 BCS loc_ad68 ;
AD40: 0A ASL A
AD41: 18 CLC
AD42: 7D 00 06 ADC workRam+600,X ;
AD45: 49 FF EOR #$FF
AD47: 38 SEC
AD48: E9 E5 SBC #$E5
AD4A: 8D 02 06 STA workRam+602 ; form the slot's control value (scale by three, invert, offset)
AD4D: 20 48 CA JSR selectProjectionScale; select the projection scale
AD50: A9 60 LDA #$60
AD52: 8D 05 06 STA workRam+605 ; seed the slow pass counter
AD55: A9 00 LDA #$00
AD57: 85 4E STA workRam+4E ; clear the input-edge flags
AD59: 85 50 STA workRam+50 ; clear the spinner accumulator
AD5B: A9 02 LDA #$02
AD5D: 8D 04 06 STA workRam+604 ; seed the re-arm counter
AD60: 20 89 A7 JSR resetPerSlotStateTable; reset the per-slot state table
AD63: A0 24 LDY #$24
AD65: 84 00 STY workRam ; set the sound state to armed
AD67: 60 RTS
loc_ad68:
AD68: 4C 22 AD JMP armRequestedSoundSlot; walk on to the next requested slot
loc_ad6b:
AD6B: 84 00 STY workRam ; set the sound state to idle
AD6D: 60 RTS
; per-frame tick of the active slot: set loc_1=0x06; while the low 5 bits
; of loc_3 are clear run countdown loc_605 down and on zero write
; loc_00=0x14 and return; otherwise clamp the active slot value
; loc_606,slot via foldStepIntoFraction (negative->0x1a, >=0x1b->0), gate
; on bits 3-4 of loc_4e (clearing them plus bit7), and when gated step
; cursor loc_602 and counter loc_604 -- on underflow re-arm
; (requestWriteLowRegions when loc_600,loc_3d < 4, then
; armRequestedSoundSlot), else clear the retired slot loc_606,slot-1.
tickActiveSoundSlot:
AD6E: A9 06 LDA #$06
AD70: 85 01 STA workRam+1 ; select this mode's dispatch code
AD72: A5 03 LDA workRam+3 ;
AD74: 29 1F AND #$1F
AD76: D0 0A BNE loc_ad82 ; run the slow tick only every 32nd frame
AD78: CE 05 06 DEC workRam+605 ; count down the slow pass counter
AD7B: D0 05 BNE loc_ad82 ;
AD7D: A0 14 LDY #$14
AD7F: 84 00 STY workRam ; pass counter expired -- leave this mode
AD81: 60 RTS
loc_ad82:
AD82: AE 02 06 LDX workRam+602 ;
AD85: BD 06 06 LDA workRam+606,X ; load the active slot's ramp value
AD88: 20 CE AD JSR foldStepIntoFraction; fold the spinner step into the value
AD8B: A8 TAY
AD8C: 10 05 BPL loc_ad93 ;
AD8E: A9 1A LDA #$1A ; rail a negative value to 0x1a
AD90: B8 CLV
AD91: 50 06 BVC loc_ad99 ;
loc_ad93:
AD93: C9 1B CMP #$1B
AD95: 90 02 BCC loc_ad99 ;
AD97: A9 00 LDA #$00 ; rail an over-range value to 0x00
loc_ad99:
AD99: AE 02 06 LDX workRam+602 ;
AD9C: 9D 06 06 STA workRam+606,X ; store the clamped ramp value back
AD9F: A5 4E LDA workRam+4E ;
ADA1: 29 18 AND #$18 ; read the input-edge gate (bits 3-4)
ADA3: A8 TAY
ADA4: A5 4E LDA workRam+4E ;
ADA6: 29 67 AND #$67
ADA8: 85 4E STA workRam+4E ; consume the edge bits
ADAA: 98 TYA
ADAB: F0 20 BEQ loc_adcd ; no edge -- done
ADAD: CE 02 06 DEC workRam+602 ; step the slot cursor down
ADB0: CE 04 06 DEC workRam+604 ; count down the re-arm counter
ADB3: 10 12 BPL loc_adc7 ;
ADB5: A6 3D LDX workRam+3D ;
ADB7: BD 00 06 LDA workRam+600,X ;
ADBA: C9 04 CMP #$04 ; metric gate for the low-region write
ADBC: B0 03 BCS loc_adc1 ;
ADBE: 20 F7 DD JSR requestWriteLowRegions; request the low-region write for a low-metric slot
loc_adc1:
ADC1: 20 22 AD JSR armRequestedSoundSlot; arm the next requested slot
ADC4: B8 CLV
ADC5: 50 06 BVC loc_adcd ;
loc_adc7:
ADC7: CA DEX
ADC8: A9 00 LDA #$00
ADCA: 9D 06 06 STA workRam+606,X ; silence the slot just retired
loc_adcd:
ADCD: 60 RTS
; fold the signed sub-step loc_50 (times 8) into the fraction cell loc_51,
; add the fold carry plus loc_50's sign-extension into A, and clear
; loc_50; returns the updated whole byte in A.
foldStepIntoFraction:
ADCE: 48 PHA
ADCF: A5 50 LDA workRam+50 ; read the signed spinner sub-step
ADD1: 0A ASL A ; scale the sub-step by eight
ADD2: 0A ASL A
ADD3: 0A ASL A
ADD4: 18 CLC
ADD5: 65 51 ADC workRam+51 ;
ADD7: 85 51 STA workRam+51 ; fold it into the fine rotation fraction
ADD9: 68 PLA
ADDA: A4 50 LDY workRam+50 ; check the sub-step's sign
ADDC: 30 05 BMI loc_ade3 ;
ADDE: 69 00 ADC #$00 ; positive step -- add only the fraction carry
ADE0: B8 CLV
ADE1: 50 02 BVC loc_ade5 ;
loc_ade3:
ADE3: 69 FF ADC #$FF ; negative step -- carry one down from the whole byte
loc_ade5:
ADE5: A0 00 LDY #$00
ADE7: 84 50 STY workRam+50 ; consume the spinner sub-step
ADE9: 60 RTS
; draw a fixed frame ($AB17/$AB14 chain), tick the countdown loc_16e down
; by one, then hand the score delta loc_602-loc_604 to the glyph-row
; builder drawHighlightedGlyphRowList.
drawScoreDeltaPanel:
ADEA: 20 B4 A8 JSR buildTextOverlayList; build the static text overlay
ADED: A9 C0 LDA #$C0
ADEF: A2 02 LDX #$02
ADF1: 20 17 AB JSR drawSlotShapeWithHeader; draw the framing shape
ADF4: CE 6E 01 DEC workRam+16E ; tick down the score-display countdown
ADF7: 20 97 AA JSR emitCountDigitRun ; draw the countdown digits
ADFA: A2 0A LDX #$0A
ADFC: 20 14 AB JSR drawSlotShapeRecord ; draw a marker shape
ADFF: A9 A6 LDA #$A6
AE01: A2 0C LDX #$0C
AE03: 20 17 AB JSR drawSlotShapeWithHeader; draw a label shape
AE06: A9 9C LDA #$9C
AE08: A2 0E LDX #$0E
AE0A: 20 17 AB JSR drawSlotShapeWithHeader; draw a label shape
AE0D: A2 2C LDX #$2C
AE0F: 20 14 AB JSR drawSlotShapeRecord ; draw a marker shape
AE12: AD 02 06 LDA workRam+602 ;
AE15: 38 SEC
AE16: ED 04 06 SBC workRam+604 ; form the highlighted-row selector (control value minus re-arm counter)
AE19: 4C 4E AE JMP drawHighlightedGlyphRowList; draw the glyph rows, highlighting the selected one
; fold two POKEY random samples $60CA/$60DA into scratch loc_29 and stored
; nibble loc_11f, draw the counters via drawCounterPair, then draw the
; highlighted glyph-row list via drawHighlightedGlyphRowList(0xff).
seedRngAndDrawCounterPanel:
AE1C: 20 B4 A8 JSR buildTextOverlayList; build the static text overlay
AE1F: 78 SEI ; block interrupts around the paired random reads
AE20: AD CA 60 LDA pokey1+A ; sample the first POKEY random register
AE23: AC CA 60 LDY pokey1+A ;
AE26: 84 29 STY workRam+29 ; seed the scratch random byte
AE28: 4A LSR A
AE29: 4A LSR A
AE2A: 4A LSR A
AE2B: 4A LSR A
AE2C: 45 29 EOR workRam+29 ; fold its high nibble into the scratch byte
AE2E: 85 29 STA workRam+29 ;
AE30: AD DA 60 LDA pokey2+A ; sample the second POKEY random register
AE33: AC DA 60 LDY pokey2+A ;
AE36: 58 CLI ; re-enable interrupts
AE37: 45 29 EOR workRam+29 ;
AE39: 29 F0 AND #$F0
AE3B: 45 29 EOR workRam+29 ;
AE3D: 85 29 STA workRam+29 ; fold the second sample's high nibble in
AE3F: 98 TYA
AE40: 0A ASL A
AE41: 0A ASL A
AE42: 0A ASL A
AE43: 0A ASL A
AE44: 45 29 EOR workRam+29 ;
AE46: 8D 1F 01 STA workRam+11F ; store the stirred random nibble
AE49: 20 26 AF JSR drawCounterPair ; draw the counter pair
AE4C: A9 FF LDA #$FF ; no row highlighted -- fall into the row list
; draw a descending run of glyph rows: prime the pen ($B0DD(0x01)), set
; column loc_2c=0x28 and row index loc_37=0x15, and each pass step loc_2c
; back 0x0a, position ($DF75), select tag 0x00 when the row loc_37 equals
; the argument loc_63 else 0x07 ($B0D1), draw the glyph body
; ($DFB1/$B56A/$AEF8), re-seat loc_56/loc_57/loc_58 from
; loc_706/loc_707/loc_708, and drop loc_37 by 3.
drawHighlightedGlyphRowList:
AE4E: 85 63 STA workRam+63 ; remember which row to highlight
AE50: A2 10 LDX #$10
AE52: 20 14 AB JSR drawSlotShapeRecord ; prime the pen with a fixed shape
AE55: A9 01 LDA #$01
AE57: 85 61 STA workRam+61 ; set the row base position
AE59: 20 DD B0 JSR emitScaleWordIfChanged; set the drawing scale
AE5C: A9 28 LDA #$28
AE5E: 85 2C STA workRam+2C ; seed the column cursor
AE60: A2 15 LDX #$15
AE62: 86 37 STX workRam+37 ; set the top row index (steps down by three)
loc_ae64:
AE64: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
AE67: A9 00 LDA #$00
AE69: 85 73 STA workRam+73 ; clear the vector-record header
AE6B: A5 2C LDA workRam+2C ;
AE6D: AA TAX
AE6E: 38 SEC
AE6F: E9 0A SBC #$0A
AE71: 85 2C STA workRam+2C ; step the column cursor back one row
AE73: A9 D0 LDA #$D0
AE75: 20 75 DF JSR emitScaledCoordinateRecord; position this row
AE78: A0 07 LDY #$07
AE7A: A5 63 LDA workRam+63 ;
AE7C: C5 37 CMP workRam+37 ; pick the highlight tint when this is the selected row
AE7E: D0 02 BNE loc_ae82 ;
AE80: A0 00 LDY #$00
loc_ae82:
AE82: 20 D1 B0 JSR emitColorStatIfChanged; set the row colour
AE85: A9 61 LDA #$61
AE87: A0 01 LDY #$01
AE89: 20 B1 DF JSR emitNibbleDigitRun ; emit a one-digit numeric run
AE8C: A9 A0 LDA #$A0
AE8E: 20 6A B5 JSR emitBlankValueRecord; emit a blank value record
AE91: A9 00 LDA #$00
AE93: 85 73 STA workRam+73 ;
AE95: AA TAX
AE96: A9 08 LDA #$08
AE98: 20 75 DF JSR emitScaledCoordinateRecord; position the label
AE9B: E6 61 INC workRam+61 ; advance down a row
AE9D: A5 37 LDA workRam+37 ;
AE9F: 20 F8 AE JSR drawThreeCharGlyphString; draw this row's three-character label
AEA2: A2 00 LDX #$00
AEA4: A9 08 LDA #$08
AEA6: 20 75 DF JSR emitScaledCoordinateRecord; position the numeric run
AEA9: A6 37 LDX workRam+37 ;
AEAB: BD 06 07 LDA workRam+706,X ; seat the row's numeric triple from the per-row tables
AEAE: 85 56 STA workRam+56 ;
AEB0: BD 07 07 LDA workRam+707,X ;
AEB3: 85 57 STA workRam+57 ;
AEB5: BD 08 07 LDA workRam+708,X ;
AEB8: 85 58 STA workRam+58 ;
AEBA: A9 56 LDA #$56
AEBC: A0 03 LDY #$03
AEBE: 20 B1 DF JSR emitNibbleDigitRun ; emit the three-value numeric run
AEC1: C6 37 DEC workRam+37 ; step to the next row up (index minus three)
AEC3: C6 37 DEC workRam+37 ;
AEC5: C6 37 DEC workRam+37 ;
AEC7: 10 9B BPL loc_ae64 ; loop until the row index wraps below zero
; ---- $AEC9-$AEC9: data ----
AEC9: 60
; publish the object-list gate checksum and optionally draw a flag record:
; when loc_156 is nonzero seat it into loc_58, open a record
; (drawSlotShapeRecord 0x34) and emit a cleared coordinate pair
; (loc_56=loc_57=0x00, emitNibbleDigitRun); always fold the seventeen
; bytes at $D575 (indices 0x10..0) into an accumulator seeded 0x85 with
; carry and store the result to loc_b5 (the end-of-list gate
; buildObjectDisplayList reads).
computeDisplayListChecksum:
AECA: AD 56 01 LDA workRam+156 ; read the bonus-life interval -- skip the marker when zero
AECD: F0 14 BEQ loc_aee3 ;
AECF: 85 58 STA workRam+58 ; seat the interval into the flag record
AED1: A2 34 LDX #$34
AED3: 20 14 AB JSR drawSlotShapeRecord ; open the bonus-life flag shape
AED6: A9 00 LDA #$00
AED8: 85 56 STA workRam+56 ; clear the flag's coordinate pair
AEDA: 85 57 STA workRam+57 ;
AEDC: A9 56 LDA #$56
AEDE: A0 03 LDY #$03
AEE0: 20 B1 DF JSR emitNibbleDigitRun ; emit the flag's numeric run
loc_aee3:
AEE3: 18 CLC
AEE4: A0 10 LDY #$10
AEE6: A9 85 LDA #$85 ; seed the checksum accumulator
loc_aee8:
AEE8: 79 75 D5 ADC rom+4575,Y ; fold the next source byte into the checksum
AEEB: 88 DEY
AEEC: 10 FA BPL loc_aee8 ; fold all seventeen source bytes
AEEE: 85 B5 STA workRam+B5 ; publish the display-list checksum to the end-of-list gate
AEF0: 60 RTS
; ---- $AEF1-$AEF7: data ----
AEF1: AD 02 06 38 ED 04 06
; render three characters into the display list: walk three codes from the
; text buffer 0x606 (position at 0x38, count at 0x39), clamp each code to
; 0x1a (0x1e+ folds to 0x1a), double it to index glyph word table 0x31fa,
; copy each 2-byte glyph word to the cursor 0x74, then advance the cursor
; past everything written.
drawThreeCharGlyphString:
AEF8: 18 CLC
AEF9: 69 02 ADC #$02
AEFB: 85 38 STA workRam+38 ; point at the last of the three character codes
AEFD: A0 00 LDY #$00
AEFF: A9 02 LDA #$02
AF01: 85 39 STA workRam+39 ; set the three-character pass count
loc_af03:
AF03: A6 38 LDX workRam+38 ;
AF05: BD 06 06 LDA workRam+606,X ; read this character's code
AF08: C9 1E CMP #$1E
AF0A: 90 02 BCC loc_af0e ;
AF0C: A9 1A LDA #$1A ; fold an out-of-range code to a blank
loc_af0e:
AF0E: 0A ASL A ; double the code into a glyph-table index
AF0F: AA TAX
AF10: BD FA 31 LDA vectorRom+1FA,X ; copy the glyph's low byte into the display list
AF13: 91 74 STA (workRam+74),Y ;
AF15: C8 INY
AF16: BD FB 31 LDA vectorRom+1FB,X ; copy the glyph's high byte
AF19: 91 74 STA (workRam+74),Y ;
AF1B: C8 INY
AF1C: C6 38 DEC workRam+38 ; step back to the previous character
AF1E: C6 39 DEC workRam+39 ;
AF20: 10 E1 BPL loc_af03 ;
AF22: 88 DEY
AF23: 4C 5F DF JMP advanceDisplayCursor; advance the display cursor past the string
; when either counter byte loc_600/loc_601 is nonzero, draw a shared
; header ($AB14(0x12), emitCappedCount(0x63)) and both counter slots via
; drawCounterSlot(0x00) and drawCounterSlot(0x01); otherwise return
; through the bare tail $AF6E.
drawCounterPair:
AF26: AD 00 06 LDA workRam+600 ; read the first counter byte of the paired readout panel
AF29: 0D 01 06 ORA workRam+601 ; or in the second counter byte -- panel is empty only if both are zero
AF2C: F0 40 BEQ sharedReturnTail ; both counters zero: draw nothing, return through the shared tail
AF2E: A2 12 LDX #$12 ; select the shared header shape record
AF30: 20 14 AB JSR drawSlotShapeRecord ; emit the panel header shape record
AF33: A9 63 LDA #$63 ; header count value -- 99
AF35: 20 71 AF JSR emitCappedCount ; emit the header count, clamped to 99
AF38: A2 00 LDX #$00 ; slot 0
AF3A: 20 3F AF JSR drawCounterSlot ; draw counter slot 0
AF3D: A2 01 LDX #$01 ; slot 1: fall through into the per-slot worker
; draw one counter slot x: return when count loc_600+x is zero, else
; record the slot in loc_2e, position it at $AF6F+loc_2e ($DF75), and emit
; the capped count (emitCappedCount, $B56A, $AB98, $AA9E).
drawCounterSlot:
AF3F: BD 00 06 LDA workRam+600,X ; read this slot's counter byte from the counter array
AF42: F0 2A BEQ sharedReturnTail ; empty slot: draw nothing
AF44: 48 PHA
AF45: 86 2E STX workRam+2E ; stash the slot index in scratch
AF47: A0 03 LDY #$03 ; colour/intensity attribute for the slot
AF49: 20 D1 B0 JSR emitColorStatIfChanged; emit the colour stat only if it changed
AF4C: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
AF4F: A9 D0 LDA #$D0 ; coordinate scale for the count glyph
AF51: A4 2E LDY workRam+2E ; reload the slot index
AF53: BE 6F AF LDX rom+1F6F,Y ; read this slot's Y position from the glyph-coordinate table
AF56: 20 75 DF JSR emitScaledCoordinateRecord; emit the scaled coordinate record
AF59: 68 PLA
AF5A: 20 71 AF JSR emitCappedCount ; emit the count itself, clamped to 99
AF5D: A9 A0 LDA #$A0 ; blank spacer value
AF5F: 20 6A B5 JSR emitBlankValueRecord; emit a blank value spacer record
AF62: A9 10 LDA #$10
AF64: A2 04 LDX #$04
AF66: 20 98 AB JSR drawShapeListAtPosition; draw the small count shape list at position
AF69: A6 2E LDX workRam+2E ; reload the slot index
AF6B: 20 9E AA JSR emitSlotIndexDigit ; emit the trailing slot-index digit
; no-op leaf: return immediately; the shared RTS tail that drawCounterPair
; falls through to when both counters loc_600/loc_601 are zero.
sharedReturnTail:
AF6E: 60 RTS
; ---- $AF6F-$AF70: data ----
AF6F: C0 B0
; clamp the incoming byte to a max of 0x63 (99), then pack-and-emit it via
; $AF77.
emitCappedCount:
AF71: C9 63 CMP #$63 ; compare the count against the 99 ceiling
AF73: 90 02 BCC emitByteAsBcdDigits ; already under the ceiling: emit as is
AF75: A9 63 LDA #$63 ; clamp the count to 99
; Packs the incoming byte to BCD (into loc_29) then emits that single
; zeropage byte as its two decimal nibbles.
emitByteAsBcdDigits:
AF77: 20 F5 AA JSR packBinaryToBcd ; pack the binary value to packed BCD in the scratch cell
AF7A: A9 29 LDA #$29 ; point at the packed-BCD scratch byte
AF7C: A0 01 LDY #$01 ; one byte to walk
AF7E: 4C B1 DF JMP emitNibbleDigitRun ; emit that byte's two nibbles as decimal digit glyphs
; draw the whole playfield well: refresh gates (selectProjectionScale),
; tick loc_16e, draw the eight rim segments walking loc_37 7->0
; (drawSlotShapeRecord($B09B+loc_37)), nudge the depth window pair
; loc_7b/loc_7c one step toward target loc_200 (bounded by ceiling
; loc_127), draw five depth rows deepest-first from $91FE+loc_3a (skipping
; rows >=0x63; emitTableValueDigitRun/drawTubeShapeOutline), and close
; with a framing draw and a four-entry trailer walk over $B0A3.
drawTubeWell:
AF81: 20 48 CA JSR selectProjectionScale; refresh the projection/scale gates for this frame
AF84: CE 6E 01 DEC workRam+16E ; tick the score-display timer down
AF87: A0 03 LDY #$03 ; colour attribute for the tube preamble
AF89: 20 D1 B0 JSR emitColorStatIfChanged; open the draw stream with a colour stat if it changed
AF8C: A9 01 LDA #$01
AF8E: 85 72 STA workRam+72 ; prime the last-scale latch
AF90: 20 6A DF JSR emitBlankVectorWordTag70; emit a blank vector word
AF93: A2 2C LDX #$2C
AF95: A9 60 LDA #$60
AF97: 20 17 AB JSR drawSlotShapeWithHeader; draw the header slot shape record
AF9A: 20 92 AA JSR drawSlotThenDigitRun; draw the preamble slot then its digit run
AF9D: A2 07 LDX #$07 ; rim ring: start at the top segment index 7
AF9F: 86 37 STX workRam+37 ; seed the rim loop counter
loc_afa1:
AFA1: A4 37 LDY workRam+37 ; current rim segment index
AFA3: BE 9B B0 LDX rom+209B,Y ; read this rim segment's shape arg from the table
AFA6: 20 14 AB JSR drawSlotShapeRecord ; draw this rim segment shape record
AFA9: C6 37 DEC workRam+37 ; next rim segment
AFAB: 10 F4 BPL loc_afa1 ; loop through rim segments 7 down to 0
AFAD: AD 00 02 LDA workRam+200 ; read the blaster's rim target position
AFB0: 38 SEC
AFB1: E5 7B SBC workRam+7B ; signed distance from the depth window to the target
AFB3: 10 07 BPL loc_afbc ; target at or above the window: handle the non-negative case
AFB5: C6 7B DEC workRam+7B ; target below the window: step the depth-window pair down
AFB7: C6 7C DEC workRam+7C ; step the window's second byte down as well
AFB9: B8 CLV
AFBA: 50 25 BVC loc_afe1 ;
loc_afbc:
AFBC: D0 0D BNE loc_afcb ; nonzero distance: window still chasing the target
AFBE: C6 7C DEC workRam+7C ; on target: pull the window in by one
AFC0: C6 7B DEC workRam+7B ; pull the window's other byte in as well
AFC2: 10 04 BPL loc_afc8 ; skip the undo unless the step underflowed
AFC4: E6 7B INC workRam+7B ; undo the pull-in if it dropped below zero
AFC6: E6 7C INC workRam+7C ; restore the window's second byte
loc_afc8:
AFC8: B8 CLV
AFC9: 50 16 BVC loc_afe1 ;
loc_afcb:
AFCB: A5 7C LDA workRam+7C ; load the window far byte
AFCD: CD 27 01 CMP workRam+127 ; compare it against the depth ceiling
AFD0: F0 02 BEQ loc_afd4 ;
AFD2: B0 0D BCS loc_afe1 ; past the ceiling: settle without stepping closer
loc_afd4:
AFD4: 38 SEC
AFD5: ED 00 02 SBC workRam+200 ; distance past the target position
AFD8: D0 01 BNE loc_afdb ;
AFDA: 18 CLC
loc_afdb:
AFDB: B0 04 BCS loc_afe1 ; at or beyond the target: settle
AFDD: E6 7B INC workRam+7B ; step the window one closer to the target
AFDF: E6 7C INC workRam+7C ; step the window's second byte closer as well
loc_afe1:
AFE1: A5 7C LDA workRam+7C ; seed the depth cursor from the window far byte
AFE3: 85 3A STA workRam+3A ; store the depth-row cursor
AFE5: A2 04 LDX #$04 ; five depth rings, deepest first: index 4
AFE7: 86 37 STX workRam+37 ;
loc_afe9:
AFE9: A0 05 LDY #$05 ; colour stat for this depth ring
AFEB: 20 D1 B0 JSR emitColorStatIfChanged;
AFEE: A9 00 LDA #$00
AFF0: 85 73 STA workRam+73 ; clear the record header byte
AFF2: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
AFF5: A2 D8 LDX #$D8 ; coordinate scale for the ring
AFF7: A4 37 LDY workRam+37 ;
AFF9: B9 96 B0 LDA rom+2096,Y ; read this ring's tube-well segment coordinate from the table
AFFC: 18 CLC
AFFD: 69 F8 ADC #$F8 ; offset the coordinate back for the ring position
AFFF: 20 75 DF JSR emitScaledCoordinateRecord; emit the ring's scaled coordinate record
B002: A6 3A LDX workRam+3A ;
B004: BC FE 91 LDY rom+1FE,X ; read this ring's depth threshold from the table
B007: C0 63 CPY #$63 ; compare the threshold against the far edge -- 99
B009: B0 37 BCS loc_b042 ; ring already at the far edge: skip its label body
B00B: C8 INY ; depth label value: threshold plus one
B00C: 98 TYA
B00D: 20 77 AF JSR emitByteAsBcdDigits ; draw the depth label as two decimal digits
B010: A0 03 LDY #$03 ; colour attribute for the label
B012: 20 D1 B0 JSR emitColorStatIfChanged; emit the colour stat if changed
B015: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
B018: A2 BA LDX #$BA ; label scale
B01A: A4 37 LDY workRam+37 ;
B01C: B9 96 B0 LDA rom+2096,Y ; this ring's segment coordinate
B01F: 18 CLC
B020: 69 EC ADC #$EC ; offset the coordinate for the label position
B022: 20 75 DF JSR emitScaledCoordinateRecord; emit the label's scaled coordinate record
B025: A6 3A LDX workRam+3A ; emit the depth row's table-value digit run
B027: 20 C6 B0 JSR emitTableValueDigitRun;
B02A: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
B02D: A2 CC LDX #$CC ; outline scale
B02F: A4 37 LDY workRam+37 ;
B031: B9 96 B0 LDA rom+2096,Y ; this ring's segment coordinate for the outline
B034: 18 CLC
B035: 69 00 ADC #$00
B037: 20 75 DF JSR emitScaledCoordinateRecord; emit the outline's scaled coordinate record
B03A: A6 3A LDX workRam+3A ;
B03C: BD FE 91 LDA rom+1FE,X ; this ring's depth threshold
B03F: 20 E1 C4 JSR drawTubeShapeOutline; draw the tube ring outline
loc_b042:
B042: C6 3A DEC workRam+3A ; recede one ring deeper
B044: C6 37 DEC workRam+37 ; next ring
B046: 10 A1 BPL loc_afe9 ; loop through the five depth rings
B048: A9 00 LDA #$00
B04A: 85 73 STA workRam+73 ; clear the record header for the trailer
B04C: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
B04F: A2 1C LDX #$1C ; draw the framing slot shape record
B051: 20 14 AB JSR drawSlotShapeRecord ;
B054: A9 04 LDA #$04
B056: A0 01 LDY #$01
B058: 20 B1 DF JSR emitNibbleDigitRun ; emit a short nibble digit run
B05B: A0 00 LDY #$00 ; colour attribute for the blaster
B05D: 20 D1 B0 JSR emitColorStatIfChanged; emit the colour stat if changed
B060: 20 0D AB JSR emitFixedVectorWord ; emit a fixed vector word
B063: A2 B8 LDX #$B8
B065: 20 AB B0 JSR nudgeBlasterRimPosition; advance the blaster rim position and clamp it into the tube
B068: 38 SEC
B069: E5 7B SBC workRam+7B ; index the well coordinate relative to the depth window
B06B: A8 TAY
B06C: B9 96 B0 LDA rom+2096,Y ; read the well segment coordinate for the blaster position
B06F: 38 SEC
B070: E9 16 SBC #$16 ; offset the blaster coordinate
B072: 20 75 DF JSR emitScaledCoordinateRecord; emit the blaster-relative coordinate record
B075: A9 E0 LDA #$E0
B077: 85 73 STA workRam+73 ; closing frame uses the $e0 record header
B079: A2 00 LDX #$00
B07B: 86 38 STX workRam+38 ; vertex table cursor: start at 0
B07D: A0 03 LDY #$03
B07F: 84 37 STY workRam+37 ; four closing frame vertices
loc_b081:
B081: A4 38 LDY workRam+38 ; current vertex table index
B083: B9 A3 B0 LDA rom+20A3,Y ; read the vertex x byte from the table
B086: AA TAX
B087: C8 INY
B088: B9 A3 B0 LDA rom+20A3,Y ; read the paired vertex a byte
B08B: C8 INY
B08C: 84 38 STY workRam+38 ; step to the next vertex pair
B08E: 20 75 DF JSR emitScaledCoordinateRecord; emit the closing frame vertex coordinate
B091: C6 37 DEC workRam+37 ; next vertex
B093: 10 EC BPL loc_b081 ; loop through the four closing vertices
B095: 60 RTS
; ---- $B096-$B0AA: data ----
B096: BE E3 09 30 58 14 0C 0E 16 18 1E 20 1A 00 26 28
B0A6: 00 00 DA D8 00
; nudge the blaster's rim position loc_200 by its signed sub-step (via
; foldStepIntoFraction), clamp into [0, ceiling loc_127] (a negative
; result floors to 0, an over-ceiling result pins to loc_127), write it
; back to loc_200, and return it in both A and Y.
nudgeBlasterRimPosition:
B0AB: AD 00 02 LDA workRam+200 ; read the current blaster rim position
B0AE: 20 CE AD JSR foldStepIntoFraction; fold the pending signed sub-step into the position
B0B1: A8 TAY
B0B2: 10 05 BPL loc_b0b9 ; negative result: stepped below the first lane?
B0B4: A9 00 LDA #$00 ; floor to lane 0
B0B6: B8 CLV
B0B7: 50 08 BVC loc_b0c1 ;
loc_b0b9:
B0B9: CD 27 01 CMP workRam+127 ; compare against the depth ceiling
B0BC: 90 03 BCC loc_b0c1 ; under the ceiling: keep the position
B0BE: AD 27 01 LDA workRam+127 ; clamp to the ceiling
loc_b0c1:
B0C1: 8D 00 02 STA workRam+200 ; write back the new rim position
B0C4: A8 TAY ; return it in Y as well
B0C5: 60 RTS
; Seats a table pointer by index (via $91B5) then emits the three-byte
; zeropage run at loc_29 as nibble digits.
emitTableValueDigitRun:
B0C6: 8A TXA
B0C7: 20 B5 91 JSR seatInPagePointer ; seat the working pointer from the ROM pointer table at this index
B0CA: A9 29 LDA #$29 ; point at the three-byte scratch run
B0CC: A0 03 LDY #$03 ; three bytes to walk
B0CE: 4C B1 DF JMP emitNibbleDigitRun ; emit those three bytes as decimal digit glyphs
; emit a colour/intensity stat word (emitTaggedVectorWord with 0x08 and y)
; into the display list only when it changes: return if loc_9e already
; equals y, otherwise latch loc_9e=y and emit — the coarse (high-nibble)
; scale/colour attribute for the current slot.
emitColorStatIfChanged:
B0D1: C4 9E CPY workRam+9E ; compare the requested attribute against the latched colour value
B0D3: F0 07 BEQ loc_b0dc ; unchanged: emit nothing
B0D5: 84 9E STY workRam+9E ; latch the new colour/intensity value
B0D7: A9 08 LDA #$08
B0D9: 4C 4C DF JMP emitTaggedVectorWord; emit the tagged colour/intensity attribute word
loc_b0dc:
B0DC: 60 RTS
; emit a scale word (emitBlankVectorWordTag70 with a) into the display
; list only when it changes: return if a already equals loc_72, otherwise
; latch loc_72=a and emit — the fine (low-nibble) scale attribute for the
; current slot.
emitScaleWordIfChanged:
B0DD: C5 72 CMP workRam+72 ; compare the requested scale against the last-emitted scale
B0DF: F0 05 BEQ loc_b0e6 ; unchanged: emit nothing
B0E1: 85 72 STA workRam+72 ; latch the new scale value
B0E3: 4C 6A DF JMP emitBlankVectorWordTag70; emit it as a tagged scale word
loc_b0e6:
B0E6: 60 RTS
; alternate state-entry seeder: write loc_0=0x0a, loc_2=0x00, loc_4=0xdf,
; loc_1=0x12, loc_14e=0x19 and loc_14d=0x18 into the config block plus the
; two bound cells.
seedModeParamsWithBounds:
B0E7: A9 0A LDA #$0A ; set the game mode to live
B0E9: 85 00 STA workRam ; store the game mode
B0EB: A9 00 LDA #$00 ; clear the pending mode
B0ED: 85 02 STA workRam+2 ;
B0EF: A9 DF LDA #$DF ; seed the mode-promotion countdown
B0F1: 85 04 STA workRam+4 ;
B0F3: A9 12 LDA #$12
B0F5: 85 01 STA workRam+1 ; set the display-mode selector -- pre-doubled table offset
B0F7: A9 19 LDA #$19 ; far cursor of the animated span
B0F9: 8D 4E 01 STA workRam+14E ; store the far cursor
B0FC: A9 18 LDA #$18 ; near cursor of the animated span
B0FE: 8D 4D 01 STA workRam+14D ; store the near cursor
B101: 60 RTS
; redraw the paired-cursor span via
; emitSegmentedSpanBetweenCursors(0x34,0xaa) then spread the two cursors
; apart one frame: wrap the far cursor loc_14e up by 0x14 while below
; 0xa0, and once it clears 0x50 step the near cursor loc_14d up by 0x08,
; pinning it at 0xa0 and latching phase byte loc_1=0x14 when near reaches
; far.
advanceSpreadingSpanAnimation:
B102: A9 34 LDA #$34 ; coordinate byte handed to the span emitter -- reused at each step
B104: A2 AA LDX #$AA ; second coordinate byte handed to the span emitter
B106: 20 5A B1 JSR emitSegmentedSpanBetweenCursors; redraw the segmented span between the current cursors
B109: AD 4E 01 LDA workRam+14E ; load the far cursor
B10C: C9 A0 CMP #$A0
B10E: B0 05 BCS loc_b115 ; far cursor at the 0xa0 ceiling: stop growing it
B110: 69 14 ADC #$14 ; step the far cursor up by 0x14
B112: 8D 4E 01 STA workRam+14E ; store the far cursor
loc_b115:
B115: C9 50 CMP #$50
B117: 90 17 BCC loc_b130 ; hold the near cursor until the far cursor clears 0x50
B119: AD 4D 01 LDA workRam+14D ;
B11C: 18 CLC
B11D: 69 08 ADC #$08 ; step the near cursor up by 0x08
B11F: 8D 4D 01 STA workRam+14D ; store the near cursor
B122: CD 4E 01 CMP workRam+14E ; near cursor still trailing the far cursor?
B125: 90 09 BCC loc_b130 ; still trailing: keep spreading this frame
B127: A9 A0 LDA #$A0 ; spread complete: pin the near cursor at the ceiling
B129: 8D 4D 01 STA workRam+14D ; store the pinned near cursor
B12C: A9 14 LDA #$14
B12E: 85 01 STA workRam+1 ; latch the display-mode selector to advance to the next state
loc_b130:
B130: 60 RTS
; redraw the paired-cursor span via
; emitSegmentedSpanBetweenCursors(0x3f,0x4e) then squeeze the two cursors
; together one frame: decrement the near cursor loc_14d while at/above
; 0x30 (bail if it wraps to >=0x80) and pull the far cursor loc_14e down
; by one but never below the near cursor.
advancePinchingSpanAnimation:
B131: A9 3F LDA #$3F ; coordinate byte handed to the span emitter -- reused at each step
B133: A2 4E LDX #$4E ; second coordinate byte handed to the span emitter
B135: 20 5A B1 JSR emitSegmentedSpanBetweenCursors; redraw the segmented span between the current cursors
B138: AD 4D 01 LDA workRam+14D ; load the near cursor
B13B: C9 30 CMP #$30
B13D: 90 05 BCC loc_b144 ; near cursor below the 0x30 floor: hold it in place
B13F: E9 01 SBC #$01 ; step the near cursor down by one
B141: 8D 4D 01 STA workRam+14D ; store the near cursor
loc_b144:
B144: C9 80 CMP #$80
B146: B0 11 BCS loc_b159 ; underflowed past zero: pinch done, leave the far cursor
B148: AD 4E 01 LDA workRam+14E ; load the far cursor
B14B: 38 SEC
B14C: E9 01 SBC #$01 ; step the far cursor down by one
B14E: CD 4D 01 CMP workRam+14D ; compare the far cursor against the near cursor
B151: B0 03 BCS loc_b156 ; far cursor still above the near cursor: keep it
B153: AD 4D 01 LDA workRam+14D ; clamp the far cursor at the near cursor so the pair meets
loc_b156:
B156: 8D 4E 01 STA workRam+14E ; store the far cursor
loc_b159:
B159: 60 RTS
; emit a segmented vector run spanning the near-to-far cursor pair: stash
; A/X into loc_57/loc_56, seed loc_37 from the near cursor loc_14d,
; decrement loc_16e, and for each step (cursor +=2 until it reaches the
; far cursor loc_14e) lay a header word (emitVectorWordTag70), a position-
; derived marker (emitTaggedVectorWord 0x68 with segment (cur>>3)&7, 7->3,
; 0 at the start) and the stashed coordinate pair
; (emitCoordinateVectorWord), then two fixed trailer words
; (drawSlotShapeWithHeader 0xd0,0x2c and emitCoordinateVectorWord
; 0x3f,0xf2).
emitSegmentedSpanBetweenCursors:
B15A: 85 57 STA workRam+57 ; stash the coordinate pair's first byte
B15C: 86 56 STX workRam+56 ; stash the coordinate pair's second byte
B15E: AD 4D 01 LDA workRam+14D ; seed the walking cursor at the near bound
B161: 85 37 STA workRam+37 ; store the walking cursor
B163: CE 6E 01 DEC workRam+16E ; tick the score-display countdown down
loc_b166:
B166: A5 37 LDA workRam+37 ; load the walking cursor
B168: 0A ASL A ; shift the cursor low bits into the header payload
B169: 0A ASL A
B16A: 29 7F AND #$7F ; mask to seven bits
B16C: A8 TAY
B16D: A5 37 LDA workRam+37 ; load the walking cursor again
B16F: 4A LSR A ; shift out the cursor high bits for the header Y byte
B170: 4A LSR A
B171: 4A LSR A
B172: 4A LSR A
B173: 4A LSR A
B174: 20 6C DF JSR emitVectorWordTag70 ; emit the segment header word
B177: A5 37 LDA workRam+37 ;
B179: CD 4D 01 CMP workRam+14D ; first cursor position?
B17C: D0 05 BNE loc_b183 ;
B17E: A9 00 LDA #$00 ; first position gets a plain 0 marker
B180: B8 CLV
B181: 50 0C BVC loc_b18f ;
loc_b183:
B183: 4A LSR A ; derive the segment number from the cursor
B184: 4A LSR A
B185: 4A LSR A
B186: EA NOP
B187: 29 07 AND #$07 ; mask to the low three bits
B189: C9 07 CMP #$07 ; top segment 7?
B18B: D0 02 BNE loc_b18f ;
B18D: A9 03 LDA #$03 ; fold the top segment down to 3
loc_b18f:
B18F: A8 TAY
B190: A9 68 LDA #$68
B192: 20 4C DF JSR emitTaggedVectorWord; emit the tick marker tagged 0x68
B195: A5 57 LDA workRam+57 ;
B197: A6 56 LDX workRam+56 ;
B199: 20 39 DF JSR emitCoordinateVectorWord; emit the stashed coordinate pair for this step
B19C: A5 37 LDA workRam+37 ;
B19E: 18 CLC
B19F: 69 02 ADC #$02 ; step the cursor two forward
B1A1: 85 37 STA workRam+37 ; store the walking cursor
B1A3: CD 4E 01 CMP workRam+14E ; loop while the cursor stays below the far bound
B1A6: 90 BE BCC loc_b166 ;
B1A8: A2 2C LDX #$2C
B1AA: A9 D0 LDA #$D0
B1AC: 20 17 AB JSR drawSlotShapeWithHeader; draw the span's closing slot shape trailer
B1AF: A9 3F LDA #$3F
B1B1: A2 F2 LDX #$F2
B1B3: 4C 39 DF JMP emitCoordinateVectorWord; emit the final trailer coordinate word
; per-frame vector housekeeping: clear frame work cells
; (resetMathboxInputs), early-return when guard cells 0x2000==0xcec6 &&
; 0x133==0 say the frame is settled; when mode cell 0x1==0 hand the whole
; draw to the frame builder drawFrame; otherwise publish the active
; pointer, run the computed-jump trampoline dispatchDisplayModeHandler,
; fold a 40-byte block under 0xb6 into checksum 0x455 (unless
; emitFrameLink reports a change), then emit the trailing header and latch
; 0xcec4/0xcec5 into display words 0x2000/0x2001.
buildFrameVectors:
B1B6: 20 C3 C1 JSR resetMathboxInputs ; clear the math-box and frame work cells
B1B9: AD 00 20 LDA vectorRam ; read the display-list header guard word
B1BC: CD C6 CE CMP rom+3EC6 ; compare it against its level checkpoint
B1BF: D0 06 BNE loc_b1c7 ; guard differs: rebuild the list
B1C1: AD 33 01 LDA workRam+133 ; read the pending level-layout trigger
B1C4: D0 01 BNE loc_b1c7 ; trigger set: rebuild the list
B1C6: 60 RTS ; frame already settled: return
loc_b1c7:
B1C7: A5 01 LDA workRam+1 ; read the display-mode selector
B1C9: C9 00 CMP #$00
B1CB: F0 3C BEQ loc_b209 ; selector zero: route the whole draw through the frame builder
B1CD: A9 00 LDA #$00
B1CF: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for the list
B1D2: 20 32 B3 JSR emitFrameLink ; publish the frame link
B1D5: B0 1E BCS loc_b1f5 ; a change was published: skip the mode dispatch and checksum
B1D7: 20 0D B2 JSR dispatchDisplayModeHandler; run the display-mode dispatch trampoline
B1DA: AD 6E 01 LDA workRam+16E ; score-display timer zero: skip the checksum fold
B1DD: F0 16 BEQ loc_b1f5 ;
B1DF: A0 27 LDY #$27 ; walk 40 bytes of the record
B1E1: A9 0E LDA #$0E ; checksum seed
B1E3: 38 SEC
loc_b1e4:
B1E4: F1 B6 SBC (workRam+B6),Y ; subtract each record byte under the draw pointer, carry-chained
B1E6: 88 DEY
B1E7: 10 FB BPL loc_b1e4 ; fold all 40 bytes
B1E9: A8 TAY
B1EA: F0 02 BEQ loc_b1ee ;
B1EC: 49 E5 EOR #$E5 ; whiten the checksum with 0xe5
loc_b1ee:
B1EE: F0 02 BEQ loc_b1f2 ;
B1F0: 49 29 EOR #$29 ; whiten it again with 0x29
loc_b1f2:
B1F2: 8D 55 04 STA workRam+455 ; store the record checksum
loc_b1f5:
B1F5: A9 00 LDA #$00
B1F7: 20 FE B2 JSR closeLayerPointer ; close the layer pointer
B1FA: AD C4 CE LDA rom+3EC4 ; latch the play-mode header low byte into the first display word
B1FD: 8D 00 20 STA vectorRam ; store it into the first display word
B200: AD C5 CE LDA rom+3EC5 ; latch the play-mode header high byte
B203: 8D 01 20 STA vectorRam+1 ; store it into the second display word
B206: B8 CLV
B207: 50 03 BVC loc_b20c ;
loc_b209:
B209: 4C 30 B2 JMP drawFrame ; route the whole frame through the frame builder
loc_b20c:
B20C: 60 RTS
; computed-jump trampoline turned on by the vector housekeeping: the pre-
; doubled selector in mode cell 0x1 picks one of twelve display-mode
; targets (drawFrame, $D804, $B8BA,...) from the word table and runs it,
; dissolved here into a direct TABLE[0x1>>1] select.
dispatchDisplayModeHandler:
B20D: A6 01 LDX workRam+1 ; read the pre-doubled display-mode selector
B20F: BD 19 B2 LDA rom+2219,X ; push the selected handler address high byte from the mode table
B212: 48 PHA
B213: BD 18 B2 LDA rom+2218,X ; push the handler address low byte
B216: 48 PHA
B217: 60 RTS ; jump to the selected display-mode handler
; ---- $B218-$B22F: data ----
B218: 2F B2 03 D8 B9 B8 E9 AD 80 AF 1B AE 61 AA 59 AA
B228: 6E AA 01 B1 30 B1 78 AA
; draw one whole frame: route each drawing subsystem in a fixed layer
; order (ids 0x07,0x04,0x03,0x06,0x05,0x00,0x01,0x08), bracketing each
; with cursor-setup $B2BE and teardown $B2FE; inside the player layer
; (0x00), when 0x5 bit7 is clear, sum a 40-byte block reached via pointer
; 0xb6/0xb7 into status cell 0x11b, then zero change-counter 0x114 and
; latch ROM constants 0xcec2/0xcec3 into head words 0x2000/0x2001.
drawFrame:
B230: A9 07 LDA #$07 ; seat the draw cursor for layer 07
B232: 20 BE B2 JSR seatDrawCursor ;
B235: 20 86 B5 JSR drawScoreStatusList ; draw the score / status text list
B238: A9 07 LDA #$07
B23A: 20 FE B2 JSR closeLayerPointer ; close layer 07
B23D: A9 04 LDA #$04
B23F: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for layer 04
B242: 20 5B B7 JSR drawSlotShapeList ; draw the styled slot shape list
B245: A9 04 LDA #$04
B247: 20 FE B2 JSR closeLayerPointer ; close layer 04
B24A: A9 03 LDA #$03
B24C: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for layer 03
B24F: 20 AD B5 JSR drawStyledSlotList ; draw the secondary styled slot list
B252: A9 03 LDA #$03
B254: 20 FE B2 JSR closeLayerPointer ; close layer 03
B257: A9 06 LDA #$06
B259: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for layer 06
B25C: 20 9A B7 JSR drawEnemyShapeList ; draw the enemy shape list
B25F: A9 06 LDA #$06
B261: 20 FE B2 JSR closeLayerPointer ; close layer 06
B264: A9 05 LDA #$05
B266: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for layer 05
B269: 20 98 B4 JSR buildObjectDisplayList; build the general object display list
B26C: A9 05 LDA #$05
B26E: 20 FE B2 JSR closeLayerPointer ; close layer 05
B271: A9 00 LDA #$00
B273: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for the player layer 00
B276: 20 B4 A8 JSR buildTextOverlayList; build the text overlay list
B279: A5 05 LDA workRam+5 ;
B27B: 30 0D BMI loc_b28a ; status sign bit set: skip the player-shape checksum
B27D: A9 F2 LDA #$F2 ; player-shape checksum seed
B27F: 18 CLC
B280: A0 27 LDY #$27
loc_b282:
B282: 71 B6 ADC (workRam+B6),Y ; add each player-shape byte under the draw pointer, carry-chained
B284: 88 DEY
B285: 10 FB BPL loc_b282 ; fold all 40 bytes
B287: 8D 1B 01 STA workRam+11B ; store the player-shape signature
loc_b28a:
B28A: A9 00 LDA #$00
B28C: 20 FE B2 JSR closeLayerPointer ; close the player layer 00
B28F: 20 67 B3 JSR paintRimLanes ; draw the tube rim lanes
B292: A9 01 LDA #$01
B294: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for layer 01
B297: 20 C2 C5 JSR buildEnemyDisplayList; build the enemy display list
B29A: A9 01 LDA #$01
B29C: 20 FE B2 JSR closeLayerPointer ; close layer 01
B29F: A9 08 LDA #$08
B2A1: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for layer 08
B2A4: 20 4D C5 JSR drawTimedObjectList ; draw the timed-object list
B2A7: A9 08 LDA #$08
B2A9: 20 FE B2 JSR closeLayerPointer ; close layer 08
B2AC: A9 00 LDA #$00
B2AE: 8D 14 01 STA workRam+114 ; clear the redraw change-counter
B2B1: AD C2 CE LDA rom+3EC2 ; latch the per-frame header low byte
B2B4: 8D 00 20 STA vectorRam ; store it into the first display word
B2B7: AD C3 CE LDA rom+3EC3 ; latch the per-frame header high byte
B2BA: 8D 01 20 STA vectorRam+1 ; store it into the second display word
B2BD: 60 RTS
; seat the indirect draw cursor 0x74/0x75 for a layer: at stride 2*index
; pick the 16-bit pointer from table 0xce68 (when per-index flag
; 0x415+index is nonzero) else 0xce7a, publish it into 0x74/0x75, then
; clear status cell 0xa9.
seatDrawCursor:
B2BE: AA TAX
B2BF: 0A ASL A ; double the layer index into a two-byte pointer-table stride
B2C0: A8 TAY
B2C1: BD 15 04 LDA workRam+415,X ; read this layer's pointer-parity flag
B2C4: D0 09 BNE loc_b2cf ; nonzero flag selects pointer table A
B2C6: BE 7A CE LDX rom+3E7A,Y ; zero flag: take the pointer low byte from table B
B2C9: B9 7B CE LDA rom+3E7B,Y ; and its high byte
B2CC: B8 CLV
B2CD: 50 06 BVC loc_b2d5 ;
loc_b2cf:
B2CF: BE 68 CE LDX rom+3E68,Y ; nonzero flag: take the pointer low byte from table A
B2D2: B9 69 CE LDA rom+3E69,Y ; and its high byte
loc_b2d5:
B2D5: 86 74 STX workRam+74 ; seat the indirect draw cursor low byte
B2D7: 85 75 STA workRam+75 ; seat the draw cursor high byte
B2D9: A9 00 LDA #$00
B2DB: 85 A9 STA workRam+A9 ; clear the list offset so the walk starts at the head
B2DD: 60 RTS
; seat the alternate draw pointer 0x3b/0x3c: at stride 2*index pick from
; table 0xce7a (when flag 0x415+index nonzero) else 0xce68 (table sense
; reversed vs seatDrawCursor), publish it into 0x3b/0x3c, then clear
; status cell 0xa9.
seatAltDrawPointer:
B2DE: AA TAX
B2DF: 0A ASL A ; double the layer index into a two-byte pointer-table stride
B2E0: A8 TAY
B2E1: BD 15 04 LDA workRam+415,X ; read this layer's pointer-parity flag
B2E4: D0 09 BNE loc_b2ef ; nonzero flag selects pointer table B -- sense reversed from the primary seater
B2E6: BE 68 CE LDX rom+3E68,Y ; zero flag: take the pointer low byte from table A
B2E9: B9 69 CE LDA rom+3E69,Y ; and its high byte
B2EC: B8 CLV
B2ED: 50 06 BVC loc_b2f5 ;
loc_b2ef:
B2EF: BE 7A CE LDX rom+3E7A,Y ; nonzero flag: take the pointer low byte from table B
B2F2: B9 7B CE LDA rom+3E7B,Y ; and its high byte
loc_b2f5:
B2F5: 86 3B STX workRam+3B ; seat the alternate draw pointer low byte
B2F7: 85 3C STA workRam+3C ; and its high byte
B2F9: A9 00 LDA #$00
B2FB: 85 A9 STA workRam+A9 ; clear the list offset so the consumer starts at the head
B2FD: 60 RTS
; close a layer: emit a header record (emitRecordBodyC0), seat base
; pointer from 0xce8c/0xce8d at stride 2*slot, toggle the layer's parity
; flag 0x415+slot, and write the ($3b) pointer target with the word chosen
; by parity — 0xceb0/0xceb1 when set, else 0xce9e/0xce9f.
closeLayerPointer:
B2FE: 48 PHA
B2FF: 20 09 DF JSR emitRecordBodyC0 ; finalize the layer's header record
B302: 68 PLA
B303: AA TAX
B304: 0A ASL A ; double the slot into a two-byte table index
B305: A8 TAY
B306: B9 8C CE LDA rom+3E8C,Y ; read the layer's base pointer low byte
B309: 85 3B STA workRam+3B ; seat the working pointer low byte
B30B: B9 8D CE LDA rom+3E8D,Y ; base pointer high byte
B30E: 85 3C STA workRam+3C ; seat working pointer high byte
B310: BD 15 04 LDA workRam+415,X ; read this slot's double-buffer parity flag
B313: 49 01 EOR #$01 ; toggle it
B315: 9D 15 04 STA workRam+415,X ; store the toggled parity back
B318: D0 09 BNE loc_b323 ; parity set selects the odd draw buffer
B31A: B9 9E CE LDA rom+3E9E,Y ; even buffer pointer low byte
B31D: BE 9F CE LDX rom+3E9F,Y ; even buffer pointer high byte
B320: B8 CLV
B321: 50 06 BVC loc_b329 ;
loc_b323:
B323: B9 B0 CE LDA rom+3EB0,Y ; odd buffer pointer low byte
B326: BE B1 CE LDX rom+3EB1,Y ; odd buffer pointer high byte
loc_b329:
B329: A0 00 LDY #$00
B32B: 91 3B STA (workRam+3B),Y ; write the selected buffer pointer low byte through the working pointer
B32D: 8A TXA
B32E: C8 INY
B32F: 91 3B STA (workRam+3B),Y ; and its high byte
B331: 60 RTS
; emit a frame-link record with a mid-frame-change guard: if source 0xcec4
; differs from checkpoint 0x2000, latch it into 0x2000 and return carry
; set (caller redoes the frame); else copy a word from 0xce9e (offset 8
; when 0x415 nonzero, else 2) through cursor 0x74, clear 0x16e, reload
; cursor 0x74/0x75 from 0xce68 at that offset, and return carry clear.
emitFrameLink:
B332: AD C4 CE LDA rom+3EC4 ; read the live vector-list source header
B335: CD 00 20 CMP vectorRam ; compare it against the checkpoint copy
B338: F0 05 BEQ loc_b33f ; unchanged: go emit the frame link
B33A: 8D 00 20 STA vectorRam ; source moved mid-frame: re-latch the checkpoint
B33D: 38 SEC ; signal the caller to rebuild the frame
B33E: 60 RTS
loc_b33f:
B33F: AD 15 04 LDA workRam+415 ; read the pointer-parity mode flag
B342: D0 05 BNE loc_b349 ; nonzero mode picks the 0x08 record slot
B344: A2 02 LDX #$02 ; otherwise the 0x02 record slot
B346: B8 CLV
B347: 50 02 BVC loc_b34b ;
loc_b349:
B349: A2 08 LDX #$08 ; the 0x08 record slot
loc_b34b:
B34B: BD 9E CE LDA rom+3E9E,X ; read the selected buffer word's low byte
B34E: A0 00 LDY #$00
B350: 8C 6E 01 STY workRam+16E ; clear the score-display timer
B353: 91 74 STA (workRam+74),Y ; splice the low byte into the list at the draw cursor
B355: C8 INY
B356: BD 9F CE LDA rom+3E9F,X ; selected buffer word's high byte
B359: 91 74 STA (workRam+74),Y ; splice the high byte
B35B: BD 68 CE LDA rom+3E68,X ; reload the draw cursor low byte from the second table so the next record chains on
B35E: 85 74 STA workRam+74 ;
B360: BD 69 CE LDA rom+3E69,X ; and its high byte
B363: 85 75 STA workRam+75 ;
B365: 18 CLC
B366: 60 RTS
; rebuild the sixteen-entry lane-flag block 0x425 from the active enemy
; tables (depth 0x2df, lane 0x283, near/far segments 0x2cc/0x2b9) and
; paint the rim lanes: an optional pre-pass seats pointers
; (seatDrawCursor/initAndDrawRimDepthCounters/closeLayerPointer on 0x114),
; a first pass writes each column's colour value through the ($3b) list,
; and a second pass ORs colour bits (0x00 or 0xc0) into the ($b0) list.
paintRimLanes:
B367: AD 14 01 LDA workRam+114 ; read the redraw counter
B36A: F0 0D BEQ loc_b379 ; clear: skip the pointer pre-pass
B36C: A9 02 LDA #$02
B36E: 20 BE B2 JSR seatDrawCursor ; seat the draw cursor for rim layer 2
B371: 20 0D C3 JSR initAndDrawRimDepthCounters; init and draw the rim depth counters
B374: A9 02 LDA #$02
B376: 20 FE B2 JSR closeLayerPointer ; close rim layer 2 and flip its buffer
loc_b379:
B379: A9 02 LDA #$02
B37B: 20 DE B2 JSR seatAltDrawPointer ; refresh the alternate draw pointer for layer 2
B37E: A9 00 LDA #$00
B380: A2 0F LDX #$0F
loc_b382:
B382: 9D 25 04 STA workRam+425,X ; clear the sixteen-entry lane-flag block
B385: CA DEX
B386: 10 FA BPL loc_b382 ;
; ---- $B388-$B38A: data ----
B388: AD 06 01
B38B: 30 49 BMI loc_b3d6 ; spike/close-up guard negative: skip the enemy-state merge
B38D: AE 1C 01 LDX workRam+11C ; start the enemy-slot sweep at the top slot
loc_b390:
B390: BD DF 02 LDA workRam+2DF,X ; read this slot's depth
B393: F0 3E BEQ loc_b3d3 ; empty slot: skip
B395: A0 00 LDY #$00
B397: BD 83 02 LDA workRam+283,X ; read this slot's state flags
B39A: 29 07 AND #$07 ; low three state bits
B39C: C9 01 CMP #$01 ; on-rim state?
B39E: D0 33 BNE loc_b3d3 ; not drawn on the rim: skip
B3A0: C8 INY
B3A1: 84 29 STY workRam+29 ; seed the per-lane flag byte at 1
B3A3: BD 83 02 LDA workRam+283,X ; re-read the slot state flags
B3A6: 29 80 AND #$80 ; test the sign bit
B3A8: D0 1C BNE loc_b3c6 ; sign set: skip the near-lane contribution
B3AA: AD 48 01 LDA workRam+148 ; read the enemy animation accumulator
B3AD: 30 0C BMI loc_b3bb ; not animating: don't bump the flag
B3AF: BD DF 02 LDA workRam+2DF,X ; read this slot's depth
B3B2: CD 57 01 CMP workRam+157 ; compare against the near-rim depth threshold
B3B5: B0 04 BCS loc_b3bb ; farther than the threshold: don't bump
B3B7: E6 29 INC workRam+29 ; nearer while animating: bump the lane flag so the lane blinks
B3B9: E6 29 INC workRam+29 ;
loc_b3bb:
B3BB: A5 29 LDA workRam+29 ; load the per-lane flag byte
B3BD: BC CC 02 LDY workRam+2CC,X ; near lane index
B3C0: 19 25 04 ORA workRam+425,Y ;
B3C3: 99 25 04 STA workRam+425,Y ; OR the flag into the near lane
loc_b3c6:
B3C6: BC B9 02 LDY workRam+2B9,X ; far lane index
B3C9: A5 29 LDA workRam+29 ;
B3CB: 09 80 ORA #$80 ; tag the far lane with bit7
B3CD: 19 25 04 ORA workRam+425,Y ;
B3D0: 99 25 04 STA workRam+425,Y ; OR the tagged flag into the far lane
loc_b3d3:
B3D3: CA DEX
B3D4: 10 BA BPL loc_b390 ;
loc_b3d6:
B3D6: A9 06 LDA #$06 ; base rim colour
B3D8: AC 25 01 LDY workRam+125 ; read the wave-phase latch
B3DB: F0 0C BEQ loc_b3e9 ;
B3DD: 30 0A BMI loc_b3e9 ;
B3DF: A5 03 LDA workRam+3 ;
B3E1: 29 07 AND #$07
B3E3: C9 07 CMP #$07 ; every eighth frame while the wave is ready...
B3E5: D0 02 BNE loc_b3e9 ;
B3E7: A9 01 LDA #$01 ; ...use the alternate base colour
loc_b3e9:
B3E9: 85 29 STA workRam+29 ; latch the base colour
B3EB: A0 FF LDY #$FF
B3ED: A2 FF LDX #$FF
B3EF: 86 2C STX workRam+2C ; default the colour-cycle ramp offset to none
B3F1: AD 02 02 LDA workRam+202 ; read the player's shot depth
B3F4: F0 0B BEQ loc_b401 ; no live shot: no aim highlight
B3F6: AD 01 02 LDA workRam+201 ; read the player's fine aim angle
B3F9: 30 06 BMI loc_b401 ;
B3FB: AE 00 02 LDX workRam+200 ; aim column A = the player's segment
B3FE: AC 01 02 LDY workRam+201 ; aim column B = the player's fine angle
loc_b401:
B401: 86 2A STX workRam+2A ; cache aim column A
B403: 84 2B STY workRam+2B ; cache aim column B
B405: AD 24 01 LDA workRam+124 ; read the rim colour-cycle phase
B408: 30 08 BMI loc_b412 ; phase exhausted: no rotating ramp
B40A: 29 0E AND #$0E
B40C: 4A LSR A
B40D: 85 2C STA workRam+2C ; set the ramp offset from the colour-cycle phase
B40F: CE 24 01 DEC workRam+124 ; advance the rim colour cycle
loc_b412:
B412: A2 0F LDX #$0F ; first pass: lanes 15..0
loc_b414:
B414: A0 06 LDY #$06
B416: BD 25 04 LDA workRam+425,X ; read this lane's flag
B419: F0 0C BEQ loc_b427 ; unflagged lane: pick an aim or ramp colour
B41B: 29 02 AND #$02 ; test the blink bit
B41D: F0 05 BEQ loc_b424 ; flagged but non-blink: solid colour
B41F: A5 03 LDA workRam+3 ; blink with frame parity
B421: 29 01 AND #$01
B423: A8 TAY
loc_b424:
B424: B8 CLV
B425: 50 24 BVC loc_b44b ;
loc_b427:
B427: E4 2A CPX workRam+2A ; compare the lane to aim column A
B429: F0 02 BEQ loc_b42d ;
B42B: E4 2B CPX workRam+2B ; compare the lane to aim column B
loc_b42d:
B42D: D0 05 BNE loc_b434 ; not an aim column
B42F: A0 01 LDY #$01 ; aim column: highlight colour
B431: B8 CLV
B432: 50 17 BVC loc_b44b ;
loc_b434:
B434: AD 24 01 LDA workRam+124 ; read the colour-cycle phase
B437: 30 10 BMI loc_b449 ; ramp exhausted: use the held base colour
B439: 8A TXA
B43A: 18 CLC
B43B: 65 2C ADC workRam+2C ; rotate the ramp by the lane index
B43D: 29 07 AND #$07
B43F: C9 07 CMP #$07
B441: D0 02 BNE loc_b445 ;
B443: A9 03 LDA #$03 ; wrap the top ramp step to colour 3
loc_b445:
B445: A8 TAY
B446: B8 CLV
B447: 50 02 BVC loc_b44b ;
loc_b449:
B449: A4 29 LDY workRam+29 ; held base colour
loc_b44b:
B44B: 98 TYA
B44C: BC 76 B4 LDY rom+2476,X ; look up this lane's slot in the rim list
B44F: 91 3B STA (workRam+3B),Y ; write the colour into the rim display list
B451: CA DEX
B452: 10 C0 BPL loc_b414 ;
; ---- $B454-$B455: data ----
B454: A2 0F
B456: 2C 11 01 BIT workRam+111 ; read the tube-geometry flag
B459: 10 01 BPL loc_b45c ;
B45B: CA DEX ; geometry set: start the second pass one lane lower
loc_b45c:
B45C: A0 C0 LDY #$C0
B45E: BD 25 04 LDA workRam+425,X ; read this lane's flag
B461: 10 02 BPL loc_b465 ; bit7 clear keeps the colour bits
B463: A0 00 LDY #$00 ; bit7 set clears the colour bits
loc_b465:
B465: 84 58 STY workRam+58 ;
B467: BC 87 B4 LDY rom+2487,X ; look up this lane's slot in the patch list
B46A: B1 B0 LDA (workRam+B0),Y ; read the current patch-list byte
B46C: 29 1F AND #$1F ; keep its low five bits
B46E: 05 58 ORA workRam+58 ; fold in the chosen colour bits
B470: 91 B0 STA (workRam+B0),Y ; write the recoloured byte back to the patch list
B472: CA DEX
B473: 10 E7 BPL loc_b45c ;
; ---- $B475-$B497: data ----
B475: 60 A8 9C 92 86 7C 70 66 5A 50 44 3A 2E 24 18 0E
B485: 02 B2 3B 37 33 2F 2B 27 23 1F 1B 17 13 0F 0B 07
B495: 03 3F 1D
; build a vector display list for up to 0x12 active objects (kind from tag
; table 0x243, coords via 0x203 into the four coord banks
; 0x35a/0x36a/0x37a/0x38a): emit a rotated header code, screen-relative
; coordinate words and their negated shadow words per object through
; cursor 0x74/0x75, flushing the cursor when the byte offset saturates,
; then close with a trailing header (emitBlankVectorWordTag70).
buildObjectDisplayList:
B498: A0 0C LDY #$0C
B49A: 84 9E STY workRam+9E ; run count for the record header
B49C: A9 08 LDA #$08
B49E: 20 4C DF JSR emitTaggedVectorWord; emit the leading tagged vector word
B4A1: A2 66 LDX #$66
B4A3: 20 65 C7 JSR layHeaderAndBuildRecord; open the object record header
B4A6: A9 12 LDA #$12
B4A8: 85 56 STA workRam+56 ; draw budget: at most 18 objects
B4AA: A2 3F LDX #$3F
B4AC: 86 37 STX workRam+37 ; scan object slots from the top down
B4AE: A0 00 LDY #$00
loc_b4b0:
B4B0: A6 37 LDX workRam+37 ;
B4B2: BD 43 02 LDA workRam+243,X ; read this slot's object kind
B4B5: D0 03 BNE loc_b4ba ;
B4B7: 4C 49 B5 JMP loc_b549 ; empty slot: move to the next
loc_b4ba:
B4BA: C9 50 CMP #$50 ; high kinds...
B4BC: 90 02 BCC loc_b4c0 ;
B4BE: C6 37 DEC workRam+37 ; ...consume an extra slot
loc_b4c0:
B4C0: 48 PHA
B4C1: 29 3F AND #$3F ; low six bits are the shape selector
B4C3: 91 74 STA (workRam+74),Y ; write the shape selector into the display list
B4C5: 68 PLA
B4C6: 2A ROL A ; rotate the kind byte to lift its top bits
B4C7: 2A ROL A
B4C8: 2A ROL A
B4C9: 29 03 AND #$03
B4CB: 18 CLC
B4CC: 69 01 ADC #$01
B4CE: 09 70 ORA #$70 ; form the 0x70-tagged header code
B4D0: C8 INY
B4D1: 91 74 STA (workRam+74),Y ; write the header word
B4D3: C8 INY
B4D4: BD 03 02 LDA workRam+203,X ; look up the object's record index
B4D7: AA TAX
B4D8: BD 8A 03 LDA workRam+38A,X ; object X low byte
B4DB: 38 SEC
B4DC: E5 68 SBC workRam+68 ; subtract the viewpoint X offset
B4DE: 85 63 STA workRam+63 ;
B4E0: 91 74 STA (workRam+74),Y ; emit the projected X low byte
B4E2: C8 INY
B4E3: BD 7A 03 LDA workRam+37A,X ; object X high byte
B4E6: E5 69 SBC workRam+69 ; subtract the viewpoint X offset with borrow
B4E8: 85 64 STA workRam+64 ;
B4EA: 29 1F AND #$1F ; vector word high byte is five bits
B4EC: 91 74 STA (workRam+74),Y ; emit the projected X high byte
B4EE: C8 INY
B4EF: BD 6A 03 LDA workRam+36A,X ; object Y low byte
B4F2: 85 61 STA workRam+61 ;
B4F4: 91 74 STA (workRam+74),Y ; emit the Y low byte
B4F6: C8 INY
B4F7: BD 5A 03 LDA workRam+35A,X ; object Y high byte
B4FA: 85 62 STA workRam+62 ;
B4FC: 29 1F AND #$1F
B4FE: 91 74 STA (workRam+74),Y ; emit the Y high byte
B500: C8 INY
B501: A9 00 LDA #$00
B503: 91 74 STA (workRam+74),Y ; three zero separator bytes...
B505: C8 INY
B506: 91 74 STA (workRam+74),Y ;
B508: C8 INY
B509: 91 74 STA (workRam+74),Y ;
B50B: A9 A0 LDA #$A0 ; ...ending in the 0xa0 tag
B50D: C8 INY
B50E: 91 74 STA (workRam+74),Y ; write the tag byte
B510: C8 INY
B511: A5 63 LDA workRam+63 ; negated X low byte -- the beam return stroke to origin
B513: 49 FF EOR #$FF
B515: 18 CLC
B516: 69 01 ADC #$01
B518: 91 74 STA (workRam+74),Y ; emit it
B51A: C8 INY
B51B: A5 64 LDA workRam+64 ; negated X high byte with carry
B51D: 49 FF EOR #$FF
B51F: 69 00 ADC #$00
B521: 29 1F AND #$1F
B523: 91 74 STA (workRam+74),Y ; emit it
B525: C8 INY
B526: A5 61 LDA workRam+61 ; negated Y low byte
B528: 49 FF EOR #$FF
B52A: 18 CLC
B52B: 69 01 ADC #$01
B52D: 91 74 STA (workRam+74),Y ; emit it
B52F: C8 INY
B530: A5 62 LDA workRam+62 ; negated Y high byte with carry
B532: 49 FF EOR #$FF
B534: 69 00 ADC #$00
B536: 29 1F AND #$1F
B538: 91 74 STA (workRam+74),Y ; emit it
B53A: C8 INY
B53B: C0 F0 CPY #$F0 ; page nearly full?
B53D: 90 06 BCC loc_b545 ;
B53F: 88 DEY
B540: 20 5F DF JSR advanceDisplayCursor; flush the display page
B543: A0 00 LDY #$00
loc_b545:
B545: C6 56 DEC workRam+56 ; spend one from the draw budget
B547: 30 07 BMI loc_b550 ; budget exhausted: done
loc_b549:
B549: C6 37 DEC workRam+37 ; step to the next slot down
B54B: 30 03 BMI loc_b550 ; scanned past slot 0: done
B54D: 4C B0 B4 JMP loc_b4b0 ;
loc_b550:
B550: 98 TYA
B551: F0 04 BEQ loc_b557 ;
B553: 88 DEY
B554: 20 5F DF JSR advanceDisplayCursor; flush the final partial page
loc_b557:
B557: A5 B5 LDA workRam+B5 ; read the rolling display checksum
B559: F0 0A BEQ loc_b565 ;
B55B: A5 46 LDA workRam+46 ;
B55D: C9 0A CMP #$0A ; on level 10 or higher...
B55F: 90 04 BCC loc_b565 ;
B561: A9 7A LDA #$7A ; ...a nonzero checksum stamps the interrupt heartbeat -- an anti-tamper poke
B563: 85 53 STA workRam+53 ;
loc_b565:
B565: A9 01 LDA #$01
B567: 4C 6A DF JMP emitBlankVectorWordTag70; close the list with a trailing blank tagged word
; Stores 0, 0, 0, A into the four bytes at the working pointer
; loc_74/loc_75 and advances the cursor by four.
emitBlankValueRecord:
B56A: 48 PHA
B56B: A0 00 LDY #$00
B56D: 98 TYA
B56E: 91 74 STA (workRam+74),Y ; three zero fields...
B570: C8 INY
B571: 91 74 STA (workRam+74),Y ;
B573: C8 INY
B574: 91 74 STA (workRam+74),Y ;
B576: C8 INY
B577: 68 PLA
B578: 91 74 STA (workRam+74),Y ; ...then the caller's value byte
B57A: A9 04 LDA #$04
B57C: 18 CLC
B57D: 65 74 ADC workRam+74 ; advance the draw cursor by four
B57F: 85 74 STA workRam+74 ;
B581: 90 02 BCC loc_b585 ;
B583: E6 75 INC workRam+75 ; carry into the cursor high byte
loc_b585:
B585: 60 RTS
; build the score/status vector run: raise rebuild flag 0x9e=0x01, read
; gate 0x202 and bail if 0 or >=0xf0, else latch it into 0x57 and 0x2f and
; — unless marker 0x201 holds 0x81 — kick the run builder
; drawTubeRimSegmentFromCorner with corner index 0x200 and size
; ((0x51>>1)&7)+1.
drawScoreStatusList:
B586: A9 01 LDA #$01
B588: 85 9E STA workRam+9E ; raise the rebuild flag for this frame
B58A: AD 02 02 LDA workRam+202 ; read the marker's depth/gate
B58D: F0 1D BEQ loc_b5ac ; zero: nothing to show
B58F: C9 F0 CMP #$F0
B591: B0 19 BCS loc_b5ac ; out of the valid depth band: skip
B593: 85 57 STA workRam+57 ; latch the depth
B595: 85 2F STA workRam+2F ; and its mirror
B597: AD 01 02 LDA workRam+201 ; read the marker byte
B59A: C9 81 CMP #$81
B59C: F0 0E BEQ loc_b5ac ; skip marker 0x81: draw nothing
B59E: AC 00 02 LDY workRam+200 ; the player's segment is the corner index
B5A1: A5 51 LDA workRam+51 ; read the rim rotation offset
B5A3: 4A LSR A
B5A4: 29 07 AND #$07
B5A6: 18 CLC
B5A7: 69 01 ADC #$01 ; spread size 1..8 from the rotation offset
B5A9: 20 A0 BD JSR drawTubeRimSegmentFromCorner; emit the rim-segment spread from the corner
loc_b5ac:
B5AC: 60 RTS
; draw a per-slot vector record for seven slots (0x37 from 6 down) when
; guard 0x106 bit7 is clear: for each non-empty control 0x2df+x cache it
; in 0x57, split paired byte 0x283+x into style nibble
; 0x55=(paired&0x18)>>3 and a doubled selector (paired&7)<<1, and dispatch
; the style's draw handler via dispatchSlotDrawHandler carrying slot index
; x.
drawStyledSlotList:
B5AD: AD 06 01 LDA workRam+106 ; read the spike guard
B5B0: 30 24 BMI loc_b5d6 ; spike/close-up pass suppresses the slot draw
B5B2: A2 06 LDX #$06
B5B4: 86 37 STX workRam+37 ; walk the seven tube slots 6..0
loc_b5b6:
B5B6: A6 37 LDX workRam+37 ;
B5B8: BD DF 02 LDA workRam+2DF,X ; read this slot's enemy control/depth
B5BB: F0 15 BEQ loc_b5d2 ; empty slot: skip
B5BD: 85 57 STA workRam+57 ; hand the depth to the draw handler
B5BF: BD 83 02 LDA workRam+283,X ; read the paired flags byte
B5C2: 29 18 AND #$18 ; style nibble, bits 4..3
B5C4: 4A LSR A
B5C5: 4A LSR A
B5C6: 4A LSR A
B5C7: 85 55 STA workRam+55 ; latch the draw style
B5C9: BD 83 02 LDA workRam+283,X ; low three bits, doubled into a shape selector
B5CC: 29 07 AND #$07
B5CE: 0A ASL A
B5CF: 20 D7 B5 JSR dispatchSlotDrawHandler; dispatch this slot's draw handler
loc_b5d2:
B5D2: C6 37 DEC workRam+37 ;
B5D4: 10 E0 BPL loc_b5b6 ;
loc_b5d6:
B5D6: 60 RTS
; computed jump: select one of five slot-draw handlers
; [$B5EB,$B71B,$B60F,$B622,$B69B] by A>>1 and tail-return its result,
; carrying the slot index x.
dispatchSlotDrawHandler:
B5D7: A8 TAY
B5D8: B9 E2 B5 LDA rom+25E2,Y ; look up the draw handler's address for this style
B5DB: 48 PHA
B5DC: B9 E1 B5 LDA rom+25E1,Y ;
B5DF: 48 PHA
B5E0: 60 RTS ; jump into the selected handler
; ---- $B5E1-$B5EA: data ----
B5E1: EA B5 1A B7 0E B6 21 B6 9A B6
; draw the rim segment for slot x: set run count loc_9e=0x03, and on a
; negative slot byte loc_283+x prep a coordinate (buildSlotScreenPoint)
; and build at corner 0 (emitTubeRimSegmentVectors(0)), else build at the
; slot's own corner loc_2b9+x with a header picked from $B60B by style
; loc_55.
drawSlotRimSegment:
B5EB: A9 03 LDA #$03
B5ED: 85 9E STA workRam+9E ; three vectors make the rim segment
B5EF: BD 83 02 LDA workRam+283,X ; read this slot's flag byte
B5F2: 30 0E BMI loc_b602 ; negative slot: compute the point and draw at corner 0
B5F4: BC B9 02 LDY workRam+2B9,X ; the slot's own tube corner
B5F7: A6 55 LDX workRam+55 ;
B5F9: BD 0B B6 LDA rom+260B,X ; pick the shape header for this draw style
B5FC: 20 A0 BD JSR drawTubeRimSegmentFromCorner; draw the rim segment from the corner
B5FF: B8 CLV
B600: 50 08 BVC loc_b60a ;
loc_b602:
B602: 20 34 B6 JSR buildSlotScreenPoint; derive the slot's screen point
B605: A0 00 LDY #$00
B607: 20 CB BD JSR emitTubeRimSegmentVectors; emit the rim segment anchored at corner 0
loc_b60a:
B60A: 60 RTS
; ---- $B60B-$B60E: data ----
B60B: 00 00 00 00
; Pairs a jump-mode byte from table $B61E (indexed by loc_28a+x & 0x03)
; with slot target loc_2b9+x and emits via bcfd.
emitJumpModeSlot:
B60F: BD 8A 02 LDA workRam+28A,X ; read the enemy's direction byte
B612: 29 03 AND #$03 ; low two bits pick one of four jump-frame shapes
B614: A8 TAY
B615: B9 1E B6 LDA rom+261E,Y ; look up the jump-frame shape
B618: BC B9 02 LDY workRam+2B9,X ; the enemy's target segment
B61B: 4C FD BC JMP seatShapeParamsAndEmit; seat the shape and emit its vector record
; ---- $B61E-$B621: data ----
B61E: 1A 1A 4A 4C
; Pairs slot target loc_2b9+x with a four-phase animation offset (((loc_3
; & 0x03)<<1)+0x12) and emits via bcfd.
emitAnimatedPhaseSlot:
B622: BC B9 02 LDY workRam+2B9,X ; the lane this enemy occupies
B625: A5 03 LDA workRam+3 ; frame counter
B627: 29 03 AND #$03
B629: 0A ASL A
B62A: 18 CLC
B62B: 69 12 ADC #$12 ; four-phase shape index 0x12..0x18 from the frame counter
B62D: 4C FD BC JMP seatShapeParamsAndEmit; seat the shape and emit its record
; ---- $B630-$B633: data ----
B630: 12 14 16 18
; build slot x's screen point: index base coords loc_3ce/loc_3de by the
; slot's segment loc_2b9,x into loc_56/loc_58, offset each by the signed
; animation delta $B68B/$B687 at phase loc_2cc,x&0x0f (0x80-biased
; saturating add) into loc_2e (X)/loc_30 (Y), copy loc_57 to loc_2f, and
; load the style pair $BCDC/$BCEC at loc_112 into loc_59/loc_5a.
buildSlotScreenPoint:
B634: A5 57 LDA workRam+57 ; stage the projection depth
B636: 85 2F STA workRam+2F ;
B638: BC B9 02 LDY workRam+2B9,X ; the slot's segment number
B63B: B9 CE 03 LDA workRam+3CE,Y ; base X of the segment corner
B63E: 85 56 STA workRam+56 ;
B640: B9 DE 03 LDA workRam+3DE,Y ; base Y of the segment corner
B643: 85 58 STA workRam+58 ;
B645: BD CC 02 LDA workRam+2CC,X ; animation phase, low nibble
B648: 29 0F AND #$0F
B64A: A8 TAY
B64B: A5 56 LDA workRam+56 ;
B64D: 49 80 EOR #$80
B64F: 18 CLC
B650: 79 8B B6 ADC rom+268B,Y ; add the per-phase X vertex offset -- signed, excess-128
B653: 50 09 BVC loc_b65e ;
B655: 10 05 BPL loc_b65c ;
B657: A9 7F LDA #$7F ; clamp toward the sign that overflowed
B659: B8 CLV
B65A: 50 02 BVC loc_b65e ;
loc_b65c:
B65C: A9 80 LDA #$80
loc_b65e:
B65E: 49 80 EOR #$80
B660: 85 2E STA workRam+2E ; store the finished screen X
B662: A5 58 LDA workRam+58 ;
B664: 49 80 EOR #$80
B666: 18 CLC
B667: 79 87 B6 ADC rom+2687,Y ; add the per-phase Y vertex offset
B66A: 50 09 BVC loc_b675 ;
B66C: 10 05 BPL loc_b673 ;
B66E: A9 7F LDA #$7F ; clamp on signed overflow
B670: B8 CLV
B671: 50 02 BVC loc_b675 ;
loc_b673:
B673: A9 80 LDA #$80
loc_b675:
B675: 49 80 EOR #$80
B677: 85 30 STA workRam+30 ; store the finished screen Y
B679: AC 12 01 LDY workRam+112 ; current tube shape
B67C: B9 DC BC LDA rom+2CDC,Y ; first draw-style byte for this shape
B67F: 85 59 STA workRam+59 ;
B681: B9 EC BC LDA rom+2CEC,Y ; second draw-style byte
B684: 85 5A STA workRam+5A ;
B686: 60 RTS
; ---- $B687-$B69A: data ----
B687: 00 10 1F 28 2C 28 1F 10 00 F0 E1 D8 D4 D8 E1 F0
B697: 00 10 1F 28
; Builds slot x's screen position from loc_2df+x and segment base
; loc_3ce/loc_3de (segment loc_2b9+x), interpolating toward the next
; segment via b6fa when loc_2cc+x is negative, then folds deltas (c098),
; lays the header (c765), appends the pair (bd3e), and emits a frame-
; phased template word from $CEC8/$CEC9.
emitInterpolatedSlotVector:
B69B: BD DF 02 LDA workRam+2DF,X ; stage the slot's depth
B69E: 85 57 STA workRam+57 ;
B6A0: BC B9 02 LDY workRam+2B9,X ; the slot's segment
B6A3: B9 CE 03 LDA workRam+3CE,Y ; base X of the segment corner
B6A6: 85 56 STA workRam+56 ;
B6A8: B9 DE 03 LDA workRam+3DE,Y ; base Y of the segment corner
B6AB: 85 58 STA workRam+58 ;
B6AD: BD CC 02 LDA workRam+2CC,X ; read the phase byte
B6B0: 10 23 BPL loc_b6d5 ; not mid-flip: use the segment position directly
B6B2: 98 TYA
B6B3: 18 CLC
B6B4: 69 01 ADC #$01 ; the next segment, wrapping 0..15
B6B6: 29 0F AND #$0F
B6B8: A8 TAY
B6B9: B9 CE 03 LDA workRam+3CE,Y ;
B6BC: 38 SEC
B6BD: E5 56 SBC workRam+56 ; delta to the next segment's X
B6BF: 20 FA B6 JSR scaleByPhaseFraction; scale it by the flip-phase fraction
B6C2: 18 CLC
B6C3: 65 56 ADC workRam+56 ; interpolate the X toward the next segment
B6C5: 85 56 STA workRam+56 ;
B6C7: B9 DE 03 LDA workRam+3DE,Y ; delta to the next segment's Y
B6CA: 38 SEC
B6CB: E5 58 SBC workRam+58 ;
B6CD: 20 FA B6 JSR scaleByPhaseFraction; scale it by the flip-phase fraction
B6D0: 18 CLC
B6D1: 65 58 ADC workRam+58 ; interpolate the Y toward the next segment
B6D3: 85 58 STA workRam+58 ;
loc_b6d5:
B6D5: 20 98 C0 JSR projectPointThroughMathbox; project the point through the math box
B6D8: A2 61 LDX #$61
B6DA: 20 65 C7 JSR layHeaderAndBuildRecord; lay the 0x61 header and open the record
B6DD: A9 00 LDA #$00
B6DF: 85 A9 STA workRam+A9 ; reset the list offset
B6E1: 20 3E BD JSR appendNormalizedMantissaExponent; append the normalized mantissa/exponent pair
B6E4: 84 A9 STY workRam+A9 ; save the appender's exit cursor
B6E6: A5 03 LDA workRam+3 ;
B6E8: 29 03 AND #$03
B6EA: 0A ASL A
B6EB: 18 CLC
B6EC: 69 4E ADC #$4E ; pick a frame-phased template word
B6EE: A8 TAY
B6EF: BE C9 CE LDX rom+3EC9,Y ; template word high byte
B6F2: B9 C8 CE LDA rom+3EC8,Y ; template word low byte
B6F5: A4 A9 LDY workRam+A9 ;
B6F7: 4C 59 DF JMP emitVectorWordAtOffset; emit the template vector word at the saved offset
; Scales a value by slot x's low-three-bit phase fraction (loc_2cc+x &
; 0x07 into loc_2c) via three LSB-first conditional-add rounds with sign-
; preserving right shifts.
scaleByPhaseFraction:
B6FA: 85 29 STA workRam+29 ; stash the input value
B6FC: BD CC 02 LDA workRam+2CC,X ;
B6FF: 29 07 AND #$07 ; the phase's 3-bit fraction, in eighths
B701: 85 2C STA workRam+2C ;
B703: 86 2B STX workRam+2B ;
B705: A2 02 LDX #$02
B707: A9 00 LDA #$00
loc_b709:
B709: 46 2C LSR workRam+2C ; shift out the fraction's low bit
B70B: 90 03 BCC loc_b710 ; bit clear: add nothing this round
B70D: 18 CLC
B70E: 65 29 ADC workRam+29 ; bit set: add the input
loc_b710:
B710: 0A ASL A ; sign-preserving halve of the accumulator
B711: 08 PHP
B712: 6A ROR A
B713: 28 PLP
B714: 6A ROR A
B715: CA DEX
B716: 10 F1 BPL loc_b709 ;
B718: A6 2B LDX workRam+2B ;
B71A: 60 RTS
; draw the rim segment for slot x with an animation style: latch loc_9e
; from loc_148's sign (0x04 if negative else 0x00) and a style byte loc_29
; from $B755 indexed by ((loc_148+0x40)&0xff)>>4 (clamped to 0 when >=5),
; then split on loc_283+x's sign into
; buildSlotScreenPoint+emitTubeRimSegmentVectors(loc_29) or
; drawTubeRimSegmentFromCorner(loc_29,loc_2b9+x).
drawStyledSlotRimSegment:
B71B: A9 04 LDA #$04
B71D: AC 48 01 LDY workRam+148 ; read the animation accumulator
B720: 30 02 BMI loc_b724 ; negative phase sets the run flag
B722: A9 00 LDA #$00
loc_b724:
B724: 85 9E STA workRam+9E ; latch the run flag
B726: AD 48 01 LDA workRam+148 ;
B729: 18 CLC
B72A: 69 40 ADC #$40 ; bias the animation accumulator
B72C: 4A LSR A ; high nibble is the phase index
B72D: 4A LSR A
B72E: 4A LSR A
B72F: 4A LSR A
B730: C9 05 CMP #$05 ; wrap past the five style phases
B732: 90 02 BCC loc_b736 ;
B734: A9 00 LDA #$00
loc_b736:
B736: A8 TAY
B737: B9 55 B7 LDA rom+2755,Y ; latch this phase's style byte
B73A: 85 29 STA workRam+29 ;
B73C: BD 83 02 LDA workRam+283,X ; read this slot's flag byte
B73F: 30 0B BMI loc_b74c ; negative slot: compute its screen point
B741: BC B9 02 LDY workRam+2B9,X ; the enemy's rim corner
B744: A5 29 LDA workRam+29 ;
B746: 20 A0 BD JSR drawTubeRimSegmentFromCorner; draw the styled segment from the corner
B749: B8 CLV
B74A: 50 08 BVC loc_b754 ;
loc_b74c:
B74C: 20 34 B6 JSR buildSlotScreenPoint; derive the slot's screen point
B74F: A4 29 LDY workRam+29 ;
B751: 20 CB BD JSR emitTubeRimSegmentVectors; emit the styled segment at the point
loc_b754:
B754: 60 RTS
; ---- $B755-$B75A: data ----
B755: 0D 0C 0B 0A 09 09
; emit a shape vector for each of twelve slots (index 0x37 from 0x0b
; down): for each non-empty entry 0x2d3+x seat the shape in 0x57/0x2f,
; read target 0x2ad+x, and emit via seatShapeParamsAndEmit (near value
; 0x08 for x<8, phase-derived for far slots); afterward latch a per-level
; segment colour (0x04/0x0b/0x0c by stage 0x135) into colour RAM 0x808.
drawSlotShapeList:
B75B: A2 0B LDX #$0B ; walk the twelve tube slots, high-to-low
B75D: 86 37 STX workRam+37 ; seed the slot loop index
loc_b75f:
B75F: A6 37 LDX workRam+37 ;
B761: BD D3 02 LDA workRam+2D3,X ; read the slot's occupancy/depth byte
B764: F0 1B BEQ loc_b781 ; empty slot, skip it
B766: 85 57 STA workRam+57 ; seat the object depth
B768: 85 2F STA workRam+2F ; carry the depth to the emitter
B76A: E0 08 CPX #$08 ; near slots (below 8) vs far slots
B76C: BC AD 02 LDY workRam+2AD,X ; the slot's target tube segment
B76F: B0 05 BCS loc_b776 ; far slot: size pulses with the frame phase
B771: A9 08 LDA #$08 ; near slot: fixed shape size
B773: B8 CLV
B774: 50 08 BVC loc_b77e ;
loc_b776:
B776: A5 03 LDA workRam+3 ; far slot: read the frame phase counter
B778: 0A ASL A
B779: 29 06 AND #$06
B77B: 18 CLC
B77C: 69 20 ADC #$20 ; build a pulsing size for distant shapes
loc_b77e:
B77E: 20 FD BC JSR seatShapeParamsAndEmit; seat the params and emit the shape
loc_b781:
B781: C6 37 DEC workRam+37 ;
B783: 10 DA BPL loc_b75f ; loop until the index passes 0
B785: A0 04 LDY #$04
B787: AD 35 01 LDA workRam+135 ; read the current stage
B78A: C9 06 CMP #$06
B78C: 90 08 BCC loc_b796 ; below stage 6: rim colour 0x04
B78E: A0 0B LDY #$0B
B790: C9 08 CMP #$08
B792: 90 02 BCC loc_b796 ; below stage 8: rim colour 0x0b
B794: A0 0C LDY #$0C
loc_b796:
B796: 8C 08 08 STY colorRam+8 ; latch the per-level rim colour into colour RAM
B799: 60 RTS
; emit one shape record per active enemy slot (0x37 from 7 down): clear
; 0x9e, and for each non-empty 0x30a+slot seat 0x57 and 0x29(=0x2fa+slot);
; shape 1 draws specially via animateShapeOneVector, else compute a shape
; word from 0x312+slot and 0xb7e5+shape and emit via
; seatShapeParamsAndEmit; finally latch 0x9f into 0x1ff when 0x720 nonzero
; and 0x9f>=0x0d.
drawEnemyShapeList:
B79A: A0 00 LDY #$00
B79C: 84 9E STY workRam+9E ; clear the draw scratch
B79E: A2 07 LDX #$07 ; walk the eight shape-bank slots, high-to-low
B7A0: 86 37 STX workRam+37 ;
loc_b7a2:
B7A2: A6 37 LDX workRam+37 ;
B7A4: BD 0A 03 LDA workRam+30A,X ; slot's active flag -- also its object depth
B7A7: F0 29 BEQ loc_b7d2 ; empty slot, skip
B7A9: 85 57 STA workRam+57 ; seat the object depth
B7AB: BD FA 02 LDA workRam+2FA,X ; slot's tube coordinate
B7AE: 85 29 STA workRam+29 ;
B7B0: BC 02 03 LDY workRam+302,X ; slot's shape id
B7B3: C0 01 CPY #$01
B7B5: D0 06 BNE loc_b7bd ; shape id other than 1
B7B7: 20 EB B7 JSR animateShapeOneVector; shape 1: the special animated draw path
B7BA: B8 CLV
B7BB: 50 15 BVC loc_b7d2 ;
loc_b7bd:
B7BD: BD 12 03 LDA workRam+312,X ; other shapes: the animation byte
B7C0: 4A LSR A
B7C1: 29 FE AND #$FE ; animation base, forced even
B7C3: C0 02 CPY #$02
B7C5: 90 02 BCC loc_b7c9 ; shape id below 2 keeps the base
B7C7: A9 00 LDA #$00 ; shape id 2 or more forces base 0
loc_b7c9:
B7C9: 18 CLC
B7CA: 79 E5 B7 ADC rom+27E5,Y ; add the per-shape table offset
B7CD: A4 29 LDY workRam+29 ; the shape's coordinate
B7CF: 20 FD BC JSR seatShapeParamsAndEmit; seat the params and emit
loc_b7d2:
B7D2: C6 37 DEC workRam+37 ;
B7D4: 10 CC BPL loc_b7a2 ; loop until the index passes 0
B7D6: AD 20 07 LDA workRam+720 ; high-level guard
B7D9: F0 09 BEQ loc_b7e4 ; guard clear, nothing to latch
B7DB: A5 9F LDA workRam+9F ; the current level byte
B7DD: C9 0D CMP #$0D
B7DF: 90 03 BCC loc_b7e4 ; only levels 0x0d and up are remembered
B7E1: 8D FF 01 STA workRam+1FF ; latch the high-level marker
loc_b7e4:
B7E4: 60 RTS
; ---- $B7E5-$B7EA: data ----
B7E5: 00 00 5A 58 56 1C
; advance and emit the shape-1 enemy animation: refresh axis params
; loc_56/loc_58 from loc_435/loc_445 at loc_29, run frame updaters
; (projectPointThroughMathbox, layHeaderAndBuildRecord), tick sub-timer
; loc_13c and on wrap advance phase loc_13b and reload loc_13c from
; $B82A+loc_13b, run phase handler dispatchDrawSetup when
; $B83D+loc_13b<0x80, then emit the phase's vector-pair word from
; $CEC8/$CEC9 at ((loc_13b<<1)+0x28)&0xff.
animateShapeOneVector:
B7EB: A4 29 LDY workRam+29 ; the enemy's lane index
B7ED: B9 35 04 LDA workRam+435,Y ; lane midpoint into the projection point
B7F0: 85 56 STA workRam+56 ;
B7F2: B9 45 04 LDA workRam+445,Y ; lane midpoint, second axis
B7F5: 85 58 STA workRam+58 ;
B7F7: 20 98 C0 JSR projectPointThroughMathbox; project the point through the math box
B7FA: A2 61 LDX #$61
B7FC: 20 65 C7 JSR layHeaderAndBuildRecord; lay the record header
B7FF: AE 3B 01 LDX workRam+13B ; the animation phase
B802: CE 3C 01 DEC workRam+13C ; age the animation sub-timer
B805: D0 0A BNE loc_b811 ; sub-timer not expired yet
B807: E8 INX ; advance the keyframe phase
B808: 8E 3B 01 STX workRam+13B ;
B80B: BD 2A B8 LDA rom+282A,X ; reload the sub-timer from the per-phase duration table
B80E: 8D 3C 01 STA workRam+13C ;
loc_b811:
B811: BC 3D B8 LDY rom+283D,X ; this phase's setup code
B814: 30 03 BMI loc_b819 ; 0x80 or more: no setup handler
B816: 20 4E B8 JSR dispatchDrawSetup ; run the phase's setup handler
loc_b819:
B819: AD 3B 01 LDA workRam+13B ;
B81C: 0A ASL A
B81D: 18 CLC
B81E: 69 28 ADC #$28 ; form the template index for this phase
B820: A8 TAY
B821: BE C9 CE LDX rom+3EC9,Y ; fetch the phase's vector-pair word, high
B824: B9 C8 CE LDA rom+3EC8,Y ; vector-pair word, low
B827: 4C 57 DF JMP emitVectorWord ; emit the vector word
; ---- $B82A-$B84D: data ----
B82A: 02 02 02 02 02 04 03 02 01 20 03 03 03 03 03 03
B83A: 03 3B B8 00 02 02 02 02 02 02 02 04 06 FF FF FF
B84A: FF FF FF FF
; computed-jump dispatcher: caller's Y is a byte offset (0,2,4,6)
; selecting one of four draw-setup targets $B85F/$B875/$B888/$B896, and it
; tail-returns that routine's result.
dispatchDrawSetup:
B84E: B9 58 B8 LDA rom+2858,Y ; push the selected setup routine's address, high
B851: 48 PHA
B852: B9 57 B8 LDA rom+2857,Y ; setup routine address, low
B855: 48 PHA
B856: 60 RTS ; jump into the chosen setup routine
; ---- $B857-$B85E: data ----
B857: 5E B8 74 B8 87 B8 95 B8
; seed the paired three-entry arrays 0x22-0x24 and 0x809-0x80b with the
; fixed values 0x00, 0x04, 0x0c.
seedTripleArrays:
B85F: A9 0C LDA #$0C
B861: 8D 0B 08 STA colorRam+B ; colour-RAM triple, entry 2
B864: 85 24 STA workRam+24 ; colour-cycle triple, entry 2
B866: A9 04 LDA #$04
B868: 8D 0A 08 STA colorRam+A ; colour-RAM entry 1
B86B: 85 23 STA workRam+23 ; colour-cycle entry 1
B86D: A9 00 LDA #$00
B86F: 85 22 STA workRam+22 ; colour-cycle entry 0
B871: 8D 09 08 STA colorRam+9 ; colour-RAM entry 0
B874: 60 RTS
; rotate the three-entry array 0x22-0x24 down by one, threading the
; wrapped value, and mirror each new entry into paired array 0x809-0x80b.
rotateTripleArray:
B875: A4 22 LDY workRam+22 ; capture entry 0 as the wrap-around value
B877: A2 02 LDX #$02 ; walk the triple, top-down
loc_b879:
B879: B5 22 LDA workRam+22,X ; save the current occupant
B87B: 48 PHA
B87C: 94 22 STY workRam+22,X ; drop the carried value into the colour-cycle slot
B87E: 98 TYA
B87F: 9D 09 08 STA colorRam+9,X ; mirror it into visible colour RAM
B882: 68 PLA
B883: A8 TAY ; the displaced occupant carries to the next slot
B884: CA DEX
B885: 10 F2 BPL loc_b879 ;
B887: 60 RTS
; rebuild the packed-nibble table via unpackLevelNibbleTables, then seat
; the vector-list tail cursor 0x139=0x7f and 0x13a=0x04.
resetVectorTailCursor:
B888: 20 96 C1 JSR unpackLevelNibbleTables; rebuild the packed per-level nibble geometry tables
B88B: A9 7F LDA #$7F
B88D: 8D 39 01 STA workRam+139 ; seat the vector-list tail cursor low
B890: A9 04 LDA #$04
B892: 8D 3A 01 STA workRam+13A ; seat the tail cursor high -- cursor sits at 0x047f
B895: 60 RTS
; emit a vector-RAM tail record from cursor 0x139/0x13a — low byte to
; 0x2ffc, high byte tagged 0x70 to 0x2ffd, 0xc0 terminator to 0x2fff —
; then step the cursor down by 0x20 with a 16-bit borrow into 0x13a and
; mask the low byte to 0x7f.
emitVectorTailRecord:
B896: AD 39 01 LDA workRam+139 ;
B899: 8D FC 2F STA vectorRam+FFC ; jump target low = the current tail cursor
B89C: AD 3A 01 LDA workRam+13A ;
B89F: 09 70 ORA #$70 ; tag with the vector-generator jump opcode bits
B8A1: 8D FD 2F STA vectorRam+FFD ; jump target high
B8A4: A9 C0 LDA #$C0
B8A6: 8D FF 2F STA vectorRam+FFF ; halt word that ends the beam scan
B8A9: AD 39 01 LDA workRam+139 ;
B8AC: 38 SEC
B8AD: E9 20 SBC #$20 ; step the cursor down one record
B8AF: 10 05 BPL loc_b8b6 ;
B8B1: 29 7F AND #$7F
B8B3: CE 3A 01 DEC workRam+13A ; borrow into the cursor high byte
loc_b8b6:
B8B6: 8D 39 01 STA workRam+139 ; store the advanced tail cursor low
B8B9: 60 RTS
; draw the 16-slot moving-object cascade into the display list: reset
; accumulators (loc_6a-loc_6d, loc_202, loc_68/loc_69) with
; loc_5f=0xe0/loc_5b=0xff, cache the base draw-struct pointer from
; selectPointerPair into loc_76/loc_77, lay an opening coord
; (emitCoordinateVectorWord), then count loc_37 from 0x0f down and for
; each active slot (loc_283+x nonzero) load loc_57/loc_56/loc_58 from
; loc_283/loc_263/loc_2a3+x, integrate deltas
; (projectPointThroughMathbox), emit the record body
; (emitCoordDeltaRecord, emitBlankValueRecord, emitObjectPositionVector)
; with pointer-swap shadow passes (swapDrawPointers), and set the slot
; phase into loc_9e; closes by swapping pointers back and finishing the
; base list (emitBlankVectorWordTag70, emitRecordBodyC0).
drawMovingObjectSlots:
B8BA: A9 3F LDA #$3F
B8BC: A2 F2 LDX #$F2
B8BE: 20 39 DF JSR emitCoordinateVectorWord; emit the opening framing word
B8C1: A9 00 LDA #$00
B8C3: 85 6A STA workRam+6A ; reset the delta integrators
B8C5: 85 6B STA workRam+6B ;
B8C7: 85 6C STA workRam+6C ;
B8C9: 85 6D STA workRam+6D ;
B8CB: 8D 02 02 STA workRam+202 ; clear the player-shot depth
B8CE: 85 68 STA workRam+68 ; clear the x-offset accumulator
B8D0: 85 69 STA workRam+69 ;
B8D2: A9 E0 LDA #$E0
B8D4: 85 5F STA workRam+5F ; depth seed high
B8D6: A9 FF LDA #$FF
B8D8: 85 5B STA workRam+5B ; depth seed low
B8DA: 20 67 B9 JSR selectPointerPair ; pick the base draw-struct pointer pair
B8DD: 85 77 STA workRam+77 ; cache it as the alternate cursor high
B8DF: 86 76 STX workRam+76 ; alternate cursor low
B8E1: A2 0F LDX #$0F ; walk the sixteen object slots, top-down
B8E3: 86 37 STX workRam+37 ;
loc_b8e5:
B8E5: A6 37 LDX workRam+37 ;
B8E7: BD 83 02 LDA workRam+283,X ; slot activity/flag byte
B8EA: F0 49 BEQ loc_b935 ; inactive slot, skip
B8EC: 85 57 STA workRam+57 ; the flag doubles as the object depth
B8EE: BD 63 02 LDA workRam+263,X ; object position, axis 1
B8F1: 85 56 STA workRam+56 ;
B8F3: BD A3 02 LDA workRam+2A3,X ; object position, axis 2
B8F6: 85 58 STA workRam+58 ;
B8F8: 20 98 C0 JSR projectPointThroughMathbox; project the tube position to screen
B8FB: A9 00 LDA #$00
B8FD: 85 73 STA workRam+73 ; clear the record header
B8FF: 20 44 B9 JSR swapDrawPointers ; swap to the alternate cursor for the shadow pass
B902: 20 BA C3 JSR emitCoordDeltaRecord; emit the coord-delta record
B905: A9 A0 LDA #$A0
B907: 20 6A B5 JSR emitBlankValueRecord; emit a blank value record
B90A: 20 44 B9 JSR swapDrawPointers ; swap back to the base cursor
B90D: A2 61 LDX #$61
B90F: 20 72 C7 JSR emitObjectPositionVector; emit the object-position vector
B912: 20 55 B9 JSR returnConstantTwo ; fetch the constant 2
B915: 20 6C DF JSR emitVectorWordTag70 ; emit the tag-70 word
B918: A5 37 LDA workRam+37 ;
B91A: 29 07 AND #$07 ; 8-phase animation index from the slot
B91C: C9 07 CMP #$07
B91E: D0 02 BNE loc_b922 ;
B920: A9 00 LDA #$00 ; fold phase 7 to 0
loc_b922:
B922: A8 TAY
B923: 84 9E STY workRam+9E ; store the animation phase
B925: A9 08 LDA #$08
B927: 20 4C DF JSR emitTaggedVectorWord; emit the tagged style/phase word
B92A: A9 00 LDA #$00
B92C: 20 4A DF JSR emitVectorWordTag60FromKey; emit the tag-60 word
B92F: 20 67 B9 JSR selectPointerPair ; re-cache the pointer pair
B932: 20 39 DF JSR emitCoordinateVectorWord; lay the next framing word
loc_b935:
B935: C6 37 DEC workRam+37 ;
B937: 10 AC BPL loc_b8e5 ; loop until the slot index passes 0
B939: 20 44 B9 JSR swapDrawPointers ; restore the pointer orientation
B93C: A9 01 LDA #$01
B93E: 20 6A DF JSR emitBlankVectorWordTag70; emit the closing blank tag-70 word
B941: 20 09 DF JSR emitRecordBodyC0 ; emit the C0 record body
; swap the two 16-bit draw pointers 0x74/0x75 and 0x76/0x77 so the shared
; cursor addresses the other structure.
swapDrawPointers:
B944: A6 74 LDX workRam+74 ; exchange the primary and alternate draw cursors
B946: A4 75 LDY workRam+75 ;
B948: A5 76 LDA workRam+76 ;
B94A: 85 74 STA workRam+74 ;
B94C: 86 76 STX workRam+76 ;
B94E: A5 77 LDA workRam+77 ;
B950: 85 75 STA workRam+75 ;
B952: 84 77 STY workRam+77 ;
B954: 60 RTS
; register-only leaf that always returns the constant pair A=0x02, Y=0x00
; and touches no memory.
returnConstantTwo:
B955: A5 57 LDA workRam+57 ;
B957: 4A LSR A
B958: 4A LSR A
B959: 4A LSR A
B95A: 4A LSR A
B95B: A0 00 LDY #$00
loc_b95d:
B95D: C8 INY
B95E: 4A LSR A
B95F: D0 FC BNE loc_b95d ;
B961: 18 CLC
B962: 69 02 ADC #$02 ; hand back the constant 2 -- the shift loop above always leaves a at 0
B964: A0 00 LDY #$00
B966: 60 RTS
; select a pointer pair by flag 0x415: zero picks 0xce87/0xce86, nonzero
; picks 0xce6f/0xce6e; returns the pair as (A,X).
selectPointerPair:
B967: AD 15 04 LDA workRam+415 ; read the draw-struct parity flag
B96A: F0 09 BEQ loc_b975 ; even parity: the clear pointer
B96C: AD 6F CE LDA rom+3E6F ; odd parity: the set draw pointer, high
B96F: AE 6E CE LDX rom+3E6E ; set draw pointer, low
B972: B8 CLV
B973: 50 06 BVC loc_b97b ;
loc_b975:
B975: AD 87 CE LDA rom+3E87 ; even parity: the clear draw pointer, high
B978: AE 86 CE LDX rom+3E86 ; clear draw pointer, low
loc_b97b:
B97B: 60 RTS
; ---- $B97C-$BCFC: data ----
B97C: F0 E7 CF AA 80 56 31 19 10 19 31 56 80 AA CF E7
B98C: F0 F0 F0 B8 80 48 10 10 10 10 10 48 80 B8 F0 F0
B99C: F0 F0 B8 B8 80 48 48 10 10 10 48 48 80 B8 B8 F0
B9AC: EC D5 B1 90 70 4F 2B 14 14 2B 4F 70 90 B1 D5 EC
B9BC: F0 C0 A0 94 6C 60 40 10 10 40 60 6C 94 A0 C0 F0
B9CC: D9 C2 AC 97 80 69 52 3C 27 10 35 5A 80 A6 CA F0
B9DC: EA E0 9C 80 64 20 16 50 16 20 64 80 9C E0 EA B0
B9EC: 10 1E 2C 3A 48 56 64 70 90 9E AC BA C8 D6 E4 F0
B9FC: 10 1E 2D 3C 4B 5A 69 78 87 96 A5 B4 C3 D2 E1 F0
BA0C: 10 10 10 10 16 29 46 69 97 BA D7 EA F0 F0 F0 F0
BA1C: 10 24 30 36 3E 49 5A 75 94 A4 AC BA DA E2 EA F0
BA2C: 80 70 48 20 10 20 48 70 80 90 B8 E0 F0 E0 B8 90
BA3C: DA A4 87 80 79 5C 26 10 10 20 48 80 B8 E0 F0 F0
BA4C: 10 10 30 30 50 50 70 70 90 90 B0 B0 D0 D0 F0 F0
BA5C: B0 80 50 47 18 30 18 47 50 80 B0 B9 E8 D4 E8 B9
BA6C: 10 1E 21 28 3C 55 66 73 8D 9A AB C4 D8 DF E2 F0
BA7C: 80 AA CF E7 F0 E7 CF AA 80 56 31 19 10 19 31 56
BA8C: 80 B8 F0 F0 F0 F0 F0 B8 80 48 10 10 10 10 10 48
BA9C: 80 B8 B8 F0 F0 F0 B8 B8 80 48 48 10 10 10 48 48
BAAC: 94 B0 B8 A7 A7 B8 B0 94 6C 50 48 59 59 48 50 6C
BABC: 96 A3 C5 F0 F0 C5 A3 96 6A 5D 3B 10 10 3B 5D 6A
BACC: 3D 6A 97 C4 F0 C4 97 6A 3D 10 10 10 10 10 10 10
BADC: A0 E0 EA B0 EA E0 A0 80 60 20 16 50 16 20 60 80
BAEC: F0 D0 B0 90 70 50 30 10 10 30 50 70 90 B0 D0 F0
BAFC: 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
BB0C: F0 CB A6 80 5C 39 20 12 12 20 39 5C 80 A6 CB F0
BB1C: C0 A6 8A 6A 4A 2F 14 24 20 39 59 75 72 90 B0 D0
BB2C: 80 57 48 57 80 A9 BA A9 80 57 48 57 80 A9 BA A9
BB3C: E4 E8 B7 80 B7 E8 E4 B2 7A 47 20 10 20 47 7A B2
BB4C: 90 70 70 50 50 30 30 10 10 30 30 50 50 70 70 90
BB5C: E6 D0 E6 B9 AE 80 52 47 14 30 14 47 52 80 AE B9
BB6C: 7E 6A 51 3A 2C 2C 38 4E 4E 38 2C 2C 3A 51 6A 7E
BB7C: 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 01 02 03 04
BB8C: 04 04 08 08 08 08 0C 0C 0C 0C 00 00 00 00 04 04
BB9C: 04 08 04 08 08 0C 08 0C 0C 00 0C 00 00 04 00 04
BBAC: 06 07 09 08 07 09 0A 0C 0E 0F 01 00 0F 01 02 04
BBBC: 07 06 05 08 0B 0A 09 0C 0F 0E 0D 00 03 02 01 04
BBCC: 05 05 05 05 0B 0B 0B 0B 0B 00 00 00 00 00 00 05
BBDC: 04 08 0B 05 08 0C 0E 09 0C 00 03 0D 00 04 07 02
BBEC: 0D 0D 0D 0D 0D 0D 0D 00 03 03 03 03 03 03 03 00
BBFC: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
BC0C: 0C 0C 0C 0D 0E 0F 0F 00 01 01 02 03 04 04 04 00
BC1C: 0E 0D 0C 0D 0D 0D 01 0F 02 03 03 00 03 03 03 00
BC2C: 0B 09 07 05 03 01 0F 0D 0D 0F 01 03 05 07 09 0B
BC3C: 08 0B 0C 04 05 08 0B 0C 0D 0E 0F 01 02 03 04 05
BC4C: 0C 00 0C 00 0C 00 0C 00 04 00 04 00 04 00 04 00
BC5C: 0A 06 0C 08 0E 0A 00 0C 02 0E 04 00 06 02 08 04
BC6C: 0E 0C 0D 0E 00 02 02 00 0E 0E 00 02 03 04 02 00
BC7C: 00 01 02 03 04 05 06 07 0D 09 08 0C 0E 0F 0A 0B
BC8C: 18 1C 18 0F 18 18 18 18 0A 18 10 0F 18 0C 14 0A
BC9C: 50 50 50 68 50 50 68 B0 A0 50 90 80 20 B0 60 A0
BCAC: 40 20 40 80 40 40 70 60 00 20 40 00 A0 40 40 00
BCBC: FF FF FF FF FF FF FF 00 01 FF 00 00 FE 01 FF 01
BCCC: 00 00 00 00 00 00 00 FF FF FF FF 00 00 FF 00 FF
BCDC: 00 00 60 40 00 00 48 40 50 28 50 00 00 50 00 40
BCEC: 04 04 03 04 04 04 03 04 05 04 04 04 04 04 04 05
BCFC: 3E
; Stashes the value byte into loc_55 and loads loc_435+y/loc_445+y into
; loc_56/loc_58, then emits the coloured shape vector (bd09).
seatShapeParamsAndEmit:
BCFD: 85 55 STA workRam+55 ; seat the draw style/colour selector
BCFF: B9 35 04 LDA workRam+435,Y ; segment midpoint into the projection point
BD02: 85 56 STA workRam+56 ;
BD04: B9 45 04 LDA workRam+445,Y ; segment midpoint, second axis
BD07: 85 58 STA workRam+58 ;
; Folds deltas (c098), lays the header (c765), appends the pair (bd3e),
; clamps a colour/intensity nibble from loc_78 (XOR 0x07, doubled, floored
; to 0x0a, high nibble) OR'd with 0x60, and emits a template word keyed by
; loc_55.
emitColoredShapeVector:
BD09: 20 98 C0 JSR projectPointThroughMathbox; fold the coordinate deltas through the math box
BD0C: A2 61 LDX #$61
BD0E: 20 65 C7 JSR layHeaderAndBuildRecord; lay the fixed record header
BD11: A9 00 LDA #$00
BD13: 85 A9 STA workRam+A9 ; reset the cursor run length
BD15: 20 3E BD JSR appendNormalizedMantissaExponent; append the mantissa/exponent size pair
BD18: A5 78 LDA workRam+78 ; the interpolated colour attribute
BD1A: 49 07 EOR #$07 ; invert the low colour bits
BD1C: 0A ASL A
BD1D: C9 0A CMP #$0A
BD1F: B0 02 BCS loc_bd23 ;
BD21: A9 0A LDA #$0A ; floor the intensity to a visible minimum
loc_bd23:
BD23: 0A ASL A ; seat the colour in the high nibble
BD24: 0A ASL A
BD25: 0A ASL A
BD26: 0A ASL A
BD27: 91 74 STA (workRam+74),Y ; write the colour/intensity byte
BD29: C8 INY
BD2A: A9 60 LDA #$60
BD2C: 91 74 STA (workRam+74),Y ; write the companion attribute byte
BD2E: C8 INY
BD2F: 84 A9 STY workRam+A9 ; record the advanced run length
BD31: A4 55 LDY workRam+55 ; the style selector indexes the template tables
BD33: BE C9 CE LDX rom+3EC9,Y ; entry glyph word, high
BD36: B9 C8 CE LDA rom+3EC8,Y ; entry glyph word, low
BD39: A4 A9 LDY workRam+A9 ;
BD3B: 4C 59 DF JMP emitVectorWordAtOffset; emit the templated glyph word
; Appends a (mantissa, exponent) pair for loc_57: trivial (1,0) when
; loc_57<0x10, else drives the math box on loc_57-loc_5f/loc_5b and
; normalizes loc_79 into shift count loc_78; writes the pair (exponent
; tagged 0x70) at cursor loc_a9.
appendNormalizedMantissaExponent:
BD3E: A5 57 LDA workRam+57 ; the object depth
BD40: C9 10 CMP #$10
BD42: 90 48 BCC loc_bd8c ; near object: draw at full size
BD44: 38 SEC
BD45: E5 5F SBC workRam+5F ; depth minus the seed -- a 16-bit difference
BD47: 8D 95 60 STA mathboxGo+15 ; into the math-box operand low
BD4A: A9 00 LDA #$00
BD4C: E5 5B SBC workRam+5B ;
BD4E: 8D 96 60 STA mathboxGo+16 ; math-box operand high
BD51: A9 18 LDA #$18
BD53: 8D 8C 60 STA mathboxGo+C ; iteration count
BD56: A5 A0 LDA workRam+A0 ;
BD58: 8D 8E 60 STA mathboxGo+E ; divisor
BD5B: 8D 94 60 STA mathboxGo+14 ; issue the divide
loc_bd5e:
BD5E: 2C 40 60 BIT mathboxStatus / earomControl; poll the math-box busy bit
BD61: 30 FB BMI loc_bd5e ; spin until the divide is done
BD63: AD 60 60 LDA mathboxLo ; read the result low
BD66: 85 79 STA workRam+79 ;
BD68: AD 70 60 LDA mathboxHi ; read the result high
BD6B: 85 7A STA workRam+7A ;
BD6D: A2 0F LDX #$0F
BD6F: 8E 8C 60 STX mathboxGo+C ; reload the iteration count
BD72: 38 SEC
BD73: E9 01 SBC #$01
BD75: D0 02 BNE loc_bd79 ;
BD77: A9 01 LDA #$01 ; clamp the high byte to at least 1
loc_bd79:
BD79: A2 00 LDX #$00
loc_bd7b:
BD7B: E8 INX ; normalize: count the shifts
BD7C: 06 79 ASL workRam+79 ;
BD7E: 2A ROL A
BD7F: 90 FA BCC loc_bd7b ; until a 1 rolls out of the top
BD81: 4A LSR A
BD82: 49 7F EOR #$7F ; two's-complement fold into the exponent
BD84: 18 CLC
BD85: 69 01 ADC #$01
BD87: A8 TAY
BD88: 8A TXA
BD89: B8 CLV
BD8A: 50 04 BVC loc_bd90 ;
loc_bd8c:
BD8C: A9 01 LDA #$01 ; near path: mantissa 1
BD8E: A0 00 LDY #$00 ; exponent 0 -- full size
loc_bd90:
BD90: 85 78 STA workRam+78 ; store the mantissa
BD92: 48 PHA
BD93: 98 TYA
BD94: A4 A9 LDY workRam+A9 ;
BD96: 91 74 STA (workRam+74),Y ; write the exponent byte
BD98: C8 INY
BD99: 68 PLA
BD9A: 09 70 ORA #$70 ; tag the mantissa with 0x70
BD9C: 91 74 STA (workRam+74),Y ; write the mantissa byte
BD9E: C8 INY
BD9F: 60 RTS
; draw one tube-rim segment: fetch the source corner (loc_3ce+y/loc_3de+y
; into loc_56/loc_58, loc_2f from loc_57) and the next corner ((y+1)&0x0f)
; into loc_2e/loc_30, seed run counters loc_59=0 and loc_5a=4, then fall
; into emitTubeRimSegmentVectors to emit the segment's four-byte vector
; records.
drawTubeRimSegmentFromCorner:
BDA0: 85 36 STA workRam+36 ; stash the style/shape selector
BDA2: B9 CE 03 LDA workRam+3CE,Y ; first endpoint from source corner
BDA5: 85 56 STA workRam+56 ;
BDA7: B9 DE 03 LDA workRam+3DE,Y ; first endpoint, second axis
BDAA: 85 58 STA workRam+58 ;
BDAC: A5 57 LDA workRam+57 ;
BDAE: 85 2F STA workRam+2F ; carry the depth to the second endpoint
BDB0: 98 TYA
BDB1: 18 CLC
BDB2: 69 01 ADC #$01
BDB4: 29 0F AND #$0F ; next corner, wrapping the 16-corner ring
BDB6: AA TAX
BDB7: BD CE 03 LDA workRam+3CE,X ; second endpoint
BDBA: 85 2E STA workRam+2E ;
BDBC: BD DE 03 LDA workRam+3DE,X ; second endpoint, second axis
BDBF: 85 30 STA workRam+30 ;
BDC1: A9 00 LDA #$00
BDC3: 85 59 STA workRam+59 ; seed the clamp tally
BDC5: A9 04 LDA #$04
BDC7: 85 5A STA workRam+5A ; seed the run size to 4
BDC9: A4 36 LDY workRam+36 ;
; emit the tube-rim segment's vector records: gate (unless loc_5b bit7,
; return when loc_57<loc_5f), read record count loc_99 and cursor loc_38
; from $BFB6/$BFC4, project both endpoints through the math box
; (projectPointThroughMathbox), form two clamped signed deltas
; (loc_79/loc_9b, loc_89/loc_9d), expand the fivefold spread, then write
; loc_99 four-byte records into (loc_74)+loc_a9 and close with
; advanceDisplayCursor.
emitTubeRimSegmentVectors:
BDCB: A5 5B LDA workRam+5B ; the depth-force flag
BDCD: 30 07 BMI loc_bdd6 ; bit 7 forces the segment to draw
BDCF: A5 57 LDA workRam+57 ; object depth
BDD1: C5 5F CMP workRam+5F ;
BDD3: B0 01 BCS loc_bdd6 ;
BDD5: 60 RTS ; too near the rim, skip the segment
loc_bdd6:
BDD6: B9 B6 BF LDA rom+2FB6,Y ; this corner's record count
BDD9: 85 99 STA workRam+99 ;
BDDB: B9 C4 BF LDA rom+2FC4,Y ; start of this corner's packed table
BDDE: 85 38 STA workRam+38 ;
BDE0: A4 9E LDY workRam+9E ;
BDE2: A9 08 LDA #$08
BDE4: 20 4C DF JSR emitTaggedVectorWord; emit the run's colour/style word
BDE7: 20 98 C0 JSR projectPointThroughMathbox; project the first endpoint
BDEA: A2 61 LDX #$61
BDEC: 20 65 C7 JSR layHeaderAndBuildRecord; lay its header record
BDEF: A5 2E LDA workRam+2E ; move in the second endpoint
BDF1: 85 56 STA workRam+56 ;
BDF3: A5 2F LDA workRam+2F ;
BDF5: 85 57 STA workRam+57 ;
BDF7: A5 30 LDA workRam+30 ;
BDF9: 85 58 STA workRam+58 ;
BDFB: 20 98 C0 JSR projectPointThroughMathbox; project the second endpoint
BDFE: A4 59 LDY workRam+59 ;
BE00: A5 5A LDA workRam+5A ;
BE02: 20 6C DF JSR emitVectorWordTag70 ; emit the run's tag-70 word
BE05: A5 61 LDA workRam+61 ; delta 1: projected Y minus previous Y
BE07: 38 SEC
BE08: E5 6A SBC workRam+6A ;
BE0A: 85 79 STA workRam+79 ; the segment's direction magnitude
BE0C: A5 62 LDA workRam+62 ;
BE0E: E5 6B SBC workRam+6B ;
BE10: 85 9B STA workRam+9B ; its sign high byte
BE12: 30 09 BMI loc_be1d ;
BE14: F0 04 BEQ loc_be1a ;
BE16: A9 FF LDA #$FF ; clamp the magnitude on overflow
BE18: 85 79 STA workRam+79 ;
loc_be1a:
BE1A: B8 CLV
BE1B: 50 16 BVC loc_be33 ;
loc_be1d:
BE1D: C9 FF CMP #$FF
BE1F: F0 05 BEQ loc_be26 ;
BE21: A9 FF LDA #$FF
BE23: B8 CLV
BE24: 50 0B BVC loc_be31 ;
loc_be26:
BE26: A5 79 LDA workRam+79 ;
BE28: 49 FF EOR #$FF
BE2A: 18 CLC
BE2B: 69 01 ADC #$01
BE2D: 90 02 BCC loc_be31 ;
BE2F: A9 FF LDA #$FF
loc_be31:
BE31: 85 79 STA workRam+79 ;
loc_be33:
BE33: A5 63 LDA workRam+63 ; delta 2: projected X minus previous X
BE35: 38 SEC
BE36: E5 6C SBC workRam+6C ;
BE38: 85 89 STA workRam+89 ; the segment's direction magnitude
BE3A: A5 64 LDA workRam+64 ;
BE3C: E5 6D SBC workRam+6D ;
BE3E: 85 9D STA workRam+9D ; its sign high byte
BE40: 30 09 BMI loc_be4b ;
BE42: F0 04 BEQ loc_be48 ;
BE44: A9 FF LDA #$FF ; clamp on overflow
BE46: 85 89 STA workRam+89 ;
loc_be48:
BE48: B8 CLV
BE49: 50 12 BVC loc_be5d ;
loc_be4b:
BE4B: C9 FF CMP #$FF
BE4D: F0 05 BEQ loc_be54 ;
BE4F: A9 FF LDA #$FF
BE51: B8 CLV
BE52: 50 07 BVC loc_be5b ;
loc_be54:
BE54: A5 89 LDA workRam+89 ;
BE56: 49 FF EOR #$FF
BE58: 18 CLC
BE59: 69 01 ADC #$01
loc_be5b:
BE5B: 85 89 STA workRam+89 ;
loc_be5d:
BE5D: A9 00 LDA #$00
BE5F: 85 82 STA workRam+82 ;
BE61: 85 92 STA workRam+92 ;
BE63: A5 79 LDA workRam+79 ; scale the Y-delta into the x1..x7 offset ladder
BE65: 0A ASL A
BE66: 26 82 ROL workRam+82 ;
BE68: 85 7A STA workRam+7A ;
BE6A: 0A ASL A
BE6B: 85 7C STA workRam+7C ;
BE6D: A5 82 LDA workRam+82 ;
BE6F: 2A ROL A
BE70: 85 84 STA workRam+84 ;
BE72: A5 7C LDA workRam+7C ;
BE74: 65 79 ADC workRam+79 ;
BE76: 85 7D STA workRam+7D ;
BE78: A5 84 LDA workRam+84 ;
BE7A: 69 00 ADC #$00
BE7C: 85 85 STA workRam+85 ;
BE7E: A5 7A LDA workRam+7A ;
BE80: 65 79 ADC workRam+79 ;
BE82: 85 7B STA workRam+7B ;
BE84: A5 82 LDA workRam+82 ;
BE86: 69 00 ADC #$00
BE88: 85 83 STA workRam+83 ;
BE8A: 85 86 STA workRam+86 ;
BE8C: A5 7B LDA workRam+7B ;
BE8E: 0A ASL A
BE8F: 85 7E STA workRam+7E ;
BE91: 26 86 ROL workRam+86 ;
BE93: 65 79 ADC workRam+79 ;
BE95: 85 7F STA workRam+7F ;
BE97: A5 86 LDA workRam+86 ;
BE99: 69 00 ADC #$00
BE9B: 85 87 STA workRam+87 ;
BE9D: A5 89 LDA workRam+89 ; scale the X-delta into the x1..x7 offset ladder
BE9F: 0A ASL A
BEA0: 26 92 ROL workRam+92 ;
BEA2: 85 8A STA workRam+8A ;
BEA4: 0A ASL A
BEA5: 85 8C STA workRam+8C ;
BEA7: A5 92 LDA workRam+92 ;
BEA9: 2A ROL A
BEAA: 85 94 STA workRam+94 ;
BEAC: A5 8C LDA workRam+8C ;
BEAE: 65 89 ADC workRam+89 ;
BEB0: 85 8D STA workRam+8D ;
BEB2: A5 94 LDA workRam+94 ;
BEB4: 69 00 ADC #$00
BEB6: 85 95 STA workRam+95 ;
BEB8: A5 8A LDA workRam+8A ;
BEBA: 65 89 ADC workRam+89 ;
BEBC: 85 8B STA workRam+8B ;
BEBE: A5 92 LDA workRam+92 ;
BEC0: 69 00 ADC #$00
BEC2: 85 93 STA workRam+93 ;
BEC4: 85 96 STA workRam+96 ;
BEC6: A5 8B LDA workRam+8B ;
BEC8: 0A ASL A
BEC9: 85 8E STA workRam+8E ;
BECB: 26 96 ROL workRam+96 ;
BECD: 65 89 ADC workRam+89 ;
BECF: 85 8F STA workRam+8F ;
BED1: A5 96 LDA workRam+96 ;
BED3: 69 00 ADC #$00
BED5: 85 97 STA workRam+97 ;
BED7: A0 00 LDY #$00
BED9: 84 A9 STY workRam+A9 ;
loc_bedb:
BEDB: A4 38 LDY workRam+38 ; walk the packed corner table
BEDD: B9 D3 BF LDA rom+2FD3,Y ; the record's vector-generator header
BEE0: C9 01 CMP #$01
BEE2: D0 02 BNE loc_bee6 ;
BEE4: A9 C0 LDA #$C0 ; header 1 is shorthand for the 0xc0 draw-mode
loc_bee6:
BEE6: 85 73 STA workRam+73 ;
BEE8: B9 D2 BF LDA rom+2FD2,Y ; the packed sign/index selector byte
BEEB: 85 2D STA workRam+2D ;
BEED: C8 INY
BEEE: C8 INY
BEEF: 84 38 STY workRam+38 ;
BEF1: AA TAX
BEF2: 29 07 AND #$07 ; low 3 bits index the spread for the point
BEF4: A8 TAY
BEF5: 8A TXA
BEF6: 0A ASL A
BEF7: 85 2B STA workRam+2B ; doubled copy carries the x sign into bit 7
BEF9: 4A LSR A
BEFA: 4A LSR A
BEFB: 4A LSR A
BEFC: 4A LSR A
BEFD: 29 07 AND #$07 ; next 3 bits index the cross offset
BEFF: AA TAX
BF00: A5 2B LDA workRam+2B ;
BF02: 45 9B EOR workRam+9B ; combine the packed sign with the direction sign
BF04: 30 0B BMI loc_bf11 ; negate the offset when the signs differ
BF06: B9 78 00 LDA workRam+78,Y ;
BF09: 85 61 STA workRam+61 ;
BF0B: B9 80 00 LDA workRam+80,Y ;
BF0E: B8 CLV
BF0F: 50 11 BVC loc_bf22 ;
loc_bf11:
BF11: B9 78 00 LDA workRam+78,Y ;
BF14: 49 FF EOR #$FF
BF16: 18 CLC
BF17: 69 01 ADC #$01
BF19: 85 61 STA workRam+61 ;
BF1B: B9 80 00 LDA workRam+80,Y ;
BF1E: 49 FF EOR #$FF
BF20: 69 00 ADC #$00
loc_bf22:
BF22: 85 62 STA workRam+62 ;
BF24: A5 2D LDA workRam+2D ;
BF26: 45 9D EOR workRam+9D ; combine with the second direction sign
BF28: 10 0E BPL loc_bf38 ;
BF2A: B5 88 LDA workRam+88,X ;
BF2C: 18 CLC
BF2D: 65 61 ADC workRam+61 ;
BF2F: 85 61 STA workRam+61 ;
BF31: B5 90 LDA workRam+90,X ;
BF33: 65 62 ADC workRam+62 ;
BF35: B8 CLV
BF36: 50 0B BVC loc_bf43 ;
loc_bf38:
BF38: A5 61 LDA workRam+61 ;
BF3A: 38 SEC
BF3B: F5 88 SBC workRam+88,X ;
BF3D: 85 61 STA workRam+61 ;
BF3F: A5 62 LDA workRam+62 ;
BF41: F5 90 SBC workRam+90,X ;
loc_bf43:
BF43: 85 62 STA workRam+62 ;
BF45: A5 2B LDA workRam+2B ;
BF47: 45 9D EOR workRam+9D ;
BF49: 30 0B BMI loc_bf56 ;
BF4B: B9 88 00 LDA workRam+88,Y ;
BF4E: 85 63 STA workRam+63 ;
BF50: B9 90 00 LDA workRam+90,Y ;
BF53: B8 CLV
BF54: 50 11 BVC loc_bf67 ;
loc_bf56:
BF56: B9 88 00 LDA workRam+88,Y ;
BF59: 49 FF EOR #$FF
BF5B: 18 CLC
BF5C: 69 01 ADC #$01
BF5E: 85 63 STA workRam+63 ;
BF60: B9 90 00 LDA workRam+90,Y ;
BF63: 49 FF EOR #$FF
BF65: 69 00 ADC #$00
loc_bf67:
BF67: 85 64 STA workRam+64 ;
BF69: A5 2D LDA workRam+2D ;
BF6B: 45 9B EOR workRam+9B ;
BF6D: 10 0E BPL loc_bf7d ;
BF6F: A5 63 LDA workRam+63 ;
BF71: 38 SEC
BF72: F5 78 SBC workRam+78,X ;
BF74: 85 63 STA workRam+63 ;
BF76: A5 64 LDA workRam+64 ;
BF78: F5 80 SBC workRam+80,X ;
BF7A: B8 CLV
BF7B: 50 0B BVC loc_bf88 ;
loc_bf7d:
BF7D: A5 63 LDA workRam+63 ;
BF7F: 18 CLC
BF80: 75 78 ADC workRam+78,X ;
BF82: 85 63 STA workRam+63 ;
BF84: A5 64 LDA workRam+64 ;
BF86: 75 80 ADC workRam+80,X ;
loc_bf88:
BF88: 85 64 STA workRam+64 ;
BF8A: A4 A9 LDY workRam+A9 ;
BF8C: A5 63 LDA workRam+63 ;
BF8E: 91 74 STA (workRam+74),Y ; write the record's X low
BF90: C8 INY
BF91: A5 64 LDA workRam+64 ;
BF93: 29 1F AND #$1F ; clamp X high to the low 5 bits
BF95: 91 74 STA (workRam+74),Y ;
BF97: C8 INY
BF98: A5 61 LDA workRam+61 ;
BF9A: 91 74 STA (workRam+74),Y ; write the record's Y low
BF9C: C8 INY
BF9D: A5 62 LDA workRam+62 ;
BF9F: 29 1F AND #$1F
BFA1: 05 73 ORA workRam+73 ; OR in the record header
BFA3: 91 74 STA (workRam+74),Y ; write the record's Y high
BFA5: C8 INY
BFA6: 84 A9 STY workRam+A9 ;
BFA8: C6 99 DEC workRam+99 ; one record done
BFAA: F0 03 BEQ loc_bfaf ;
BFAC: 4C DB BE JMP loc_bedb ; loop over the corner's records
loc_bfaf:
BFAF: A4 A9 LDY workRam+A9 ;
BFB1: 88 DEY
BFB2: 4C 5F DF JMP advanceDisplayCursor; advance the display cursor past the run
; ---- $BFB5-$C097: data ----
BFB5: 08 08 08 08 08 08 08 08 08 09 06 07 07 04 02 00
BFC5: 10 20 30 40 50 60 70 80 92 9E AC BA C2 0C 01 8C
BFD5: 01 4A 01 09 01 CB 01 4B 01 89 01 CA 01 90 01 8A
BFE5: 01 23 01 DB 01 41 01 10 01 0A 01 CB 01 91 01 17
BFF5: 01 4B 01 8A 01 CE 01 08 01 0A 01 CB 01 92 01 16
C005: 01 4B 01 8A 01 CD 01 49 01 0A 01 CB 01 93 01 15
C015: 01 4B 01 8A 01 CC 01 4A 01 0A 01 CB 01 95 01 13
C025: 01 4B 01 8A 01 CA 01 4C 01 0A 01 CB 01 96 01 12
C035: 01 4B 01 8A 01 C9 01 4D 01 0A 01 CB 01 97 01 11
C045: 01 4B 01 8A 01 88 01 4E 01 0A 01 CB 01 0B 00 A3
C055: 01 0A 01 10 01 4B 01 8A 01 90 01 41 01 5B 01 9A
C065: 01 31 01 B1 01 31 01 B1 01 1A 01 01 00 91 01 21
C075: 01 A1 01 21 01 A1 01 11 01 01 00 89 01 11 01 91
C085: 01 11 01 91 01 09 01 01 00 8A 01 12 01 8A 01 01
C095: 00 06 01
; Projects one tube-space point into a screen-coordinate pair: forms
; clamped signed deltas from
; loc_57/loc_5f/loc_5b/loc_58/loc_60/loc_56/loc_5e into the math box, then
; folds offset pairs loc_68/loc_69 and loc_66/loc_67 into accumulators
; loc_63/64 and loc_61/62 with saturation.
projectPointThroughMathbox:
C098: A5 57 LDA workRam+57 ; load the object depth (Z)
C09A: 38 SEC
C09B: E5 5F SBC workRam+5F ; subtract the reference depth -- form the depth delta
C09D: 8D 95 60 STA mathboxGo+15 ; feed the math-box divisor low byte
C0A0: A9 00 LDA #$00
C0A2: E5 5B SBC workRam+5B ; borrow through the depth guard byte
C0A4: 8D 96 60 STA mathboxGo+16 ; feed the math-box divisor high byte
C0A7: 10 0A BPL loc_c0b3 ; skip the clamp when the divisor stayed non-negative
C0A9: A9 00 LDA #$00
C0AB: 8D 96 60 STA mathboxGo+16 ; clamp the divisor high byte to zero
C0AE: A9 01 LDA #$01
C0B0: 8D 95 60 STA mathboxGo+15 ; floor the divisor low byte at 1 -- never divide by zero
loc_c0b3:
C0B3: A5 58 LDA workRam+58 ; load the point X
C0B5: C5 60 CMP workRam+60 ; compare against the X reference
C0B7: 90 07 BCC loc_c0c0 ;
C0B9: E5 60 SBC workRam+60 ; X minus reference -- positive branch
C0BB: A2 00 LDX #$00 ; mark the X delta positive
C0BD: B8 CLV
C0BE: 50 07 BVC loc_c0c7 ;
loc_c0c0:
C0C0: A5 60 LDA workRam+60 ;
C0C2: 38 SEC
C0C3: E5 58 SBC workRam+58 ; reference minus X -- negative branch
C0C5: A2 FF LDX #$FF ; mark the X delta negative
loc_c0c7:
C0C7: 8D 8E 60 STA mathboxGo+E ; feed the X magnitude as the math-box operand
C0CA: 8D 94 60 STA mathboxGo+14 ; trigger the divide for the X projection
C0CD: 86 33 STX workRam+33 ; stash the X sign
C0CF: A5 56 LDA workRam+56 ; load the point Y
C0D1: C5 5E CMP workRam+5E ; compare against the Y reference
C0D3: 90 07 BCC loc_c0dc ;
C0D5: E5 5E SBC workRam+5E ; Y minus reference -- positive branch
C0D7: A2 00 LDX #$00
C0D9: B8 CLV
C0DA: 50 07 BVC loc_c0e3 ;
loc_c0dc:
C0DC: A5 5E LDA workRam+5E ;
C0DE: 38 SEC
C0DF: E5 56 SBC workRam+56 ; reference minus Y -- negative branch
C0E1: A2 FF LDX #$FF
loc_c0e3:
C0E3: 85 32 STA workRam+32 ; stash the Y magnitude
C0E5: 86 34 STX workRam+34 ; stash the Y sign
loc_c0e7:
C0E7: 2C 40 60 BIT mathboxStatus / earomControl; read the math-box busy status
C0EA: 30 FB BMI loc_c0e7 ; spin while the math box is busy
C0EC: AD 60 60 LDA mathboxLo ; read the math-box result low byte
C0EF: 85 63 STA workRam+63 ; into the projected X accumulator low
C0F1: AD 70 60 LDA mathboxHi ; read the math-box result high byte
C0F4: 85 64 STA workRam+64 ; into the projected X accumulator high
C0F6: A5 32 LDA workRam+32 ; reload the Y magnitude
C0F8: 8D 8E 60 STA mathboxGo+E ; feed it as the math-box operand
C0FB: 8D 94 60 STA mathboxGo+14 ; trigger the divide for the Y projection
C0FE: A5 33 LDA workRam+33 ; test the X sign
C100: 30 18 BMI loc_c11a ; branch to the subtract path on a negative sign
C102: A5 63 LDA workRam+63 ;
C104: 18 CLC
C105: 65 68 ADC workRam+68 ; add the X offset low into the projected X
C107: 85 63 STA workRam+63 ;
C109: A5 64 LDA workRam+64 ;
C10B: 65 69 ADC workRam+69 ; add the X offset high with carry
C10D: 50 06 BVC loc_c115 ; branch past the saturation clamp on no overflow
C10F: A9 FF LDA #$FF
C111: 85 63 STA workRam+63 ;
C113: A9 7F LDA #$7F ; saturate the projected X to positive maximum
loc_c115:
C115: 85 64 STA workRam+64 ;
C117: B8 CLV
C118: 50 15 BVC loc_c12f ;
loc_c11a:
C11A: A5 68 LDA workRam+68 ;
C11C: 38 SEC
C11D: E5 63 SBC workRam+63 ; offset minus projected X -- negative-sign path
C11F: 85 63 STA workRam+63 ;
C121: A5 69 LDA workRam+69 ;
C123: E5 64 SBC workRam+64 ; subtract the projected-X high with borrow
C125: 50 06 BVC loc_c12d ; branch past the clamp on no overflow
C127: A9 00 LDA #$00
C129: 85 63 STA workRam+63 ;
C12B: A9 80 LDA #$80 ; saturate the projected X to negative maximum
loc_c12d:
C12D: 85 64 STA workRam+64 ;
loc_c12f:
C12F: 2C 40 60 BIT mathboxStatus / earomControl; read the math-box busy status
C132: 30 FB BMI loc_c12f ; spin while the math box is busy
C134: AD 60 60 LDA mathboxLo ; read the math-box result low byte
C137: 85 61 STA workRam+61 ; into the projected Y accumulator low
C139: AD 70 60 LDA mathboxHi ; read the math-box result high byte
C13C: 85 62 STA workRam+62 ; into the projected Y accumulator high
C13E: A6 34 LDX workRam+34 ; test the Y sign
C140: 30 16 BMI loc_c158 ; branch to the subtract path on a negative sign
C142: A5 61 LDA workRam+61 ;
C144: 18 CLC
C145: 65 66 ADC workRam+66 ; add the Y offset low into the projected Y
C147: 85 61 STA workRam+61 ;
C149: A5 62 LDA workRam+62 ;
C14B: 65 67 ADC workRam+67 ; add the Y offset high with carry
C14D: 50 06 BVC loc_c155 ;
C14F: A9 FF LDA #$FF
C151: 85 61 STA workRam+61 ;
C153: A9 7F LDA #$7F ; saturate the projected Y to positive maximum
loc_c155:
C155: 85 62 STA workRam+62 ;
C157: 60 RTS
loc_c158:
C158: A5 66 LDA workRam+66 ;
C15A: 38 SEC
C15B: E5 61 SBC workRam+61 ; offset minus projected Y -- negative-sign path
C15D: 85 61 STA workRam+61 ;
C15F: A5 67 LDA workRam+67 ;
C161: E5 62 SBC workRam+62 ;
C163: 50 06 BVC loc_c16b ;
C165: A9 00 LDA #$00
C167: 85 61 STA workRam+61 ;
C169: A9 80 LDA #$80 ; saturate the projected Y to negative maximum
loc_c16b:
C16B: 85 62 STA workRam+62 ;
C16D: 60 RTS
; build the current level's full layout: prime working flags (0x5e=0x80,
; 0x114=0xff), build the tube lane coordinates via buildTubeLaneCoords,
; clear 0x5800 only when mode trigger 0x133 was already zero then force
; 0x133=0, mirror header bytes 0xcec6/0xcec7 into display registers
; 0x2000/0x2001, and inline the 0xc1fd nibble unpack into 0x19/0x800 and
; 0x21/0x808.
buildLevelLayout:
C16E: 20 13 AA JSR stageTextLineWithCount; stage the level's text line into the vector buffer
C171: A9 80 LDA #$80
C173: 85 5E STA workRam+5E ; seed the projection Y reference
C175: A9 FF LDA #$FF
C177: 8D 14 01 STA workRam+114 ; mark the display dirty for a full redraw
C17A: 20 35 C2 JSR buildTubeLaneCoords ; build the tube lane coordinates
C17D: AD 33 01 LDA workRam+133 ; test the one-shot level-layout trigger
C180: D0 03 BNE loc_c185 ;
C182: 8D 00 58 STA avgReset ; strobe the vector-generator reset when the trigger was already clear
loc_c185:
C185: A9 00 LDA #$00
C187: 8D 33 01 STA workRam+133 ; force the one-shot layout trigger clear
C18A: AD C6 CE LDA rom+3EC6 ; load the first level display-list head word
C18D: 8D 00 20 STA vectorRam ; latch it into the vector-list header low
C190: AD C7 CE LDA rom+3EC7 ; load the second head word
C193: 8D 01 20 STA vectorRam+1 ; latch it into the vector-list header high
; expand the packed ROM level table 0xc1fd into the working nibble tables:
; mask selector 0x9f with 0x70 clamped to 0x5f, form read index
; (sel>>1)|0x07, and for y=7..0 write each packed byte's low nibble into
; 0x19+y and display mirror 0x800+y and its high nibble into 0x21+y and
; mirror 0x808+y.
unpackLevelNibbleTables:
C196: A5 9F LDA workRam+9F ; load the level selector
C198: 29 70 AND #$70 ; mask the selector bits
C19A: C9 5F CMP #$5F
C19C: 90 02 BCC loc_c1a0 ;
C19E: A9 5F LDA #$5F ; clamp the selector to 0x5f
loc_c1a0:
C1A0: 4A LSR A ; halve the selector
C1A1: 09 07 ORA #$07 ; form the packed-table read index
C1A3: AA TAX
C1A4: A0 07 LDY #$07
loc_c1a6:
C1A6: BD FD C1 LDA rom+31FD,X ; read a packed level-layout byte
C1A9: 29 0F AND #$0F ; take the low nibble
C1AB: 99 19 00 STA workRam+19,Y ; write it into the working nibble table
C1AE: 99 00 08 STA colorRam,Y ; mirror it into color RAM
C1B1: BD FD C1 LDA rom+31FD,X ; re-read the packed byte
C1B4: 4A LSR A
C1B5: 4A LSR A
C1B6: 4A LSR A
C1B7: 4A LSR A
C1B8: 99 21 00 STA workRam+21,Y ; write the high nibble into the second nibble table
C1BB: 99 08 08 STA colorRam+8,Y ; mirror it into color RAM
C1BE: CA DEX
C1BF: 88 DEY
C1C0: 10 E4 BPL loc_c1a6 ; loop over the eight table entries
C1C2: 60 RTS
; clear the working state before a tube-projection run: zero the zero-page
; scratch cells 0x78/0x80/0x81/0x88/0x90/0x91 and the math-coprocessor
; input block 0x6080/0x6081/0x6083/0x6084/0x6085/0x6086/0x6087/0x6089/0x60
; 8d/0x608e/0x608f/0x6090, then write 0x0f into the control latch 0x608c
; to arm the coprocessor.
resetMathboxInputs:
C1C3: A9 00 LDA #$00 ; clear the zero-page projection scratch cells
C1C5: 85 81 STA workRam+81 ;
C1C7: 85 91 STA workRam+91 ;
C1C9: 85 80 STA workRam+80 ;
C1CB: 85 78 STA workRam+78 ;
C1CD: 85 90 STA workRam+90 ;
C1CF: 85 88 STA workRam+88 ;
C1D1: A9 00 LDA #$00
C1D3: 8D 80 60 STA mathboxGo ; zero the math-box coprocessor input ports
C1D6: 8D 81 60 STA mathboxGo+1 ;
C1D9: 8D 84 60 STA mathboxGo+4 ;
C1DC: 8D 85 60 STA mathboxGo+5 ;
C1DF: 8D 86 60 STA mathboxGo+6 ;
C1E2: 8D 87 60 STA mathboxGo+7 ;
C1E5: 8D 89 60 STA mathboxGo+9 ;
C1E8: 8D 83 60 STA mathboxGo+3 ;
C1EB: 8D 8D 60 STA mathboxGo+D ;
C1EE: 8D 8E 60 STA mathboxGo+E ;
C1F1: 8D 8F 60 STA mathboxGo+F ;
C1F4: 8D 90 60 STA mathboxGo+10 ;
C1F7: A9 0F LDA #$0F
C1F9: 8D 8C 60 STA mathboxGo+C ; load step count 0x0f to arm the math box
C1FC: 60 RTS
; ---- $C1FD-$C234: data ----
C1FD: 00 04 08 0C C3 07 0B 0B 00 07 0B 08 44 03 0C 0C
C20D: 00 0B 03 07 C8 0C 04 04 00 0B 08 07 C4 0C 03 03
C21D: 00 04 08 0C C3 07 0F 0B 00 0C 08 04 C3 0B 07 07
C22D: 06 03 01 04 00 05 05 05
; lay out the current level's tube: reduce table byte 0x46+0x3d through
; resolveShapeTableIndex to get shape row y (0x112), derive span cells
; (negated 0xbc8c+y into 0x5f/0x5d, 0x10-neg into 0xa0, 0x5b=0xff,
; 0x60=0xbc9c+y, 0x111=0xbccc+y), copy or shift-right the offset pair
; 0x68/0x69 (scale into 0x121) by mode 0x2, clear 0x66/0x67/0x10f/0x110
; and set 0x113=0x2c, then seed the per-lane vertex arrays
; 0x3ce/0x3de/0x3ee from ROM vertex tables 0xb97c/0xba7c/0xbb7c (clearing
; 0x31a/0x33a/0x39a) and fill midpoint arrays 0x435/0x445 by rounding-
; averaging adjacent lanes.
buildTubeLaneCoords:
C235: A6 3D LDX workRam+3D ; index the player's progress slot
C237: B5 46 LDA workRam+46,X ; read the per-slot level value
C239: 20 E8 C2 JSR resolveShapeTableIndex; reduce it to a shape-table index
C23C: 48 PHA
C23D: AC 12 01 LDY workRam+112 ;
C240: B9 8C BC LDA rom+2C8C,Y ; read the per-shape tube-depth parameter
C243: 49 FF EOR #$FF ; negate the depth
C245: 18 CLC
C246: 69 01 ADC #$01
C248: 85 5F STA workRam+5F ; into the depth high byte
C24A: 85 5D STA workRam+5D ; and into the depth target
C24C: A9 10 LDA #$10
C24E: 38 SEC
C24F: E5 5F SBC workRam+5F ; form 0x10 minus the depth into the span cell
C251: 85 A0 STA workRam+A0 ;
C253: A9 FF LDA #$FF
C255: 85 5B STA workRam+5B ; set the depth-low guard to 0xff
C257: B9 9C BC LDA rom+2C9C,Y ; read the per-shape X reference
C25A: 85 60 STA workRam+60 ; into the projection X reference
C25C: B9 CC BC LDA rom+2CCC,Y ; read the per-shape level gate flag
C25F: 8D 11 01 STA workRam+111 ; into the tube-geometry flag
C262: A5 02 LDA workRam+2 ; load the pending game mode
C264: C9 1E CMP #$1E
C266: D0 0D BNE loc_c275 ; branch unless the pending mode is 0x1e
C268: B9 AC BC LDA rom+2CAC,Y ; copy the per-shape offset-pair low
C26B: 85 68 STA workRam+68 ; into the X offset low
C26D: B9 BC BC LDA rom+2CBC,Y ; copy the per-shape offset-pair high
C270: 85 69 STA workRam+69 ; into the X offset high
C272: B8 CLV
C273: 50 18 BVC loc_c28d ;
loc_c275:
C275: B9 AC BC LDA rom+2CAC,Y ; offset-pair low minus current -- geometry scale
C278: 38 SEC
C279: E5 68 SBC workRam+68 ;
C27B: 8D 21 01 STA workRam+121 ; store the geometry scale low byte
C27E: B9 BC BC LDA rom+2CBC,Y ;
C281: ED 69 00 SBC workRam+69 ; offset-pair high minus current
C284: A2 03 LDX #$03
loc_c286:
C286: 4A LSR A ; shift the 16-bit scale right by four
C287: 6E 21 01 ROR workRam+121 ;
C28A: CA DEX
C28B: 10 F9 BPL loc_c286 ;
loc_c28d:
C28D: A9 00 LDA #$00
C28F: 85 66 STA workRam+66 ; clear the Y offset low
C291: 85 67 STA workRam+67 ; clear the Y offset high
C293: A9 00 LDA #$00
C295: 8D 0F 01 STA workRam+10F ;
C298: 8D 10 01 STA workRam+110 ;
C29B: A9 2C LDA #$2C
C29D: 8D 13 01 STA workRam+113 ; seed the record-count cell at 0x2c
C2A0: 68 PLA ; restore the packed shape index
C2A1: A8 TAY
C2A2: A2 0F LDX #$0F
loc_c2a4:
C2A4: B9 7C B9 LDA rom+297C,Y ; read the ROM lane vertex X
C2A7: 9D CE 03 STA workRam+3CE,X ; into the working lane base X
C2AA: B9 7C BA LDA rom+2A7C,Y ; read the ROM lane vertex Y
C2AD: 9D DE 03 STA workRam+3DE,X ; into the working lane base Y
C2B0: A9 00 LDA #$00
C2B2: 9D 1A 03 STA workRam+31A,X ; clear the per-column plane-A value
C2B5: 9D 3A 03 STA workRam+33A,X ; clear the per-column plane-B value
C2B8: 9D 9A 03 STA workRam+39A,X ; clear the per-lane target flag
C2BB: B9 7C BB LDA rom+2B7C,Y ; read the ROM ring-heading seed
C2BE: 9D EE 03 STA workRam+3EE,X ; into the segment direction table
C2C1: 88 DEY
C2C2: CA DEX
C2C3: 10 DF BPL loc_c2a4 ; loop over the sixteen lanes
C2C5: A0 00 LDY #$00
C2C7: A2 0F LDX #$0F
loc_c2c9:
C2C9: B9 CE 03 LDA workRam+3CE,Y ;
C2CC: 38 SEC
C2CD: 7D CE 03 ADC workRam+3CE,X ; sum adjacent lanes' X
C2D0: 6A ROR A ; rounding-average into the midpoint X
C2D1: 9D 35 04 STA workRam+435,X ; store the lane midpoint X
C2D4: B9 DE 03 LDA workRam+3DE,Y ;
C2D7: 38 SEC
C2D8: 7D DE 03 ADC workRam+3DE,X ; sum adjacent lanes' Y
C2DB: 6A ROR A ; rounding-average into the midpoint Y
C2DC: 9D 45 04 STA workRam+445,X ; store the lane midpoint Y
C2DF: 88 DEY
C2E0: 10 02 BPL loc_c2e4 ;
C2E2: A0 0F LDY #$0F ; wrap the second cursor back to the top lane
loc_c2e4:
C2E4: CA DEX
C2E5: 10 E2 BPL loc_c2c9 ; loop the midpoint fill
C2E7: 60 RTS
; reduce an input byte into the level/shape table index: values >= 0x62
; are swapped for the POKEY random byte 0x60ca AND 0x5f, the value is
; split into quotient (>>4) and remainder (&0x0f), the remainder indexes
; ROM table 0xbc7c whose entry is stored to shape-index cell 0x112 and
; returned packed into the high nibble with the low nibble forced to 0x0f
; (quotient/remainder in X/Y).
resolveShapeTableIndex:
C2E8: A2 00 LDX #$00
C2EA: C9 62 CMP #$62 ; pass values under 0x62 straight through
C2EC: 90 05 BCC loc_c2f3 ;
C2EE: AD CA 60 LDA pokey1+A ; otherwise pull the POKEY random byte
C2F1: 29 5F AND #$5F ; mask it to range
loc_c2f3:
C2F3: C9 10 CMP #$10
loc_c2f5:
C2F5: 90 04 BCC loc_c2fb ;
C2F7: E8 INX ; bump the quotient
C2F8: 38 SEC
C2F9: E9 10 SBC #$10 ; subtract 0x10
loc_c2fb:
C2FB: C9 10 CMP #$10
C2FD: B0 F6 BCS loc_c2f5 ; loop -- quotient is the value shifted right four, A the remainder
C2FF: A8 TAY
C300: B9 7C BC LDA rom+2C7C,Y ; map the remainder through the ROM shape table
C303: 8D 12 01 STA workRam+112 ; store the shape/level index
C306: 0A ASL A
C307: 0A ASL A
C308: 0A ASL A
C309: 0A ASL A
C30A: 09 0F ORA #$0F ; force the low nibble to 0x0f
C30C: 60 RTS
; first-time rim-counter setup: when loc_110==0 seed loc_110/loc_10f
; through the projection integrator projectAllLanesThroughMathbox (nudging
; the low counter via snapCoordUpToReference when it lags at index 0x0f),
; always emit a header (emitBlankVectorWordTag70, loc_9e=0x06), return
; unless both counters live and loc_113!=0, then clear the record slots
; two-at-a-time via drawFramedCounterSlot and draw each counter's record
; set with drawGatedRecordLoop.
initAndDrawRimDepthCounters:
C30D: AD 10 01 LDA workRam+110 ; test whether the rim counter is already live
C310: D0 27 BNE loc_c339 ; skip the first-time setup when it is
C312: A9 F0 LDA #$F0
C314: 85 57 STA workRam+57 ; seed the object depth at the far wall
C316: A2 4F LDX #$4F
C318: 20 73 C4 JSR projectAllLanesThroughMathbox; project all lanes -- returns the clamp count
C31B: 8D 10 01 STA workRam+110 ; store it as the rim counter
C31E: F0 03 BEQ loc_c323 ;
C320: 8D 0F 01 STA workRam+10F ; mirror it into the second counter
loc_c323:
C323: AD 0F 01 LDA workRam+10F ;
C326: D0 11 BNE loc_c339 ;
C328: A9 10 LDA #$10
C32A: 85 57 STA workRam+57 ; seed the object depth at the near rim
C32C: 20 53 C4 JSR snapCoordUpToReference; snap the depth up to reference
C32F: A5 57 LDA workRam+57 ;
C331: A2 0F LDX #$0F
C333: 20 73 C4 JSR projectAllLanesThroughMathbox; project the lanes again
C336: 8D 0F 01 STA workRam+10F ; store the near counter
loc_c339:
C339: A9 01 LDA #$01
C33B: 20 6A DF JSR emitBlankVectorWordTag70; emit a blank leading vector word
C33E: A0 06 LDY #$06
C340: 84 9E STY workRam+9E ; select color mode 6
C342: AE 10 01 LDX workRam+110 ; load the rim counter
C345: F0 01 BEQ loc_c348 ;
C347: 60 RTS ; bail when the counter is zero
loc_c348:
C348: AE 13 01 LDX workRam+113 ; load the record-count cell
C34B: D0 01 BNE loc_c34e ;
C34D: 60 RTS ; bail when it is zero
loc_c34e:
C34E: A2 0F LDX #$0F
loc_c350:
C350: A9 C0 LDA #$C0
C352: 20 EE C3 JSR drawFramedCounterSlot; clear a framed counter slot pair
C355: CA DEX
C356: 10 F8 BPL loc_c350 ; loop over sixteen slots
C358: A0 06 LDY #$06
C35A: 84 9E STY workRam+9E ; select color mode 6
C35C: A9 08 LDA #$08
C35E: 20 4C DF JSR emitTaggedVectorWord; emit a tagged vector word
C361: A0 4F LDY #$4F
C363: AD 10 01 LDA workRam+110 ; load the far rim counter
C366: 20 6E C3 JSR drawGatedRecordLoop ; draw its record set
C369: A0 0F LDY #$0F
C36B: AD 0F 01 LDA workRam+10F ; load the near rim counter
; Returns when gate A is nonzero; else seats loc_61-64 from
; loc_32a/loc_31a/loc_34a/loc_33a at loc_37, emits the header (c772), and
; draws one record per pass over 0x0f passes (0x0e when loc_111 is set),
; bumping the index by 0x10 on low-nibble wrap.
drawGatedRecordLoop:
C36E: D0 49 BNE loc_c3b9 ; return when the gate byte is nonzero
C370: 84 37 STY workRam+37 ; seat the slot loop index
C372: B9 2A 03 LDA workRam+32A,Y ; load the column plane-A sub into the projected Y low
C375: 85 61 STA workRam+61 ;
C377: B9 1A 03 LDA workRam+31A,Y ; load the plane-A value into the projected Y high
C37A: 85 62 STA workRam+62 ;
C37C: B9 4A 03 LDA workRam+34A,Y ; load the plane-B sub into the projected X low
C37F: 85 63 STA workRam+63 ;
C381: B9 3A 03 LDA workRam+33A,Y ; load the plane-B value into the projected X high
C384: 85 64 STA workRam+64 ;
C386: A2 61 LDX #$61
C388: 20 72 C7 JSR emitObjectPositionVector; emit the object's position vector
C38B: A5 74 LDA workRam+74 ;
C38D: 85 B0 STA workRam+B0 ; cache the draw cursor low
C38F: A5 75 LDA workRam+75 ;
C391: 85 B1 STA workRam+B1 ; cache the draw cursor high
C393: A2 0F LDX #$0F
C395: AD 11 01 LDA workRam+111 ; test the tube-geometry flag
C398: F0 01 BEQ loc_c39b ;
C39A: CA DEX ; drop to fifteen passes when the flag is set
loc_c39b:
C39B: A9 C0 LDA #$C0
C39D: 85 73 STA workRam+73 ; set the record header to 0xc0
C39F: 86 38 STX workRam+38 ;
loc_c3a1:
C3A1: C6 37 DEC workRam+37 ; step the slot index back one
C3A3: A5 37 LDA workRam+37 ;
C3A5: 29 0F AND #$0F
C3A7: C9 0F CMP #$0F
C3A9: D0 07 BNE loc_c3b2 ;
C3AB: A5 37 LDA workRam+37 ;
C3AD: 18 CLC
C3AE: 69 10 ADC #$10 ; wrap the index up by 0x10 on low-nibble underflow
C3B0: 85 37 STA workRam+37 ;
loc_c3b2:
C3B2: 20 23 C4 JSR emitProjectedSlotRecord; emit the projected slot record
C3B5: C6 38 DEC workRam+38 ;
C3B7: 10 E8 BPL loc_c3a1 ; loop the passes
loc_c3b9:
C3B9: 60 RTS
; Forms two 16-bit differences of loc_61/loc_63 minus previous
; loc_6a/loc_6c into delta slots loc_6e-loc_71, emits the record, latches
; current into loc_6a-loc_6d, and sets loc_73=0xc0.
emitCoordDeltaRecord:
C3BA: A5 61 LDA workRam+61 ;
C3BC: 38 SEC
C3BD: E5 6A SBC workRam+6A ; projected Y low minus previous -- delta low
C3BF: 85 6E STA workRam+6E ; store the Y delta low
C3C1: A5 62 LDA workRam+62 ;
C3C3: E5 6B SBC workRam+6B ; subtract the previous Y high
C3C5: 85 6F STA workRam+6F ; store the Y delta high
C3C7: A5 63 LDA workRam+63 ;
C3C9: 38 SEC
C3CA: E5 6C SBC workRam+6C ; projected X low minus previous -- delta low
C3CC: 85 70 STA workRam+70 ; store the X delta low
C3CE: A5 64 LDA workRam+64 ;
C3D0: E5 6D SBC workRam+6D ; subtract the previous X high
C3D2: 85 71 STA workRam+71 ; store the X delta high
C3D4: A2 6E LDX #$6E
C3D6: 20 92 DF JSR emitCoordinateRecord; emit the coordinate delta record
C3D9: A5 61 LDA workRam+61 ;
C3DB: 85 6A STA workRam+6A ; latch the current Y low as previous
C3DD: A5 62 LDA workRam+62 ;
C3DF: 85 6B STA workRam+6B ;
C3E1: A5 63 LDA workRam+63 ;
C3E3: 85 6C STA workRam+6C ; latch the current X low as previous
C3E5: A5 64 LDA workRam+64 ;
C3E7: 85 6D STA workRam+6D ;
C3E9: A9 C0 LDA #$C0
C3EB: 85 73 STA workRam+73 ; reset the record header to 0xc0
C3ED: 60 RTS
; draw a framed counter element in two passes: emit slot loc_37 with
; colour loc_73 live ($C43C/$C423), step loc_37 back one and re-emit
; uncoloured, restore the colour and close the frame ($C3BA); return the
; stepped-back index.
drawFramedCounterSlot:
C3EE: 86 37 STX workRam+37 ; seat the slot index
C3F0: 48 PHA ; save the color header
C3F1: A4 9E LDY workRam+9E ;
C3F3: A9 08 LDA #$08
C3F5: 20 4C DF JSR emitTaggedVectorWord; emit a tagged vector word
C3F8: 20 3C C4 JSR loadSlotCoordBlock ; load the slot's coordinate block
C3FB: A2 61 LDX #$61
C3FD: 20 72 C7 JSR emitObjectPositionVector; emit the object's position vector
C400: 68 PLA
C401: 85 73 STA workRam+73 ; restore the live color header
C403: 48 PHA
C404: 20 23 C4 JSR emitProjectedSlotRecord; emit the colored slot record
C407: C6 37 DEC workRam+37 ; step the slot back one
C409: A4 9E LDY workRam+9E ;
C40B: A9 00 LDA #$00
C40D: 85 73 STA workRam+73 ; blank the header for the uncolored pass
C40F: A9 08 LDA #$08
C411: 20 4C DF JSR emitTaggedVectorWord; emit a tagged vector word
C414: 20 23 C4 JSR emitProjectedSlotRecord; re-emit the slot record uncolored
C417: 68 PLA
C418: 85 73 STA workRam+73 ; restore the color header
C41A: 20 3C C4 JSR loadSlotCoordBlock ; reload the slot's coordinate block
C41D: 20 BA C3 JSR emitCoordDeltaRecord; close the frame via the coordinate-delta record
C420: A6 37 LDX workRam+37 ; return the stepped-back index
C422: 60 RTS
; Copies slot loc_37's projected-delta cells
; loc_32a/loc_31a/loc_34a/loc_33a into loc_61-loc_64 and emits the delta
; record.
emitProjectedSlotRecord:
C423: A6 37 LDX workRam+37 ; load the slot index
C425: BD 2A 03 LDA workRam+32A,X ; load plane-A sub into the projected Y low
C428: 85 61 STA workRam+61 ;
C42A: BD 1A 03 LDA workRam+31A,X ; load plane-A value into the projected Y high
C42D: 85 62 STA workRam+62 ;
C42F: BD 4A 03 LDA workRam+34A,X ; load plane-B sub into the projected X low
C432: 85 63 STA workRam+63 ;
C434: BD 3A 03 LDA workRam+33A,X ; load plane-B value into the projected X high
C437: 85 64 STA workRam+64 ;
C439: 4C BA C3 JMP emitCoordDeltaRecord; emit the coordinate delta record
; Reads slot index loc_37 and copies that column of
; loc_36a/loc_35a/loc_38a/loc_37a into the working coord block
; loc_61-loc_64.
loadSlotCoordBlock:
C43C: A6 37 LDX workRam+37 ; load the slot index
C43E: BD 6A 03 LDA workRam+36A,X ; load the per-object Y-delta low
C441: 85 61 STA workRam+61 ;
C443: BD 5A 03 LDA workRam+35A,X ; load the per-object Y-delta high
C446: 85 62 STA workRam+62 ;
C448: BD 8A 03 LDA workRam+38A,X ; load the per-object X-delta low
C44B: 85 63 STA workRam+63 ;
C44D: BD 7A 03 LDA workRam+37A,X ; load the per-object X-delta high
C450: 85 64 STA workRam+64 ;
C452: 60 RTS
; When guard loc_5b is clear and loc_57 sits under 0x0c above reference
; loc_5f, raises loc_57 to loc_5f+0x0f, capped at ceiling 0xf0.
snapCoordUpToReference:
C453: A5 5B LDA workRam+5B ; load the depth-low guard
C455: D0 1A BNE loc_c471 ; bail unless the guard is clear
C457: A5 57 LDA workRam+57 ;
C459: 38 SEC
C45A: E5 5F SBC workRam+5F ; object depth minus reference
C45C: 90 02 BCC loc_c460 ;
C45E: C9 0C CMP #$0C
loc_c460:
C460: B0 0F BCS loc_c471 ; bail when the gap is too wide
C462: A5 5F LDA workRam+5F ;
C464: 18 CLC
C465: 69 0F ADC #$0F ; form reference plus 0x0f
C467: B0 02 BCS loc_c46b ;
C469: C9 F0 CMP #$F0
loc_c46b:
C46B: 90 02 BCC loc_c46f ;
C46D: A9 F0 LDA #$F0 ; cap at the ceiling 0xf0
loc_c46f:
C46F: 85 57 STA workRam+57 ; raise the object depth
loc_c471:
C471: 60 RTS
; ---- $C472-$C472: data ----
C472: DB
; project the sixteen tube lanes: from loc_57=A and out index loc_38=x,
; run 16 passes loading each column's base coords from loc_3ce/loc_3de
; into loc_56/loc_58, drive projectPointThroughMathbox, clamp both signed
; high-byte results into [-4..+3] (0xfc..0x03) writing value/sign into
; loc_31a/loc_32a and loc_33a/loc_34a at loc_38, tally each clamp in
; loc_59, and return the clamp count.
projectAllLanesThroughMathbox:
C473: 85 57 STA workRam+57 ; seed the object depth from A
C475: 86 38 STX workRam+38 ; stash the output index
C477: A9 00 LDA #$00
C479: 85 59 STA workRam+59 ; clear the clamp tally
C47B: A2 0F LDX #$0F
C47D: 86 37 STX workRam+37 ;
loc_c47f:
C47F: A6 37 LDX workRam+37 ;
C481: BD CE 03 LDA workRam+3CE,X ; load the lane base X into the projection operand
C484: 85 56 STA workRam+56 ;
C486: BD DE 03 LDA workRam+3DE,X ; load the lane base Y into the projection operand
C489: 85 58 STA workRam+58 ;
C48B: 20 98 C0 JSR projectPointThroughMathbox; project the point through the math box
C48E: A6 38 LDX workRam+38 ;
C490: A4 61 LDY workRam+61 ; load the projected Y low
C492: A5 62 LDA workRam+62 ; load the projected Y high
C494: 30 0D BMI loc_c4a3 ; branch to clamp the low side on a negative result
C496: C9 04 CMP #$04
C498: 90 06 BCC loc_c4a0 ; within range -- keep the value
C49A: A0 FF LDY #$FF
C49C: A9 03 LDA #$03 ; clamp the high side to +3
C49E: E6 59 INC workRam+59 ; tally the clamp
loc_c4a0:
C4A0: B8 CLV
C4A1: 50 0A BVC loc_c4ad ;
loc_c4a3:
C4A3: C9 FC CMP #$FC ; compare against the low limit
C4A5: B0 06 BCS loc_c4ad ;
C4A7: A0 01 LDY #$01
C4A9: A9 FC LDA #$FC ; clamp the low side to -4
C4AB: E6 59 INC workRam+59 ; tally the clamp
loc_c4ad:
C4AD: 9D 1A 03 STA workRam+31A,X ; store the clamped value into plane A
C4B0: 98 TYA
C4B1: 9D 2A 03 STA workRam+32A,X ; store the sign into the plane-A sub
C4B4: A4 63 LDY workRam+63 ; load the projected X low
C4B6: A5 64 LDA workRam+64 ; load the projected X high
C4B8: 30 0D BMI loc_c4c7 ;
C4BA: C9 04 CMP #$04
C4BC: 90 06 BCC loc_c4c4 ;
C4BE: A0 FF LDY #$FF
C4C0: A9 03 LDA #$03 ; clamp the high side to +3
C4C2: E6 59 INC workRam+59 ; tally the clamp
loc_c4c4:
C4C4: B8 CLV
C4C5: 50 0A BVC loc_c4d1 ;
loc_c4c7:
C4C7: C9 FC CMP #$FC
C4C9: B0 06 BCS loc_c4d1 ;
C4CB: A9 FC LDA #$FC ; clamp the low side to -4
C4CD: A0 01 LDY #$01
C4CF: E6 59 INC workRam+59 ; tally the clamp
loc_c4d1:
C4D1: 9D 3A 03 STA workRam+33A,X ; store the clamped value into plane B
C4D4: 98 TYA
C4D5: 9D 4A 03 STA workRam+34A,X ; store the sign into the plane-B sub
C4D8: C6 38 DEC workRam+38 ;
C4DA: C6 37 DEC workRam+37 ;
C4DC: 10 A1 BPL loc_c47f ; loop over the sixteen lanes
C4DE: A5 59 LDA workRam+59 ; return the clamp count
C4E0: 60 RTS
; draw a sixteen-segment tube-shape outline: reduce the input byte via
; resolveShapeTableIndex (reduced->loc_36, quotient->loc_35), emit a
; framing record, pick a header from $C22D by loc_35&0x07 into loc_9e,
; seat the first vertex from $B97C/$BA7C (biased 0x80, seed rolled back
; 0x0f when $BCCC+loc_112 is zero), then walk 16 steps emitting each
; signed vertex delta from $B97C/$BA7C.
drawTubeShapeOutline:
C4E1: 20 E8 C2 JSR resolveShapeTableIndex; reduce the input byte to a shape index
C4E4: 85 36 STA workRam+36 ; save the reduced value
C4E6: 86 35 STX workRam+35 ; save the quotient
C4E8: A9 00 LDA #$00
C4EA: 85 73 STA workRam+73 ; blank the record header
C4EC: A9 05 LDA #$05
C4EE: 20 6A DF JSR emitBlankVectorWordTag70; emit a leading vector word
C4F1: A5 35 LDA workRam+35 ;
C4F3: 29 07 AND #$07
C4F5: AA TAX
C4F6: BC 2D C2 LDY rom+322D,X ; pick the outline header from ROM
C4F9: 84 9E STY workRam+9E ; stash it as the color mode
C4FB: A9 08 LDA #$08
C4FD: 20 4C DF JSR emitTaggedVectorWord; emit a tagged vector word
C500: AE 12 01 LDX workRam+112 ; load the shape/level index
C503: A5 36 LDA workRam+36 ;
C505: BC CC BC LDY rom+2CCC,X ; read the per-shape level gate flag
C508: D0 03 BNE loc_c50d ;
C50A: 38 SEC
C50B: E9 0F SBC #$0F ; roll the first-vertex seed back 0x0f when the gate is clear
loc_c50d:
C50D: A8 TAY
C50E: B9 7C BA LDA rom+2A7C,Y ; read the ROM lane vertex Y
C511: 85 57 STA workRam+57 ; seed the vertex Y
C513: 49 80 EOR #$80 ; bias by 0x80
C515: AA TAX
C516: B9 7C B9 LDA rom+297C,Y ; read the ROM lane vertex X
C519: 85 56 STA workRam+56 ; seed the vertex X
C51B: 49 80 EOR #$80 ; bias by 0x80
C51D: 20 75 DF JSR emitScaledCoordinateRecord; emit the first scaled vertex record
C520: A9 C0 LDA #$C0
C522: 85 73 STA workRam+73 ; set the record header to 0xc0
C524: A2 0F LDX #$0F
C526: 86 38 STX workRam+38 ; sixteen segments
loc_c528:
C528: A4 36 LDY workRam+36 ;
C52A: B9 7C B9 LDA rom+297C,Y ; read the next lane vertex X
C52D: AA TAX
C52E: 38 SEC
C52F: E5 56 SBC workRam+56 ; delta from the previous X
C531: 48 PHA
C532: 86 56 STX workRam+56 ; cache it as the previous X
C534: B9 7C BA LDA rom+2A7C,Y ; read the next lane vertex Y
C537: A8 TAY
C538: 38 SEC
C539: E5 57 SBC workRam+57 ; delta from the previous Y
C53B: AA TAX
C53C: 84 57 STY workRam+57 ; cache it as the previous Y
C53E: 68 PLA
C53F: 20 75 DF JSR emitScaledCoordinateRecord; emit the signed vertex delta record
C542: C6 36 DEC workRam+36 ;
C544: C6 38 DEC workRam+38 ;
C546: 10 E0 BPL loc_c528 ; loop the sixteen segments
C548: A9 01 LDA #$01
C54A: 4C 6A DF JMP emitBlankVectorWordTag70; emit the trailing blank word and return
; draw eight slots from table 0x3fe while guard 0x115 is set (forcing
; 0x5f=0xe8, 0x5b=0xff, 0xa0=0x28): per non-empty entry seat 0x57 with
; 0x56=0x58=0x80, pick a colour mode into 0x9e (slot&7 with 7->4 when
; 0x9f>=5, else 6), emit via emitTaggedVectorWord, set style
; 0x55=((slot&3)<<1)+0x0a, and draw via emitColoredShapeVector; restore
; the forced cells; tail increments 0x200+0x40 when 0x11f set and
; 0x42>=0x15.
drawTimedObjectList:
C54D: AD 15 01 LDA workRam+115 ; load the descending-object guard
C550: F0 5F BEQ loc_c5b1 ; skip the list when the guard is clear
C552: A5 5F LDA workRam+5F ;
C554: 48 PHA ; save the depth high byte
C555: A5 5B LDA workRam+5B ;
C557: 48 PHA ; save the depth guard
C558: A5 A0 LDA workRam+A0 ;
C55A: 48 PHA ; save the span cell
C55B: A9 E8 LDA #$E8
C55D: 85 5F STA workRam+5F ; force the depth high to 0xe8
C55F: A9 FF LDA #$FF
C561: 85 5B STA workRam+5B ; force the depth guard to 0xff
C563: A9 28 LDA #$28
C565: 85 A0 STA workRam+A0 ; force the span cell to 0x28
C567: A2 07 LDX #$07
C569: 86 37 STX workRam+37 ; eight object slots
loc_c56b:
C56B: A6 37 LDX workRam+37 ;
C56D: BD FE 03 LDA workRam+3FE,X ; read the object table entry
C570: F0 32 BEQ loc_c5a4 ; skip an empty entry
C572: 85 57 STA workRam+57 ; entry into the object depth
C574: A9 80 LDA #$80
C576: 85 56 STA workRam+56 ; center the X operand
C578: A9 80 LDA #$80
C57A: 85 58 STA workRam+58 ; center the Y operand
C57C: A5 9F LDA workRam+9F ; load the level
C57E: C9 05 CMP #$05
C580: B0 05 BCS loc_c587 ; high levels take the per-slot color path
C582: A9 06 LDA #$06 ; color mode 6 for low levels
C584: B8 CLV
C585: 50 09 BVC loc_c590 ;
loc_c587:
C587: 8A TXA
C588: 29 07 AND #$07
C58A: C9 07 CMP #$07 ; is this the last slot
C58C: D0 02 BNE loc_c590 ;
C58E: A9 04 LDA #$04 ; the last slot uses color mode 4
loc_c590:
C590: 85 9E STA workRam+9E ; store the color mode
C592: A8 TAY
C593: A9 08 LDA #$08
C595: 20 4C DF JSR emitTaggedVectorWord; emit a tagged vector word
C598: A5 37 LDA workRam+37 ;
C59A: 29 03 AND #$03
C59C: 0A ASL A ; form the draw style from the slot's low bits
C59D: 69 0A ADC #$0A
C59F: 85 55 STA workRam+55 ; store the draw style
C5A1: 20 09 BD JSR emitColoredShapeVector; draw the colored shape vector
loc_c5a4:
C5A4: C6 37 DEC workRam+37 ;
C5A6: 10 C3 BPL loc_c56b ; loop the eight slots
C5A8: 68 PLA
C5A9: 85 A0 STA workRam+A0 ; restore the span cell
C5AB: 68 PLA
C5AC: 85 5B STA workRam+5B ; restore the depth guard
C5AE: 68 PLA
C5AF: 85 5F STA workRam+5F ; restore the depth high byte
loc_c5b1:
C5B1: AD 1F 01 LDA workRam+11F ; test the award gate
C5B4: F0 0B BEQ loc_c5c1 ;
C5B6: A6 42 LDX workRam+42 ;
C5B8: E0 15 CPX #$15 ; require the counter to have reached 0x15
C5BA: 90 05 BCC loc_c5c1 ;
C5BC: A6 40 LDX workRam+40 ; index the player's rim segment
C5BE: FE 00 02 INC workRam+200,X ; bump that segment's tally
loc_c5c1:
C5C1: 60 RTS
; rebuild the per-frame enemy display list over up to sixteen slots (0x37
; from 0x0f, 0x0e when 0x111 set): early-out on gates 0x110/0x5b/0x5f,
; then per slot copy the fixed 4-byte header 0xc669 through cursor 0x74 at
; offset 0xa9 and append either a computed midpoint pair
; (emitSlotMidpointVertex + emitEnemySlotEntry) when 0x114 set, or a
; straight/sign-fixed coordinate block read from ($aa); restores the saved
; cursor 0xaa/0xab and flushes via advanceDisplayCursor.
buildEnemyDisplayList:
C5C2: AD 10 01 LDA workRam+110 ; load the rim counter gate
C5C5: F0 01 BEQ loc_c5c8 ;
C5C7: 60 RTS ; bail when the counter is live
loc_c5c8:
C5C8: A5 5B LDA workRam+5B ; load the depth guard
C5CA: D0 07 BNE loc_c5d3 ;
C5CC: A5 5F LDA workRam+5F ;
C5CE: C9 F0 CMP #$F0 ; compare the depth against the ceiling
C5D0: 90 01 BCC loc_c5d3 ;
C5D2: 60 RTS ; bail when the depth is at the ceiling
loc_c5d3:
C5D3: A9 01 LDA #$01
C5D5: 20 6A DF JSR emitBlankVectorWordTag70; emit a blank leading vector word
C5D8: A5 74 LDA workRam+74 ;
C5DA: 48 PHA ; save the draw cursor low
C5DB: A5 75 LDA workRam+75 ;
C5DD: 48 PHA ; save the draw cursor high
C5DE: A9 00 LDA #$00
C5E0: 85 38 STA workRam+38 ; clear the table cursor
C5E2: 85 A9 STA workRam+A9 ; clear the draw-cursor offset
C5E4: A2 0F LDX #$0F
C5E6: AD 11 01 LDA workRam+111 ; test the tube-geometry flag
C5E9: F0 01 BEQ loc_c5ec ;
C5EB: CA DEX ; drop to fifteen slots when the flag is set
loc_c5ec:
C5EC: 86 37 STX workRam+37 ; seat the slot loop index
loc_c5ee:
C5EE: A2 03 LDX #$03
C5F0: A4 A9 LDY workRam+A9 ;
loc_c5f2:
C5F2: BD 69 C6 LDA rom+3669,X ; read the fixed enemy-list header
C5F5: 91 74 STA (workRam+74),Y ; write the header byte through the cursor
C5F7: C8 INY
C5F8: CA DEX
C5F9: 10 F7 BPL loc_c5f2 ; copy the four header bytes
C5FB: 84 A9 STY workRam+A9 ; advance the cursor offset
C5FD: AD 14 01 LDA workRam+114 ; test the display-dirty flag
C600: D0 4A BNE loc_c64c ; take the midpoint path when dirty
C602: A6 38 LDX workRam+38 ;
C604: BD 9A 03 LDA workRam+39A,X ; read the lane target flag
C607: 30 11 BMI loc_c61a ; a flagged lane takes the full-record path
C609: A2 0B LDX #$0B
C60B: A4 A9 LDY workRam+A9 ;
loc_c60d:
C60D: B1 AA LDA (workRam+AA),Y ; read a source record byte
C60F: 91 74 STA (workRam+74),Y ; copy it through the cursor
C611: C8 INY
C612: CA DEX
C613: 10 F8 BPL loc_c60d ; copy the twelve-byte block
C615: 84 A9 STY workRam+A9 ; advance the cursor offset
C617: B8 CLV
C618: 50 2F BVC loc_c649 ;
loc_c61a:
C61A: A4 A9 LDY workRam+A9 ;
C61C: B1 AA LDA (workRam+AA),Y ; read the source X low
C61E: 91 74 STA (workRam+74),Y ; copy it through the cursor
C620: 85 6C STA workRam+6C ; cache it as the previous X low
C622: C8 INY
C623: B1 AA LDA (workRam+AA),Y ; read the source X high
C625: 91 74 STA (workRam+74),Y ; copy it through the cursor
C627: C9 10 CMP #$10
C629: 90 02 BCC loc_c62d ;
C62B: 09 E0 ORA #$E0 ; sign-extend the high nibble
loc_c62d:
C62D: 85 6D STA workRam+6D ; store the previous X high
C62F: C8 INY
C630: B1 AA LDA (workRam+AA),Y ; read the source Y low
C632: 91 74 STA (workRam+74),Y ; copy it through the cursor
C634: 85 6A STA workRam+6A ; cache it as the previous Y low
C636: C8 INY
C637: B1 AA LDA (workRam+AA),Y ; read the source Y high
C639: 91 74 STA (workRam+74),Y ; copy it through the cursor
C63B: C9 10 CMP #$10
C63D: 90 02 BCC loc_c641 ;
C63F: 09 E0 ORA #$E0 ; sign-extend the high nibble
loc_c641:
C641: 85 6B STA workRam+6B ; store the previous Y high
C643: C8 INY
C644: 84 A9 STY workRam+A9 ; advance the cursor offset
C646: 20 C7 C6 JSR emitEnemySlotEntry ; emit the enemy-slot entry
loc_c649:
C649: B8 CLV
C64A: 50 06 BVC loc_c652 ;
loc_c64c:
C64C: 20 6D C6 JSR emitSlotMidpointVertex; emit the slot midpoint vertex
C64F: 20 C7 C6 JSR emitEnemySlotEntry ; emit the enemy-slot entry
loc_c652:
C652: A6 38 LDX workRam+38 ;
C654: 1E 9A 03 ASL workRam+39A,X ; shift the lane target flag left
C657: E6 38 INC workRam+38 ; step to the next table slot
C659: C6 37 DEC workRam+37 ;
C65B: 10 91 BPL loc_c5ee ; loop the slots
C65D: 68 PLA
C65E: 85 AB STA workRam+AB ; restore the source pointer high
C660: 68 PLA
C661: 85 AA STA workRam+AA ; restore the source pointer low
C663: A4 A9 LDY workRam+A9 ;
C665: 88 DEY
C666: 4C 5F DF JMP advanceDisplayCursor; flush by advancing the display cursor
; ---- $C669-$C66C: data ----
C669: 80 40 68 05
; Round-up averages tube slot loc_38's two coord pairs (loc_36a/loc_35a,
; loc_38a/loc_37a) with its wrap neighbour (loc_38+1 & 0x0f) into
; loc_61-loc_64 and appends four midpoint bytes (high bytes masked 0x1f)
; to the display list at loc_a9.
emitSlotMidpointVertex:
C66D: A5 38 LDA workRam+38 ; read the active tube lane (0..15)
C66F: AA TAX
C670: 18 CLC
C671: 69 01 ADC #$01 ; step to the next lane
C673: 29 0F AND #$0F ; wrap the neighbour lane index around the 16-lane ring
C675: A8 TAY
C676: BD 6A 03 LDA workRam+36A,X ; this lane's Y coordinate
C679: 38 SEC
C67A: 79 6A 03 ADC workRam+36A,Y ; add the neighbour lane's Y, rounded up by one
C67D: 85 61 STA workRam+61 ; stash the Y sum low byte
C67F: BD 5A 03 LDA workRam+35A,X ;
C682: 79 5A 03 ADC workRam+35A,Y ;
C685: 85 62 STA workRam+62 ; carry into the Y sum high byte
C687: 0A ASL A ; halve the 16-bit Y sum, preserving its sign -- the lane-pair Y midpoint
C688: 66 62 ROR workRam+62 ;
C68A: 66 61 ROR workRam+61 ;
C68C: BD 8A 03 LDA workRam+38A,X ; this lane's X coordinate
C68F: 38 SEC
C690: 79 8A 03 ADC workRam+38A,Y ; add the neighbour lane's X, rounded up
C693: 85 63 STA workRam+63 ; stash the X sum low byte
C695: BD 7A 03 LDA workRam+37A,X ;
C698: 79 7A 03 ADC workRam+37A,Y ;
C69B: 85 64 STA workRam+64 ; carry into the X sum high byte
C69D: 0A ASL A ; halve the 16-bit X sum, preserving its sign -- the lane-pair X midpoint
C69E: 66 64 ROR workRam+64 ;
C6A0: 66 63 ROR workRam+63 ;
C6A2: A4 A9 LDY workRam+A9 ; load the running byte offset into the display list
C6A4: A5 63 LDA workRam+63 ;
C6A6: 91 74 STA (workRam+74),Y ; write the X midpoint low byte to the display list
C6A8: C8 INY
C6A9: 85 6C STA workRam+6C ; mirror it as the previous-point X low
C6AB: A5 64 LDA workRam+64 ;
C6AD: 85 6D STA workRam+6D ; previous-point X high
C6AF: 29 1F AND #$1F ; strip the vector-opcode tag bits from the high byte
C6B1: 91 74 STA (workRam+74),Y ; write the X midpoint high byte
C6B3: C8 INY
C6B4: A5 61 LDA workRam+61 ;
C6B6: 91 74 STA (workRam+74),Y ; write the Y midpoint low byte
C6B8: C8 INY
C6B9: 85 6A STA workRam+6A ; mirror it as the previous-point Y low
C6BB: A5 62 LDA workRam+62 ;
C6BD: 85 6B STA workRam+6B ; previous-point Y high
C6BF: 29 1F AND #$1F ; strip the vector-opcode tag bits
C6C1: 91 74 STA (workRam+74),Y ; write the Y midpoint high byte
C6C3: C8 INY
C6C4: 84 A9 STY workRam+A9 ; commit the advanced list offset -- four bytes appended
C6C6: 60 RTS
; Emits one enemy-slot vector entry keyed by kind byte loc_3ac+loc_38:
; four blank+0x71 pairs when inactive, else seats loc_57/loc_56/loc_58,
; clamps depth via c453, runs c098/c73c, and appends a random ($60CA-
; selected) or fixed marker word per loc_39a bit6.
emitEnemySlotEntry:
C6C7: A6 38 LDX workRam+38 ; index by the active enemy slot
C6C9: BD AC 03 LDA workRam+3AC,X ; read the slot's depth/kind byte
C6CC: D0 16 BNE loc_c6e4 ; live slot -> project it; a zero byte means the slot is empty
C6CE: A4 A9 LDY workRam+A9 ; empty slot: load the list offset
C6D0: A2 03 LDX #$03
loc_c6d2:
C6D2: A9 00 LDA #$00
C6D4: 91 74 STA (workRam+74),Y ; write a blank byte
C6D6: C8 INY
C6D7: A9 71 LDA #$71 ; write the 0x71 blanking word
C6D9: 91 74 STA (workRam+74),Y ;
C6DB: C8 INY
C6DC: CA DEX
C6DD: 10 F3 BPL loc_c6d2 ; repeat for four placeholder pairs -- keeps the list stride fixed
C6DF: 84 A9 STY workRam+A9 ; commit the advanced offset
C6E1: B8 CLV
C6E2: 50 57 BVC loc_c73b ; done
loc_c6e4:
C6E4: 85 57 STA workRam+57 ; live slot: seat the depth as the projection input
C6E6: 20 53 C4 JSR snapCoordUpToReference; clamp the depth to the reference point
C6E9: BD 35 04 LDA workRam+435,X ; seat this slot's segment midpoint as the point to project (one axis)
C6EC: 85 56 STA workRam+56 ;
C6EE: BD 45 04 LDA workRam+445,X ; seat the other axis of the point
C6F1: 85 58 STA workRam+58 ;
C6F3: 20 98 C0 JSR projectPointThroughMathbox; project the point through the math box
C6F6: 20 3C C7 JSR emitDeltaVectorPair ; emit the projected delta vectors
C6F9: A6 38 LDX workRam+38 ; reload the slot index
C6FB: BD 9A 03 LDA workRam+39A,X ; read the slot's target flag
C6FE: 29 40 AND #$40 ; test target-flag bit6
C700: F0 1F BEQ loc_c721 ; flag clear -> draw the fixed marker word
C702: 20 3E BD JSR appendNormalizedMantissaExponent; flag set: append a normalized mantissa/exponent pair, advancing the cursor
C705: AD CA 60 LDA pokey1+A ; read a bit of the sound chip's random register
C708: 29 02 AND #$02
C70A: 18 CLC
C70B: 69 1C ADC #$1C ; pick one of two enemy template words at random
C70D: AA TAX
C70E: BD C9 CE LDA rom+3EC9,X ; write the template word high byte
C711: C8 INY
C712: 91 74 STA (workRam+74),Y ;
C714: 88 DEY
C715: BD C8 CE LDA rom+3EC8,X ; write the template word low byte
C718: 91 74 STA (workRam+74),Y ;
C71A: C8 INY
C71B: C8 INY
C71C: 84 A9 STY workRam+A9 ; commit the offset -- a four-byte record
C71E: B8 CLV
C71F: 50 1A BVC loc_c73b ; done
loc_c721:
C721: A4 A9 LDY workRam+A9 ; marker path: load the list offset
C723: A9 00 LDA #$00
C725: 91 74 STA (workRam+74),Y ; write a blank byte
C727: C8 INY
C728: A9 68 LDA #$68 ; write the 0x68 marker word
C72A: 91 74 STA (workRam+74),Y ;
C72C: C8 INY
C72D: AD B2 3D LDA vectorRom+DB2 ; write the blank-slot vector low byte
C730: 91 74 STA (workRam+74),Y ;
C732: C8 INY
C733: AD B3 3D LDA vectorRom+DB3 ; write the blank-slot vector high byte
C736: 91 74 STA (workRam+74),Y ;
C738: C8 INY
C739: 84 A9 STY workRam+A9 ; commit the advanced offset
loc_c73b:
C73B: 60 RTS
; Emits two 16-bit differences (loc_63:64 minus loc_6c:6d, then loc_61:62
; minus loc_6a:6b) as vector words, high bytes masked to five bits and the
; second OR'd with opcode 0xa0, advancing cursor loc_a9 by four.
emitDeltaVectorPair:
C73C: A4 A9 LDY workRam+A9 ; load the running list offset
C73E: A5 63 LDA workRam+63 ; X delta: projected X minus the previous point's X
C740: 38 SEC
C741: E5 6C SBC workRam+6C ;
C743: 91 74 STA (workRam+74),Y ; write the X delta low byte
C745: C8 INY
C746: A5 64 LDA workRam+64 ; X delta high byte, clipped to five bits
C748: E5 6D SBC workRam+6D ;
C74A: 29 1F AND #$1F
C74C: 91 74 STA (workRam+74),Y ; write it
C74E: C8 INY
C74F: A5 61 LDA workRam+61 ; Y delta: projected Y minus the previous point's Y
C751: 38 SEC
C752: E5 6A SBC workRam+6A ;
C754: 91 74 STA (workRam+74),Y ; write the Y delta low byte
C756: C8 INY
C757: A5 62 LDA workRam+62 ; Y delta high byte, clipped and stamped with the 0xa0 vector opcode
C759: E5 6B SBC workRam+6B ;
C75B: 29 1F AND #$1F
C75D: 09 A0 ORA #$A0
C75F: 91 74 STA (workRam+74),Y ; write it
C761: C8 INY
C762: 84 A9 STY workRam+A9 ; commit the offset -- two delta words appended
C764: 60 RTS
; Writes the fixed header word 0x00/0x71 at the draw cursor start
; (loc_74/loc_75) then resumes the shared vector-record builder from
; cursor slot 2.
layHeaderAndBuildRecord:
C765: A0 00 LDY #$00 ; start the write at the cursor head
C767: 98 TYA
C768: 91 74 STA (workRam+74),Y ; write the fixed header byte 0x00
C76A: A9 71 LDA #$71 ; write the fixed header byte 0x71
C76C: C8 INY
C76D: 91 74 STA (workRam+74),Y ;
C76F: C8 INY
C770: D0 02 BNE emitObjectPositionRecord; fall into the position-record builder past the header
; emit an object's position vector: from cursor offset 0, write the
; {0x40,0x80} header, an X word from zero-page pair 0x2/0x3 indexed by X
; and a Y word from pair 0x00/0x1 (each high byte masked to 5 bits),
; caching the raw bytes as the previous point (X low/high at 0x6c/0x6d, Y
; low/high at 0x6a/0x6b), then advance the cursor 0x74/0x75 past the six
; emitted bytes.
emitObjectPositionVector:
C772: A0 00 LDY #$00 ; public entry: start the record at cursor offset 0
; emit a six-byte object position record into the vector list at write
; cursor loc_74/loc_75 offset Y: a fixed header (0x40,0x80) then the
; object's X pair (loc_2+x low, loc_3+x high masked to 5 bits) and Y pair
; (loc_00+x low, loc_1+x high masked to 5 bits), caching the raw bytes
; into loc_6c/loc_6d/loc_6a/loc_6b, then advancing the cursor past the
; bytes via advanceDisplayCursor (entry emitObjectPositionVector starts
; the offset at 0).
emitObjectPositionRecord:
C774: A9 40 LDA #$40 ; write position-record header byte 0x40
C776: 91 74 STA (workRam+74),Y ;
C778: A9 80 LDA #$80 ; write position-record header byte 0x80
C77A: C8 INY
C77B: 91 74 STA (workRam+74),Y ;
C77D: C8 INY
C77E: B5 02 LDA workRam+2,X ; object X low, cached as the previous point's X low
C780: 85 6C STA workRam+6C ;
C782: 91 74 STA (workRam+74),Y ; write it
C784: C8 INY
C785: B5 03 LDA workRam+3,X ; object X high, cached, clipped to five bits
C787: 85 6D STA workRam+6D ;
C789: 29 1F AND #$1F
C78B: 91 74 STA (workRam+74),Y ; write it
C78D: B5 00 LDA workRam,X ; object Y low, cached as the previous point's Y low
C78F: 85 6A STA workRam+6A ;
C791: C8 INY
C792: 91 74 STA (workRam+74),Y ; write it
C794: B5 01 LDA workRam+1,X ; object Y high, cached, clipped to five bits
C796: 85 6B STA workRam+6B ;
C798: 29 1F AND #$1F
C79A: C8 INY
C79B: 91 74 STA (workRam+74),Y ; write it
C79D: 4C 5F DF JMP advanceDisplayCursor; advance the draw cursor past the six emitted bytes
; the main frame loop (a generator): after a one-time board-init pass
; (resetBothPokeyChips) and seeding 0x00=0, free-run forever -- each pass
; yields until the interrupt counter 0x53 reaches 9, clears it, and runs
; the three per-update passes dispatchFramePhaseHandler,
; seedFramePhaseAndTick, buildFrameVectors (~26.5Hz).
runMainFrameLoop:
C7A0: 20 95 CD JSR resetBothPokeyChips ; one-time: reset both sound/IO chips
C7A3: A9 00 LDA #$00
C7A5: 85 00 STA workRam ; seed the live game mode to 0
loc_c7a7:
C7A7: A5 53 LDA workRam+53 ; frame boundary: wait until nine interrupts have accumulated (~26.5Hz)
C7A9: C9 09 CMP #$09
C7AB: 90 FA BCC loc_c7a7 ;
C7AD: A9 00 LDA #$00 ; consume the interrupt count, start the next frame
C7AF: 85 53 STA workRam+53 ;
C7B1: 20 BD C7 JSR dispatchFramePhaseHandler; run the current mode's phase handler
C7B4: 20 91 C8 JSR seedFramePhaseAndTick; seed the next phase and tick the frame clock
C7B7: 20 B6 B1 JSR buildFrameVectors ; build this frame's vector display list
C7BA: 18 CLC
C7BB: 90 EA BCC loc_c7a7 ; loop back forever to the frame wait
; DSW-gated per-frame handler dispatch: do nothing when the coinage dip
; (0xd00 & 0x83) reads 0x82; otherwise run a pre-pass ($A7D2), set bit7 of
; 0x4e, and select one of eighteen per-frame handlers by the byte offset
; in 0x00 (index offset>>1 into a 19-entry table whose one slot is
; unused).
dispatchFramePhaseHandler:
C7BD: AD 00 0D LDA dsw1 ; coinage dip config 0x82 disables this whole update pass
C7C0: 29 83 AND #$83
C7C2: C9 82 CMP #$82
C7C4: F0 13 BEQ loc_c7d9 ;
C7C6: 20 D2 A7 JSR stepSpikeTableCollapse; pre-pass: step the spike-table collapse
C7C9: A6 00 LDX workRam ; select the phase handler by the current game mode
C7CB: A5 4E LDA workRam+4E ;
C7CD: 09 80 ORA #$80 ; mark this frame's edge state -- set bit7
C7CF: 85 4E STA workRam+4E ;
C7D1: BD DB C7 LDA rom+37DB,X ; push the handler's address high byte from the mode dispatch table
C7D4: 48 PHA
C7D5: BD DA C7 LDA rom+37DA,X ; push its low byte
C7D8: 48 PHA
loc_c7d9:
C7D9: 60 RTS ; jump to the selected phase handler
; ---- $C7DA-$C7FF: data ----
C7DA: 0B C9 3F C9 0A 97 AE C9 F0 C9 FF C7 00 00 8B C9
C7EA: 3E AC 6D AD 17 CA 48 91 4A 90 E6 B0 07 91 7A C9
C7FA: 28 97 E0 D7 17 A6
; while the guard loc_3 & loc_16b is set do nothing; otherwise run delay
; counter loc_4 down and, on the frame it reaches zero, load the live mode
; loc_0 from the pending mode loc_2 and clear the guard loc_16b; every
; path tail-delegates the spinner update rotateBlasterAroundRim.
commitPendingModeAfterDelay:
C800: A5 03 LDA workRam+3 ; while the guarded frame-counter bit is set, suppress the countdown
C802: 2D 6B 01 AND workRam+16B ;
C805: D0 11 BNE loc_c818 ;
C807: A5 04 LDA workRam+4 ; tick the mode-change delay timer toward zero
C809: F0 02 BEQ loc_c80d ;
C80B: C6 04 DEC workRam+4 ;
loc_c80d:
C80D: D0 09 BNE loc_c818 ; not expired yet -> just service the shooter
C80F: A5 02 LDA workRam+2 ; delay expired: commit the pending mode as the live mode
C811: 85 00 STA workRam ;
C813: A9 00 LDA #$00
C815: 8D 6B 01 STA workRam+16B ; clear the arming guard
loc_c818:
C818: 4C 49 97 JMP rotateBlasterAroundRim; advance the player's shooter around the tube rim
; from the 2-bit gate loc_4e&0x60 (then cleared) and a >=2 test on counter
; loc_6 derive a step 0..2 and drain loc_6; when the gate is clear
; optionally seed intro cells (loc_1/loc_4/loc_0/loc_2, gated by loc_50
; and loc_5 bit7); when the step is nonzero set loc_5|=0xc0, zero
; loc_16/loc_18/loc_0, bump the 16-bit tally loc_40c,x/loc_40d,x, and
; advance the level cell loc_100 by step+1 clamped to 0x63.
advanceLevelCounter:
C81B: A5 06 LDA workRam+6 ; read the phase counter -- phases still owed
C81D: A0 00 LDY #$00
C81F: C9 02 CMP #$02 ; note whether at least two phases remain
C821: A5 4E LDA workRam+4E ; extract the pending-advance request bits (6..5)
C823: 29 60 AND #$60
C825: 84 4E STY workRam+4E ; consume the request, clearing the flags
C827: F0 48 BEQ loc_c871 ; no advance requested -> the queued-intro path
C829: B0 05 BCS loc_c830 ; two or more phases owed -> the double-step branch
C82B: 29 20 AND #$20 ; otherwise test request bit5 only
C82D: B8 CLV
C82E: 50 05 BVC loc_c835 ;
loc_c830:
C830: C8 INY ; count one step and drain a phase
C831: C6 06 DEC workRam+6 ;
C833: 29 40 AND #$40 ; request bit6 -> a second step
loc_c835:
C835: F0 03 BEQ loc_c83a ;
C837: C6 06 DEC workRam+6 ; drain another phase for the double step
C839: C8 INY
loc_c83a:
C83A: 98 TYA
C83B: 85 3E STA workRam+3E ; store the derived 0..2 level step
C83D: F0 2F BEQ loc_c86e ; a zero step -> nothing to advance
C83F: A5 05 LDA workRam+5 ; latch the advance in the status flags (top two bits)
C841: 09 C0 ORA #$C0
C843: 85 05 STA workRam+5 ;
C845: A9 00 LDA #$00
C847: 85 16 STA workRam+16 ; clear the heartbeat accumulator low byte
C849: 85 18 STA workRam+18 ; clear its overflow byte
C84B: A9 00 LDA #$00
C84D: 85 00 STA workRam ; reset the game mode to 0
C84F: C6 3E DEC workRam+3E ; index the level tally by the step: 1 -> offset 0, 2 -> offset 3
C851: A6 3E LDX workRam+3E ;
C853: F0 02 BEQ loc_c857 ;
C855: A2 03 LDX #$03
loc_c857:
C857: FE 0C 04 INC workRam+40C,X ; bump the 16-bit level tally, carrying into the high byte
C85A: D0 03 BNE loc_c85f ;
C85C: FE 0D 04 INC workRam+40D,X ;
loc_c85f:
C85F: AD 00 01 LDA workRam+100 ; advance the on-screen level number by the step (1 or 2)
C862: 38 SEC
C863: 65 3E ADC workRam+3E ;
C865: C9 63 CMP #$63 ; clamp it to 0x63
C867: 90 02 BCC loc_c86b ;
C869: A9 63 LDA #$63
loc_c86b:
C86B: 8D 00 01 STA workRam+100 ; store the new level number
loc_c86e:
C86E: B8 CLV ; done
C86F: 50 1F BVC loc_c890 ;
loc_c871:
C871: A5 50 LDA workRam+50 ; no-advance path: nothing latched -> exit
C873: F0 1B BEQ loc_c890 ;
C875: 24 05 BIT workRam+5 ; status bit7 set -> exit
C877: 30 17 BMI loc_c890 ;
C879: A9 10 LDA #$10 ; arm the intro dispatch selector
C87B: 85 01 STA workRam+1 ;
C87D: A9 20 LDA #$20 ; set the mode-delay countdown
C87F: 85 04 STA workRam+4 ;
C881: A9 0A LDA #$0A ; enter mode 0x0a
C883: 85 00 STA workRam ;
C885: A9 14 LDA #$14 ; queue the next mode 0x14
C887: 85 02 STA workRam+2 ;
C889: A9 00 LDA #$00
C88B: 85 50 STA workRam+50 ; disarm the latched spinner value
C88D: 8D 23 01 STA workRam+123 ; reset the spike tally
loc_c890:
C890: 60 RTS
; per-frame mode/timing driver: from coin input 0xc00, mode flag 0x5 and
; phase counters 0xa/0x6, seed the phase/speed cells 0x00/0x1/0xa2
; (running the setup step advanceLevelCounter on the appropriate phase),
; then a common tail advances the frame counter 0x3, fires the EAROM step
; stepEaromTransfer on odd frames and the sound-register step
; requestActiveSoundCue when 0xc is live, and trims bit7 of 0x4e.
seedFramePhaseAndTick:
C891: AD 00 0C LDA in0 ; coin input bit4 clear -> force game mode 0x22
C894: 29 10 AND #$10
C896: D0 07 BNE loc_c89f ;
C898: A9 22 LDA #$22 ; force mode 0x22
C89A: 85 00 STA workRam ;
C89C: B8 CLV
C89D: 50 44 BVC loc_c8e3 ; skip to the common tail
loc_c89f:
C89F: 24 05 BIT workRam+5 ; status bit6 set -> skip to the tail
C8A1: 70 40 BVS loc_c8e3 ;
C8A3: A5 0A LDA workRam+A ; even phase -> straight to the level-counter step
C8A5: 29 01 AND #$01
C8A7: F0 29 BEQ loc_c8d2 ;
C8A9: A4 06 LDY workRam+6 ; read the phase counter
C8AB: D0 04 BNE loc_c8b1 ;
C8AD: A9 80 LDA #$80 ; an expired counter arms the phase gate
C8AF: 85 A2 STA workRam+A2 ;
loc_c8b1:
C8B1: 24 A2 BIT workRam+A2 ; gate clear -> the level-counter step
C8B3: 10 1D BPL loc_c8d2 ;
C8B5: C0 02 CPY #$02 ; two or more phases owed -> the mode-0x14 branch
C8B7: B0 11 BCS loc_c8ca ;
C8B9: 98 TYA
C8BA: F0 08 BEQ loc_c8c4 ; zero phases -> skip the mode seed
C8BC: A9 16 LDA #$16 ; one phase: select dispatch 0x16
C8BE: 85 01 STA workRam+1 ;
C8C0: A9 0A LDA #$0A ; enter mode 0x0a
C8C2: 85 00 STA workRam ;
loc_c8c4:
C8C4: 4C D9 C8 JMP loc_c8d9 ; continue to the frame tick
; ---- $C8C7-$C8C9: data ----
C8C7: B8 50 08
loc_c8ca:
C8CA: A9 14 LDA #$14 ; set game mode 0x14
C8CC: 85 00 STA workRam ;
C8CE: A9 00 LDA #$00 ; clear the phase gate
C8D0: 85 A2 STA workRam+A2 ;
loc_c8d2:
C8D2: A5 06 LDA workRam+6 ; run the level-advance bookkeeper only when a phase is owed
C8D4: F0 03 BEQ loc_c8d9 ;
C8D6: 20 1B C8 JSR advanceLevelCounter ; step the level-advance bookkeeper
loc_c8d9:
C8D9: A5 09 LDA workRam+9 ; every fourth frame...
C8DB: 29 03 AND #$03
C8DD: D0 04 BNE loc_c8e3 ;
C8DF: A9 02 LDA #$02 ; ...reseed the phase counter to 2
C8E1: 85 06 STA workRam+6 ;
loc_c8e3:
C8E3: E6 03 INC workRam+3 ; advance the master frame counter
C8E5: A5 03 LDA workRam+3 ; on odd frames...
C8E7: 29 01 AND #$01
C8E9: F0 03 BEQ loc_c8ee ;
C8EB: 20 1B DE JSR stepEaromTransfer ; ...step the non-volatile high-score store transfer
loc_c8ee:
C8EE: A5 0C LDA workRam+C ; when a sound step is queued...
C8F0: F0 03 BEQ loc_c8f5 ;
C8F2: 20 FA CC JSR requestActiveSoundCue; ...register the active sound
loc_c8f5:
C8F5: AD 6C 01 LDA workRam+16C ; read the decimal-mode guard
C8F8: F0 07 BEQ loc_c901 ;
C8FA: A9 13 LDA #$13
C8FC: C5 9F CMP workRam+9F ;
C8FE: B0 01 BCS loc_c901 ;
C900: F8 SED ; arm decimal mode when the guard opens
loc_c901:
C901: A5 4E LDA workRam+4E ; if this frame's edge bit is set...
C903: 29 80 AND #$80
C905: F0 04 BEQ loc_c90b ;
C907: A9 00 LDA #$00 ; ...clear the edge flags
C909: 85 4E STA workRam+4E ;
loc_c90b:
C90B: 60 RTS
; reset the per-slot playfield state: run setup passes
; rebuildControlBlocksIfRequested/buildLevelLayout (and
; clearChannelStagingBlock when 0x5 negative), clear 0x49, walk every slot
; from 0x3e down to 0 seeding 0x48,slot from 0x158 and 0x46,slot=0xff,
; clear 0x3f and 0x115, reload 0x3d from 0x3e, then tail-delegate to
; selectWaveStartSlot.
resetLevelPlayfieldSlots:
C90C: 20 A2 AB JSR rebuildControlBlocksIfRequested; rebuild the control blocks if requested
C90F: 20 6E C1 JSR buildLevelLayout ; build the level's geometry layout
C912: A5 05 LDA workRam+5 ; only when the status byte is negative...
C914: 10 03 BPL loc_c919 ;
C916: 20 62 CA JSR clearChannelStagingBlock; ...clear the channel staging block
loc_c919:
C919: A9 00 LDA #$00 ; clear the slot-countdown high byte
C91B: 85 49 STA workRam+49 ;
C91D: A6 3E LDX workRam+3E ; start the loop index at the top live slot
C91F: 86 3D STX workRam+3D ;
loc_c921:
C921: A6 3D LDX workRam+3D ;
C923: AD 58 01 LDA workRam+158 ; seed this slot's countdown from the bonus config
C926: 9D 48 00 STA workRam+48,X ;
C929: A9 FF LDA #$FF ; mark the slot's level entry unassigned
C92B: 9D 46 00 STA workRam+46,X ;
C92E: C6 3D DEC workRam+3D ; walk down through every live slot
C930: 10 EF BPL loc_c921 ;
C932: A9 00 LDA #$00
C934: 85 3F STA workRam+3F ; clear the level id
C936: 8D 15 01 STA workRam+115 ; clear the spike-table guard
C939: A5 3E LDA workRam+3E ; reload the index to the top slot for the next consumer
C93B: 85 3D STA workRam+3D ;
C93D: 4C C4 90 JMP selectWaveStartSlot ; hand off to wave-start slot selection
; set up the level: seed sizing/timer cells loc_1=0, loc_00=30, loc_2=30,
; and when the level id loc_3f differs from last-seen loc_3d latch loc_3d
; and (with loc_5 negative) install the new-level timers
; loc_1=14/loc_00=10/loc_4=40or80 (by loc_117) via swapParallelTables,
; then run selectProjectionScale, index loc_46 by loc_3d into loc_9f, run
; runLevelInit and tail-delegate to the readout reset resetBothPokeyChips.
setupLevelTimers:
C940: A9 00 LDA #$00 ; clear the dispatch selector
C942: 85 01 STA workRam+1 ;
C944: A9 1E LDA #$1E ; seed the game mode and pending mode to 30
C946: 85 00 STA workRam ;
C948: 85 02 STA workRam+2 ;
C94A: A5 3F LDA workRam+3F ; only on a genuine level change...
C94C: C5 3D CMP workRam+3D ;
C94E: F0 1C BEQ loc_c96c ;
C950: 85 3D STA workRam+3D ; latch the new level id
C952: A5 05 LDA workRam+5 ; ...and only when the status byte is negative
C954: 10 16 BPL loc_c96c ;
C956: A9 0E LDA #$0E ; install the new-level dispatch selector
C958: 85 01 STA workRam+1 ;
C95A: A9 0A LDA #$0A ; set game mode 10
C95C: 85 00 STA workRam ;
C95E: A9 50 LDA #$50 ; pick the level-delay timer -- 40 or 80
C960: AC 17 01 LDY workRam+117 ;
C963: F0 02 BEQ loc_c967 ;
C965: A9 28 LDA #$28
loc_c967:
C967: 85 04 STA workRam+4 ; store the delay timer
C969: 20 B2 92 JSR swapParallelTables ; swap the paired geometry tables
loc_c96c:
C96C: 20 48 CA JSR selectProjectionScale; size the projection scale
C96F: A6 3D LDX workRam+3D ;
C971: B5 46 LDA workRam+46,X ; copy this level's per-slot level into the working cell
C973: 85 9F STA workRam+9F ;
C975: 20 25 90 JSR runLevelInit ; run the level startup init
C978: 4C 95 CD JMP resetBothPokeyChips ; reset the sound chips
; alternate state-entry seeder: write the four config cells loc_2=0x04,
; loc_1=0x00, loc_0=0x0a and loc_4=0x14.
seedModeParamsMinimal:
C97B: A9 04 LDA #$04 ; queue mode 0x04 to promote after the delay
C97D: 85 02 STA workRam+2 ;
C97F: A9 00 LDA #$00
C981: 85 01 STA workRam+1 ; clear the dispatch selector
C983: A9 0A LDA #$0A
C985: 85 00 STA workRam ; enter the live mode 0x0a
C987: A9 14 LDA #$14
C989: 85 04 STA workRam+4 ; set the promotion countdown
C98B: 60 RTS
; ramp the per-level enemy quota: while the loc_46-slot indexed by level
; loc_3d is below 0x62, bump that slot and the working copy loc_9f
; together, seed loc_00=0x18, and when the loc_102-slot is nonzero run the
; handler chain (seatInPagePointer, addBcdScoreAndAwardAtThreshold,
; requestScoreAwardSound), then tail-delegate to init runWaveInit.
bumpLevelEnemyQuota:
C98C: A6 3D LDX workRam+3D ; index this level's enemy-quota cell
C98E: B5 46 LDA workRam+46,X ;
C990: C9 62 CMP #$62 ; quota below the cap?
C992: B0 04 BCS loc_c998 ; at the cap -> skip the bump
C994: F6 46 INC workRam+46,X ; bump the level's enemy quota
C996: E6 9F INC workRam+9F ; bump its working copy in lockstep
loc_c998:
C998: A9 18 LDA #$18 ; enter wave-active mode
C99A: 85 00 STA workRam ;
C99C: BD 02 01 LDA workRam+102,X ; if this level carries a bonus trigger...
C99F: F0 0B BEQ loc_c9ac ;
C9A1: 20 B5 91 JSR seatInPagePointer ; seat it as an in-page pointer
C9A4: A2 FF LDX #$FF
C9A6: 20 6C CA JSR addBcdScoreAndAwardAtThreshold; add it to the score at the top threshold
C9A9: 20 B9 CC JSR requestScoreAwardSound; cue the score-award sound
loc_c9ac:
C9AC: 4C 09 90 JMP runWaveInit ; bring the wave up
; clear loc_4, decrement the active slot's countdown loc_48[loc_3d]; when
; the loc_48/loc_49 pair is fully spent finalize via
; reloadPacingFromPeakSlot, otherwise (flag loc_1=0x0c and loc_4=0x28 if
; this tick hit zero) toggle loc_3f to pick the next non-empty slot, arm
; its timer loc_2 (0x1c when loc_46[x]+1 wraps, else 0x02), and request
; mode loc_0=0x0a.
tickEnemyPacingCountdown:
C9AF: A9 00 LDA #$00 ; clear the mode-delay timer
C9B1: 85 04 STA workRam+4 ;
C9B3: A6 3D LDX workRam+3D ; tick the active slot's pacing countdown low byte
C9B5: D6 48 DEC workRam+48,X ;
C9B7: A5 48 LDA workRam+48 ; if the whole countdown pair is spent...
C9B9: 05 49 ORA workRam+49 ;
C9BB: D0 06 BNE loc_c9c3 ;
C9BD: 20 F1 C9 JSR reloadPacingFromPeakSlot; ...reload the wave's pacing from the peak slot
C9C0: B8 CLV ; and return
C9C1: 50 2D BVC loc_c9f0 ;
loc_c9c3:
C9C3: A6 3D LDX workRam+3D ;
C9C5: B5 48 LDA workRam+48,X ; if this tick zeroed the active slot...
C9C7: D0 08 BNE loc_c9d1 ;
C9C9: A9 0C LDA #$0C ; ...raise the dispatch selector
C9CB: 85 01 STA workRam+1 ;
C9CD: A9 28 LDA #$28 ; and set the mode delay
C9CF: 85 04 STA workRam+4 ;
loc_c9d1:
C9D1: A5 3E LDA workRam+3E ;
C9D3: F0 06 BEQ loc_c9db ;
C9D5: A5 3F LDA workRam+3F ; toggle to the other pacing slot
C9D7: 49 01 EOR #$01
C9D9: 85 3F STA workRam+3F ;
loc_c9db:
C9DB: A6 3F LDX workRam+3F ;
C9DD: B5 48 LDA workRam+48,X ; keep toggling until a non-empty slot is found
C9DF: F0 F0 BEQ loc_c9d1 ;
C9E1: A9 02 LDA #$02 ; pick the slot's arm value -- 0x1c on wrap, else 0x02
C9E3: B4 46 LDY workRam+46,X ;
C9E5: C8 INY
C9E6: D0 02 BNE loc_c9ea ;
C9E8: A9 1C LDA #$1C
loc_c9ea:
C9EA: 85 02 STA workRam+2 ; queue it as the pending mode
C9EC: A9 0A LDA #$0A ; request the pacing mode 0x0a
C9EE: 85 00 STA workRam ;
loc_c9f0:
C9F0: 60 RTS
; scan the zero-page window loc_46[loc_3e..0] for its maximum, store it
; decremented-once (when nonzero) into loc_126, and set the mode-request
; cell loc_0 to 0x14 (or 0x10 when the status byte loc_5 is negative).
reloadPacingFromPeakSlot:
C9F1: A9 00 LDA #$00 ; reset the running peak
C9F3: 8D 26 01 STA workRam+126 ;
C9F6: A6 3E LDX workRam+3E ; scan from the top live slot down
loc_c9f8:
C9F8: B5 46 LDA workRam+46,X ; keep the highest per-slot level seen
C9FA: CD 26 01 CMP workRam+126 ;
C9FD: 90 03 BCC loc_ca02 ;
C9FF: 8D 26 01 STA workRam+126 ;
loc_ca02:
CA02: CA DEX ; across the whole live window
CA03: 10 F3 BPL loc_c9f8 ;
CA05: AC 26 01 LDY workRam+126 ; seed the pacing floor with peak-1 -- zero stays zero
CA08: F0 03 BEQ loc_ca0d ;
CA0A: CE 26 01 DEC workRam+126 ;
loc_ca0d:
CA0D: A9 14 LDA #$14 ; pick the next mode -- 0x10 when the status byte is negative, else 0x14
CA0F: 24 05 BIT workRam+5 ;
CA11: 10 02 BPL loc_ca15 ;
CA13: A9 10 LDA #$10
loc_ca15:
CA15: 85 00 STA workRam ; request it
CA17: 60 RTS
; alternate state-entry seeder: mask loc_5 to its low six bits (clearing
; the top two flag bits), then write loc_3e=0x00, loc_2=0x1a, loc_0=0x0a,
; loc_4=0xa0, loc_16b=0x01 and loc_1=0x0a.
seedModeParamsFromMaskedFlags:
CA18: A5 05 LDA workRam+5 ; load the status flags
CA1A: 29 3F AND #$3F ; keep only the low six gating bits -- clear the play/active-state flags
CA1C: 85 05 STA workRam+5 ; store the masked status back
CA1E: A9 00 LDA #$00
CA20: 85 3E STA workRam+3E ; clear the active-slot count
CA22: A9 1A LDA #$1A
CA24: 85 02 STA workRam+2 ; queue the mode to promote once the delay expires
CA26: A9 0A LDA #$0A
CA28: 85 00 STA workRam ; set the live game mode
CA2A: A9 A0 LDA #$A0
CA2C: 85 04 STA workRam+4 ; arm the mode-promotion countdown
CA2E: A9 01 LDA #$01
CA30: 8D 6B 01 STA workRam+16B ; arm the guard holding the pending transition
CA33: A9 0A LDA #$0A
CA35: 85 01 STA workRam+1 ; set the pre-doubled dispatch selector paired with the mode
CA37: 60 RTS
; ---- $CA38-$CA47: data ----
CA38: 80 40 20 10 08 04 02 01 01 02 04 08 10 20 40 80
; choose the projection scale and mode bit from gates loc_117/loc_3d:
; default value 0x00/scale 0x10, but when both gates are nonzero value
; 0x04/scale 0x08; copy bit2 of the value into flag loc_a1 (preserving the
; rest) and store the scale into loc_b4.
selectProjectionScale:
CA48: A0 10 LDY #$10 ; default projection scale
CA4A: AD 17 01 LDA workRam+117 ; read the spinner heartbeat flag
CA4D: F0 08 BEQ loc_ca57 ; skip the alternate regime if the flag is clear
CA4F: A5 3D LDA workRam+3D ; read the active seat
CA51: F0 04 BEQ loc_ca57 ; skip the alternate regime if no live seat
CA53: A9 04 LDA #$04 ; alternate mode-bit source
CA55: A0 08 LDY #$08 ; alternate projection scale
loc_ca57:
CA57: 45 A1 EOR workRam+A1 ; masked bit-merge -- fold only bit 2 of the chosen value into the vector-mode flag
CA59: 29 04 AND #$04
CA5B: 45 A1 EOR workRam+A1 ;
CA5D: 85 A1 STA workRam+A1 ; store the updated vector-mode flag
CA5F: 84 B4 STY workRam+B4 ; publish the projection scale for the depth math
CA61: 60 RTS
; zero the six-byte working block loc_40..loc_45 (a pre-clear used before
; that block is staged with fresh channel entries).
clearChannelStagingBlock:
CA62: A9 00 LDA #$00 ; value to write
CA64: A2 05 LDX #$05 ; index over the six staging cells
loc_ca66:
CA66: 95 40 STA workRam+40,X ; zero one sound-request staging cell
CA68: CA DEX
CA69: 10 FB BPL loc_ca66 ; loop until the whole staging block is blank
CA6B: 60 RTS
; add a three-byte BCD amount into the score triplet at
; loc_40/loc_41/loc_42 (offset 0 when loc_3d==0 else 3) using fixed table
; bytes $CAF1+x/$CAF9+x when index x<0x08 else the live operand triplet
; loc_29/loc_2a/loc_2b, then range-check against threshold loc_156; on
; qualifying, if the per-slot counter loc_48+loc_3d is under 0x06 bump it,
; fire sound 0x4f via requestSoundIfEnabled and set loc_124=0x20; gated
; off unless loc_5 bit7 is set.
addBcdScoreAndAwardAtThreshold:
CA6C: F8 SED ; switch to BCD arithmetic for the score add
CA6D: 24 05 BIT workRam+5 ; test the scoring-armed flag -- bit 7 of the status byte
CA6F: 10 7E BPL loc_caef ; bail out unless scoring is armed
CA71: A4 3D LDY workRam+3D ; read the active seat
CA73: F0 02 BEQ loc_ca77 ;
CA75: A0 03 LDY #$03 ; player-two score bank offset
loc_ca77:
CA77: E0 08 CPX #$08 ; small index selects a fixed point value, else the live operand triplet
CA79: 90 16 BCC loc_ca91 ; branch to the fixed score-value table path
CA7B: A5 29 LDA workRam+29 ; live operand low byte
CA7D: 18 CLC
CA7E: 79 40 00 ADC workRam+40,Y ; add it into the score low byte
CA81: 99 40 00 STA workRam+40,Y ; store the running score low byte
CA84: A5 2A LDA workRam+2A ; live operand mid byte
CA86: 79 41 00 ADC workRam+41,Y ; add into the score mid byte with carry
CA89: 99 41 00 STA workRam+41,Y ; store the running score mid byte
CA8C: A5 2B LDA workRam+2B ; live operand high byte
CA8E: B8 CLV
CA8F: 50 15 BVC loc_caa6 ;
loc_ca91:
CA91: BD F1 CA LDA rom+3AF1,X ; low byte of the point value from the score-value table
CA94: 18 CLC
CA95: 79 40 00 ADC workRam+40,Y ; add into the score low byte
CA98: 99 40 00 STA workRam+40,Y ; store the running score low byte
CA9B: BD F9 CA LDA rom+3AF9,X ; high byte of the point value from the score-value table
CA9E: 79 41 00 ADC workRam+41,Y ; add into the score mid byte with carry
CAA1: 99 41 00 STA workRam+41,Y ; store the running score mid byte
CAA4: A9 00 LDA #$00 ; fixed-table value has no third byte
loc_caa6:
CAA6: 08 PHP
CAA7: 79 42 00 ADC workRam+42,Y ; add the third byte into the score high cell with carry
CAAA: 99 42 00 STA workRam+42,Y ; store the running score high byte
CAAD: 28 PLP
CAAE: F0 0B BEQ loc_cabb ;
CAB0: AE 56 01 LDX workRam+156 ; read the bonus-life interval
CAB3: F0 06 BEQ loc_cabb ;
CAB5: E4 2B CPX workRam+2B ; compare it against the operand high byte
CAB7: F0 23 BEQ loc_cadc ; exact landing -- grant the award
CAB9: 90 21 BCC loc_cadc ;
loc_cabb:
CABB: 90 32 BCC loc_caef ;
CABD: AE 56 01 LDX workRam+156 ; reload the bonus-life interval
CAC0: F0 2C BEQ loc_caee ;
CAC2: E0 03 CPX #$03 ; tiny interval takes a direct compare, else repeated subtraction
CAC4: 90 0B BCC loc_cad1 ;
loc_cac6:
CAC6: 38 SEC ; repeatedly subtract the bonus interval from the score high byte
CAC7: ED 56 01 SBC workRam+156 ;
CACA: F0 10 BEQ loc_cadc ; exact multiple of the interval -- grant the award
CACC: B0 F8 BCS loc_cac6 ; keep subtracting while it still fits
CACE: B8 CLV
CACF: 50 1D BVC loc_caee ;
loc_cad1:
CAD1: E0 02 CPX #$02
CAD3: D0 07 BNE loc_cadc ;
CAD5: 29 01 AND #$01
CAD7: F0 03 BEQ loc_cadc ;
CAD9: B8 CLV
CADA: 50 12 BVC loc_caee ;
loc_cadc:
CADC: A6 3D LDX workRam+3D ; read the active seat
CADE: B5 48 LDA workRam+48,X ; load this seat's bonus-life counter
CAE0: C9 06 CMP #$06 ; cap the counter at six
CAE2: B0 0A BCS loc_caee ; skip the award if already at the cap
CAE4: F6 48 INC workRam+48,X ; grant the extra life -- bump the counter
CAE6: 20 B9 CC JSR requestScoreAwardSound; fire the score-award chime
CAE9: A9 20 LDA #$20
CAEB: 8D 24 01 STA workRam+124 ; kick the rim colour animation
loc_caee:
CAEE: 38 SEC
loc_caef:
CAEF: D8 CLD ; back to binary arithmetic
CAF0: 60 RTS
; ---- $CAF1-$CCAF: data ----
CAF1: 00 50 00 00 50 50 00 50 00 01 02 01 00 02 05 07
CB01: 00 00 00 00 00 00 00 00 35 38 00 00 00 00 00 00
CB11: 00 00 47 4A 00 00 00 00 00 00 00 00 00 00 00 00
CB21: 00 00 00 00 0D 10 00 00 00 00 00 00 00 00 00 00
CB31: 00 00 00 00 00 00 00 00 00 00 65 68 00 00 00 00
CB41: 00 00 00 00 00 00 21 32 00 00 00 00 00 00 00 00
CB51: 13 1A 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CB61: 00 00 00 00 00 00 00 00 00 00 53 56 00 00 00 00
CB71: 00 00 00 00 00 00 00 00 00 00 59 5C 00 00 00 00
CB81: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3B 3E
CB91: 00 00 00 00 00 00 00 00 00 00 00 00 41 44 00 00
CBA1: 4D 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CBB1: 5F 62 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CBC1: 00 00 00 00 00 00 00 00 00 00 6D 6D 00 00 00 00
CBD1: C0 08 04 10 00 00 A6 20 F8 04 00 00 40 08 04 10
CBE1: 00 00 A6 20 FE 04 00 00 10 01 07 20 00 00 A2 01
CBF1: F8 20 00 00 08 04 20 0A 08 04 01 09 10 0D 04 0C
CC01: 00 00 08 04 00 0A 68 04 00 09 68 12 FF 09 00 00
CC11: 40 01 00 01 40 01 FF 40 30 01 FF 30 20 01 FF 20
CC21: 18 01 FF 18 14 01 FF 14 12 01 FF 12 10 01 FF 10
CC31: 00 00 A8 93 00 02 00 00 0F 04 00 01 00 00 A2 04
CC41: 40 01 00 00 00 03 02 09 00 00 08 03 FF 09 00 00
CC51: 80 01 E8 05 00 00 A1 01 01 05 00 00 01 08 02 10
CC61: 00 00 86 20 00 04 00 00 18 04 00 FF 00 00 AF 04
CC71: 00 FF 00 00 C0 02 FF FF 00 00 28 02 00 F0 00 00
CC81: 10 0B 01 40 00 00 86 40 00 0B 00 00 20 80 00 03
CC91: 00 00 A8 40 F8 06 00 00 B0 02 00 FF 00 00 C8 01
CCA1: 02 FF C8 01 02 FF 00 00 C0 01 00 01 00 00 00
; cue the fixed sound id 0x5f through the sound gate, carrying the
; caller's X/Y.
gateSound5f:
CCB0: A9 5F LDA #$5F ; sound id -- fixed effect 0x5f
CCB2: 4C C3 CC JMP requestSoundIfEnabled; hand it to the sound-enable gate
; load fixed sound id 0x0f and pass it through the sound gate $CCC3
; (keeping caller X/Y); rung by $9749 when the coarse rim angle changes,
; i.e. the spinner-rotation sound cue.
cueRimRotationSound:
CCB5: A9 0F LDA #$0F ; sound id -- rim-rotation click
CCB7: D0 0A BNE requestSoundIfEnabled; branch into the enable gate
; one-line cue: request fixed sound id 0x4f through the enable gate $CCC3;
; caller $C98C fires it on the bonus/level-advance handler chain, and the
; same id 0x4f is fired by the score-award path $CA6C, so it voices a
; score/bonus award.
requestScoreAwardSound:
CCB9: A9 4F LDA #$4F ; sound id -- score-award chime
CCBB: D0 06 BNE requestSoundIfEnabled; branch into the enable gate
; cue the fixed sound id 0x8f through the sound gate, carrying the
; caller's X/Y.
gateSound8f:
CCBD: A9 8F LDA #$8F ; sound id -- effect 0x8f
CCBF: D0 02 BNE requestSoundIfEnabled; branch into the enable gate
; cue the fixed sound id 0x1f through the sound gate, carrying the
; caller's X/Y.
gateSound1f:
CCC1: A9 1F LDA #$1F ; sound id -- enemy-spawn cue
; sound enable gate: only when bit7 of the enable flag loc_5 is set,
; forward the sound id in A (with X/Y) to the loader loadSoundVoiceSlots;
; with sound disabled it returns making no write.
requestSoundIfEnabled:
CCC3: 24 05 BIT workRam+5 ; test the sound-enable flag -- bit 7 of the status byte
CCC5: 10 22 BPL loc_cce9 ; muted: drop the cue and return
; sound loader: stash caller X/Y into loc_31/loc_32, read the sound's row
; of bytes from $CB01 by descending id, and for each nonzero table byte
; claim its slot -- mark slot in loc_bf, write the byte to loc_c0,x, set
; fast/slow flags loc_e0,x and loc_f0,x to 1, then restore the 0xff
; sentinel to loc_bf.
loadSoundVoiceSlots:
CCC7: 86 31 STX workRam+31 ; stash the caller's X/Y
CCC9: 84 32 STY workRam+32 ;
CCCB: A8 TAY ; sound id becomes the starting index into the voice table
CCCC: A2 0F LDX #$0F ; walk all sixteen voice slots
loc_ccce:
CCCE: B9 01 CB LDA rom+3B01,Y ; read this slot's byte from the voice table
CCD1: F0 0E BEQ loc_cce1 ; zero byte is a gap -- leave the slot untouched
CCD3: 86 BF STX workRam+BF ; mark the slot being claimed
CCD5: 95 C0 STA workRam+C0,X ; load the voice value into the slot
CCD7: A9 01 LDA #$01
CCD9: 95 E0 STA workRam+E0,X ; arm the fast timer
CCDB: 95 F0 STA workRam+F0,X ; arm the slow timer
CCDD: A9 FF LDA #$FF
CCDF: 85 BF STA workRam+BF ; restore the idle sentinel
loc_cce1:
CCE1: 88 DEY
CCE2: CA DEX
CCE3: 10 E9 BPL loc_ccce ; loop over the remaining slots
CCE5: A6 31 LDX workRam+31 ; restore the caller's X/Y
CCE7: A4 32 LDY workRam+32 ;
loc_cce9:
CCE9: 60 RTS
; one-line cue: request fixed sound id 0x2f through the enable gate $CCC3,
; forwarding slot index X; its sole caller is the enemy spawner $A23F, so
; it voices a new enemy entering the tube.
requestEnemySpawnSound:
CCEA: A9 2F LDA #$2F ; sound id -- new enemy entering the tube
CCEC: D0 D5 BNE requestSoundIfEnabled; branch into the enable gate
; register the fixed sound id 0x6f through the sound-enable gate $CCC3 --
; the moving spike's start cue, fired by $97F8 at trigger height
; loc_202==0x10.
cueMovingSpikeStartSound:
CCEE: A9 6F LDA #$6F ; sound id -- moving-spike start cue
CCF0: D0 D1 BNE requestSoundIfEnabled; branch into the enable gate
; register the fixed sound id 0x7f through the sound-enable gate $CCC3 --
; the moving spike's end cue, fired by $97F8 when the height overflows the
; ceiling.
cueMovingSpikeEndSound:
CCF2: A9 7F LDA #$7F ; sound id -- moving-spike end cue
CCF4: D0 CD BNE requestSoundIfEnabled; branch into the enable gate
; one-line cue: request fixed sound id 0x9f through the enable gate $CCC3,
; forwarding X/Y; its sole caller is the per-slot hit/award routine $A1FA,
; so it chimes when a segment/enemy is hit.
requestSegmentHitSound:
CCF6: A9 9F LDA #$9F ; sound id -- segment-hit chime
CCF8: D0 C9 BNE requestSoundIfEnabled; branch into the enable gate
; request fixed sound id 0xaf by jumping straight into the loader $CCC7,
; bypassing the enable gate; the frame dispatcher $C891 calls it every
; frame while loc_c is live, so it (re)voices the currently-active held
; cue regardless of the loc_5 enable flag.
requestActiveSoundCue:
CCFA: A9 AF LDA #$AF ; sound id -- currently-held active cue
CCFC: D0 C9 BNE loadSoundVoiceSlots ; branch straight to the voice loader -- bypass the enable gate
; one-line cue: request fixed sound id 0xbf through the enable gate $CCC3;
; its sole caller $90C4 fires it at phase 3 of the start-slot pick / wave
; working-set reseed, so it voices the level-intro / skill-step start.
requestLevelIntroSound:
CCFE: A9 BF LDA #$BF ; sound id -- level-intro / skill-step start
CD00: D0 C1 BNE requestSoundIfEnabled; branch into the enable gate
; one-line cue: request fixed sound id 0x3f through the enable gate $CCC3,
; threading X; its sole caller $9B1E fires it as a correction when the
; per-slot motion accumulator loc_148 sign-flips, so it voices an enemy
; direction reversal on the rim.
requestMotionFlipSound:
CD02: A9 3F LDA #$3F ; load fixed sound id 0x3f -- the enemy direction-reversal cue on the rim
CD04: D0 BD BNE requestSoundIfEnabled; hand the id to the sound-enable gate -- queued only while sound is on
; register the fixed sound id 0xcf through the sound-enable gate $CCC3,
; threading X/Y -- the spike-collision cue fired by $97F8 when the spike
; reaches the player segment.
cueSpikeCollisionSound:
CD06: A9 CF LDA #$CF ; load fixed sound id 0xcf -- the spike-strikes-blaster hit
CD08: D0 B9 BNE requestSoundIfEnabled; hand the id to the sound-enable gate
; per-frame voice engine: scan 16 slots 0x0f..0, skip idle slots
; (loc_c0,x==0) and the reserved slot loc_bf; decrement fast timer
; loc_e0,x then slow timer loc_f0,x, step the slot through the $CBCC/$CCCC
; animation tables (single step, or walk to a nonzero frame when both
; expire), fold the result into level byte loc_d0,x (odd slots keep the
; prior high nibble), and publish loc_d0,x to POKEY audio register $60C0+x
; for slots<8 or $60C8+x for the upper slots.
stepSoundVoices:
CD0A: A2 0F LDX #$0F ; start at sound slot 15 and walk down to 0
loc_cd0c:
CD0C: B5 C0 LDA workRam+C0,X ; read this slot's envelope pointer
CD0E: F0 7E BEQ loc_cd8e ; skip an idle slot (pointer 0)
CD10: E4 BF CPX workRam+BF ; is this the reserved slot
CD12: F0 7A BEQ loc_cd8e ; skip the reserved slot
CD14: D6 E0 DEC workRam+E0,X ; age the slot's fast timer
CD16: D0 76 BNE loc_cd8e ; still running -- nothing more for this slot this frame
CD18: D6 F0 DEC workRam+F0,X ; fast timer expired -- age the slow timer too
CD1A: D0 38 BNE loc_cd54 ; slow timer still running -- take a single envelope step
loc_cd1c:
CD1C: F6 C0 INC workRam+C0,X ; both timers expired: advance the envelope pointer by two
CD1E: F6 C0 INC workRam+C0,X ; (second half of the two-step advance to the next frame)
CD20: B5 C0 LDA workRam+C0,X ; reload the envelope pointer
CD22: 0A ASL A ; double it into a word-stride table index
CD23: A8 TAY
CD24: B0 10 BCS loc_cd36 ; top bit set -- read the frame from the high envelope table
CD26: B9 CB CB LDA rom+3BCB,Y ; low table: load the frame's level byte
CD29: 95 D0 STA workRam+D0,X ; store it as the slot's level
CD2B: B9 CE CB LDA rom+3BCE,Y ; load the frame's slow-timer reload
CD2E: 95 F0 STA workRam+F0,X ; store the slow timer
CD30: B9 CC CB LDA rom+3BCC,Y ; load the frame's fast-timer reload
CD33: B8 CLV
CD34: 50 0D BVC loc_cd43 ;
loc_cd36:
CD36: B9 CB CC LDA rom+3CCB,Y ; high table: load the frame's level byte
CD39: 95 D0 STA workRam+D0,X ; store it as the slot's level
CD3B: B9 CE CC LDA rom+3CCE,Y ; load the frame's slow-timer reload
CD3E: 95 F0 STA workRam+F0,X ; store the slow timer
CD40: B9 CC CC LDA rom+3CCC,Y ; load the frame's fast-timer reload
loc_cd43:
CD43: 95 E0 STA workRam+E0,X ; store the fast timer
CD45: D0 0A BNE loc_cd51 ; nonzero fast timer -- a real frame, publish it
CD47: 95 C0 STA workRam+C0,X ; zero fast timer: park the envelope pointer at 0
CD49: B5 D0 LDA workRam+D0,X ; reload the level byte
CD4B: F0 04 BEQ loc_cd51 ; level 0 is a terminator -- publish
CD4D: 95 C0 STA workRam+C0,X ; otherwise treat the level as the next pointer
CD4F: D0 CB BNE loc_cd1c ; keep walking the envelope
loc_cd51:
CD51: B8 CLV
CD52: 50 2B BVC loc_cd7f ;
loc_cd54:
CD54: 0A ASL A ; single-step path: double the pointer into a table index
CD55: A8 TAY
CD56: B0 0B BCS loc_cd63 ; top bit set -- read from the high envelope table
CD58: B9 CC CB LDA rom+3BCC,Y ; low table: load the fast-timer reload
CD5B: 95 E0 STA workRam+E0,X ; reload the fast timer
CD5D: B9 CD CB LDA rom+3BCD,Y ; load the level increment
CD60: B8 CLV
CD61: 50 08 BVC loc_cd6b ;
loc_cd63:
CD63: B9 CC CC LDA rom+3CCC,Y ; high table: load the fast-timer reload
CD66: 95 E0 STA workRam+E0,X ; reload the fast timer
CD68: B9 CD CC LDA rom+3CCD,Y ; load the level increment
loc_cd6b:
CD6B: B4 D0 LDY workRam+D0,X ; fetch the running level
CD6D: 18 CLC
CD6E: 75 D0 ADC workRam+D0,X ; add the increment into the running level
CD70: 95 D0 STA workRam+D0,X ; store the stepped level
CD72: 8A TXA
CD73: 4A LSR A ; test whether this is an odd slot
CD74: 90 09 BCC loc_cd7f ; even slot -- publish as is
CD76: 98 TYA
CD77: 55 D0 EOR workRam+D0,X ; odd slot: preserve the prior high nibble of the level byte
CD79: 29 F0 AND #$F0 ; (mask off the low nibble of the delta)
CD7B: 55 D0 EOR workRam+D0,X ; (merge back the retained high nibble)
CD7D: 95 D0 STA workRam+D0,X ; store the merged level
loc_cd7f:
CD7F: B5 D0 LDA workRam+D0,X ; load the slot's level to publish
CD81: E0 08 CPX #$08 ; slots below 8 use the first sound chip
CD83: 90 06 BCC loc_cd8b ;
CD85: 9D C8 60 STA pokey1+8,X ; publish the level to the second sound chip's voice register
CD88: B8 CLV
CD89: 50 03 BVC loc_cd8e ;
loc_cd8b:
CD8B: 9D C0 60 STA pokey1,X ; publish the level to the first sound chip's voice register
loc_cd8e:
CD8E: CA DEX ; step down to the next slot
CD8F: 30 03 BMI loc_cd94 ; done all 16 slots
CD91: 4C 0C CD JMP loc_cd0c ; loop to the next slot
loc_cd94:
CD94: 60 RTS
; dual-POKEY reset: zero both serial-control regs $60CF/$60DF and the
; scratch flag loc_720, poll random regs $60CA/$60DA across five
; iterations latching the first sample into loc_720 the moment either
; changes, set both serial-control regs to 7, clear both chips' eight
; audio regs $60C0..7/$60D0..7 and the software arrays loc_c0,x/loc_d0,x,
; then zero both control regs $60C8/$60D8.
resetBothPokeyChips:
CD95: A9 00 LDA #$00
CD97: 8D CF 60 STA pokey1+F ; hold the first sound chip in serial reset (control latch 0)
CD9A: 8D DF 60 STA pokey2+F ; hold the second sound chip in serial reset
CD9D: 8D 20 07 STA workRam+720 ; clear the random-seed scratch cell
CDA0: A2 04 LDX #$04 ; poll the entropy registers up to five times
CDA2: AD CA 60 LDA pokey1+A ; snapshot the first chip's free-running random register
CDA5: AC DA 60 LDY pokey2+A ; snapshot the second chip's random register
loc_cda8:
CDA8: CD CA 60 CMP pokey1+A ; has the first chip's random register advanced
CDAB: D0 03 BNE loc_cdb0 ;
CDAD: CC DA 60 CPY pokey2+A ; has the second chip's advanced
loc_cdb0:
CDB0: F0 05 BEQ loc_cdb7 ; neither moved -- keep polling
CDB2: 8D 20 07 STA workRam+720 ; one moved -- latch the snapshot as the random seed
CDB5: A2 00 LDX #$00 ; stop polling
loc_cdb7:
CDB7: CA DEX
CDB8: 10 EE BPL loc_cda8 ;
CDBA: A9 07 LDA #$07 ; release value for the serial-control latch
CDBC: 8D CF 60 STA pokey1+F ; release the first chip (control latch 7, the init handshake)
CDBF: 8D DF 60 STA pokey2+F ; release the second chip
CDC2: A2 07 LDX #$07 ; walk the eight audio registers of each chip
CDC4: A9 00 LDA #$00
loc_cdc6:
CDC6: 9D C0 60 STA pokey1,X ; silence a first-chip audio register
CDC9: 9D D0 60 STA pokey2,X ; silence a second-chip audio register
CDCC: 95 C0 STA workRam+C0,X ; clear the slot's software voice-value mirror
CDCE: 95 D0 STA workRam+D0,X ; clear the slot's software voice-level mirror
CDD0: CA DEX
CDD1: 10 F3 BPL loc_cdc6 ;
CDD3: A9 00 LDA #$00
CDD5: 8D C8 60 STA pokey1+8 ; clear the first chip's control register
CDD8: A9 00 LDA #$00
CDDA: 8D D8 60 STA pokey2+8 ; clear the second chip's control register
CDDD: 60 RTS
; ---- $CDDE-$CF23: data ----
CDDE: 0B 5D 22 74 0C 5E 34 50 00 71 C5 68 40 80 6C 01
CDEE: 40 1E 00 71 B4 A8 B4 A8 B4 A8 B4 A8 B4 A8 65 A8
CDFE: 00 00 70 1F 00 71 00 58 C1 68 3F A9 3F A9 3F A9
CE0E: 3F A9 3F A9 3F A9 30 00 D0 1F C5 68 B4 A8 B4 A8
CE1E: B4 A8 B4 A8 B4 A8 B4 A8 DC 1F 00 00 C7 68 B4 A8
CE2E: B4 A8 C5 68 24 00 E8 1F B4 A8 B4 A8 B4 A8 00 71
CE3E: E0 1F 28 00 00 71 B4 A8 B4 A8 B4 A8 B4 A8 B4 A8
CE4E: 65 A8 00 00 70 1F 00 71 00 58 C1 68 3F A9 3F A9
CE5E: 3F A9 3F A9 3F A9 3F A9 55 7F 06 20 02 22 0C 24
CE6E: 92 26 00 29 56 2A D8 2C BE 2D 24 2E 04 21 06 23
CE7E: 4E 25 C8 27 AA 29 96 2B 4A 2D F0 2D A6 2E 04 20
CE8E: 00 22 0A 24 90 26 FE 28 54 2A D6 2C BC 2D 22 2E
CE9E: 03 E0 01 E1 06 E2 49 E3 80 E4 2B E5 6C E6 DF E6
CEAE: 12 E7 82 E0 83 E1 A7 E2 E4 E3 D5 E4 CB E5 A5 E6
CEBE: F8 E6 53 E7 DA EE E4 EE E6 EE 61 AA 7C AA 91 AA
CECE: AD AA CA AA 14 AB 6F AB C0 AB 15 AC 66 AC 7D AC
CEDE: 94 AC AB AC D8 AC FA AC 0D AD 20 AD 39 AD 51 AD
CEEE: 6A AD 8C AD 8A AD 88 AD 86 AD 84 AD 82 AD 86 AD
CEFE: 8A AD 8C AD D7 AD C2 AD C5 AD C8 AD CB AD CE AD
CF0E: D1 AD D4 AD C2 AC CB AC 35 AE 59 AE 7E AE A2 AE
CF1E: C5 AE CB AE D2 AE
; on every interrupt advance the three timebase counter lanes gated by
; loc_8: step each enabled lane's wrapped position loc_d/loc_e/loc_f
; (masked to 0x1f, wrapping the 0x20 boundary), run its down-timer
; loc_10,x (reload 0x78 on zero), fold a small per-lane increment into the
; running accumulator pair loc_16/loc_17 and bump counter loc_13,x; then
; subtract a $CFD9-table amount from loc_16 (advancing overflow tally
; loc_18), nudge loc_6, store loc_17, and run two clamp passes over the
; loc_13 triple.
tickHeartbeatCounters:
CF24: A2 02 LDX #$02 ; step the three timebase lanes, x = 2,1,0
loc_cf26:
CF26: AD 08 00 LDA workRam+8 ; read the latched input port for this lane's control bits
CF29: E0 01 CPX #$01
CF2B: F0 03 BEQ loc_cf30 ;
CF2D: B0 02 BCS loc_cf31 ;
CF2F: 4A LSR A ; shift out this lane's control bits
loc_cf30:
CF30: 4A LSR A
loc_cf31:
CF31: 4A LSR A
CF32: B5 0D LDA workRam+D,X ; load this lane's wrapped position
CF34: 29 1F AND #$1F ; mask to the 0..0x1f rail
CF36: B0 37 BCS loc_cf6f ; control bit set -- take the wrap-up path
CF38: F0 10 BEQ loc_cf4a ; position at 0 -- store as-is
CF3A: C9 1B CMP #$1B ; near the top rail
CF3C: B0 0A BCS loc_cf48 ;
CF3E: A8 TAY
CF3F: A5 07 LDA workRam+7 ; read the interrupt sub-timer
CF41: 29 07 AND #$07 ; take its low phase
CF43: C9 07 CMP #$07 ; pace the step to sub-timer phase 7
CF45: 98 TYA
CF46: 90 02 BCC loc_cf4a ;
loc_cf48:
CF48: E9 01 SBC #$01 ; decrement the position with borrow
loc_cf4a:
CF4A: 95 0D STA workRam+D,X ; store the updated lane position
CF4C: AD 08 00 LDA workRam+8 ; test input bit 3
CF4F: 29 08 AND #$08
CF51: D0 04 BNE loc_cf57 ;
CF53: A9 F0 LDA #$F0 ; prime the sound-step gate to 0xf0
CF55: 85 0C STA workRam+C ;
loc_cf57:
CF57: A5 0C LDA workRam+C ; read the sound-step gate
CF59: F0 08 BEQ loc_cf63 ;
CF5B: C6 0C DEC workRam+C ; tick the sound-step gate down
CF5D: A9 00 LDA #$00
CF5F: 95 0D STA workRam+D,X ; reset this lane's position on gate drain
CF61: 95 10 STA workRam+10,X ; reset this lane's down-timer
loc_cf63:
CF63: 18 CLC
CF64: B5 10 LDA workRam+10,X ; read the lane down-timer
CF66: F0 23 BEQ loc_cf8b ;
CF68: D6 10 DEC workRam+10,X ; decrement the down-timer
CF6A: D0 1F BNE loc_cf8b ;
CF6C: 38 SEC ; timer reached 0 -- flag an event tick
CF6D: B0 1C BCS loc_cf8b ;
loc_cf6f:
CF6F: C9 1B CMP #$1B ; wrap-up path: position near the top rail
CF71: B0 09 BCS loc_cf7c ;
CF73: B5 0D LDA workRam+D,X ; load the position
CF75: 69 20 ADC #$20 ; add 0x20 to the position
CF77: 90 D1 BCC loc_cf4a ;
CF79: F0 01 BEQ loc_cf7c ;
CF7B: 18 CLC
loc_cf7c:
CF7C: A9 1F LDA #$1F ; rail the position at 0x1f
CF7E: B0 CA BCS loc_cf4a ;
CF80: 95 0D STA workRam+D,X ; store the railed position
CF82: B5 10 LDA workRam+10,X ; read the down-timer
CF84: F0 01 BEQ loc_cf87 ;
CF86: 38 SEC
loc_cf87:
CF87: A9 78 LDA #$78 ; reload the lane down-timer to 0x78
CF89: 95 10 STA workRam+10,X ; store the reloaded down-timer
loc_cf8b:
CF8B: 90 2A BCC loc_cfb7 ; no event this lane -- skip the accumulator fold
CF8D: A9 00 LDA #$00
CF8F: E0 01 CPX #$01 ; select the increment by lane
CF91: 90 16 BCC loc_cfa9 ;
CF93: F0 0C BEQ loc_cfa1 ;
CF95: A5 09 LDA workRam+9 ; lane 2: take option bits 2-3 as the increment
CF97: 29 0C AND #$0C
CF99: 4A LSR A
CF9A: 4A LSR A
CF9B: F0 0C BEQ loc_cfa9 ;
CF9D: 69 02 ADC #$02 ; bias the increment
CF9F: D0 08 BNE loc_cfa9 ;
loc_cfa1:
CFA1: A5 09 LDA workRam+9 ; lane 1: option bit 4 selects
CFA3: 29 10 AND #$10
CFA5: F0 02 BEQ loc_cfa9 ;
CFA7: A9 01 LDA #$01 ; a +1 increment
loc_cfa9:
CFA9: 38 SEC
CFAA: 48 PHA
CFAB: 65 16 ADC workRam+16 ; fold the increment into the accumulator low byte
CFAD: 85 16 STA workRam+16 ; store the accumulator low byte
CFAF: 68 PLA
CFB0: 38 SEC
CFB1: 65 17 ADC workRam+17 ; carry into the accumulator high byte
CFB3: 85 17 STA workRam+17 ; store the accumulator high byte
CFB5: F6 13 INC workRam+13,X ; bump this lane's event counter
loc_cfb7:
CFB7: CA DEX ; advance to the next lane
CFB8: 30 03 BMI loc_cfbd ;
CFBA: 4C 26 CF JMP loc_cf26 ; loop to the next lane
loc_cfbd:
CFBD: A5 09 LDA workRam+9 ; option top three bits index the reduction table
CFBF: 4A LSR A
CFC0: 4A LSR A
CFC1: 4A LSR A
CFC2: 4A LSR A
CFC3: 4A LSR A
CFC4: A8 TAY
CFC5: A5 16 LDA workRam+16 ; load the accumulator low byte
CFC7: 38 SEC
CFC8: F9 D9 CF SBC rom+3FD9,Y ; drain it by the option-indexed reduction amount
CFCB: 30 14 BMI loc_cfe1 ;
CFCD: 85 16 STA workRam+16 ; store the drained low byte
CFCF: E6 18 INC workRam+18 ; advance the overflow tally
CFD1: C0 03 CPY #$03 ; at the maximum reduction index
CFD3: D0 0C BNE loc_cfe1 ;
CFD5: E6 18 INC workRam+18 ; advance the overflow tally a second time
CFD7: D0 08 BNE loc_cfe1 ;
; A short data table subtracted from a running value via sbc $cfd9,y
; (y=0..3) by the routine just above; a fall-through mis-decoded its first
; byte as an undefined opcode. Real code resumes at $cfe1.
; ---- $CFD9-$CFE0: data table ----
CFD9: 7F 02 04 04 05 03 7F 7F
loc_cfe1:
CFE1: A5 09 LDA workRam+9 ; option low two bits select a high-byte correction
CFE3: 29 03 AND #$03
CFE5: A8 TAY
CFE6: F0 1A BEQ loc_d002 ;
CFE8: 4A LSR A
CFE9: 69 00 ADC #$00
CFEB: 49 FF EOR #$FF
CFED: 38 SEC
CFEE: 65 17 ADC workRam+17 ; apply the correction to the accumulator high byte
CFF0: B0 08 BCS loc_cffa ;
CFF2: 65 18 ADC workRam+18 ; carry it through the overflow tally
CFF4: 30 0E BMI loc_d004 ;
CFF6: 85 18 STA workRam+18 ; store the overflow tally
CFF8: A9 00 LDA #$00
loc_cffa:
CFFA: C0 02 CPY #$02
CFFC: B0 02 BCS loc_d000 ;
CFFE: E6 06 INC workRam+6 ; step the phase counter
loc_d000:
D000: E6 06 INC workRam+6 ; step the phase counter again
loc_d002:
D002: 85 17 STA workRam+17 ; commit the accumulator high byte
loc_d004:
D004: A5 07 LDA workRam+7 ; gate the clamp passes on the sub-timer's low bit
D006: 4A LSR A
D007: B0 27 BCS loc_d030 ; odd sub-timer -- skip the clamp
D009: A0 00 LDY #$00
D00B: A2 02 LDX #$02 ; first clamp pass over the three lane counters
loc_d00d:
D00D: B5 13 LDA workRam+13,X ; read a lane counter
D00F: F0 09 BEQ loc_d01a ;
D011: C9 10 CMP #$10 ; is it 0x10 or more
D013: 90 05 BCC loc_d01a ;
D015: 69 EF ADC #$EF ; reduce it by 0x11
D017: C8 INY ; tally that a lane was reduced
D018: 95 13 STA workRam+13,X ; store the reduced counter
loc_d01a:
D01A: CA DEX
D01B: 10 F0 BPL loc_d00d ;
D01D: 98 TYA ; any lane reduced
D01E: D0 10 BNE loc_d030 ; yes -- skip the second pass
D020: A2 02 LDX #$02 ; second clamp pass over the lane counters
loc_d022:
D022: B5 13 LDA workRam+13,X ; read a lane counter
D024: F0 07 BEQ loc_d02d ;
D026: 18 CLC
D027: 69 EF ADC #$EF ; reduce it by 0x11
D029: 95 13 STA workRam+13,X ; store it
D02B: 30 03 BMI loc_d030 ; stop at the first that goes negative
loc_d02d:
D02D: CA DEX
D02E: 10 F2 BPL loc_d022 ;
loc_d030:
D030: 60 RTS
; ---- $D031-$D6BA: data ----
D031: 5D D1 8F D1 8F D1 B1 D1 EB D1 03 D2 61 D2 CB D2
D041: 33 D3 66 D3 B0 D3 E6 D3 FF D3 17 D4 1D D4 34 D4
D051: 4C D4 60 D4 A1 D4 AB D4 EF D4 30 D5 75 D5 85 D5
D061: A1 D5 A8 D5 E9 D5 1C D6 62 D6 7A D6 67 D1 97 D1
D071: 97 D1 BD D1 F0 D1 17 D2 75 D2 E0 D2 3F D3 79 D3
D081: BE D3 E6 D3 FF D3 17 D4 22 D4 3A D4 51 D4 6D D4
D091: A1 D4 BA D4 FD D4 3F D5 75 D5 85 D5 A1 D5 B9 D5
D0A1: F6 D5 29 D6 68 D6 7A D6 75 D1 9F D1 9F D1 CF D1
D0B1: F6 D1 30 D2 94 D2 FB D2 50 D3 8B D3 CB D3 F5 D3
D0C1: 0E D4 17 D4 28 D4 41 D4 5B D4 83 D4 A1 D4 CC D4
D0D1: 0E D5 51 D5 75 D5 8E D5 A1 D5 C8 D5 04 D6 3E D6
D0E1: 6F D6 8F D6 7F D1 A8 D1 A8 D1 DE D1 FC D1 4D D2
D0F1: AE D2 16 D3 5E D3 A0 D3 DA D3 ED D3 06 D4 17 D4
D101: 2D D4 46 D4 56 D4 92 D4 A1 D4 DD D4 1F D5 63 D5
D111: 75 D5 97 D5 A1 D5 D9 D5 10 D6 51 D6 74 D6 A1 D6
D121: 51 56 00 1A 01 20 31 56 01 38 31 B0 41 00 11 F6
D131: 30 38 31 CE 51 0A 31 E2 31 E2 51 BA 51 98 51 D8
D141: 51 C9 31 56 51 80 51 80 51 80 51 80 71 92 51 80
D151: 31 B0 51 89 41 89 00 00 71 5A 71 A0 E5 22 16 2E
D161: 1E 00 32 40 1E B8 D9 20 26 30 00 1C 1E 00 34 16
D171: 38 3C 26 9E E5 3A 34 26 1E 2C 1E 30 1C 9E D3 28
D181: 3E 1E 22 32 00 3C 1E 38 2E 26 30 16 1C B2 CD 34
D191: 2C 16 46 1E 38 80 C6 28 32 3E 1E 3E 38 80 C6 3A
D1A1: 34 26 1E 2C 1E 38 80 C6 28 3E 22 16 1C 32 38 80
D1B1: DF 34 38 1E 3A 3A 00 3A 3C 16 38 BC CD 16 34 34
D1C1: 3E 46 1E 48 00 3A 3E 38 00 3A 3C 16 38 BC D6 3A
D1D1: 3C 16 38 3C 00 1C 38 3E 1E 1A 2A 1E B0 DC 34 3E
D1E1: 2C 3A 16 38 00 3A 3C 16 38 BC F4 34 2C 16 C6 F1
D1F1: 28 32 3E 1E C8 F1 3A 34 26 1E AC EE 28 3E 1E 22
D201: 3E 9E C7 1E 30 3C 1E 38 00 46 32 3E 38 00 26 30
D211: 26 3C 26 16 2C BA B8 3A 40 34 00 1E 30 3C 38 1E
D221: 48 00 40 32 3A 00 26 30 26 3C 26 16 2C 1E BA AC
D231: 22 1E 18 1E 30 00 3A 26 1E 00 26 24 38 1E 00 26
D241: 30 26 3C 26 16 2C 1E 30 00 1E 26 B0 C7 1E 30 3C
D251: 38 1E 00 3A 3E 3A 00 26 30 26 1A 26 16 2C 1E BA
D261: C7 3A 34 26 30 00 2A 30 32 18 00 3C 32 00 1A 24
D271: 16 30 22 9E A6 3C 32 3E 38 30 1E 48 00 2C 1E 00
D281: 18 32 3E 3C 32 30 00 34 32 3E 38 00 1A 24 16 30
D291: 22 1E B8 B5 2A 30 32 34 20 00 1C 38 1E 24 1E 30
D2A1: 00 48 3E 2E 00 42 1E 1A 24 3A 1E 2C B0 AC 22 26
D2B1: 38 1E 00 2C 16 00 34 1E 38 26 2C 2C 16 00 34 16
D2C1: 38 16 00 1A 16 2E 18 26 16 B8 C4 34 38 1E 3A 3A
D2D1: 00 20 26 38 1E 00 3C 32 00 3A 1E 2C 1E 1A BC B2
D2E1: 34 32 3E 3A 3A 1E 48 00 20 1E 3E 00 36 3E 16 30
D2F1: 1C 00 1A 32 38 38 1E 1A 3C 9E B2 20 26 38 1E 00
D301: 1C 38 3E 1E 1A 2A 1E 30 00 42 1E 30 30 00 38 26
D311: 1A 24 3C 26 A2 AC 32 34 38 26 2E 16 00 20 26 38
D321: 1E 00 34 16 38 16 00 3A 1E 2C 1E 1A 1A 26 32 30
D331: 16 B8 BC 24 26 22 24 00 3A 1A 32 38 1E BA 9E 2E
D341: 1E 26 2C 2C 1E 3E 38 3A 00 3A 1A 32 38 1E BA B0
D351: 24 32 1E 1A 24 3A 3C 48 16 24 2C 1E B0 D4 38 1E
D361: 1A 32 38 1C BA C2 38 16 30 2A 26 30 22 00 20 38
D371: 32 2E 00 04 00 3C 32 80 C2 34 2C 16 1A 1E 2E 1E
D381: 30 3C 00 1C 1E 00 04 00 16 80 BC 38 16 30 22 2C
D391: 26 3A 3C 1E 00 40 32 30 00 04 00 48 3E 2E 80 C8
D3A1: 38 16 30 2A 26 30 22 00 1C 1E 00 04 00 16 80 D9
D3B1: 38 16 3C 1E 00 46 32 3E 38 3A 1E 2C A0 DC 1E 40
D3C1: 16 2C 3E 1E 48 4C 40 32 3E BA D6 3A 1E 2C 18 3A
D3D1: 3C 00 38 1E 1A 24 30 1E B0 DF 1A 16 2C 26 20 26
D3E1: 36 3E 1E 3A 9E AA 30 32 40 26 1A 9E AA 30 32 40
D3F1: 26 1A 26 B2 AA 16 30 20 16 1E 30 22 1E B8 4A 1E
D401: 44 34 1E 38 BC 45 1E 44 34 1E 38 3C B2 40 1E 38
D411: 20 16 24 38 1E B0 8B 18 32 30 3E BA E8 3C 26 2E
D421: 9E E0 1C 3E 38 1E 9E E8 48 1E 26 BC E4 3C 26 1E
D431: 2E 34 B2 8B 2C 1E 40 1E AC 8B 30 26 40 1E 16 BE
D441: 8B 22 38 16 9C 8B 30 26 40 1E AC 8B 24 32 2C 9E
D451: 8B 3C 38 32 BE 8B 24 32 46 B2 8B 2C 32 1A A4 DC
D461: 26 30 3A 1E 38 3C 00 1A 32 26 30 BA C1 26 30 3C
D471: 38 32 1C 3E 26 38 1E 00 2C 1E 3A 00 34 26 1E 1A
D481: 1E BA D6 22 1E 2C 1C 00 1E 26 30 42 1E 38 20 1E
D491: B0 D6 26 30 3A 1E 38 3C 1E 00 20 26 1A 24 16 BA
D4A1: 00 20 38 1E 1E 00 34 2C 16 C6 0E 04 00 1A 32 26
D4B1: 30 00 06 00 34 2C 16 46 BA FA 04 00 34 26 1E 1A
D4C1: 1E 00 06 00 28 32 3E 1E 3E 38 BA 00 04 00 2E 3E
D4D1: 1E 30 48 00 06 00 3A 34 26 1E 2C 9E FA 04 00 2E
D4E1: 32 30 1E 1C 16 00 06 00 28 3E 1E 22 32 BA 14 04
D4F1: 00 1A 32 26 30 00 04 00 34 2C 16 C6 00 04 00 34
D501: 26 1E 1A 1E 00 04 00 28 32 3E 1E 3E B8 00 04 00
D511: 2E 3E 1E 30 48 1E 00 04 00 3A 34 26 1E AC 00 04
D521: 00 2E 32 30 1E 1C 16 00 04 00 28 3E 1E 22 B2 0E
D531: 06 00 1A 32 26 30 3A 00 04 00 34 2C 16 C6 FA 06
D541: 00 34 26 1E 1A 1E 3A 00 04 00 28 32 3E 1E 3E B8
D551: FA 06 00 2E 3E 1E 30 48 1E 30 00 04 00 3A 34 26
D561: 1E AC FA 06 00 2E 32 30 1E 1C 16 3A 00 04 00 28
D571: 3E 1E 22 B2 D3 50 00 2E 1A 2E 2C 44 44 44 00 16
D581: 3C 16 38 A6 A0 1A 38 1E 1C 26 3C 3A 80 A0 2A 38
D591: 1E 1C 26 3C 1E 80 A0 1A 38 1E 1C 26 3C 32 3A 80
D5A1: DA 18 32 30 3E 3A 80 D0 06 00 1A 38 1E 1C 26 3C
D5B1: 00 2E 26 30 26 2E 3E AE D6 06 00 28 1E 3E 44 00
D5C1: 2E 26 30 26 2E 3E AE D0 06 00 3A 34 26 1E 2C 1E
D5D1: 00 2E 26 30 26 2E 3E AE D3 06 00 28 3E 1E 22 32
D5E1: 3A 00 2E 26 30 26 2E B2 C8 18 32 30 3E 3A 00 1E
D5F1: 40 1E 38 46 80 CE 18 32 30 3E 3A 00 1A 24 16 36
D601: 3E 1E 80 CE 18 32 30 3E 3A 00 28 1E 1C 1E 80 C8
D611: 18 32 30 3E 3A 00 1A 16 1C 16 80 B8 16 40 32 26
D621: 1C 00 3A 34 26 2A 1E BA 88 16 3C 3C 1E 30 3C 26
D631: 32 30 00 16 3E 44 00 2C 16 30 1A 1E BA 96 3A 34
D641: 26 3C 48 1E 30 00 16 3E 3A 42 1E 26 1A 24 1E B0
D651: A0 1E 40 26 3C 1E 00 2C 16 3A 00 34 3E 30 3C 16
D661: BA E0 2C 1E 40 1E AC DA 30 26 40 1E 16 BE E2 22
D671: 38 16 9C E0 30 26 40 1E AC C4 3A 3E 34 1E 38 48
D681: 16 34 34 1E 38 00 38 1E 1A 24 16 38 22 9E CD 30
D691: 1E 3E 1E 38 00 3A 3E 34 1E 38 48 16 34 34 1E B8
D6A1: CD 30 3E 1E 40 32 00 3A 3E 34 1E 38 48 16 34 34
D6B1: 1E B8 31 D0 6D D0 A9 D0 E5 D0
; decode the option (DIP) switch ports into game config: read port loc_e00
; into loc_a, index $D6F7 by bits 5-3 into loc_156, $D6FF by bits 7-6 into
; loc_158, and the a0&0x06 field into $D6B3/$D6B4 -> loc_ac/loc_ad; store
; the other port loc_d00 (bit1 toggled) into loc_9, and fold loc_ad
; through assemblePotStatusByte recording the merge in loc_16a.
decodeOptionSwitches:
D6BB: AD 00 0E LDA dsw2 ; read the options DIP-switch port
D6BE: 85 0A STA workRam+A ; snapshot the options byte
D6C0: 29 38 AND #$38 ; bits 5-3 select the bonus-life interval
D6C2: 4A LSR A
D6C3: 4A LSR A
D6C4: 4A LSR A
D6C5: AA TAX
D6C6: BD F7 D6 LDA rom+46F7,X ; read the bonus-interval table
D6C9: 8D 56 01 STA workRam+156 ; store the live bonus-life interval
D6CC: AD 00 0D LDA dsw1 ; read the coinage DIP-switch port
D6CF: 49 02 EOR #$02 ; toggle bit 1
D6D1: 85 09 STA workRam+9 ; store the coinage snapshot
D6D3: A5 0A LDA workRam+A ; bits 7-6 select the bonus config
D6D5: 2A ROL A
D6D6: 2A ROL A
D6D7: 2A ROL A
D6D8: 29 03 AND #$03
D6DA: AA TAX
D6DB: BD FF D6 LDA rom+46FF,X ; read the bonus-config table
D6DE: 8D 58 01 STA workRam+158 ; store the bonus config
D6E1: A5 0A LDA workRam+A ; take the two-bit difficulty field
D6E3: 29 06 AND #$06
D6E5: A8 TAY
D6E6: B9 B3 D6 LDA rom+46B3,Y ; read paired config entry A
D6E9: 85 AC STA workRam+AC ; store config A
D6EB: B9 B4 D6 LDA rom+46B4,Y ; read paired config entry B
D6EE: 85 AD STA workRam+AD ; store config B
D6F0: 20 E0 DB JSR assemblePotStatusByte; fold config B through the pot/status merge
D6F3: 8D 6A 01 STA workRam+16A ; store the merged difficulty config
D6F6: 60 RTS
; ---- $D6F7-$D703: data ----
D6F7: 02 01 03 04 05 06 07 00 03 04 05 02 7C
serviceHeartbeatInterrupt:
D704: 48 PHA
D705: 8A TXA
D706: 48 PHA
D707: 98 TYA
D708: 48 PHA
D709: D8 CLD
D70A: BA TSX ; read the stack pointer for the depth guard
D70B: E0 D0 CPX #$D0 ; stack too shallow
D70D: 90 04 BCC loc_d713 ;
D70F: A5 53 LDA workRam+53 ; read the heartbeat counter for the sign guard
D711: 10 04 BPL loc_d717 ; heartbeat still positive -- proceed
loc_d713:
D713: 00 BRK ; guard tripped -- force a reset
D714: 4C 3F D9 JMP bootMachineFromReset; divert to the power-on reset
loc_d717:
D717: 8D 00 50 STA wdclr / irqAck ; kick the watchdog and acknowledge the interrupt
D71A: 8D CB 60 STA pokey1+B ; pulse the first chip's pot-scan start
D71D: AD C8 60 LDA pokey1+8 ; read the spinner pot
D720: 49 0F EOR #$0F ; invert the pot reading
D722: A8 TAY
D723: 29 10 AND #$10 ; stash the pot's bit-4 flag
D725: 8D 17 01 STA workRam+117 ;
D728: 98 TYA
D729: 38 SEC
D72A: E5 52 SBC workRam+52 ; form the delta versus the previous pot reading
D72C: 29 0F AND #$0F ; keep the low nibble
D72E: C9 08 CMP #$08 ; is the delta's sign bit set
D730: 90 02 BCC loc_d734 ;
D732: 09 F0 ORA #$F0 ; sign-extend the 4-bit delta
loc_d734:
D734: 18 CLC
D735: 65 50 ADC workRam+50 ; accumulate the delta into the spinner accumulator
D737: 85 50 STA workRam+50 ; store the spinner accumulator
D739: 84 52 STY workRam+52 ; save this frame's pot reading
D73B: 8D DB 60 STA pokey2+B ; mirror the accumulator to the second chip's pot register
D73E: AC D8 60 LDY pokey2+8 ; read the coin/switch input
D741: AD 00 0C LDA in0 ; latch the raw input port
D744: 85 08 STA workRam+8 ; store the input latch
D746: A5 4C LDA workRam+4C ; last frame's inputs
D748: 84 4C STY workRam+4C ; latch this frame's coin/switch inputs
D74A: A8 TAY
D74B: 25 4C AND workRam+4C ;
D74D: 05 4D ORA workRam+4D ;
D74F: 85 4D STA workRam+4D ; update the debounced-input cell
D751: 98 TYA
D752: 05 4C ORA workRam+4C ;
D754: 25 4D AND workRam+4D ;
D756: 85 4D STA workRam+4D ; settle the debounced inputs
D758: A8 TAY
D759: 45 4F EOR workRam+4F ; compare against the previous held state for edges
D75B: 25 4D AND workRam+4D ;
D75D: 05 4E ORA workRam+4E ;
D75F: 85 4E STA workRam+4E ; record the newly-pressed edge flags
D761: 84 4F STY workRam+4F ; save the held state
D763: A5 B4 LDA workRam+B4 ; base the output flags on the vector scale
D765: A4 13 LDY workRam+13 ; lane-0 status counter
D767: 10 02 BPL loc_d76b ;
D769: 09 04 ORA #$04 ; set a bit for an active lane-0 counter
loc_d76b:
D76B: A4 14 LDY workRam+14 ;
D76D: 10 02 BPL loc_d771 ;
D76F: 09 02 ORA #$02 ; set a bit for an active lane-1 counter
loc_d771:
D771: A4 15 LDY workRam+15 ;
D773: 10 02 BPL loc_d777 ;
D775: 09 01 ORA #$01 ; set a bit for an active lane-2 counter
loc_d777:
D777: 8D 00 40 STA coin ; write the coin-counter / screen-flip output latch
D77A: A6 3E LDX workRam+3E ;
D77C: E8 INX
D77D: A4 05 LDY workRam+5 ; status flags set -- use the phase index + 1
D77F: D0 10 BNE loc_d791 ;
D781: A2 00 LDX #$00
D783: A4 07 LDY workRam+7 ; idle: sub-timer still low -- index 0
D785: C0 40 CPY #$40
D787: 90 08 BCC loc_d791 ;
D789: A6 06 LDX workRam+6 ; else the phase counter (0 or 1)
D78B: E0 02 CPX #$02
D78D: 90 02 BCC loc_d791 ;
D78F: A2 03 LDX #$03 ; else a fixed index 3
loc_d791:
D791: BD DD D7 LDA rom+47DD,X ; read the vector-generator state-code table
D794: 45 A1 EOR workRam+A1 ; fold its low two bits into the draw-mode flag
D796: 29 03 AND #$03
D798: 45 A1 EOR workRam+A1 ;
D79A: 85 A1 STA workRam+A1 ;
D79C: 8D E0 60 STA led ; mirror the draw mode to the LED / screen-flip latch
D79F: 20 24 CF JSR tickHeartbeatCounters; run the timebase lane engine
D7A2: 20 0A CD JSR stepSoundVoices ; run the per-frame sound engine
D7A5: E6 53 INC workRam+53 ; advance the heartbeat counter
D7A7: E6 07 INC workRam+7 ; advance the interrupt sub-timer
D7A9: D0 1E BNE loc_d7c9 ; only on the sub-timer wrap, run the timer cascades
D7AB: EE 06 04 INC workRam+406 ; carry into timer-1 low byte
D7AE: D0 08 BNE loc_d7b8 ;
D7B0: EE 07 04 INC workRam+407 ; carry into timer-1 mid byte
D7B3: D0 03 BNE loc_d7b8 ;
D7B5: EE 08 04 INC workRam+408 ; carry into timer-1 high byte
loc_d7b8:
D7B8: 24 05 BIT workRam+5 ; the second cascade is gated by a status flag
D7BA: 50 0D BVC loc_d7c9 ;
D7BC: EE 09 04 INC workRam+409 ; carry into timer-2 low byte
D7BF: D0 08 BNE loc_d7c9 ;
D7C1: EE 0A 04 INC workRam+40A ; carry into timer-2 mid byte
D7C4: D0 03 BNE loc_d7c9 ;
D7C6: EE 0B 04 INC workRam+40B ; carry into timer-2 high byte
loc_d7c9:
D7C9: 2C 00 0C BIT in0 ; is the vector-generator-done input asserted
D7CC: 50 09 BVC loc_d7d7 ;
D7CE: EE 33 01 INC workRam+133 ; bump the redraw counter
D7D1: 8D 00 58 STA avgReset ; strobe the vector-generator reset
D7D4: 8D 00 48 STA avgGo ; strobe the vector-generator go -- launch the redraw
loc_d7d7:
D7D7: 68 PLA
D7D8: A8 TAY
D7D9: 68 PLA
D7DA: AA TAX
D7DB: 68 PLA
D7DC: 40 RTI
; ---- $D7DD-$D7E0: data ----
D7DD: FF FD FE FC
; arm mode bytes loc_5=0x00 and loc_1=0x02, then rebuild only while idle
; and enabled: bail if loc_1ca is nonzero (busy) or bit4 of option port
; loc_c00 is clear (disabled), write loc_0=0x00, and run
; rebuildControlBlocksFromTemplate only when loc_1c9's low two bits show a
; pending request.
armModeAndRebuildIfEnabled:
D7E1: A9 00 LDA #$00
D7E3: 85 05 STA workRam+5 ; clear the status/flags byte
D7E5: A9 02 LDA #$02
D7E7: 85 01 STA workRam+1 ; arm the dispatch selector to 2
D7E9: AD CA 01 LDA workRam+1CA ; high-score store busy
D7EC: D0 15 BNE loc_d803 ; busy -- bail
D7EE: AD 00 0C LDA in0 ; read the feature-enable input
D7F1: 29 10 AND #$10
D7F3: F0 0E BEQ loc_d803 ; feature disabled -- bail
D7F5: A9 00 LDA #$00
D7F7: 85 00 STA workRam ; set idle game mode
D7F9: AD C9 01 LDA workRam+1C9 ; check the pending-work bits
D7FC: 29 03 AND #$03
D7FE: F0 03 BEQ loc_d803 ; nothing queued -- bail
D800: 20 AC AB JSR rebuildControlBlocksFromTemplate; rebuild the control blocks from their template
loc_d803:
D803: 60 RTS
; a trampoline target that assembles the frame's vector item list into
; display RAM: four setup passes, a header pair, a marker emitted 0x158
; times (dec-counted via 0x37), then table-indexed coordinate records
; selected by state cells 0x16a/0x200/0x4d and the 0xd8b6/0xd8ba/0xd8c2
; tables, with a mask-table gated branch
; (eraseEaromLowRegions/queueEaromRegionErase).
buildVectorItemList:
D804: 20 BB D6 JSR decodeOptionSwitches; read the option DIP switches
D807: 20 A8 AA JSR drawOverlayFrame ; draw the overlay frame
D80A: 20 0D DD JSR buildPotReadoutVectorList; build the pot readout list
D80D: 20 41 DD JSR buildLargeDecimalNumber; build the large decimal number
D810: AD 58 01 LDA workRam+158 ; marker repeat count from the bonus config
D813: 85 37 STA workRam+37 ;
D815: 20 53 DF JSR emitVectorHeaderWord; emit the vector-list header word
D818: A9 E8 LDA #$E8
D81A: A2 C0 LDX #$C0
D81C: 20 75 DF JSR emitScaledCoordinateRecord; emit a scaled coordinate record
loc_d81f:
D81F: A9 32 LDA #$32
D821: A2 6C LDX #$6C
D823: 20 39 DF JSR emitCoordinateVectorWord; emit a marker coordinate word
D826: C6 37 DEC workRam+37 ; decrement the marker count
D828: D0 F5 BNE loc_d81f ; repeat the marker that many times
D82A: AD 6A 01 LDA workRam+16A ; difficulty (0..3) doubled into a table index
D82D: 29 03 AND #$03
D82F: 0A ASL A
D830: A8 TAY
D831: B9 1F 3F LDA vectorRom+F1F,Y ; read the difficulty coordinate pair (high byte)
D834: BE 1E 3F LDX vectorRom+F1E,Y ; read the difficulty coordinate pair (low byte)
D837: 20 39 DF JSR emitCoordinateVectorWord; emit the difficulty coordinate word
D83A: AD 00 02 LDA workRam+200 ; read the player's rim segment
D83D: 20 CE AD JSR foldStepIntoFraction; fold it through the step-into-fraction helper
D840: 8D 00 02 STA workRam+200 ; write the folded segment back
D843: 29 06 AND #$06 ; segment-selected table index
D845: 48 PHA
D846: A8 TAY
D847: B9 17 3F LDA vectorRom+F17,Y ; read the segment coordinate pair (high byte)
D84A: BE 16 3F LDX vectorRom+F16,Y ; read the segment coordinate pair (low byte)
D84D: 20 39 DF JSR emitCoordinateVectorWord; emit the segment coordinate word
D850: 68 PLA
D851: 4A LSR A
D852: AA TAX
D853: A5 4D LDA workRam+4D ; load the debounced inputs
D855: 3D B6 D8 AND rom+48B6,X ; mask them with the diagnostic mask-table entry
D858: DD B6 D8 CMP rom+48B6,X ; compare against the mask
D85B: D0 1A BNE loc_d877 ; not every mask bit present -- skip the erase work
D85D: CA DEX
D85E: CA DEX
D85F: 10 03 BPL loc_d864 ;
D861: 4C 3F D9 JMP bootMachineFromReset; slot underflow -- force a full reset
loc_d864:
D864: D0 06 BNE loc_d86c ;
D866: 20 E9 DD JSR queueEaromRegionErase; erase the low high-score-store regions
D869: B8 CLV
D86A: 50 0B BVC loc_d877 ;
loc_d86c:
D86C: 20 ED DD JSR eraseEaromLowRegions; queue a single high-score-store region erase
D86F: AD C9 01 LDA workRam+1C9 ;
D872: 09 03 ORA #$03 ; arm the pending erase-work bits
D874: 8D C9 01 STA workRam+1C9 ; store the pending-work byte
loc_d877:
D877: AD CA 01 LDA workRam+1CA ; read the high-score-store mode flag
D87A: 2D C6 01 AND workRam+1C6 ; and it with the blank flag
D87D: F0 07 BEQ loc_d886 ; flags disagree -- skip the extra word
D87F: A9 34 LDA #$34 ; emit an extra coordinate word (high byte)
D881: A2 6E LDX #$6E
D883: 20 39 DF JSR emitCoordinateVectorWord;
loc_d886:
D886: 20 53 DF JSR emitVectorHeaderWord; emit the second header word
D889: A5 09 LDA workRam+9 ; coinage bits 2-4 select the low diagnostic digit
D88B: 29 1C AND #$1C
D88D: 4A LSR A
D88E: 4A LSR A
D88F: AA TAX
D890: BD BA D8 LDA rom+48BA,X ; read the low digit value
D893: A0 EE LDY #$EE
D895: A2 1B LDX #$1B
D897: 20 A9 D8 JSR emitScaledByteDigit ; draw it as a scaled digit
D89A: A5 09 LDA workRam+9 ; coinage top three bits select the high digit
D89C: 4A LSR A
D89D: 4A LSR A
D89E: 4A LSR A
D89F: 4A LSR A
D8A0: 4A LSR A
D8A1: AA TAX
D8A2: BD C2 D8 LDA rom+48C2,X ; read the high digit value
D8A5: A0 32 LDY #$32
D8A7: A2 F8 LDX #$F8
; Stashes A into loc_29, scales the two coordinates (y, x), and emits that
; one stashed byte as a single-entry digit run.
emitScaledByteDigit:
D8A9: 85 29 STA workRam+29 ; stash the byte to draw
D8AB: 98 TYA
D8AC: 20 75 DF JSR emitScaledCoordinateRecord; emit the scaled coordinate record for the anchor
D8AF: A9 29 LDA #$29 ; point at the stashed byte
D8B1: A0 01 LDY #$01 ; one digit
D8B3: 4C B1 DF JMP emitNibbleDigitRun ; lay the byte down as a single-digit glyph run
; ---- $D8B6-$D8C9: data ----
D8B6: 18 18 30 50 11 14 15 16 21 24 25 26 00 12 14 24
D8C6: 15 13 00 00
; power-on tone-and-delay entry: store the passed byte at loc_79 then
; drive POKEY chip-0 through a descending run of tone bursts (writing
; $60C1/$60C0/$60E0 and strobing output latch $5000 while draining fixed
; counts), before tail-delegating to the checksum/self-test
; checksumRomAndSettleEntropy.
playPowerOnTone:
D8CA: A8 TAY ; hold the passed byte as the burst count
D8CB: A9 00 LDA #$00 ; seed the pass count to 0
; second entry of the power-on tone driver (same file as playPowerOnTone):
; store count at loc_79, derive the pass total from a ((a>>2)<<1, +1
; when count's low nibble is zero), then loop the descending POKEY tone
; bursts ($60C1/$60C0/$60E0, watchdog strobe $5000) switching to the low
; tone on the last pass, and tail-delegate to checksumRomAndSettleEntropy.
runPowerOnToneBursts:
D8CD: 84 79 STY workRam+79 ; store the burst count
D8CF: 4A LSR A
D8D0: 4A LSR A
D8D1: 0A ASL A
D8D2: AA TAX
D8D3: 98 TYA
D8D4: 29 0F AND #$0F ; one extra pass when the count's low nibble is 0
D8D6: D0 01 BNE loc_d8d9 ;
D8D8: E8 INX
loc_d8d9:
D8D9: 9A TXS
loc_d8da:
D8DA: A9 A2 LDA #$A2
D8DC: 8D C1 60 STA pokey1+1 ; set voice-1 control -- tone on
D8DF: BA TSX
D8E0: D0 07 BNE loc_d8e9 ; is this the final pass
D8E2: A9 60 LDA #$60 ; final pass: low tone, nine drains
D8E4: A0 09 LDY #$09
D8E6: B8 CLV
D8E7: 50 04 BVC loc_d8ed ;
loc_d8e9:
D8E9: A9 C0 LDA #$C0 ; normal pass: high tone, one drain
D8EB: A0 01 LDY #$01
loc_d8ed:
D8ED: 8D C0 60 STA pokey1 ; write voice-1 frequency -- the tone
D8F0: A9 03 LDA #$03
D8F2: 8D E0 60 STA led ; strobe the LED / screen-flip latch
D8F5: A2 00 LDX #$00
loc_d8f7:
D8F7: 2C 00 0C BIT in0 ; sync to the 3kHz line
D8FA: 30 FB BMI loc_d8f7 ;
loc_d8fc:
D8FC: 2C 00 0C BIT in0 ;
D8FF: 10 FB BPL loc_d8fc ;
D901: 8D 00 50 STA wdclr / irqAck ; kick the watchdog through the tone drain
D904: CA DEX
D905: D0 F0 BNE loc_d8f7 ;
D907: 88 DEY
D908: D0 ED BNE loc_d8f7 ;
D90A: 8E C1 60 STX pokey1+1 ; silence voice-1
D90D: A9 00 LDA #$00
D90F: 8D E0 60 STA led ; clear the LED / screen-flip latch
D912: A0 09 LDY #$09
loc_d914:
D914: 2C 00 0C BIT in0 ;
D917: 30 FB BMI loc_d914 ;
loc_d919:
D919: 2C 00 0C BIT in0 ;
D91C: 10 FB BPL loc_d919 ;
D91E: 8D 00 50 STA wdclr / irqAck ; kick the watchdog through the silent gap
D921: CA DEX
D922: D0 F0 BNE loc_d914 ;
D924: 88 DEY
D925: D0 ED BNE loc_d914 ;
D927: BA TSX
D928: CA DEX
D929: 9A TXS
D92A: 10 AE BPL loc_d8da ; loop until the pass counter underflows
D92C: 4C 0A DA JMP checksumRomAndSettleEntropy; continue into the ROM checksum
; fold one table byte (read through the zero-page pointer at loc_0,
; indexed by the incoming cursor y) into the running byte a by XOR, then
; continue into the tone-burst count path seedToneBurstCount with that
; result.
foldToneTableByte:
D92F: 51 00 EOR (workRam),Y ; fold one table byte into the running tone byte
; carry the incoming byte through as the tone-burst count and derive the
; pass-seed from loc_1 (values >=0x20 fold down by 0x18, then masked to
; five bits), handing both to the power-on tone burst
; runPowerOnToneBursts.
seedToneBurstCount:
D931: A8 TAY ; carry the folded byte as the burst count
D932: A5 01 LDA workRam+1 ; read the dispatch selector as the pass seed
D934: C9 20 CMP #$20 ; is the seed 0x20 or more
D936: 90 02 BCC loc_d93a ;
D938: E9 18 SBC #$18 ; fold high seed values back into range
loc_d93a:
D93A: 29 1F AND #$1F ; keep the low five bits
D93C: 4C CD D8 JMP runPowerOnToneBursts; drive the power-on tone bursts
; power-on RESET entry (a generator): wipe the two mapped RAM windows (2KB
; from 0x00, 4KB from 0x2000), seed the control block (0x1=0, 0x60e0=0,
; 0x60cf=7, 0x60df=7, and the 0x60c0/0x60d0 runs zeroed), then fork on
; self-test switch 0xc00 bit4 -- released seeds 0xb4=0x10, runs the
; device-init chain and becomes the main loop; held spins the operator
; diagnostic.
bootMachineFromReset:
D93F: 78 SEI ; mask interrupts at the reset entry
D940: 8D 00 50 STA wdclr / irqAck ; kick the watchdog
D943: 8D 00 58 STA avgReset ; strobe the vector-generator reset
D946: A2 FF LDX #$FF
D948: 9A TXS ; seat the stack
D949: D8 CLD
D94A: E8 INX
D94B: 8A TXA
D94C: A8 TAY
loc_d94d:
D94D: 84 00 STY workRam ; set up a rolling zero-page pointer for the RAM wipe
D94F: 86 01 STX workRam+1 ; (pointer high byte)
D951: A0 00 LDY #$00
loc_d953:
D953: 91 00 STA (workRam),Y ; zero a work-RAM byte
D955: C8 INY
D956: D0 FB BNE loc_d953 ; wipe the whole page
D958: E8 INX
D959: E0 08 CPX #$08 ; reached the unmapped gap
D95B: D0 02 BNE loc_d95f ;
D95D: A2 20 LDX #$20 ; resume at the 0x2000 vector-RAM window
loc_d95f:
D95F: E0 30 CPX #$30 ; wipe through 0x2fff
D961: 8D 00 50 STA wdclr / irqAck ; kick the watchdog during the wipe
D964: 90 E7 BCC loc_d94d ; continue the wipe
D966: 85 01 STA workRam+1 ;
D968: 8D E0 60 STA led ; clear the LED / screen-flip latch
D96B: 8D CF 60 STA pokey1+F ; hold the first sound chip in reset
D96E: 8D DF 60 STA pokey2+F ; hold the second sound chip in reset
D971: A2 07 LDX #$07
D973: 8E CF 60 STX pokey1+F ; release the first sound chip (control latch 7)
D976: 8E DF 60 STX pokey2+F ; release the second sound chip
D979: E8 INX
loc_d97a:
D97A: 9D C0 60 STA pokey1,X ; silence a first-chip audio register
D97D: 9D D0 60 STA pokey2,X ; silence a second-chip audio register
D980: CA DEX
D981: 10 F7 BPL loc_d97a ;
D983: AD 00 0C LDA in0 ; read the self-test switch
D986: 29 10 AND #$10
D988: F0 1F BEQ loc_d9a9 ; switch held -- run the RAM diagnostic
loc_d98a:
D98A: 8D 00 50 STA wdclr / irqAck ; normal boot: kick the watchdog through a settle delay
D98D: CE 00 01 DEC workRam+100 ; settle-delay countdown low byte
D990: D0 F8 BNE loc_d98a ;
D992: CE 01 01 DEC workRam+101 ; settle-delay countdown high byte
D995: D0 F3 BNE loc_d98a ;
D997: A9 10 LDA #$10
D999: 85 B4 STA workRam+B4 ; set the vector-generator scale
D99B: 20 11 DE JSR armEaromReadback ; arm the high-score-store readback
D99E: 20 AC AB JSR rebuildControlBlocksFromTemplate; rebuild the control blocks from their template
D9A1: 20 6E C1 JSR buildLevelLayout ; build the level layout
D9A4: 58 CLI ; enable interrupts
D9A5: 4C A0 C7 JMP runMainFrameLoop ; enter the main frame loop
; ---- $D9A8-$D9A8: data ----
D9A8: A0
loc_d9a9:
D9A9: A2 11 LDX #$11
loc_d9ab:
D9AB: 9A TXS
D9AC: A0 00 LDY #$00
loc_d9ae:
D9AE: BA TSX
D9AF: 96 00 STX workRam,Y ; RAM diagnostic: write a walking pattern to a cell
D9B1: A2 01 LDX #$01
loc_d9b3:
D9B3: C8 INY
D9B4: B9 00 00 LDA workRam,Y ; read the cell back
D9B7: F0 03 BEQ loc_d9bc ;
loc_d9b9:
D9B9: 4C CA D8 JMP playPowerOnTone ; verify failed -- sound the error tone
loc_d9bc:
D9BC: E8 INX
D9BD: D0 F4 BNE loc_d9b3 ;
D9BF: BA TSX
D9C0: 8A TXA
D9C1: 8D 00 50 STA wdclr / irqAck ; kick the watchdog during the test
D9C4: C8 INY
D9C5: 59 00 00 EOR workRam,Y ; check the read-back byte against the pattern
D9C8: D0 EF BNE loc_d9b9 ; mismatch -- error tone
D9CA: 99 00 00 STA workRam,Y ; advance the pattern
D9CD: C8 INY
D9CE: D0 DE BNE loc_d9ae ;
D9D0: BA TSX
D9D1: 8A TXA
D9D2: 0A ASL A
D9D3: AA TAX
D9D4: 90 D5 BCC loc_d9ab ;
D9D6: A0 00 LDY #$00
D9D8: A2 01 LDX #$01
loc_d9da:
D9DA: 84 00 STY workRam ;
D9DC: 86 01 STX workRam+1 ;
D9DE: A0 00 LDY #$00
loc_d9e0:
D9E0: B1 00 LDA (workRam),Y ; second pass: read a byte, expect zero
D9E2: F0 03 BEQ loc_d9e7 ;
D9E4: 4C 31 D9 JMP seedToneBurstCount ; nonzero -- error tone
loc_d9e7:
D9E7: A9 11 LDA #$11
loc_d9e9:
D9E9: 91 00 STA (workRam),Y ; write a walking-ones pattern
D9EB: D1 00 CMP (workRam),Y ; read it back
D9ED: F0 03 BEQ loc_d9f2 ;
D9EF: 4C 2F D9 JMP foldToneTableByte ; mismatch -- error tone
loc_d9f2:
D9F2: 0A ASL A
D9F3: 90 F4 BCC loc_d9e9 ;
D9F5: A9 00 LDA #$00
D9F7: 91 00 STA (workRam),Y ; clear the cell again
D9F9: C8 INY
D9FA: D0 E4 BNE loc_d9e0 ;
D9FC: 8D 00 50 STA wdclr / irqAck ; kick the watchdog
D9FF: E8 INX
DA00: E0 08 CPX #$08 ; reached the unmapped gap
DA02: D0 02 BNE loc_da06 ;
DA04: A2 20 LDX #$20 ; resume at the 0x2000 window
loc_da06:
DA06: E0 30 CPX #$30
DA08: 90 D0 BCC loc_d9da ; cover through 0x2fff
; power-on ROM checksum + entropy settle: walk 12 banks of 8 pages, XOR
; every byte into a per-bank checksum seeded with the bank index (strobing
; watchdog 0x5000 per page), land the 12 checksums from 0x7d; if bank 0's
; checksum is nonzero arm the error tone (0x60c4/0x60c5); then settle each
; entropy register (0x60ca->0x7a, 0x60da->0x7b) storing only when six re-
; reads match, and continue into runSelfTestLoop.
checksumRomAndSettleEntropy:
DA0A: A9 00 LDA #$00
DA0C: A8 TAY
DA0D: AA TAX
DA0E: 85 3B STA workRam+3B ; set the ROM-scan pointer low byte
DA10: A9 30 LDA #$30
DA12: 85 3C STA workRam+3C ; pointer high byte -- first ROM bank
loc_da14:
DA14: A9 08 LDA #$08
DA16: 85 38 STA workRam+38 ; eight pages per bank
DA18: 8A TXA ; seed this bank's checksum with the bank index
loc_da19:
DA19: 51 3B EOR (workRam+3B),Y ; fold each ROM byte into the checksum
DA1B: C8 INY
DA1C: D0 FB BNE loc_da19 ;
DA1E: E6 3C INC workRam+3C ; advance to the next page
DA20: 8D 00 50 STA wdclr / irqAck ; kick the watchdog once per page
DA23: C6 38 DEC workRam+38 ; eight pages per bank
DA25: D0 F2 BNE loc_da19 ;
DA27: 95 7D STA workRam+7D,X ; store this bank's checksum
DA29: E8 INX ; next bank
DA2A: E0 02 CPX #$02
DA2C: D0 04 BNE loc_da32 ;
DA2E: A9 90 LDA #$90 ; after two banks, jump to the high ROM window
DA30: 85 3C STA workRam+3C ;
loc_da32:
DA32: E0 0C CPX #$0C ; twelve banks total
DA34: 90 DE BCC loc_da14 ;
DA36: A5 7D LDA workRam+7D ; bank-0 checksum nonzero -- a bad ROM
DA38: F0 0A BEQ loc_da44 ;
DA3A: A9 40 LDA #$40 ; arm the error tone -- voice-3 frequency
DA3C: A2 A4 LDX #$A4
DA3E: 8D C4 60 STA pokey1+4 ;
DA41: 8E C5 60 STX pokey1+5 ; error-tone voice-3 control
loc_da44:
DA44: A2 05 LDX #$05
DA46: AD CA 60 LDA pokey1+A ; sample the first chip's random register
loc_da49:
DA49: CD CA 60 CMP pokey1+A ; re-read until it reads stable
DA4C: D0 05 BNE loc_da53 ;
DA4E: CA DEX
DA4F: 10 F8 BPL loc_da49 ;
DA51: 85 7A STA workRam+7A ; store the settled entropy sample
loc_da53:
DA53: A2 05 LDX #$05
DA55: AD DA 60 LDA pokey2+A ; sample the second chip's random register
loc_da58:
DA58: CD DA 60 CMP pokey2+A ; re-read until stable
DA5B: D0 05 BNE runSelfTestLoop ;
DA5D: CA DEX
DA5E: 10 F8 BPL loc_da58 ;
DA60: 85 7B STA workRam+7B ; store the second entropy sample
; run the self-test session: seed the state machine (armEaromReadback),
; forward a pending request (queueEaromEraseAllRegions), copy the 8-byte
; colour table $DAF9 into colour RAM at 0x800, idle coin/flip 0x4000; then
; each pass strobe watchdog 0x5000/display-reset 0x5800, sample option
; switches 0x60c8 and diagnostics 0xc00, build/show a frame via
; dispatchDrawHandler/emitHeaderedBodyRecord, call stepEaromTransfer every
; fourth frame, until the self-test switch (0xc00 bit4) is released.
runSelfTestLoop:
DA62: 20 11 DE JSR armEaromReadback ; arm the high-score-store readback
DA65: A0 02 LDY #$02
DA67: AD C9 01 LDA workRam+1C9 ; branch on the pending-work byte
DA6A: F0 0A BEQ loc_da76 ;
DA6C: 85 7C STA workRam+7C ; stash the pending-work value
DA6E: 20 F1 DD JSR queueEaromEraseAllRegions; queue an erase of every high-score-store region
DA71: A0 00 LDY #$00
DA73: 8C C9 01 STY workRam+1C9 ; clear the pending-work byte
loc_da76:
DA76: 84 00 STY workRam ; set the diagnostic mode state
DA78: A2 07 LDX #$07
loc_da7a:
DA7A: BD F9 DA LDA rom+4AF9,X ; copy the self-test colour table
DA7D: 9D 00 08 STA colorRam,X ; into colour RAM
DA80: CA DEX
DA81: 10 F7 BPL loc_da7a ;
DA83: A9 00 LDA #$00
DA85: 8D E0 60 STA led ; blank the LED / screen-flip latch
DA88: A9 10 LDA #$10
DA8A: 8D 00 40 STA coin ; idle the coin-counter / flip output latch
loc_da8d:
DA8D: A0 04 LDY #$04
loc_da8f:
DA8F: A2 14 LDX #$14
loc_da91:
DA91: 2C 00 0C BIT in0 ; busy-wait on the video sync line
DA94: 10 FB BPL loc_da91 ;
loc_da96:
DA96: 2C 00 0C BIT in0 ;
DA99: 30 FB BMI loc_da96 ;
DA9B: CA DEX
DA9C: 10 F3 BPL loc_da91 ;
DA9E: 88 DEY
DA9F: 30 08 BMI loc_daa9 ;
DAA1: 8D 00 50 STA wdclr / irqAck ; kick the watchdog
DAA4: 2C 00 0C BIT in0 ;
DAA7: 50 E6 BVC loc_da8f ; loop on the vector-generator-done line
loc_daa9:
DAA9: 8D 00 58 STA avgReset ; strobe the vector-generator reset
DAAC: A9 00 LDA #$00
DAAE: 85 74 STA workRam+74 ; reset the draw cursor low byte
DAB0: A9 20 LDA #$20
DAB2: 85 75 STA workRam+75 ; draw cursor high byte -- cursor at 0x2000
DAB4: 8D CB 60 STA pokey1+B ; pulse the first chip's pot scan
DAB7: AD C8 60 LDA pokey1+8 ; read the spinner pot
DABA: 85 52 STA workRam+52 ; save the pot reading as the previous value
DABC: 29 0F AND #$0F ; keep the low nibble
DABE: 85 50 STA workRam+50 ; store it
DAC0: AD 00 0C LDA in0 ; read and invert the input port
DAC3: 49 FF EOR #$FF
DAC5: 29 2F AND #$2F ; mask the input edges
DAC7: 85 4E STA workRam+4E ; store the edge flags
DAC9: 29 28 AND #$28 ; either diagnostic-select bit set
DACB: F0 0B BEQ loc_dad8 ;
DACD: 06 4C ASL workRam+4C ; shift the diagnostic-select state
DACF: 90 04 BCC loc_dad5 ;
DAD1: E6 00 INC workRam ; advance the diagnostic page by two
DAD3: E6 00 INC workRam ;
loc_dad5:
DAD5: B8 CLV
DAD6: 50 04 BVC loc_dadc ;
loc_dad8:
DAD8: A9 20 LDA #$20 ; reset the select state
DADA: 85 4C STA workRam+4C ;
loc_dadc:
DADC: 20 0F DB JSR dispatchDrawHandler ; build the diagnostic frame
DADF: 20 0D DF JSR emitHeaderedBodyRecord; emit the headered body record
DAE2: 8D 00 48 STA avgGo ; strobe the vector-generator go
DAE5: E6 03 INC workRam+3 ; tick the frame counter
DAE7: A5 03 LDA workRam+3 ;
DAE9: 29 03 AND #$03 ; every fourth frame
DAEB: D0 03 BNE loc_daf0 ;
DAED: 20 1B DE JSR stepEaromTransfer ; service one high-score-store transfer step
loc_daf0:
DAF0: AD 00 0C LDA in0 ; read the self-test switch
DAF3: 29 10 AND #$10
DAF5: F0 96 BEQ loc_da8d ; still held -- run another diagnostic frame
loc_daf7:
DAF7: D0 FE BNE loc_daf7 ; switch released -- spin until the watchdog resets the board
; ---- $DAF9-$DB0E: data ----
DAF9: 00 04 08 0C 03 07 0B 0B 59 DB F6 DB 83 DB 99 DB
DB09: 7D DB 6E DB 21 DB
; draw-handler dispatch on the display-finalize/self-test path: byte
; offset in 0x00 (0,2,..,12) selects one of seven per-frame draw handlers
; ($DB5A, $DBF7,...) at offset>>1; an out-of-range offset (>=0x0e) is
; clamped to 0x02 and the clamp persisted to 0x00, then tail-returns the
; handler's result.
dispatchDrawHandler:
DB0F: A6 00 LDX workRam ; read the per-frame draw-handler selector from the game-mode cell
DB11: E0 0E CPX #$0E ; range-check the handler offset against the table size
DB13: 90 04 BCC loc_db19 ; in range -- dispatch the selected handler
DB15: A2 02 LDX #$02 ; out of range -- clamp the selector to handler entry 1
DB17: 86 00 STX workRam ; persist the clamped selector back to the game-mode cell
loc_db19:
DB19: BD 02 DB LDA rom+4B02,X ; push the selected handler's address high byte from the dispatch table
DB1C: 48 PHA
DB1D: BD 01 DB LDA rom+4B01,X ; push the handler's address low byte from the dispatch table
DB20: 48 PHA
DB21: 60 RTS ; rts-dispatch into the chosen draw handler
; reset the $60xx vector-display register bank (zero
; 0x60e0/0x6080/0x60c0/0x60d0/0x6000/0x6040, four settling reads, then
; raise 0x60e0 to 0x08), march a single set bit across the 32 slots at
; 0x6080, and emit one framing word via
; emitCoordinateVectorWord(0x34,0xa6).
initVectorDisplayRegisters:
DB22: A9 00 LDA #$00
DB24: 8D E0 60 STA led ; zero the LED/flip/coin latch
DB27: 8D 80 60 STA mathboxGo ; zero the mathbox R0-low load register
DB2A: 8D C0 60 STA pokey1 ; zero POKEY 1 pitch
DB2D: 8D D0 60 STA pokey2 ; zero POKEY 2 pitch
DB30: 8D 00 60 STA earomWrite ; zero the EAROM data latch
DB33: 8D 40 60 STA mathboxStatus / earomControl; zero the EAROM control latch (0x6040 write) -- a write here hits EAROM control, not the read-only mathbox status
DB36: AD 40 60 LDA mathboxStatus / earomControl; dummy read to let the mathbox status flip-flop settle
DB39: AD 60 60 LDA mathboxLo ; dummy read of the mathbox result low byte
DB3C: AD 70 60 LDA mathboxHi ; dummy read of the mathbox result high byte
DB3F: AD 50 60 LDA earomRead ; dummy read of the EAROM read latch
DB42: A9 08 LDA #$08
DB44: 8D E0 60 STA led ; raise the LED/flip latch
DB47: A9 01 LDA #$01 ; seed a single set bit for the walking-bit march
DB49: A2 1F LDX #$1F ; prepare to march across 32 mathbox load slots
DB4B: 18 CLC
loc_db4c:
DB4C: 9D 80 60 STA mathboxGo,X ; write the walking-bit pattern into mathbox load slot x
DB4F: 2A ROL A ; rotate the set bit up through carry
DB50: CA DEX
DB51: 10 F9 BPL loc_db4c ; loop the 32-slot bit march
DB53: A9 34 LDA #$34
DB55: A2 A6 LDX #$A6
DB57: 4C 39 DF JMP emitCoordinateVectorWord; emit one framing coordinate word (tail)
; When guards loc_1ca and loc_1c7 are both clear, runs the EAROM seeder
; (de11) and stamps loc_7c=loc_1c9 and loc_0=0x02.
beginEaromSequenceIfIdle:
DB5A: AD CA 01 LDA workRam+1CA ; read the EAROM mode/active-operation flag
DB5D: 0D C7 01 ORA workRam+1C7 ; OR in the queued-region (pending) flag -- bail if a sequence is pending or running
DB60: D0 0C BNE loc_db6e ; a sequence is already pending or running -- bail
DB62: 20 11 DE JSR armEaromReadback ; arm the EAROM readback state machine
DB65: AD C9 01 LDA workRam+1C9 ; copy the pending-work flags...
DB68: 85 7C STA workRam+7C ; ...into the walk's scratch cell
DB6A: A9 02 LDA #$02
DB6C: 85 00 STA workRam ; advance the game-mode cell
loc_db6e:
DB6E: 60 RTS
; emit a header from the halved slot count via emitTaggedVectorWord(0x68,
; 0x50>>1), then run $DB88(0x33,0x4e) to emit its header and blank the
; four even slots of 0x60c1 and 0x60d1.
emitHalvedCountHeaderAndClearVectorSlots:
DB6F: A5 50 LDA workRam+50 ; read the spinner accumulator (player rotation count)
DB71: 4A LSR A ; halve it
DB72: A8 TAY
DB73: A9 68 LDA #$68
DB75: 20 4C DF JSR emitTaggedVectorWord; emit a 0x68-tagged header word carrying half the spinner count
DB78: A2 4E LDX #$4E
DB7A: A9 33 LDA #$33
DB7C: D0 0A BNE emitVectorHeaderAndClearSlots; emit the fixed header and clear the slot banks
; front onto emitVectorHeaderAndClearSlots with the fixed header pair
; (0x32,0xb6): emit that header word then blank the four even slots of
; 0x60c1 and 0x60d1.
emitPrimedHeaderAndClearVectorSlots:
DB7E: A2 B6 LDX #$B6
DB80: A9 32 LDA #$32
DB82: D0 04 BNE emitVectorHeaderAndClearSlots; emit the primed header (pair 0x32,0xb6) and clear the slots
; emit a fixed framing word via emitCoordinateVectorWord(0x33,0x0a), then
; blank the four even-indexed slots of output tables 0x60c1 and 0x60d1.
emitFixedHeaderAndClearVectorSlots:
DB84: A9 33 LDA #$33
DB86: A2 0A LDX #$0A
; emit a caller-supplied header word via emitCoordinateVectorWord(a,x),
; then blank the four even-indexed slots of output tables 0x60c1 and
; 0x60d1.
emitVectorHeaderAndClearSlots:
DB88: 20 39 DF JSR emitCoordinateVectorWord; emit the caller's framing word into the display list
DB8B: A2 06 LDX #$06
DB8D: A9 00 LDA #$00
loc_db8f:
DB8F: 9D C1 60 STA pokey1+1,X ; silence POKEY 1 voice control at even slot x
DB92: 9D D1 60 STA pokey2+1,X ; silence POKEY 2 voice control at even slot x
DB95: CA DEX
DB96: CA DEX
DB97: 10 F6 BPL loc_db8f ; loop the four even AUDC slots
DB99: 60 RTS
; advance phase counter 0x39 (only while frame gate 0x3 & 0x3f is clear),
; index three parallel ROM rows ($DBD5/$DBD6/$DFDC) by 0x39 & 0x07 to seed
; output cells (clear 0x60c1+slotA, write ROM value into 0x60c0+slotB and
; 0xa8 into 0x60c1+slotB), then emit three words via
; emitCoordinateVectorWord(0x34,0x56)/emitVectorWordTag70(0x01, 0x3 &
; 0x7f)/emitCoordinateVectorWord(0x34,0xaa).
stepVectorPhaseAnimation:
DB9A: A5 03 LDA workRam+3 ; read the frame counter
DB9C: 29 3F AND #$3F ; gate on the low six bits -- once every 64 frames
DB9E: D0 02 BNE loc_dba2 ;
DBA0: E6 39 INC workRam+39 ; advance the 8-phase sound/vector sequencer
loc_dba2:
DBA2: A5 39 LDA workRam+39 ;
DBA4: 29 07 AND #$07 ; mask the phase to 0..7 for the sequencer row index
DBA6: AA TAX
DBA7: BC D5 DB LDY rom+4BD5,X ; pick this phase's voice to silence from the row table
DBAA: A9 00 LDA #$00
DBAC: 99 C1 60 STA pokey1+1,Y ; silence that POKEY 1 voice
DBAF: BC D6 DB LDY rom+4BD6,X ; pick this phase's voice to fire from the row table
DBB2: BD DC DF LDA rom+4FDC,X ; read this phase's value byte from the row table
DBB5: 99 C0 60 STA pokey1,Y ; set the fired voice's frequency
DBB8: A9 A8 LDA #$A8
DBBA: 99 C1 60 STA pokey1+1,Y ; fire it at fixed volume and distortion
DBBD: A9 34 LDA #$34
DBBF: A2 56 LDX #$56
DBC1: 20 39 DF JSR emitCoordinateVectorWord; emit the opening coordinate word
DBC4: A5 03 LDA workRam+3 ; take the low seven bits of the frame counter
DBC6: 29 7F AND #$7F
DBC8: A8 TAY
DBC9: A9 01 LDA #$01
DBCB: 20 6C DF JSR emitVectorWordTag70 ; emit a tag-70 word that scrolls with time
DBCE: A9 34 LDA #$34
DBD0: A2 AA LDX #$AA
DBD2: 4C 39 DF JMP emitCoordinateVectorWord; emit the closing coordinate word (tail)
; ---- $DBD5-$DBDF: data ----
DBD5: 16 00 10 02 12 04 14 06 16 00 EA
; Assembles a pot-status byte from the low three bits of $60D8 (mirrored
; into loc_37 and $60CB) merged with one relocated bit lifted from $60C8.
assemblePotStatusByte:
DBE0: 8D DB 60 STA pokey2+B ; strobe POKEY 2 pot scan with the incoming value
DBE3: AD D8 60 LDA pokey2+8 ; read POKEY 2 pot lines (ALLPOT at 0x60d8)
DBE6: 29 07 AND #$07 ; keep the low three control bits
DBE8: 85 37 STA workRam+37 ; mirror them into scratch
DBEA: 8D CB 60 STA pokey1+B ; and into the POKEY 1 pot-scan strobe
DBED: AD C8 60 LDA pokey1+8 ; read POKEY 1 pot lines (ALLPOT at 0x60c8)
DBF0: 29 20 AND #$20 ; isolate bit 5
DBF2: 4A LSR A
DBF3: 4A LSR A ; shift it down to bit 3
DBF4: 05 37 ORA workRam+37 ; merge with the low three bits
DBF6: 60 RTS ; return the assembled pot-status byte
; per-frame vector-list emit (handler index 1 of dispatchDrawHandler):
; when the 16-bit counter 0x2e/0x2f is nonzero, seed the POKEY operand
; cells and run the math-coprocessor scan (runMathboxDivide) to decide
; 0x78=0xff and the POKEY status byte; advance the 15-bit counter
; 0x2e/0x2f; build the POKEY work word from 0x4d/0x4e; fire the readout
; draws; conditionally emit the 0x52-bit marker; walk the 0x7d (x=11..0)
; and 0x78 (x=4..0) emit tables; then tail-delegate the 0x50-indexed
; colour pair to the colour-pair emitter emitKeyedScaledCoordinateRecord.
emitReadoutVectorList:
DBF7: A5 2E LDA workRam+2E ; read the sweep counter low byte
DBF9: F0 1E BEQ loc_dc19 ; counter zero -- skip the mathbox scan
DBFB: 8D 95 60 STA mathboxGo+15 ; seed mathbox R7 low with the counter
DBFE: 8D 8D 60 STA mathboxGo+D ; and mathbox RA low
DC01: A5 2F LDA workRam+2F ; read the sweep counter high byte
DC03: 8D 96 60 STA mathboxGo+16 ; seed mathbox R7 high
DC06: A2 00 LDX #$00
DC08: 20 E6 DC JSR runMathboxDivide ; run the mathbox divide
DC0B: C9 01 CMP #$01 ; result A == 1?
DC0D: D0 06 BNE loc_dc15 ; A != 1 -- force the status byte to 0xff
DC0F: 98 TYA
DC10: D0 03 BNE loc_dc15 ; A == 1 but Y != 0 -- force the status byte to 0xff
DC12: 8A TXA
DC13: 10 04 BPL loc_dc19 ; remainder positive -- clear (keep X as the status byte)
loc_dc15:
DC15: A9 FF LDA #$FF
DC17: 85 78 STA workRam+78 ; force the spread/scan flag to 0xff
loc_dc19:
DC19: A2 00 LDX #$00
DC1B: 86 73 STX workRam+73 ; clear the vector-record header
DC1D: E6 2E INC workRam+2E ; advance the sweep counter low byte
DC1F: D0 06 BNE loc_dc27 ;
DC21: E6 2F INC workRam+2F ; carry into the sweep counter high byte
DC23: 10 02 BPL loc_dc27 ;
DC25: 86 2F STX workRam+2F ; wrap the high byte at bit 7 (7-bit sweep)
loc_dc27:
DC27: 8D DB 60 STA pokey2+B ; write the decided status byte to the POKEY 2 pot-scan strobe
DC2A: AD D8 60 LDA pokey2+8 ; read POKEY 2 pot lines (ALLPOT at 0x60d8)
DC2D: 29 78 AND #$78 ; keep the option bits
DC2F: 85 4D STA workRam+4D ; stash the debounced input
DC31: F0 05 BEQ loc_dc38 ; no bits set -- leave voice 1 silent
DC33: 8D C0 60 STA pokey1 ; set POKEY 1 voice 1 frequency
DC36: A2 A4 LDX #$A4 ; arm voice 1 control
loc_dc38:
DC38: 8E C1 60 STX pokey1+1 ; write POKEY 1 voice 1 control
DC3B: A2 00 LDX #$00
DC3D: A5 4E LDA workRam+4E ; read the input edge flags
DC3F: F0 06 BEQ loc_dc47 ; none set -- leave voice 2 silent
DC41: 0A ASL A
DC42: 8D C2 60 STA pokey1+2 ; set POKEY 1 voice 2 frequency (edge flags << 1)
DC45: A2 A4 LDX #$A4 ; arm voice 2 control
loc_dc47:
DC47: 8E C3 60 STX pokey1+3 ; write POKEY 1 voice 2 control
DC4A: 20 0D DD JSR buildPotReadoutVectorList; build the DIP/pot diagnostic readout
DC4D: A4 4D LDY workRam+4D ;
DC4F: A9 D0 LDA #$D0
DC51: A2 F0 LDX #$F0
DC53: 20 2B DD JSR emitByteBitsAsDigits; render the debounced-input byte as eight per-bit digits
DC56: A4 4E LDY workRam+4E ;
DC58: 20 27 DD JSR emitByteBitsAsDigitsFixed; render the edge-flags byte as eight per-bit digits
DC5B: A5 52 LDA workRam+52 ; read the previous spinner-pot sample
DC5D: 29 10 AND #$10 ; test bit 4
DC5F: F0 1D BEQ loc_dc7e ; clear -- skip the marker and latch writes
DC61: A9 34 LDA #$34
DC63: A2 82 LDX #$82
DC65: 20 39 DF JSR emitCoordinateVectorWord; emit a marker coordinate word
DC68: A0 10 LDY #$10
DC6A: A5 4D LDA workRam+4D ; read the debounced input
DC6C: 29 60 AND #$60 ; test the coin/mode bits
DC6E: F0 0E BEQ loc_dc7e ; none set -- skip the latch write
DC70: 49 20 EOR #$20 ; flip bit 5 -- result zero iff only the coin bit (bit 5) was set
DC72: F0 04 BEQ loc_dc78 ; exactly bit 5 -- keep the default latch value
DC74: A9 04 LDA #$04 ; otherwise use the alternate mode value...
DC76: A0 08 LDY #$08 ; ...and the alternate latch value
loc_dc78:
DC78: 8D E0 60 STA led ; write the LED/flip latch
DC7B: 8C 00 40 STY coin ; write the coin-counter/flip output latch
loc_dc7e:
DC7E: A9 34 LDA #$34
DC80: A2 92 LDX #$92
DC82: 20 39 DF JSR emitCoordinateVectorWord; emit a coordinate mark
DC85: A2 0B LDX #$0B ; walk the 12-slot spread table (x = 11..0)
loc_dc87:
DC87: B5 7D LDA workRam+7D,X ; read spread slot x
DC89: F0 19 BEQ loc_dca4 ; empty slot -- skip
DC8B: 85 35 STA workRam+35 ; stash the slot value
DC8D: 86 38 STX workRam+38 ; save the loop index
DC8F: 8A TXA
DC90: 20 1F DF JSR emitStrokeWordFromNibblePlusOne; emit a stroke word for slot index + 1
DC93: A0 F4 LDY #$F4
DC95: A2 F4 LDX #$F4
DC97: A5 35 LDA workRam+35 ;
DC99: 20 A9 D8 JSR emitScaledByteDigit ; emit the slot value as a scaled digit
DC9C: A9 0C LDA #$0C
DC9E: AA TAX
DC9F: 20 75 DF JSR emitScaledCoordinateRecord; emit a scaled coordinate record
DCA2: A6 38 LDX workRam+38 ; restore the loop index
loc_dca4:
DCA4: CA DEX
DCA5: 10 E0 BPL loc_dc87 ; next spread-table slot
DCA7: 20 53 DF JSR emitVectorHeaderWord; emit the header word
DCAA: A9 00 LDA #$00
DCAC: A2 16 LDX #$16
DCAE: 20 75 DF JSR emitScaledCoordinateRecord; emit a scaled coordinate record
DCB1: A2 04 LDX #$04 ; walk the 5-slot spread table (x = 4..0)
DCB3: 86 37 STX workRam+37 ;
loc_dcb5:
DCB5: A6 37 LDX workRam+37 ;
DCB7: A0 00 LDY #$00
DCB9: B5 78 LDA workRam+78,X ; read spread slot x
DCBB: F0 03 BEQ loc_dcc0 ; empty slot -- use word index 0
DCBD: BC E1 DC LDY rom+4CE1,X ; pick this slot's coordinate-word index from the table
loc_dcc0:
DCC0: B9 E4 31 LDA vectorRom+1E4,Y ; read the coordinate word low byte from the glyph table
DCC3: BE E5 31 LDX vectorRom+1E5,Y ; read the coordinate word high byte from the glyph table
DCC6: 20 57 DF JSR emitVectorWord ; emit the coordinate word
DCC9: C6 37 DEC workRam+37 ;
DCCB: 10 E8 BPL loc_dcb5 ; next slot
DCCD: A2 AC LDX #$AC
DCCF: A9 30 LDA #$30
DCD1: 20 75 DF JSR emitScaledCoordinateRecord; emit the final coordinate mark
DCD4: A4 50 LDY workRam+50 ; index by the spinner accumulator
DCD6: B9 E8 DF LDA rom+4FE8,Y ; read the colour-pair high byte
DCD9: BE E4 DF LDX rom+4FE4,Y ; read the colour-pair low byte
DCDC: A0 C0 LDY #$C0
DCDE: 4C 73 DF JMP emitKeyedScaledCoordinateRecord; emit the keyed scaled coordinate record (tail)
; ---- $DCE1-$DCE5: data ----
DCE1: 2E 38 34 36 1E
; Primes the math-coprocessor operand/count registers $608C-$6096 from A
; and X, kicks its divide, spins a 16-step window on $6040 for the first
; ready result, and returns the $6060/$6070 low/high pair.
runMathboxDivide:
DCE6: A0 00 LDY #$00
DCE8: 84 73 STY workRam+73 ; clear the vector-record header staging cell
DCEA: 8C 14 04 STY workRam+414 ; clear the second staging cell
DCED: 8D 8E 60 STA mathboxGo+E ; load mathbox Ra high operand
DCF0: 8E 8F 60 STX mathboxGo+F ; load mathbox Rb low operand
DCF3: 8C 90 60 STY mathboxGo+10 ; clear mathbox Rb high
DCF6: A2 10 LDX #$10
DCF8: 8E 8C 60 STX mathboxGo+C ; seed the mathbox iteration count
DCFB: 8E 94 60 STX mathboxGo+14 ; strobe the divide to start
loc_dcfe:
DCFE: CA DEX ; count down the poll window
DCFF: 30 0B BMI loc_dd0c ; window exhausted -- no result ready
DD01: AD 40 60 LDA mathboxStatus / earomControl; read the mathbox status
DD04: 30 F8 BMI loc_dcfe ; still busy -- keep polling
DD06: AD 60 60 LDA mathboxLo ; ready -- latch the result low byte
DD09: AC 70 60 LDY mathboxHi ; latch the result high byte
loc_dd0c:
DD0C: 60 RTS
; Builds a diagnostic readout vector list: a fixed header word ($DF53), a
; zero word (emitBlankVectorWordTag70), then eight-digit runs keyed by DIP
; ports loc_d00/loc_e00 and a pot-status byte.
buildPotReadoutVectorList:
DD0D: 20 53 DF JSR emitVectorHeaderWord; emit the fixed header word
DD10: A9 00 LDA #$00
DD12: 20 6A DF JSR emitBlankVectorWordTag70; emit a zero-valued tag-70 framing word
DD15: A9 E8 LDA #$E8
DD17: AC 00 0D LDY dsw1 ; read the coinage DIP bank
DD1A: 20 29 DD JSR emitByteBitsAsDigitsAtF8; render it as an eight-bit digit run at column 0xe8
DD1D: AC 00 0E LDY dsw2 ; read the options DIP bank
DD20: 20 27 DD JSR emitByteBitsAsDigitsFixed; render it as an eight-bit digit run
DD23: 20 E0 DB JSR assemblePotStatusByte; pulse the POKEY pot scan and fold to a status byte
DD26: A8 TAY
; Fixed-position front feeding the coordinate deltas 0xd0/0xf8 into the
; eight-bit byte-digit emit, displaying the byte in y.
emitByteBitsAsDigitsFixed:
DD27: A9 D0 LDA #$D0 ; inject the fixed value byte 0xd0
; Fixed-position front feeding coordinate x = 0xf8 into the eight-bit
; byte-digit emit.
emitByteBitsAsDigitsAtF8:
DD29: A2 F8 LDX #$F8 ; inject the fixed screen-X column 0xf8
; Stashes the byte y into loc_35, scales the two coordinates, then shifts
; loc_35 out MSB-first emitting each of its eight bits as one vector
; digit.
emitByteBitsAsDigits:
DD2B: 84 35 STY workRam+35 ; stash the byte to render
DD2D: 20 75 DF JSR emitScaledCoordinateRecord; position the eight-bit row on screen
DD30: A2 07 LDX #$07 ; eight bits to draw
DD32: 86 37 STX workRam+37 ;
loc_dd34:
DD34: 06 35 ASL workRam+35 ; shift the byte's top bit out
DD36: A9 00 LDA #$00
DD38: 2A ROL A ; capture the shifted-out (MSB-first) bit
DD39: 20 1F DF JSR emitStrokeWordFromNibblePlusOne; emit one stroke word for that bit
DD3C: C6 37 DEC workRam+37 ;
DD3E: 10 F4 BPL loc_dd34 ; next bit
DD40: 60 RTS
; Doubles-and-adds two little-endian input pairs into the math-box
; operands $6095/$6096 (floored to one), seeds a divide, emits a header,
; then makes repeated passes of binary-to-BCD double-dabble over the
; three-byte source at loc_3b/loc_3c emitting each pass's digits with a
; scaled coordinate record.
buildLargeDecimalNumber:
DD41: AD 0F 04 LDA workRam+40F ; read the input pair low byte
DD44: 0A ASL A ; double it
DD45: 85 29 STA workRam+29 ;
DD47: AD 10 04 LDA workRam+410 ; read the input pair high byte
DD4A: 2A ROL A ; double it, threading the carry
DD4B: 85 2A STA workRam+2A ;
DD4D: AD 0C 04 LDA workRam+40C ; read the coordinate accumulator low byte
DD50: 18 CLC
DD51: 65 29 ADC workRam+29 ; add the doubled input
DD53: 8D 95 60 STA mathboxGo+15 ; store as mathbox R7 low operand
DD56: 85 29 STA workRam+29 ;
DD58: AD 0D 04 LDA workRam+40D ; read the coordinate accumulator high byte
DD5B: 65 2A ADC workRam+2A ; add with carry
DD5D: 8D 96 60 STA mathboxGo+16 ; store as mathbox R7 high operand
DD60: 05 29 ORA workRam+29 ; test whether the whole operand is zero
DD62: D0 05 BNE loc_dd69 ; nonzero -- keep it
DD64: A9 01 LDA #$01
DD66: 8D 95 60 STA mathboxGo+15 ; floor the operand to one so the divide never sees zero
loc_dd69:
DD69: AD 09 04 LDA workRam+409 ; load mathbox Ra low from the timer low byte
DD6C: 8D 8D 60 STA mathboxGo+D ;
DD6F: AD 0A 04 LDA workRam+40A ; read the timer mid byte
DD72: AE 0B 04 LDX workRam+40B ; read the timer high byte
DD75: 20 E6 DC JSR runMathboxDivide ; run the mathbox divide
DD78: 8D 12 04 STA workRam+412 ; stash the quotient
DD7B: 8C 13 04 STY workRam+413 ; stash the remainder
DD7E: A9 3D LDA #$3D
DD80: A2 CE LDX #$CE
DD82: 20 39 DF JSR emitCoordinateVectorWord; emit the fixed coordinate header word
DD85: A9 06 LDA #$06
DD87: 85 3B STA workRam+3B ; set the source pointer low -> 0x0406
DD89: A9 04 LDA #$04
DD8B: 85 3C STA workRam+3C ; set the source pointer high
DD8D: 85 37 STA workRam+37 ; outer loop -- five numbers (post-decrement bpl runs 5 passes; the 5th draws the divide quotient/remainder at 0x0412/0x0413)
loc_dd8f:
DD8F: A0 00 LDY #$00
DD91: 84 31 STY workRam+31 ; clear the 4-byte BCD accumulator
DD93: 84 32 STY workRam+32 ;
DD95: 84 33 STY workRam+33 ;
DD97: 84 34 STY workRam+34 ;
DD99: B1 3B LDA (workRam+3B),Y ; load the first binary source byte
DD9B: 85 56 STA workRam+56 ;
DD9D: E6 3B INC workRam+3B ;
DD9F: B1 3B LDA (workRam+3B),Y ; load the second binary source byte
DDA1: 85 57 STA workRam+57 ;
DDA3: E6 3B INC workRam+3B ;
DDA5: B1 3B LDA (workRam+3B),Y ; load the third binary source byte
DDA7: 85 58 STA workRam+58 ;
DDA9: E6 3B INC workRam+3B ;
DDAB: F8 SED ; enter decimal mode for double-dabble
DDAC: A0 17 LDY #$17 ; 24 source bits
DDAE: 84 38 STY workRam+38 ;
loc_ddb0:
DDB0: 26 56 ROL workRam+56 ; shift the 24-bit binary source left one bit...
DDB2: 26 57 ROL workRam+57 ; ...carry chained low to high...
DDB4: 26 58 ROL workRam+58 ; ...through the third byte
DDB6: A0 03 LDY #$03
DDB8: A2 00 LDX #$00
loc_ddba:
DDBA: B5 31 LDA workRam+31,X ; BCD-double each accumulator byte with the shifted-out bit
DDBC: 75 31 ADC workRam+31,X ;
DDBE: 95 31 STA workRam+31,X ;
DDC0: E8 INX
DDC1: 88 DEY
DDC2: 10 F6 BPL loc_ddba ; across the four BCD bytes
DDC4: C6 38 DEC workRam+38 ;
DDC6: 10 E8 BPL loc_ddb0 ; next of the 24 bits
DDC8: D8 CLD ; leave decimal mode
DDC9: A9 31 LDA #$31
DDCB: A0 04 LDY #$04
DDCD: 20 B1 DF JSR emitNibbleDigitRun ; emit the converted decimal digit run
DDD0: A9 D0 LDA #$D0
DDD2: A2 F8 LDX #$F8
DDD4: 20 75 DF JSR emitScaledCoordinateRecord; emit the number's scaled coordinate record
DDD7: C6 37 DEC workRam+37 ;
DDD9: 10 B4 BPL loc_dd8f ; next of the five numbers
DDDB: 60 RTS
; ---- $DDDC-$DDE8: data ----
DDDC: 73 00 09 0A 15 16 22 15 06 15 07 06 04
; queue a blanked write (erase) of the single region on bit 0x04 by
; feeding mask 0x04 into the blank-mode merge $DDF3 (which forces blank-
; flag 0x1c6=0xff then ORs the mask into 0x1c7/0x1c8).
queueEaromRegionErase:
DDE9: A9 04 LDA #$04 ; select the EAROM region on bit mask 0x04
DDEB: D0 06 BNE requestEaromBlankWrite; request a blanked (erase) write of that region
; Branch-only trampoline requesting a blanked EAROM write of the two low
; regions via ddf3 with mask 0x03; downstream loc_1c7/loc_1c8 observed
; changing.
eraseEaromLowRegions:
DDED: A9 03 LDA #$03 ; load region mask 0x03 -- the two low high-score regions
DDEF: D0 02 BNE requestEaromBlankWrite; jump into the blank-write request builder with the mask
; queue a blanked write (erase) of all three EAROM regions: stamp 0xff
; into blank-flag 0x1c6 and OR mask 0x07 into region-pending 0x1c7 and
; direction 0x1c8.
queueEaromEraseAllRegions:
DDF1: A9 07 LDA #$07 ; load region mask 0x07 -- all three high-score regions -- then build a blank/erase request
; Forces the EAROM index byte to 0xff (blank mode) then merges the
; caller's mask, requesting a blanked write of those regions.
requestEaromBlankWrite:
DDF3: A0 FF LDY #$FF ; force the index byte to 0xff, the blank/erase sentinel
DDF5: D0 08 BNE queueEaromRequest ; jump to the shared request tail, mask still in a
; request a (non-blanked) EAROM write of the two low NVRAM regions: pass
; the fixed mask 0x03 to the shared zeroed-index merge tail $DDFD, which
; ORs the mask into the region-pending loc_1c7 and direction loc_1c8 cells
; with a cleared blank-index loc_1c6.
requestWriteLowRegions:
DDF7: A9 03 LDA #$03 ; load region mask 0x03 -- the two low regions -- for a live save
DDF9: D0 02 BNE queueEaromRequestAtIndexZero; jump into the index-zero (live-save) tail
; queue a plain (non-blanked) EAROM save of the region on bit 0x04: store
; index 0x00 into blank-flag 0x1c6 and OR mask 0x04 into region-pending
; 0x1c7 and direction 0x1c8.
queueEaromRegionSave:
DDFB: A9 04 LDA #$04 ; load region mask 0x04 -- the third region -- then fall into the live-save tail
; queue an EAROM (high-score NVRAM) request at cell index 0: store 0x00
; into the target-index cell loc_1c6 and OR the caller's mask A into both
; request-flag cells loc_1c7 and loc_1c8 (shared tail queueEaromRequest);
; entry queueEaromRegionSave presets mask 0x04.
queueEaromRequestAtIndexZero:
DDFD: A0 00 LDY #$00 ; force the index byte to 0 -- live save, not erase
; queue an EAROM (high-score NVRAM) request: store Y into the target-index
; cell loc_1c6 and OR the request mask A into both request-flag cells
; loc_1c7 and loc_1c8.
queueEaromRequest:
DDFF: 8C C6 01 STY workRam+1C6 ; store the index/blank byte (0 = live save, 0xff = erase)
DE02: 48 PHA
DE03: 0D C7 01 ORA workRam+1C7 ; merge the mask into the region-pending bits
DE06: 8D C7 01 STA workRam+1C7 ; store the regions awaiting service
DE09: 68 PLA
DE0A: 0D C8 01 ORA workRam+1C8 ; merge the mask into the per-region direction bits
DE0D: 8D C8 01 STA workRam+1C8 ; store direction (set = write out, clear = read back)
DE10: 60 RTS
; Sets EAROM mode byte loc_1c7=0x07 and clears loc_1c8=0x00, then drives
; the step machine to arm a read-back of all regions.
armEaromReadback:
DE11: A9 07 LDA #$07 ; command all three regions
DE13: 8D C7 01 STA workRam+1C7 ; set the region-pending bits to read every region back
DE16: A9 00 LDA #$00 ; clear the direction bits
DE18: 8D C8 01 STA workRam+1C8 ; so all regions are read back in, then fall into the transfer step
; drain one entry of the queued EAROM save/read: when mode 0x1ca is idle
; and pending 0x1c7 is set, isolate one region bit into 0x1ce, seed cursor
; 0x1cc/limit 0x1cd and row pointer 0xbd/0xbe from packed ROM rows
; ($DDDD/ddde/dde3/dde4) and arm 0x1ca write(0x80)/read(0x20) per 0x1c8;
; each pass folds the RAM/read-back byte into checksum 0x1cf, moves it
; through the 0x6000 data window with the 0x6040/0x6050 handshake, at the
; limit writes/compares the checksum (recording failures into 0x1c9), and
; clocks 0x6040 to signal re-enter or stop.
stepEaromTransfer:
DE1B: AD CA 01 LDA workRam+1CA ; read the EAROM step-machine mode/busy byte
DE1E: D0 4B BNE loc_de6b ; a pass is already active: skip region setup
DE20: AD C7 01 LDA workRam+1C7 ; read the region-pending bits
DE23: F0 46 BEQ loc_de6b ; nothing queued: skip setup
DE25: A2 00 LDX #$00
DE27: 8E CB 01 STX workRam+1CB ; clear the per-region pass counter
DE2A: 8E CF 01 STX workRam+1CF ; clear the running checksum accumulator
DE2D: 8E CE 01 STX workRam+1CE ; clear the single-region walking mask
DE30: A2 08 LDX #$08 ; 8 bits to rotate -- x also becomes the region index
DE32: 38 SEC
loc_de33:
DE33: 6E CE 01 ROR workRam+1CE ; rotate a set bit into the walking mask
DE36: 0A ASL A ; shift the pending bits left, hunting the highest (most-significant) set region bit
DE37: CA DEX ; count down toward the region index
DE38: 90 F9 BCC loc_de33 ; keep rotating until a set bit falls out
DE3A: A0 80 LDY #$80 ; default to write mode (0x80)
DE3C: AD CE 01 LDA workRam+1CE ;
DE3F: 2D C8 01 AND workRam+1C8 ; test the isolated region mask against the direction bits
DE42: D0 02 BNE loc_de46 ; region flagged write: keep write mode
DE44: A0 20 LDY #$20 ; else read mode (0x20)
loc_de46:
DE46: 8C CA 01 STY workRam+1CA ; arm the step-machine mode for this region
DE49: AD CE 01 LDA workRam+1CE ;
DE4C: 4D C7 01 EOR workRam+1C7 ; drop this region's bit out of the pending set
DE4F: 8D C7 01 STA workRam+1C7 ; so it is not serviced again
DE52: 8A TXA
DE53: 0A ASL A ; word-stride the region index into the packed tables
DE54: AA TAX
DE55: BD DD DD LDA rom+4DDD,X ; read the region's start cursor from the packed table
DE58: 8D CC 01 STA workRam+1CC ; seed the region byte cursor
DE5B: BD DE DD LDA rom+4DDE,X ; read the region's end/limit from the packed table
DE5E: 8D CD 01 STA workRam+1CD ; seed the checksum-position limit
DE61: BD E3 DD LDA rom+4DE3,X ; read the region RAM-copy pointer low byte
DE64: 85 BD STA workRam+BD ; seed the region walk-pointer low
DE66: BD E4 DD LDA rom+4DE4,X ; read the region RAM-copy pointer high byte
DE69: 85 BE STA workRam+BE ; seed the region walk-pointer high
loc_de6b:
DE6B: A0 00 LDY #$00
DE6D: 8C 40 60 STY mathboxStatus / earomControl; reset the math-box / EAROM control port
DE70: AD CA 01 LDA workRam+1CA ; read the mode byte
DE73: D0 01 BNE loc_de76 ; mode active: run a pass
DE75: 60 RTS
loc_de76:
DE76: AC CB 01 LDY workRam+1CB ; y = which entry of the region is being serviced
DE79: AE CC 01 LDX workRam+1CC ; x = position in the EAROM data window
DE7C: 0A ASL A ; shift the mode byte to select the sub-operation
DE7D: 90 0D BCC loc_de8c ;
DE7F: 9D 00 60 STA earomWrite,X ; stage a data byte into the EAROM data window
DE82: A9 40 LDA #$40
DE84: 8D CA 01 STA workRam+1CA ; arm the write sub-mode (0x40)
DE87: A0 0E LDY #$0E
DE89: B8 CLV
DE8A: 50 73 BVC loc_deff ;
loc_de8c:
DE8C: 10 25 BPL loc_deb3 ;
DE8E: A9 80 LDA #$80 ; set write mode
DE90: 8D CA 01 STA workRam+1CA ;
DE93: AD C6 01 LDA workRam+1C6 ; read the blank flag
DE96: F0 04 BEQ loc_de9c ; not blanking: keep the RAM byte
DE98: A9 00 LDA #$00
DE9A: 91 BD STA (workRam+BD),Y ; blank the RAM byte through the region walk pointer
loc_de9c:
DE9C: B1 BD LDA (workRam+BD),Y ; read the RAM byte through the region walk pointer
DE9E: EC CD 01 CPX workRam+1CD ; reached the region limit?
DEA1: 90 08 BCC loc_deab ; not yet
DEA3: A9 00 LDA #$00
DEA5: 8D CA 01 STA workRam+1CA ; clear mode: region done
DEA8: AD CF 01 LDA workRam+1CF ; at the limit, emit the running checksum instead
loc_deab:
DEAB: 9D 00 60 STA earomWrite,X ; stage the byte into the EAROM data window
DEAE: A0 0C LDY #$0C
DEB0: B8 CLV
DEB1: 50 3F BVC loc_def2 ;
loc_deb3:
DEB3: A9 08 LDA #$08
DEB5: 8D 40 60 STA mathboxStatus / earomControl; begin the EAROM read handshake on the control port
DEB8: 9D 00 60 STA earomWrite,X ;
DEBB: A9 09 LDA #$09
DEBD: 8D 40 60 STA mathboxStatus / earomControl; clock the control port
DEC0: EA NOP
DEC1: A9 08 LDA #$08
DEC3: 8D 40 60 STA mathboxStatus / earomControl; return the control port
DEC6: EC CD 01 CPX workRam+1CD ; reached the region limit?
DEC9: AD 50 60 LDA earomRead ; read the EAROM read-back port
DECC: 90 20 BCC loc_deee ; not at limit: store the byte
DECE: 4D CF 01 EOR workRam+1CF ; at the limit, xor the read-back against the running checksum
DED1: F0 13 BEQ loc_dee6 ; zero means the region verified
DED3: A9 00 LDA #$00
DED5: AC CB 01 LDY workRam+1CB ;
loc_ded8:
DED8: 91 BD STA (workRam+BD),Y ; checksum mismatch: blank the region's RAM bytes back to front
DEDA: 88 DEY
DEDB: 10 FB BPL loc_ded8 ; loop until the whole region is blanked
DEDD: AD CE 01 LDA workRam+1CE ;
DEE0: 0D C9 01 ORA workRam+1C9 ; record the failure by re-queuing the region bit
DEE3: 8D C9 01 STA workRam+1C9 ; into the pending-work flags
loc_dee6:
DEE6: A9 00 LDA #$00
DEE8: 8D CA 01 STA workRam+1CA ; retire the mode byte -- region done
DEEB: B8 CLV
DEEC: 50 02 BVC loc_def0 ;
loc_deee:
DEEE: 91 BD STA (workRam+BD),Y ; store the read-back byte through the region walk pointer
loc_def0:
DEF0: A0 00 LDY #$00
loc_def2:
DEF2: 18 CLC
DEF3: 6D CF 01 ADC workRam+1CF ; fold the byte into the running checksum
DEF6: 8D CF 01 STA workRam+1CF ; store the checksum accumulator
DEF9: EE CB 01 INC workRam+1CB ; bump the per-region pass counter
DEFC: EE CC 01 INC workRam+1CC ; bump the region byte cursor
loc_deff:
DEFF: 8C 40 60 STY mathboxStatus / earomControl; write the exit code to the control port
DF02: 98 TYA
DF03: D0 03 BNE loc_df08 ; nonzero exit: return, re-enter later
DF05: 4C 1B DE JMP stepEaromTransfer ; else loop to drain the next entry
loc_df08:
DF08: 60 RTS
; Stores the fixed body byte 0xc0 at the draw cursor origin loc_74 and
; runs the shared record-tail emit.
emitRecordBodyC0:
DF09: A9 C0 LDA #$C0 ; fixed body byte 0xc0 -- the vector-generator opcode for this record class
DF0B: D0 05 BNE emitRecordBodyByte ; jump to the body-write step
; build a two-byte-header record: emit the {0x40,0x80} header via 0x74,
; then store the fixed body byte 0x20 at the cursor origin and run the
; shared record tail.
emitHeaderedBodyRecord:
DF0D: 20 53 DF JSR emitVectorHeaderWord; lay the record header word through the draw cursor
DF10: A9 20 LDA #$20 ; fixed body byte 0x20, then fall into the body-write step
; store one body byte (A) at the display cursor origin (0x74)+0 and
; continue into the shared record tail (0xdfac).
emitRecordBodyByte:
DF12: A0 00 LDY #$00
DF14: 91 74 STA (workRam+74),Y ; store the body byte at the draw-cursor origin
DF16: 4C AC DF JMP emitRecordTailByte ; continue into the shared record tail
; emit a stroke-table word: form a word index from A's low nibble (0 when
; carry set and nibble is zero, else nibble+1), double it, copy the two
; bytes of table 0x31e4[index] into the display list at cursor 0x74, and
; advance two.
emitStrokeWordFromNibble:
DF19: 90 04 BCC emitStrokeWordFromNibblePlusOne; carry clear: skip the zero-terminator test, use nibble+1
DF1B: 29 0F AND #$0F ; keep the low nibble -- the glyph selector
DF1D: F0 05 BEQ emitStrokeWordByIndex; carry set and nibble zero: select terminator glyph 0
; thin index wrapper: form the stroke-table index (A&0x0f)+1 and share the
; 0x31e4 copy-and-advance emit tail, laying that word into the display
; list at cursor 0x74.
emitStrokeWordFromNibblePlusOne:
DF1F: 29 0F AND #$0F ; keep the low nibble
DF21: 18 CLC
DF22: 69 01 ADC #$01 ; index = nibble + 1
; emit one glyph/stroke vector word by table index A: copy the two bytes
; of ROM stroke-table $31E4 entry ($31E4 + (A<<1)) into the vector list at
; write cursor mem16[loc_74] and step the cursor past them via
; advanceDisplayCursor (entry emitStrokeWordFromNibblePlusOne first maps a
; low nibble to index (nibble&0x0f)+1).
emitStrokeWordByIndex:
DF24: 08 PHP
DF25: 0A ASL A ; double the index -- stroke entries are 16-bit words
DF26: A0 00 LDY #$00
DF28: AA TAX
DF29: BD E4 31 LDA vectorRom+1E4,X ; read the glyph's first stroke byte from the vector-ROM stroke table
DF2C: 91 74 STA (workRam+74),Y ; copy it into the display list at the draw cursor
DF2E: BD E5 31 LDA vectorRom+1E5,X ; read the glyph's second stroke byte
DF31: C8 INY
DF32: 91 74 STA (workRam+74),Y ; copy it to draw cursor +1
DF34: 20 5F DF JSR advanceDisplayCursor; advance the draw cursor two bytes past the word
DF37: 28 PLP
DF38: 60 RTS
; Emits a coordinate vector word: high byte is a's upper nibble tagged
; 0xa0, low byte is x shifted right with a's carry rotated into bit7,
; written through loc_74 then advanced (or, on cursor wrap, tailing
; emitTaggedVectorWord with key loc_73).
emitCoordinateVectorWord:
DF39: 4A LSR A ; shift a right, low bit into carry
DF3A: 29 0F AND #$0F ; keep a's upper nibble
DF3C: 09 A0 ORA #$A0 ; tag the high byte with the 0xa0 vector-generator opcode
DF3E: A0 01 LDY #$01
DF40: 91 74 STA (workRam+74),Y ; store the tagged high byte at draw cursor +1
DF42: 88 DEY
DF43: 8A TXA
DF44: 6A ROR A ; rotate x right with a's old bit0 into bit7 -- the low byte
DF45: 91 74 STA (workRam+74),Y ; store the low byte at the draw-cursor origin
DF47: C8 INY
DF48: D0 15 BNE advanceDisplayCursor; advance the draw cursor past the word
; Emits a vector word tagged 0x60 using the key byte loc_73 as its data
; byte through the draw cursor loc_74.
emitVectorWordTag60FromKey:
DF4A: A4 73 LDY workRam+73 ; take the second payload byte from the current record-header key
; emit one vector word through cursor 0x74: first byte the Y payload,
; second byte the A payload tagged with header bits 0x60 (via $DF57).
emitTaggedVectorWord:
DF4C: 09 60 ORA #$60 ; OR the 0x60 header tag into the payload byte
DF4E: AA TAX
DF4F: 98 TYA
DF50: 4C 57 DF JMP emitVectorWord ; lay the tagged pair into the display list via the shared vector-word writer
; emit the fixed {0x40,0x80} vector header word at the cursor 0x74 (0x40
; then 0x80 into display RAM) and advance the cursor two.
emitVectorHeaderWord:
DF53: A9 40 LDA #$40 ; load the canonical beam-position header low byte 0x40
DF55: A2 80 LDX #$80 ; load its high byte 0x80 -- the fixed record-opening header word
; lay one vector word into the display list: store A at cursor (0x74)+0
; and X at +1, then advance the cursor two via 0x74/0x75.
emitVectorWord:
DF57: A0 00 LDY #$00 ; point at the draw cursor origin (offset 0)
; indexed word emit: store A at cursor 0x74 offset Y and X at Y+1, then
; advance the cursor past them by (Y+1)+1.
emitVectorWordAtOffset:
DF59: 91 74 STA (workRam+74),Y ; store the word's low byte at draw cursor + y
DF5B: C8 INY
DF5C: 8A TXA
DF5D: 91 74 STA (workRam+74),Y ; store the word's high byte at draw cursor + y+1
; advance the 16-bit display cursor 0x74/0x75 by Y+1 (carry forced set),
; storing the new low byte at 0x74 and bumping high byte 0x75 on overflow;
; returns the new low byte in A.
advanceDisplayCursor:
DF5F: 98 TYA ; stride for the cursor advance = the offset just consumed
DF60: 38 SEC ; force the carry so the add yields stride + 1
DF61: 65 74 ADC workRam+74 ; add stride+1 to the draw cursor low byte
DF63: 85 74 STA workRam+74 ; store the advanced draw cursor low byte
DF65: 90 02 BCC loc_df69 ; if no page overflow, done
DF67: E6 75 INC workRam+75 ; carry the draw cursor into the next page
loc_df69:
DF69: 60 RTS
; Emits a 0x70-tagged vector word with a zero data byte through the draw
; cursor loc_74.
emitBlankVectorWordTag70:
DF6A: A0 00 LDY #$00 ; zero the data byte for a blank 0x70-tagged record opener
; Emits one vector word through the draw cursor loc_74 -- first byte the y
; payload, second byte the a payload OR 0x70 -- then advances.
emitVectorWordTag70:
DF6C: 09 70 ORA #$70 ; OR the 0x70 header tag into the payload byte
DF6E: AA TAX
DF6F: 98 TYA
DF70: 4C 57 DF JMP emitVectorWord ; lay the tagged word via the shared vector-word writer
; Stashes the index byte into the key cell loc_73, then scales the two
; coordinates and emits the scaled coordinate record.
emitKeyedScaledCoordinateRecord:
DF73: 84 73 STY workRam+73 ; stash the record's key/index byte into the header cell (loc_73)
; Widens two input values by four with sign extension into the delta pairs
; loc_6e/loc_6f and loc_70/loc_71, then emits the coordinate record they
; anchor.
emitScaledCoordinateRecord:
DF75: A0 00 LDY #$00
DF77: 0A ASL A ; shift the first coordinate left (x2)
DF78: 90 01 BCC loc_df7b ; if no sign bit shifted out, leave the sign fill zero
DF7A: 88 DEY ; else set an all-ones negative sign fill
loc_df7b:
DF7B: 84 6F STY workRam+6F ; store the first delta's high-byte sign fill (loc_6f)
DF7D: 0A ASL A ; shift again -- x4 total
DF7E: 26 6F ROL workRam+6F ; roll the shifted-out bit into the delta high byte
DF80: 85 6E STA workRam+6E ; store the first coordinate's scaled low byte (loc_6e)
DF82: 8A TXA ; second coordinate into a
DF83: 0A ASL A ; shift the second coordinate left (x2)
DF84: A0 00 LDY #$00
DF86: 90 01 BCC loc_df89 ; sign check for the second coordinate
DF88: 88 DEY ; set an all-ones negative sign fill
loc_df89:
DF89: 84 71 STY workRam+71 ; store the second delta's high-byte sign fill (loc_71)
DF8B: 0A ASL A ; shift again -- x4 total
DF8C: 26 71 ROL workRam+71 ; roll the shifted-out bit into the delta high byte
DF8E: 85 70 STA workRam+70 ; store the second coordinate's scaled low byte (loc_70)
DF90: A2 6E LDX #$6E ; anchor the coordinate record at the first delta pair (loc_6e)
; Emits a four-byte coordinate record from the zeropage slots off x --
; loc_2+x, loc_3+x masked 0x1f, loc_0+x, and a key-folded 5-bit loc_1+x --
; through the draw cursor loc_74.
emitCoordinateRecord:
DF92: A0 00 LDY #$00 ; point at the draw cursor origin
DF94: B5 02 LDA workRam+2,X ; read coordinate source byte (loc_2 + x)
DF96: 91 74 STA (workRam+74),Y ; write it at draw cursor +0
DF98: B5 03 LDA workRam+3,X ; read source byte (loc_3 + x)
DF9A: 29 1F AND #$1F ; clip to five bits
DF9C: C8 INY
DF9D: 91 74 STA (workRam+74),Y ; write at draw cursor +1
DF9F: B5 00 LDA workRam,X ; read source byte (loc_0 + x)
DFA1: C8 INY
DFA2: 91 74 STA (workRam+74),Y ; write at draw cursor +2
DFA4: B5 01 LDA workRam+1,X ; read the key-folded source byte (loc_1 + x)
DFA6: 45 73 EOR workRam+73 ; XOR with the record header key (loc_73)
DFA8: 29 1F AND #$1F ; keep only the low five bits re-keyed
DFAA: 45 73 EOR workRam+73 ; XOR the key back so the top three bits come from the key
; Stores one final record byte at the next draw-cursor slot loc_74 and
; either advances the cursor or, on wrap to zero, runs the terminating
; nibble run.
emitRecordTailByte:
DFAC: C8 INY ; advance to the record's tail slot
DFAD: 91 74 STA (workRam+74),Y ; write the key-folded fourth byte at the tail slot
DFAF: D0 AE BNE advanceDisplayCursor; if the slot index has not wrapped to zero, advance the cursor -- else terminate the run
; Emits a run of y zeropage bytes from the top index a+y-1 downward, each
; byte as its high then low nibble via the glyph-word lookup, chaining
; carry so only the final low nibble sees carry cleared as the terminator.
emitNibbleDigitRun:
DFB1: 38 SEC ; seed the carry set for the digit run
DFB2: 08 PHP
DFB3: 88 DEY ; run counter = length - 1
DFB4: 84 AE STY workRam+AE ; store the run counter (loc_ae)
DFB6: 18 CLC
DFB7: 65 AE ADC workRam+AE ; index = run base + count -- the top byte of the run
DFB9: 28 PLP
DFBA: AA TAX ; working index into x
loc_dfbb:
DFBB: 08 PHP
DFBC: 86 AF STX workRam+AF ; save the working index (loc_af)
DFBE: B5 00 LDA workRam,X ; fetch the packed byte at the run base + x
DFC0: 4A LSR A ; shift the packed byte's high nibble down into the low four bits
DFC1: 4A LSR A
DFC2: 4A LSR A
DFC3: 4A LSR A
DFC4: 28 PLP
DFC5: 20 19 DF JSR emitStrokeWordFromNibble; emit the high nibble as a glyph stroke word
DFC8: A5 AE LDA workRam+AE ; reload the run counter
DFCA: D0 01 BNE loc_dfcd ; if not the last byte, keep the propagating carry
DFCC: 18 CLC ; last byte -- force the carry clear as the run terminator marker
loc_dfcd:
DFCD: A6 AF LDX workRam+AF ; restore the working index
DFCF: B5 00 LDA workRam,X ; re-fetch the packed byte for its low nibble
DFD1: 20 19 DF JSR emitStrokeWordFromNibble; emit the low nibble as a glyph stroke word
DFD4: A6 AF LDX workRam+AF ;
DFD6: CA DEX ; step to the previous byte of the run
DFD7: C6 AE DEC workRam+AE ; decrement the run counter
DFD9: 10 E0 BPL loc_dfbb ; loop while the counter stays non-negative
DFDB: 60 RTS
; ---- $DFDC-$DFFF: data ----
DFDC: 10 10 40 40 90 90 FF FF 00 0C 16 1E 20 1E 16 0C
DFEC: 00 F4 EA E2 E0 E2 EA F4 00 0C 16 1E 00 00
DFFA: 04 D7 ; NMI vector to D704
DFFC: 3F D9 ; RESET vector to D93F
DFFE: 04 D7 ; IRQ vector to D704
